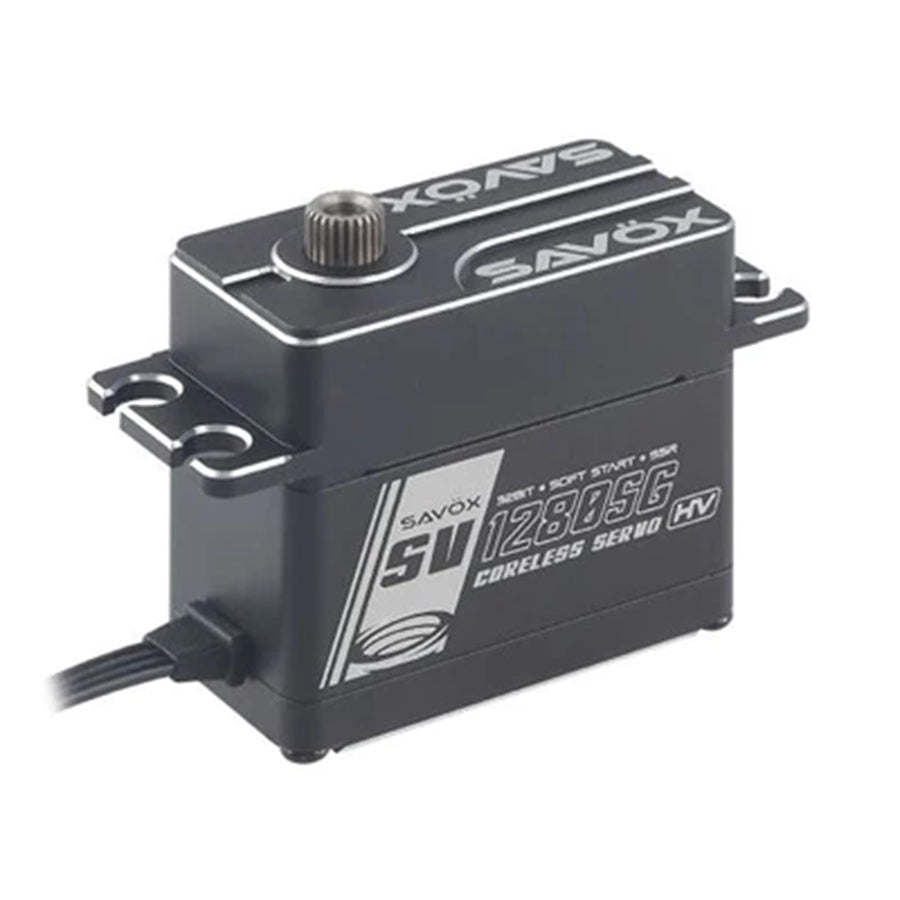

Savox- SV1280SGP Servo
$131.99
Skip to product information
Only 5 Left!
Savox- SV1280SGP Servo
$131.99
Monster Torque
Pulls up to 763.8 oz-in
Steel Gears
Precision cut extreme gear durability
HV Operation
Direct 2S LiPo battery power
In Stock
Unmatched Precision ControlExtreme torque for demanding RC applications
The Savox High Voltage Coreless Steel Gear Monster Torque Servo delivers exceptional power and ultra-fast response for high-demand RC vehicles and large scale aircraft. Engineered with an all-aluminum case and precision steel gears, this digital high-voltage servo provides up to 763.8 oz-in of torque at 8.4V. Featuring Soft Start technology and Sanwa SSR compatibility, it offers smooth initialization and incredible accuracy for competitive RC steering and throttle control.
Engineering Designed for Extreme PerformanceBuilt tough for off-road bashers and aircraft
Designed for severe racing conditions, the Savox High Voltage Coreless Steel Gear Monster Torque Servo is the ultimate performance upgrade for 1/8 scale off-road buggies, truggies, monster trucks, and large scale RC planes. Its coreless motor construction guarantees rapid response times, delivering a blinding speed of 0.12sec/60 deg at 8.4V. The robust all-aluminum heat-sink housing ensures optimal cooling during intense runtime, while the advanced internal steel geartrain prevents stripping under heavy shock loads. Upgrading your steering setup with this high performance RC servo ensures maximum holding power, crisp center position accuracy, and total reliability on the track or in the air.
Technical Performance DataFull detailed engineering specifications list
Part Type
Steering / Throttle Servo
Torque @ 7.4V
45.0kg / 624.9oz-in
Torque @ 8.4V
55.0kg / 763.8oz-in
Speed @ 7.4V
0.14 sec/60 deg
Speed @ 8.4V
0.12 sec/60 deg
Motor Type
Coreless
Gear Material
Steel
Case Material
All Aluminum

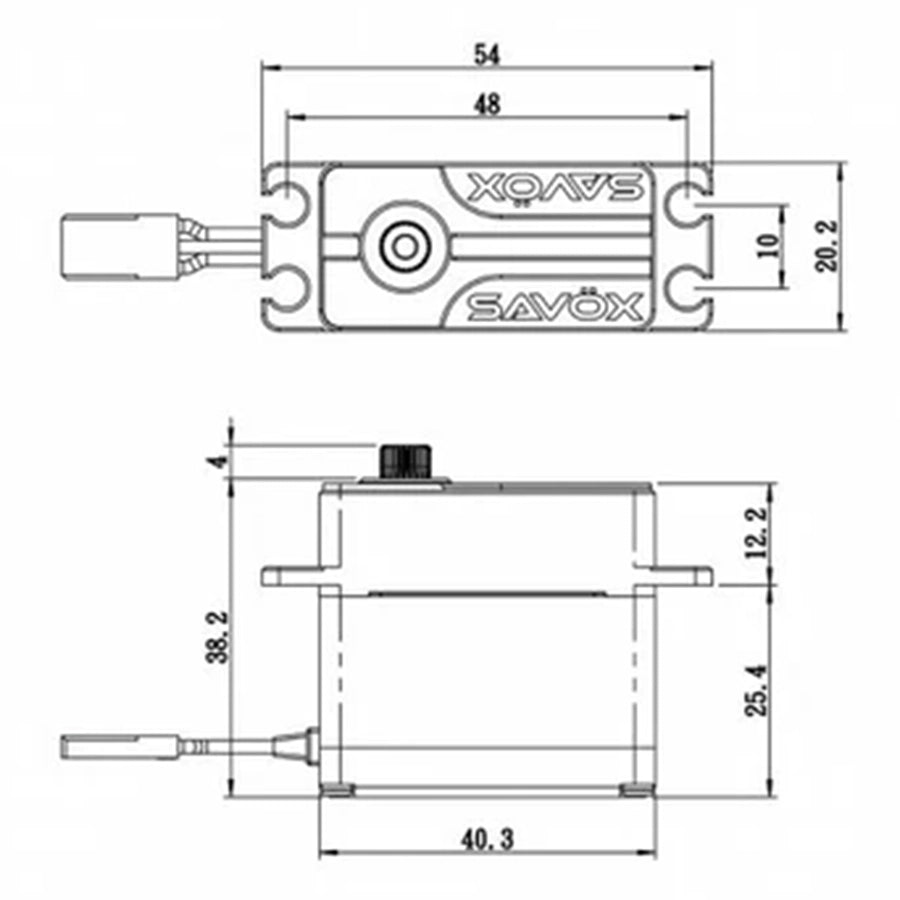

Dimensions
40.3 x 20.2 x 38.2 mm
Weight
76.0g
Input Voltage
High Voltage 2S LiPo Compatible
Compatibility
Sanwa SSR Protocol & Standard Receivers
Key Features & CapabilitiesAdvanced technology for maximum power
Ultra-Torque OutputProduces up to 763.8oz-in at 8.4V
Heavy Duty Steel GearsPrecision-machined gears resist stripping under load
All-Aluminum CasePremium CNC aluminum housing dissipates heat rapidly
High Voltage OperationFully compatible with direct 2S LiPo receiver setups
Soft Start FunctionSmooth power distribution on boot prevents initial control arm shock
Sanwa SSR CompatibleSupports super high response radio protocols
Versatile CompatibilityIdeal for 1/8 off-road RC cars and large scale aircraft
Frequently Asked QuestionsEverything you need to know
Is the Savox High Voltage Coreless Steel Gear Monster Torque Servo waterproof?
While the Savox High Voltage Coreless Steel Gear Monster Torque Servo features a weather-resistant aluminum case structure, it is not fully submersible and should be protected from direct immersion in water.
Can I run the Savox High Voltage Coreless Steel Gear Monster Torque Servo directly on a 2S LiPo battery?
Yes, the Savox High Voltage Coreless Steel Gear Monster Torque Servo is designed for HV operation, allowing you to power it directly from a 2S LiPo battery up to 8.4V without needing an external BEC.
What RC applications are best suited for the Savox High Voltage Coreless Steel Gear Monster Torque Servo?
The Savox High Voltage Coreless Steel Gear Monster Torque Servo is ideal for demanding applications such as 1/8 scale off-road RC buggies and truggies, rock crawlers, large monster trucks, and large scale RC aircraft requiring high torque and fast response.
What is the benefit of the Soft Start feature in the Savox High Voltage Coreless Steel Gear Monster Torque Servo?
The Soft Start feature in the Savox High Voltage Coreless Steel Gear Monster Torque Servo allows the servo to move smoothly into its center position upon powering up, preventing sudden jerky movements that could strain steering linkages or mechanical components.
