Spektrum S9110BL 1/5 Speed Metal Servo
$199.99
Skip to product information
Only 1 Left!
Spektrum S9110BL 1/5 Speed Metal Servo
$199.99
High Speed
0.14 sec at 8.4V
Massive Torque
1224 oz-in output torque
Brushless Motor
Precision brushless power plant
1/5 Scale Ready
Engineered for large scale
Metal Gears
Heavy duty metal train
HV Compatible
Operates from 6.0V to 8.4V
In Stock
Next-Level 1/5 Scale PowerUltra fast precision for large scale RC

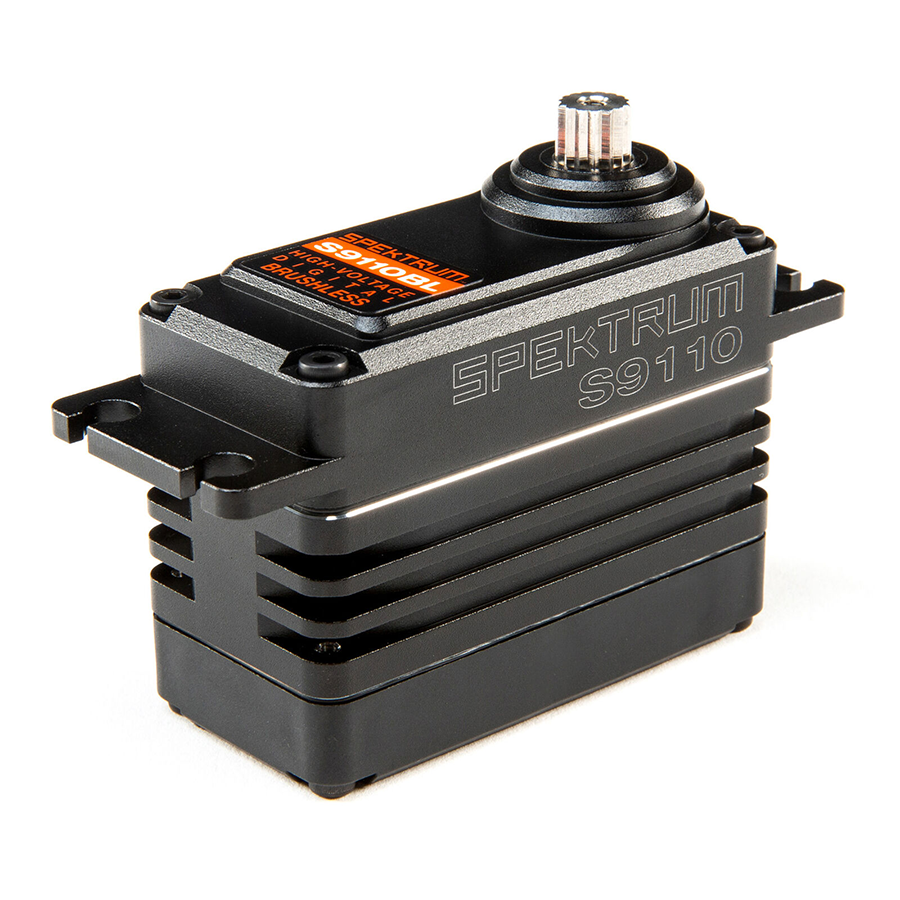

The Spektrum S9110BL 1/5 Digital HV High Speed Brushless Servo delivers extreme performance for large-scale off-road RC vehicles. Engineered specifically to meet the demanding torque and speed requirements of 1/5 scale bashing and racing, this high-performance RC car servo offers exceptional precision and control. Upgrade your rig with race-proven durability designed to take harsh impacts and deliver top-tier steering response.
Engineered For Heavy-Duty SteeringWorld championship winning performance and durability
Designed from the ground up for extreme operating conditions, the Spektrum S9110BL 1/5 Digital High Speed Servo features a redesigned case with reinforced pin supports and a new aluminum top plate for exceptional structural integrity. Powered by a high-efficiency brushless motor and operating on high voltage (HV) up to 8.4V, it generates an impressive 1224.3 oz-in of torque with a lightning-fast transit time of 0.14 sec/60°. Complete with precision metal gears, a sleek stealth-black finish, and a thick 18AWG detachable connector wire, this brushless metal gear servo guarantees unmatched agility and endurance whether racing on the track or tearing up off-road terrain.
Technical DataComplete engineering specs and dimensions
Part Type
Digital HV Surface Servo
Application
1/5 Scale Off-Road
Motor Type
Brushless
Gear Type
Metal
Servo Speed
0.14 sec/60 deg @ 8.4V
Maximum Servo Torque
1224.3 oz-in @ 8.4V
Servo Operating Voltage
6.0V - 8.4V (HV) (battery)
Connector Wire Length
6 in (152mm) 18AWG (wire)
Product Length
2.47 in (62.7mm) (ruler)
Product Width
1.18 in (30mm) (ruler)
Product Height
1.84 in (27.2mm) (ruler)
Product Weight
6.3 oz (178.6g) (weight)
Bushing Or Bearing
Bearing
Deadband
Micro sec <1
Heavy-Duty EnhancementsAdvanced features engineered for reliability
Brushless Power PlantHigh-efficiency motor delivers rapid response and high thermal stability
Reinforced Case DesignAluminum top plate with enhanced pin support prevents flex under heavy load
Substantial High-Speed TorqueProduces 1224.3 oz-in of torque at a fast 0.14 sec/60° speed at 8.4V
Detachable WiringFeatures a thick 18AWG detachable connector wire for custom wiring setups
All-Metal Gear TrainDurable internal drive gears designed to resist stripping during aggressive drives
Race-Proven PlatformProven design winner at the 1/5 scale Worlds Buggy Class
High Voltage CapableCompatible with 2S LiPo receiver batteries without requiring a regulator
Frequently Asked QuestionsEverything you need to know
What operating voltage range does the Spektrum S9110BL 1/5 Digital HV High Speed Brushless Servo support?
The Spektrum S9110BL 1/5 Digital HV High Speed Brushless Servo supports an operating voltage range of 6.0V to 8.4V (High Voltage), allowing you to power it directly from 2S LiPo receiver batteries for maximum torque and transit speed.
Is the Spektrum S9110BL 1/5 Digital HV High Speed Brushless Servo compatible with standard 1/5 scale vehicles?
Yes, the Spektrum S9110BL servo is designed specifically for 1/5 scale off-road surface applications, such as large scale gas or electric buggies and monster trucks requiring extreme high-speed steering performance.
What are the torque and speed ratings for the Spektrum S9110BL 1/5 Digital HV High Speed Brushless Servo?
At 8.4V, the Spektrum S9110BL servo delivers up to 1224.3 oz-in (88.16 kg-cm) of torque with a speed of 0.14 sec/60 deg. At 6.0V, it outputs 867 oz-in of torque at 0.21 sec/60 deg.
