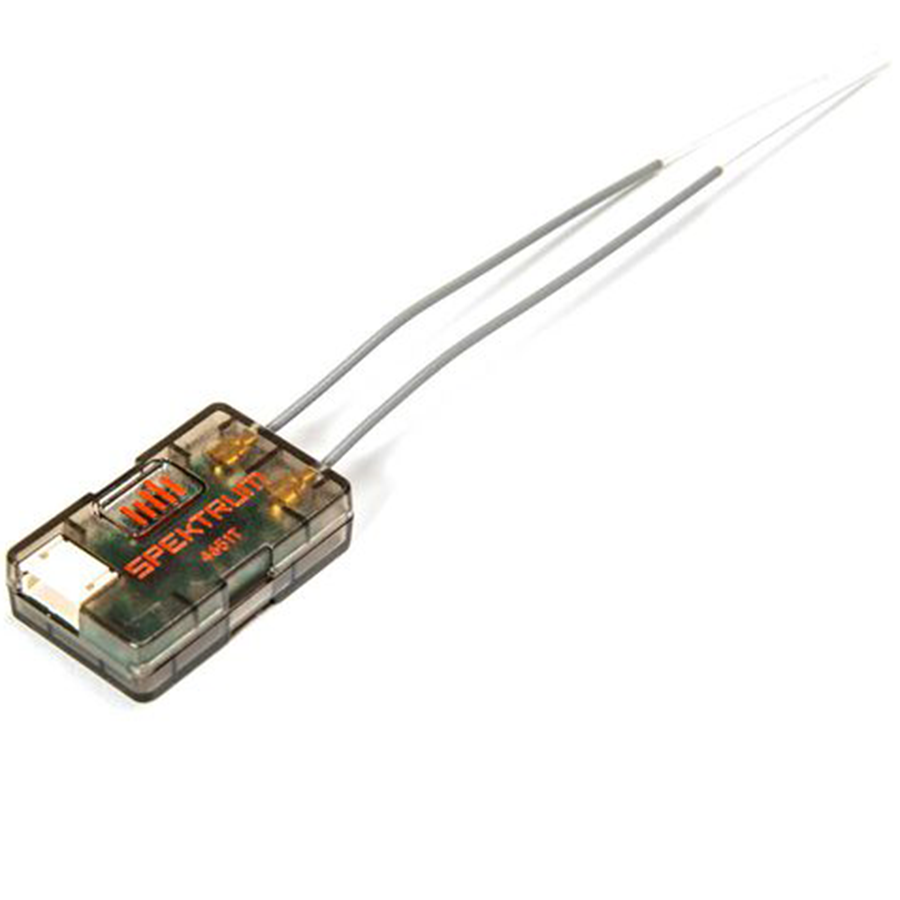

SRXL2 DSMX Remote Serial Telemetry Receiver
$45.99
Skip to product information
In Stock
SRXL2 DSMX Remote Serial Telemetry Receiver
$45.99
20 Channels
Blazing Fast Serial Connection
Full Telemetry
Real Time Bi Directional Feedback
Dual Diversity
Maximum Signal Strength Antennas
Wide Input
Supports 3.3V To 8.4V Input
Simple Binding
Integrated One Touch Bind Button
Micro Size
Ultra Lightweight 4g Design
In Stock
Next-Gen Serial ConnectivityAdvanced Telemetry For Flight Enthusiasts
The Spektrum SRXL2 DSMX Remote Serial Telemetry Receiver delivers high-speed bi-directional communication with up to 20 channels for RC helicopters, multi-rotors, and FPV drones. Utilizing the open-source SRXL2 protocol, this 2.4GHz micro receiver provides full telemetry feedback and seamless flight controller configuration directly from your transmitter over a single signal wire. Experience unmatched range and interference-free performance in an ultralight package.
Maximum Performance In Micro FormUncompromising Signal Security And Range
Engineered for demanding aerial applications, the Spektrum SRXL2 DSMX Remote Serial Telemetry Receiver features an integrated Low Noise Amplifier (LNA) coupled with long coaxial dual-diversity antennas to eliminate signal shadowing from carbon fiber, metal, and battery packs. Bypassing the need for traditional bind plugs, the built-in bind button enables effortless setup at the bench or field. Operating across a wide 3.3V to 8.4V input voltage range, this compact telemetry receiver is the ultimate upgrade for pilots seeking top-tier reliability, extended control range, and advanced real-time flight data integration.
Technical SpecificationsDetailed Dimensions And Electronic Specs
Compatible Vehicles
RC Helicopters, Multi-Rotors, FPV Drones
Part Type
Serial Micro Receiver
Material
Composite / PCB
Placement/Position
Flight Controller Connection
Dimensions
0.71 x 0.31 in / 18 x 7.8 mm
Weight
0.14 oz / 4 g
Antenna Length
3.9 in / 100 mm
Band
2.4GHz
Bind Method
Bind Button (mouse-pointer)
Channels
20
Failsafe
No (alert-circle)
Input Voltage
3.3V - 8.4V
Modulation
DSMX
Programmable
Yes
Range
Full
Rev Limiter
No (minus-circle)
Technology
Smart Technology / SRXL2
Telemetry
Integrated
Water-Resistant
No (droplet-off)
Key Electronics FeaturesBuilt For Maximum Flight Performance
SRXL2 ProtocolBlazing fast single-wire serial data connection
Signal AmplifierLow Noise Amplifier reduces interference and extends range
Micro FootprintUltra-lightweight 4-gram design perfect for FPV and Helis
Voltage CompatibilityFlexible 3.3V to 8.4V wide input range
Full TelemetryIntegrated bi-directional telemetry communication
Dual DiversityTwin long coaxial antennas prevent signal shadowing
Easy BindingIntegrated bind button eliminates need for bind plugs
Frequently Asked QuestionsEverything you need to know
What flight platforms work best with the Spektrum SRXL2 DSMX Remote Serial Telemetry Receiver?
The Spektrum SRXL2 DSMX Remote Serial Telemetry Receiver is ideal for RC helicopters, multi-rotors, and FPV drones where a lightweight, serial telemetry connection to a flight controller is required.
How do you bind the Spektrum SRXL2 DSMX Remote Serial Telemetry Receiver to a transmitter?
Simply press and hold the integrated bind button on the Spektrum SRXL2 DSMX Remote Serial Telemetry Receiver while powering it on—no separate bind plug or secondary main receiver is necessary.
What input voltage does the Spektrum SRXL2 DSMX Remote Serial Telemetry Receiver require?
The Spektrum SRXL2 DSMX Remote Serial Telemetry Receiver supports a wide input voltage range of 3.3V to 8.4V, making it compatible with standard 1S to 2S LiPo direct setups and flight controller BEC power buses.
Does the Spektrum SRXL2 DSMX Remote Serial Telemetry Receiver transmit real-time telemetry data?
Yes, the receiver features full-range integrated telemetry via the SRXL2 protocol, enabling bi-directional telemetry feedback and flight controller configuration right on compatible Spektrum transmitters.
