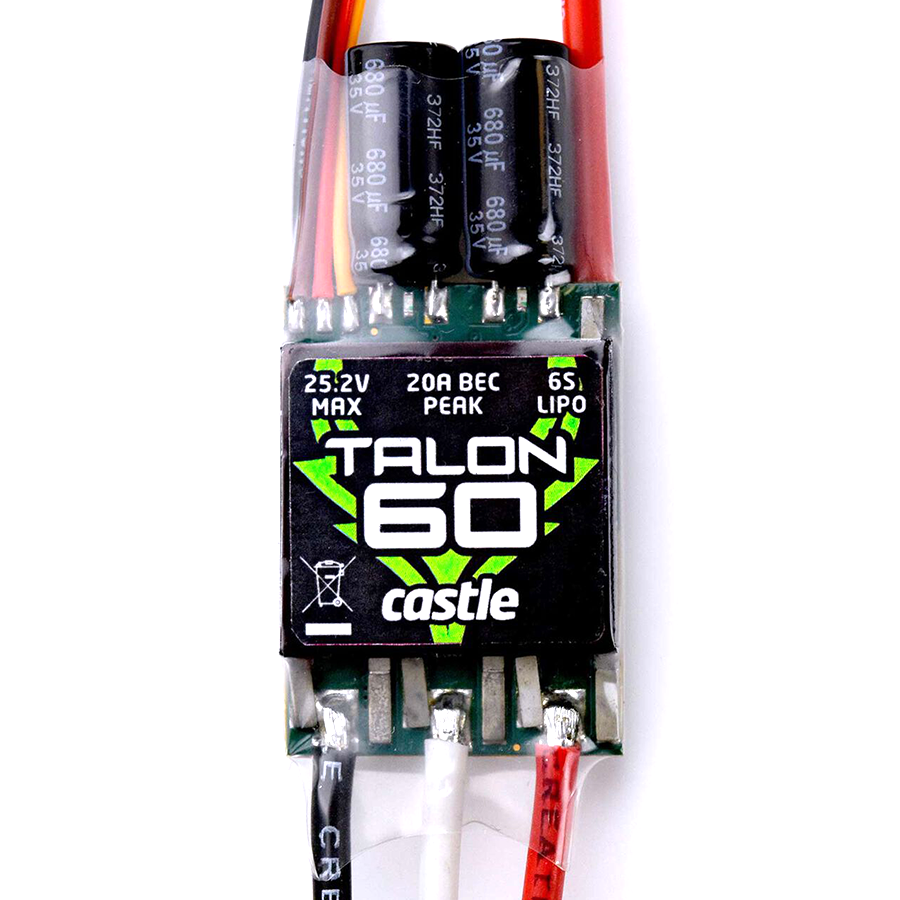

Talon 60, 60-Amp 6S Max, Heavy Duty BEC
$89.95
Skip to product information
Only 2 Left!
Talon 60, 60-Amp 6S Max, Heavy Duty BEC
$89.95
6S LiPo Ready
Handles up to 25.2 volts
60A Continuous
Delivers up to 1400 watts
20A Heavy-Duty BEC
Selectable 6V or 8V output
Direct-Entry Governor
Precise RPM heli tuning
Telemetry Capable
Futaba S.Bus2 link supported
Castle Link Ready
Fully programmable via PC
In Stock
Pro-Level Aircraft PowerUnmatched performance for precision model flight
The TALON 60, 60-Amp 6S MAX Heavy Duty BEC is an exceptional brushless speed controller engineered for demanding RC airplanes and aerobatic helicopters. Delivering up to 1400 watts of continuous power on a 6S LiPo setup, this high-efficiency ESC provides reliable power distribution and smooth throttle response. Equipped with a peak 20A BEC, the Talon 60 ESC effortlessly powers high-torque digital servos for ultimate control in flight.
Precision Engineering for PilotsAdvanced features and reliable thermal management
Designed specifically for 360-450 size scale or aerobatic helicopters and .32-.60 size sport aircraft, the TALON 60, 60-Amp 6S MAX Heavy Duty BEC delivers elite speed control performance. Featuring a heavy-duty 20A peak BEC with user-selectable 6V or 8V output options, this ESC ensures modern high-voltage servos operate with maximal speed and torque. Heli pilots can utilize the Direct-Entry Governor mode for exact target RPM setups, while built-in safety alerts monitor over-temperature, excessive loads, and locked head speeds. Fully compatible with the Castle Link USB Adapter and telemetry-ready for Futaba S.Bus2 radios, this speed controller offers ultimate tuning control for demanding aviators.
Technical SpecificationsCore ratings and electrical performance
Part Type
Brushless Electronic Speed Control (ESC) (gear)
Compatible Vehicles
.32-.60 Size Planes & 360-450 Size Helis
Input Voltage
2S - 6S LiPo
Continuous Current
60 Amps
Max Power Output
1400 Watts
BEC Peak Current
20 Amps Peak
BEC Voltage Output
Selectable 6V or 8V
Telemetry Support
Futaba S.Bus2 Capable
Programmability
Castle Link USB Adapter Compatible
Warranty
1-Year Limited Warranty
Key Flight CapabilitiesAdvanced features built for performance
Input VoltageSupports 2S through 6S LiPo batteries up to 1400W
Heavy-Duty BECPeak 20A BEC with user-selectable 6V or 8V output
Direct-Entry GovernorPrecise RPM governor mode for 3D and scale helicopters
Telemetry IntegrationCompatible with Castle Telemetry Link for Futaba S.Bus2
PC ProgrammingFully customizable via Castle Link Programming Suite
System AlertsAudio and visual warnings for over-temp and electrical load
Adapter Coupon IncludedContains redeemable coupon for Castle Link USB Adapter
Target AirframesPerfect for .32-.60 planes and 360-450 size helicopters
Frequently Asked QuestionsEverything you need to know
What aircraft sizes are ideal for the TALON 60, 60-Amp 6S MAX Heavy Duty BEC?
The TALON 60, 60-Amp 6S MAX Heavy Duty BEC is designed for 360-450 size scale or aerobatic helicopters and .32-.60 size scale, sport, or aerobatic airplanes requiring up to 1400 watts on 6S LiPo power.
Can I adjust the BEC voltage on the TALON 60, 60-Amp 6S MAX Heavy Duty BEC?
Yes, the heavy-duty 20A BEC on the TALON 60 features user-selectable output options of either 6V or 8V to support standard or high-voltage servos.
Does the TALON 60, 60-Amp 6S MAX Heavy Duty BEC support telemetry output?
Yes, the TALON 60, 60-Amp 6S MAX Heavy Duty BEC is telemetry-capable when connected to the Castle Telemetry Link for S.Bus2 and paired with a compatible Futaba radio system.
How do I program custom settings on the TALON 60, 60-Amp 6S MAX Heavy Duty BEC?
You can easily program custom throttle curves, BEC voltages, and governor settings on the TALON 60 using the Castle Link USB Adapter and Castle Link software on a Windows PC.
