Tazer Twin 540 Brushless Motor<br>ESC Combo: 2WD,3000kv(SO)
$124.99
Skip to product information

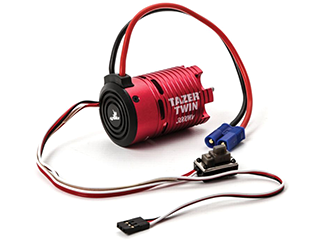

Tazer Twin 540 Brushless Motor
Tazer Twin 540 Brushless Motor
ESC Combo: 2WD,3000kv(SO)
$124.99
2-in-1 Design
Integrated Motor and ESC Unit
3000Kv Brushless
High Performance 4 Pole Power
Waterproof ESC
All Weather Off Road Performance
Plug and Play
No Soldering Required Setup
Aluminum Case
CNC Machined Efficient Heat Sink
Versatile Fitment
Three Distinct Mounting Positions
Streamlined Brushless Power IntegrationRevolutionize Your 1/10 2WD RC Car Setup
Upgrade your 1/10 scale 2WD vehicle with the Dynamite Tazer Twin 2-in-1 Brushless Motor/ESC Combo. By integrating the speed control and high-efficiency 3000Kv brushless motor into a single CNC-machined aluminum housing, this power system minimizes wiring, eliminates extra electrical connections, and delivers maximum performance on the track or off-road trail.
Extreme Efficiency Meets All-Weather ReliabilityPlug and Play Performance Upgrade
The Dynamite Tazer Twin 2-in-1 Brushless Motor/ESC Combo provides a high-torque 4-pole sensorless motor solution specifically crafted for brushed 1/10 scale 2WD RC cars. Featuring a completely waterproof design, this combo lets you conquer wet grass, mud, and snow without hesitation. Installation is effortless thanks to pre-wired 14 AWG high-grade silicone leads and a pre-installed EC3 input connector, completely eliminating the need for soldering. Built-in low-voltage LiPo cut-off and thermal overheat protection ensure your brushless motor and speed control operate safely during heavy bashing sessions.
Technical SpecificationsComplete System Dimensions and Ratings
Compatible Vehicles
1/10 Scale 2WD RC Cars and Trucks
Part Type
Brushless Motor and ESC 2-in-1 Combo
Material
CNC Machined Aluminum
Placement/Position
Chassis Motor Mount / Rear
Dimensions
2.3 in (58mm) Length x 1.4 in (36mm) Outer Diameter (ruler)
RPM/Volt (Kv)
3000 Kv
Input Voltage
4.5V – 8.4V (2S LiPo / 6-7 Cell NiMH) (zap)
Maximum Continuous Current
45A
Shaft Diameter
1/8 in / 3.17mm
Input Connector
EC3
Wire Gauge
14 AWG
Core Performance CapabilitiesEngineered for Speed Efficiency and Convenience
Integrated ArchitectureCombines ESC and motor into one compact housing
Sensorless PowerSmooth 4-pole sensorless brushless technology
All-Weather ReadyWaterproof protection for wet off-road driving
Plug & Play SetupPre-wired with EC3 connector requiring no soldering
CNC Aluminum HousingEfficient heat dissipation through machined aluminum
Safety SafeguardsFeatures low-voltage cutoff and overheat thermal protection
Multi-Position MountingFeatures 3 separate mounting positions for universal fitment
High Current LeadsBuilt with durable 14 AWG silicone wiring
Frequently Asked QuestionsEverything you need to know
Is the Dynamite Tazer Twin 2-in-1 Brushless Motor/ESC Combo waterproof?
Yes, the Dynamite Tazer Twin 2-in-1 Brushless Motor/ESC Combo features a fully waterproof housing, allowing you to run your 1/10 scale 2WD RC car safely through mud, wet grass, and puddles.
What batteries can I use with the Dynamite Tazer Twin 2-in-1 Brushless Motor/ESC Combo?
The Dynamite Tazer Twin 2-in-1 Brushless Motor/ESC Combo supports an input voltage range of 4.5V to 8.4V, making it fully compatible with 6-cell to 7-cell NiMH battery packs as well as 2S LiPo batteries equipped with an EC3 connector.
Does installing the Dynamite Tazer Twin 2-in-1 Brushless Motor/ESC Combo require any soldering?
No, the Dynamite Tazer Twin 2-in-1 Brushless Motor/ESC Combo is a true plug-and-play upgrade. It comes pre-wired with an EC3 input connector and requires zero soldering for installation in standard 1/10 scale 2WD RC vehicles.
Will the Dynamite Tazer Twin 2-in-1 Brushless Motor/ESC Combo fit my 1/10 scale RC car?
The Dynamite Tazer Twin 2-in-1 Brushless Motor/ESC Combo is designed specifically for 1/10 scale 2WD RC vehicles and offers 3 distinct mounting positions along with a standard 1/8 inch (3.17mm) output shaft to ensure broad compatibility.
