Traxxas Connector (Male) (2) FOR ESC USE ONLY (3070X)
$5.00
Skip to product information

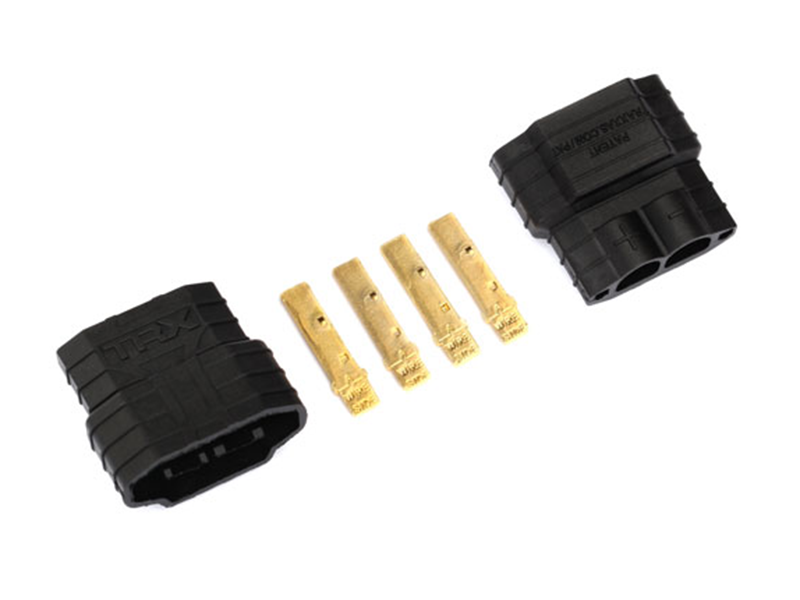

Traxxas Connector (Male) (2) FOR ESC USE ONLY (3070X)
$5.00
In Stock
Low Resistance
Maximum power transfer efficiency
Gold Plated
Superior conductivity and durability
Reverse Polarity
Impossible to plug backwards
Secure Locking
Spring loaded constant contact
ESC Application
Designed specifically for ESCs
Textured Grip
Easy non-slip cable handling
High-Current Power ConnectionMaximum efficiency for your ESC
Upgrade your standard power setup with the genuine Traxxas Connector (Male) (2) - FOR ESC USE ONLY. Engineered specifically for electronic speed control applications in high-performance RC Car models, these high-current connectors deliver virtually zero electrical resistance for maximum energy delivery. Enjoy ultimate safety and peace of mind thanks to built-in reverse polarity protection and heavy-duty gold-plated terminals.
Precision RC Hardware PlugsBuilt for durability and extreme power
The Traxxas Connector (Male) (2) - FOR ESC USE ONLY sets the standard for reliability in the remote control hobby. Featuring 24.5 times less resistance than legacy Molex plugs, this connector set ensures your high-demand brushless motor power system receives uninterrupted power. Designed with shroud-enclosed wire terminals, textured gripping surfaces, and spring-loaded contacts, these connectors maintain firm contact through over 1,000 insertion cycles without performance loss. Elevate your RC vehicle electronics with official Traxxas replacement hardware.
Technical SpecificationsDetailed hardware specs and details
Part Type
High-Current Male Connector
Application
Electronic Speed Control (ESC) (cpu)
Material
High-Temp Nylon and Gold-Plated Copper
Resistance Gain
None after 1,000+ connections
Terminal Style
Shrouded spring-loaded contacts
Quantity
2 Male Connectors
Key Plug FeaturesEngineered for high current loads
Ultra-Low Resistance24.5x less resistance than Molex
Polarity ProtectionKeyed design prevents reverse connections
Gold TerminalsWide surface area gold-plated contacts
Secure GripTextured outer body for easy removal
Durable BuildRetains tension after 1,000+ uses
Shrouded WiresEliminates need for heat shrink tubing
Frequently Asked QuestionsEverything you need to know
Can I use the Traxxas Connector (Male) (2) - FOR ESC USE ONLY on my LiPo battery pack?
No, these male connectors are specifically designed for Electronic Speed Control (ESC) or charger side applications. Female connectors must be used on battery packs to prevent short circuits across exposed terminals.
Is soldering required to install the Traxxas Connector (Male) (2) - FOR ESC USE ONLY?
Yes, soldering is required to attach the ESC power leads to the gold-plated terminals before snapping them securely into the nylon plastic housing.
How much better performance does the Traxxas Connector (Male) (2) - FOR ESC USE ONLY offer compared to standard plugs?
The Traxxas high-current male connector features 24.5 times less electrical resistance than standard Molex connectors, resulting in cooler operating temperatures and maximum power delivery to your motor.
