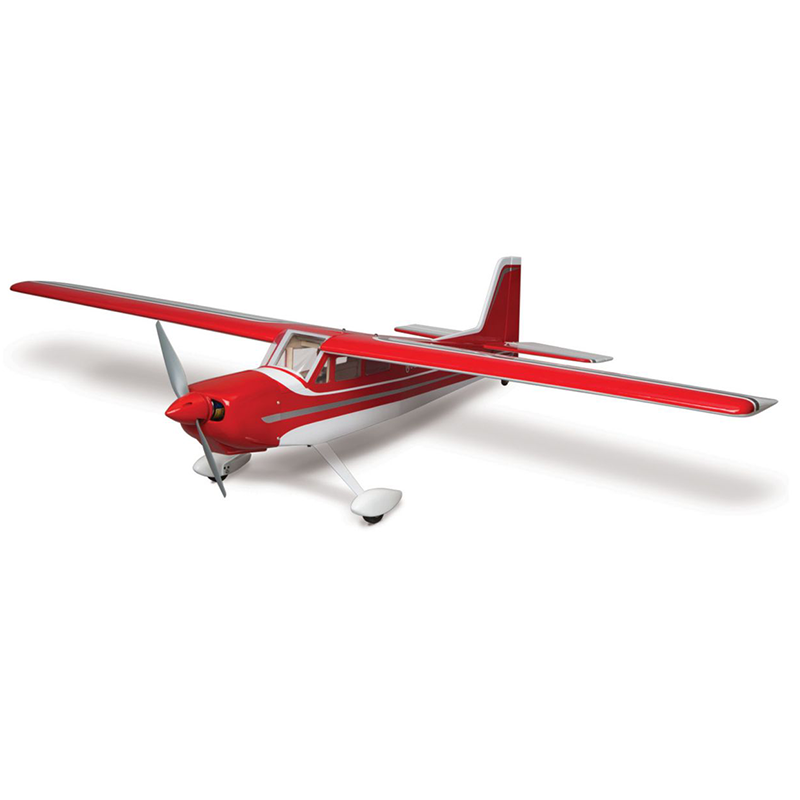

Hangar 9 Valiant 10cc ARF, 69" (HAN5080)
$319.99
Skip to product information
Hangar 9 Valiant 10cc ARF, 69" (HAN5080)
$319.99
Completion Level
Almost Ready To Fly
Wingspan
Generous 69 Inch Span
Power Type
Gas Or Electric Ready
Airframe
Laser Cut Balsa Wood
Flight Control
Functional STOL Capability Flaps
Water Ready
Optional Float Mount Hardpoints
Soar With Classic StyleVersatile STOL Aerobatic Sport Plane

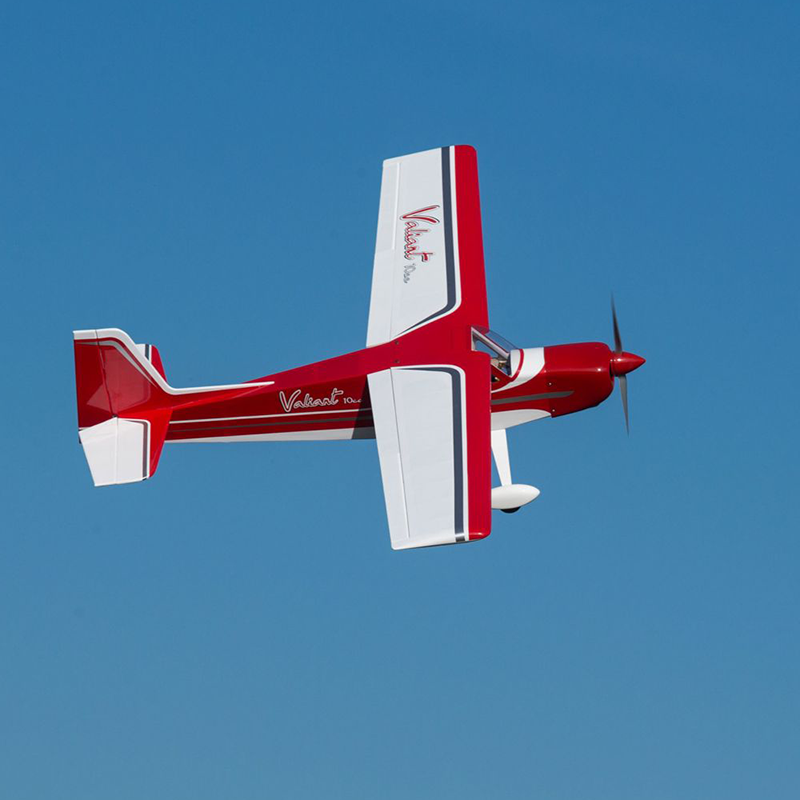

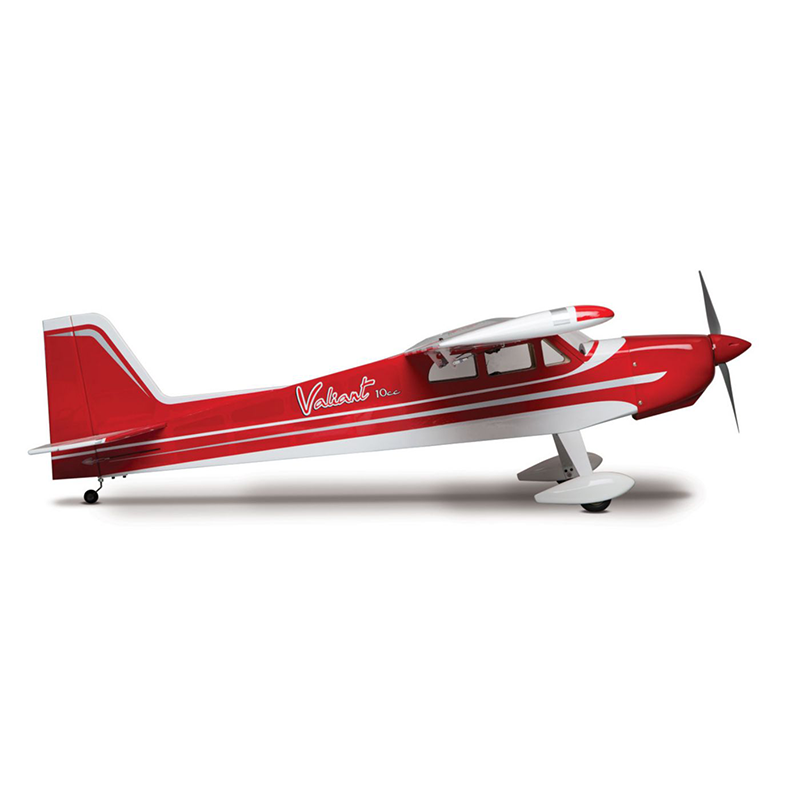

The Hangar 9 Valiant 10cc ARF brings giant-scale flying characteristics to a versatile, mid-size 69-inch RC plane platform. Built with lightweight balsa and plywood, this model accommodates both a 10cc gas engine or an electric brushless motor setup. With functional flaps for impressive STOL capability and sport aerobatic agility, it delivers an unforgettable flight experience for pilots of all skill levels.
Precision Aircraft EngineeringMaster the Skies with Versatility

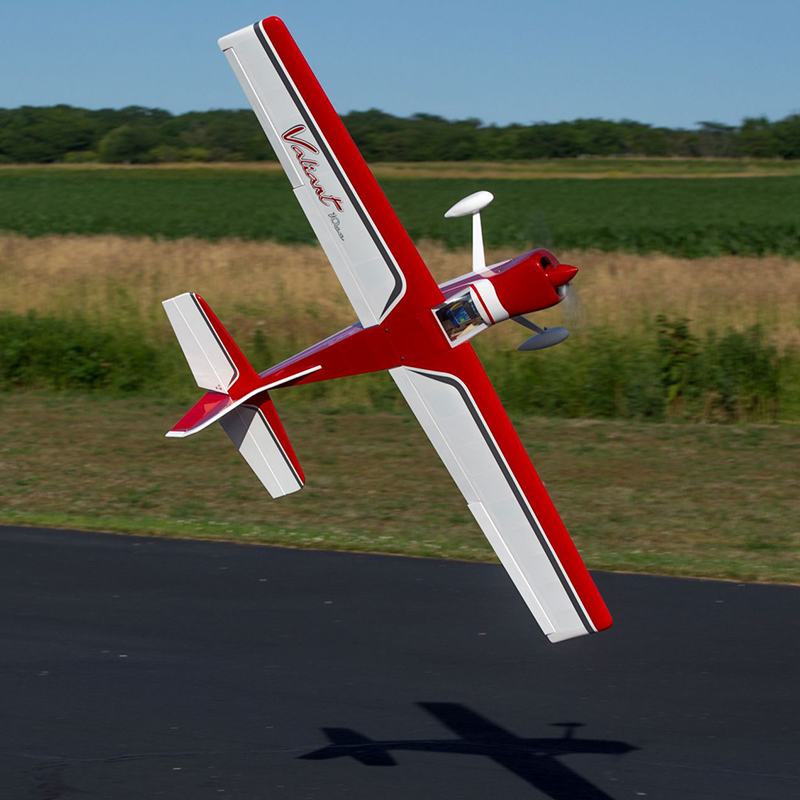

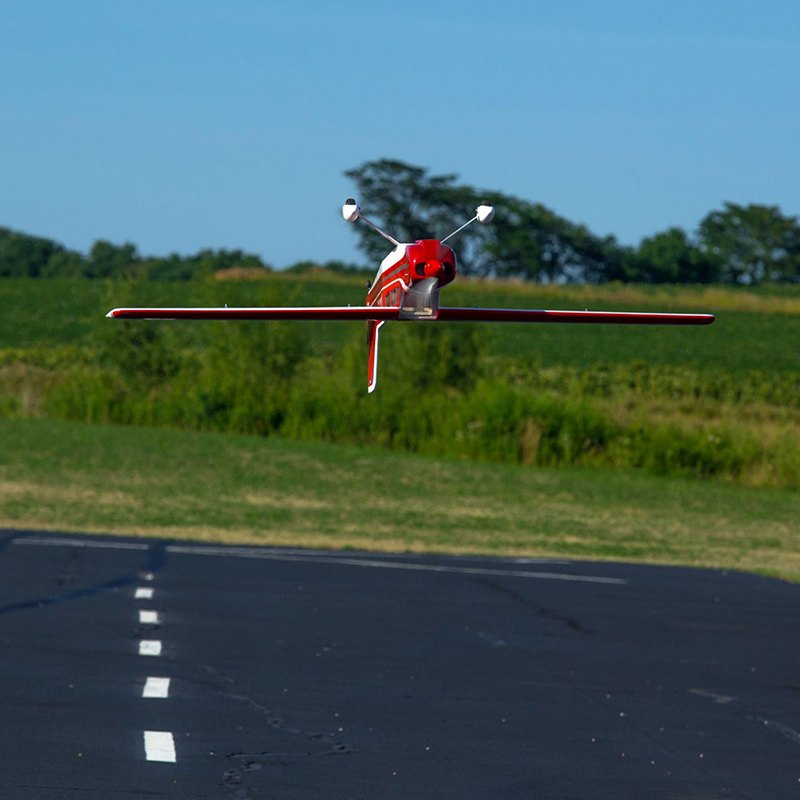

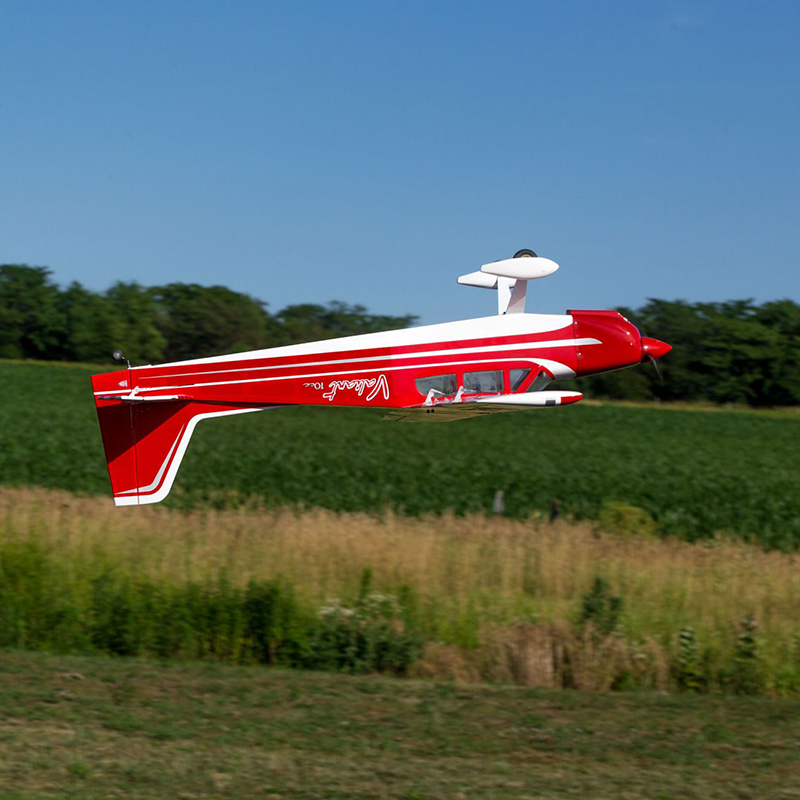

Designed to deliver exceptional stability and crisp control, the Hangar 9 Valiant 10cc ARF high-wing airplane stands out at any flying field. Featuring a semi-symmetrical airfoil and lightweight laser-cut balsa construction covered in genuine UltraCote, this balsa RC plane performs crisp rolls, dramatic loops, and rock-solid knife-edge passes. The convenient two-piece cantilevered wing and large top hatch simplify field assembly and battery changes. Plus, with factory-installed hard points, you can easily equip optional floats to transform your Valiant 10cc into a capable float plane ready for lake takeoffs and landings.
Technical SpecificationsPrecision Parameters for Peak Performance
Completion Level
ARF (Almost-Ready-to-Fly) (gear)
Wingspan
69 in (175 cm) (ruler)
Overall Length
49.25 in (125 cm) (ruler)
Flying Weight
6.75 - 7.25 lbs (3.0 - 3.3 kg) (weight)
Motor Size
10cc Gas / Power 46 Brushless Equivalent
Speed Control
60A - 80A Brushless ESC
Radio
6+ Channel Full-Range System
Servos
6-7 Standard Servos Required
CG
Factory Recommended Center of Gravity

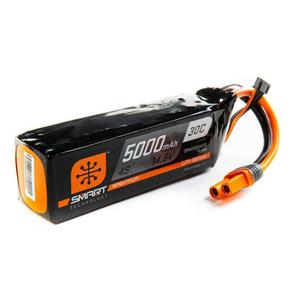

Recommended Battery
14.8V 4000mAh 4S LiPo or Receiver Battery
Assembly Time
7-9 Hours
Flaps
Operational Functional Flaps Included
Retracts
No
Material
Laser-Cut Balsa and Plywood / UltraCote
Key Aircraft FeaturesCrafted for Superior Flight Performance
Airframe ConstructionLightweight laser-cut balsa and plywood design
Wing SystemTwo-piece cantilevered plug-in wing for rapid field setup

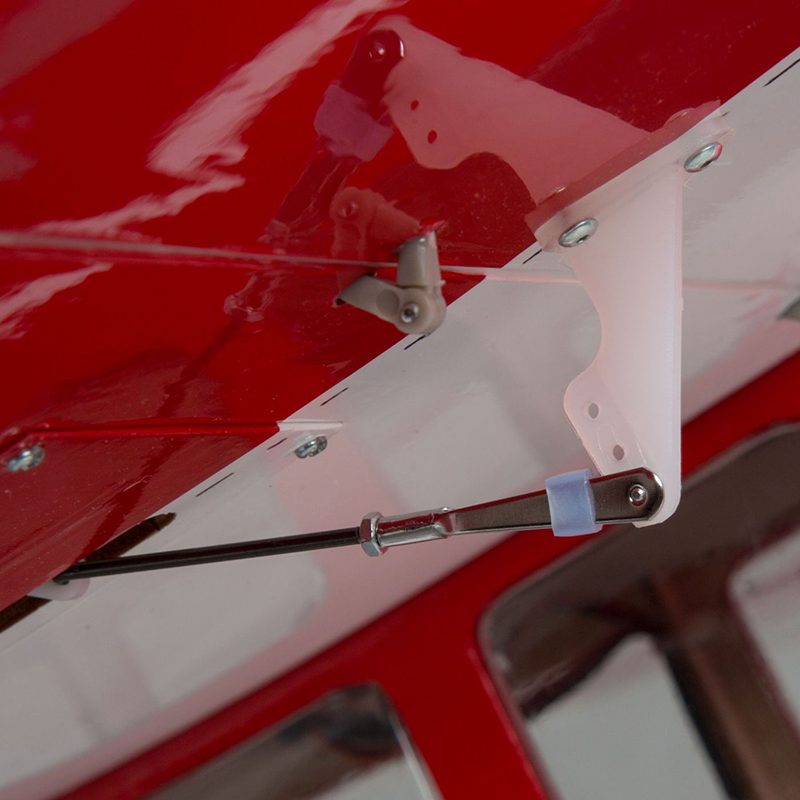

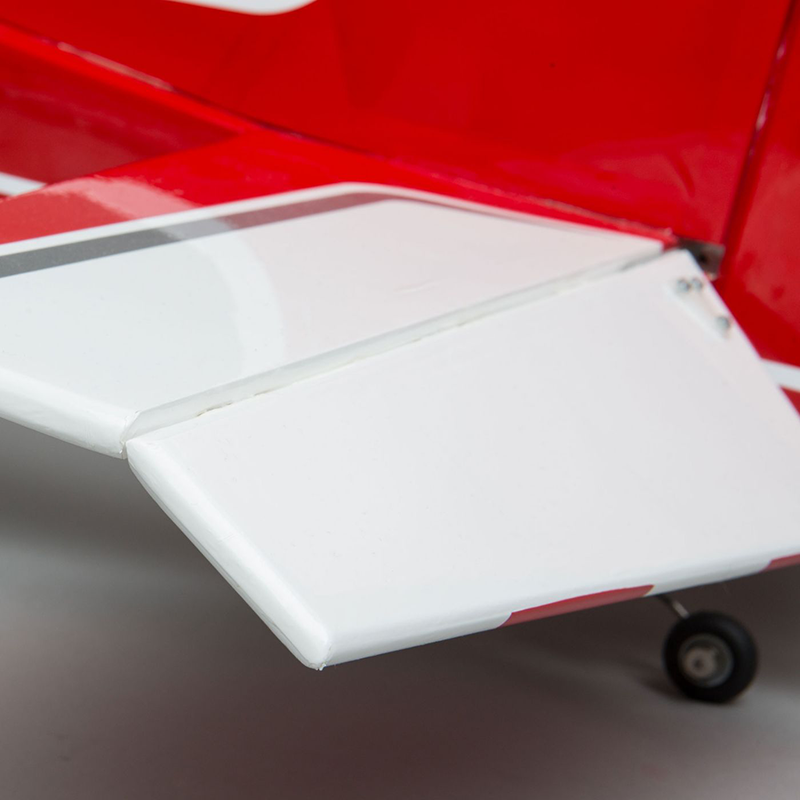

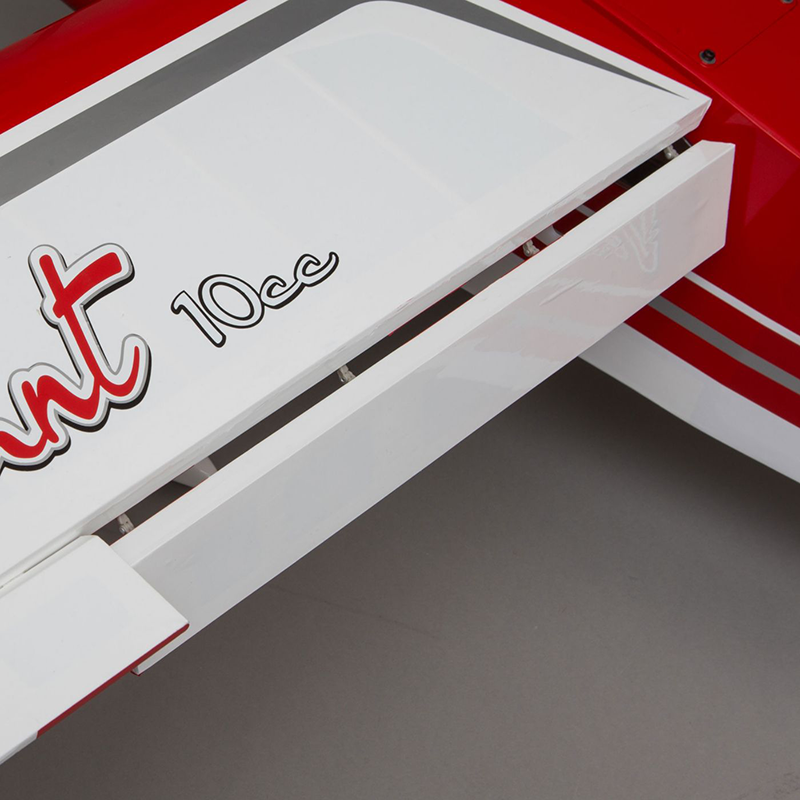

STOL CapabilitiesFunctional operational flaps expand takeoff and landing capability

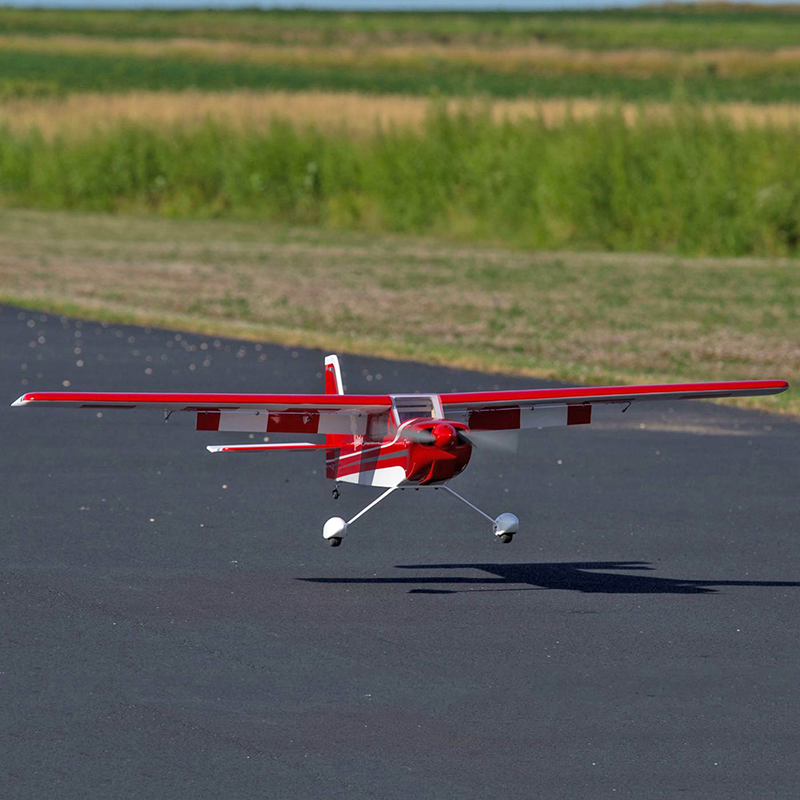

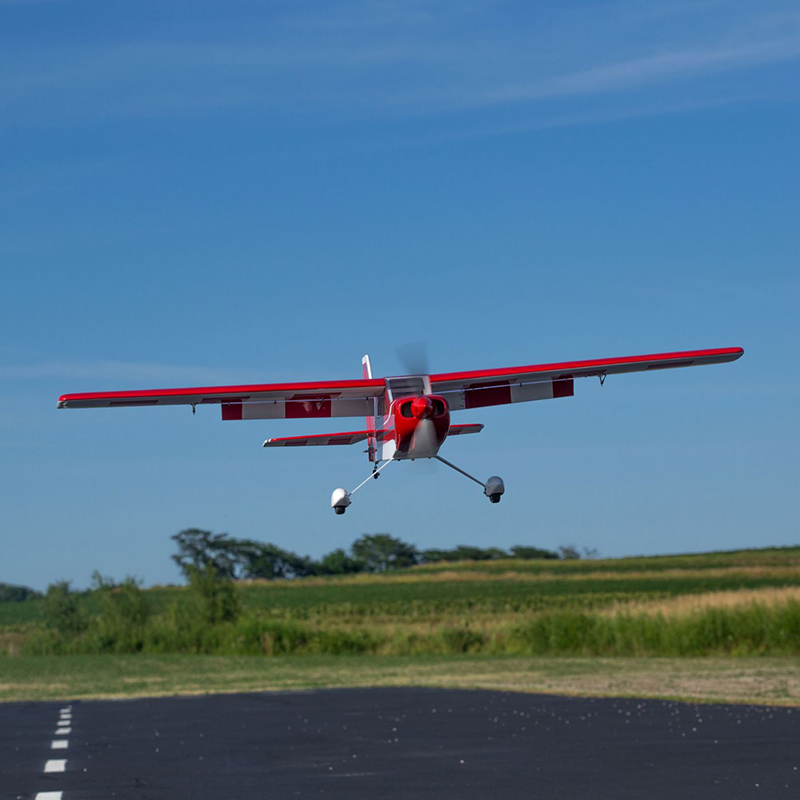

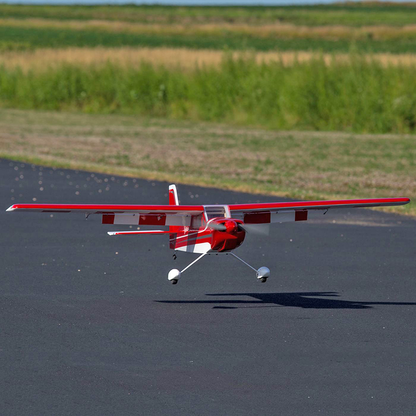

Ground HandlingPainted aluminum wide-track gear with color-matched wheel pants

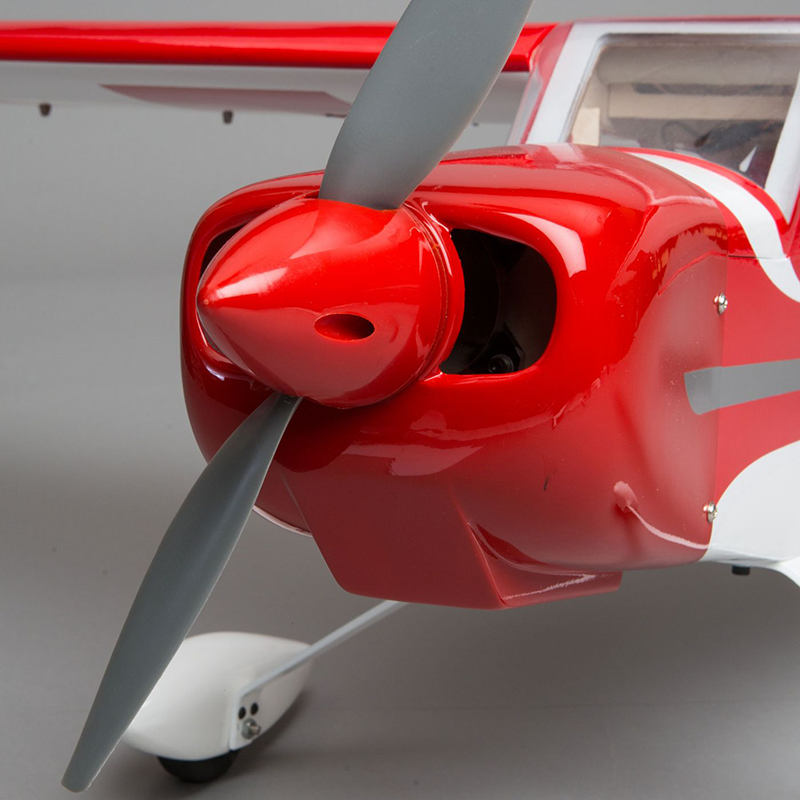

Dual Power MountingFactory hardware for both 10cc gas and electric motor mounting
Premium FinishHigh-quality genuine Hangar 9 UltraCote iron-on film covering

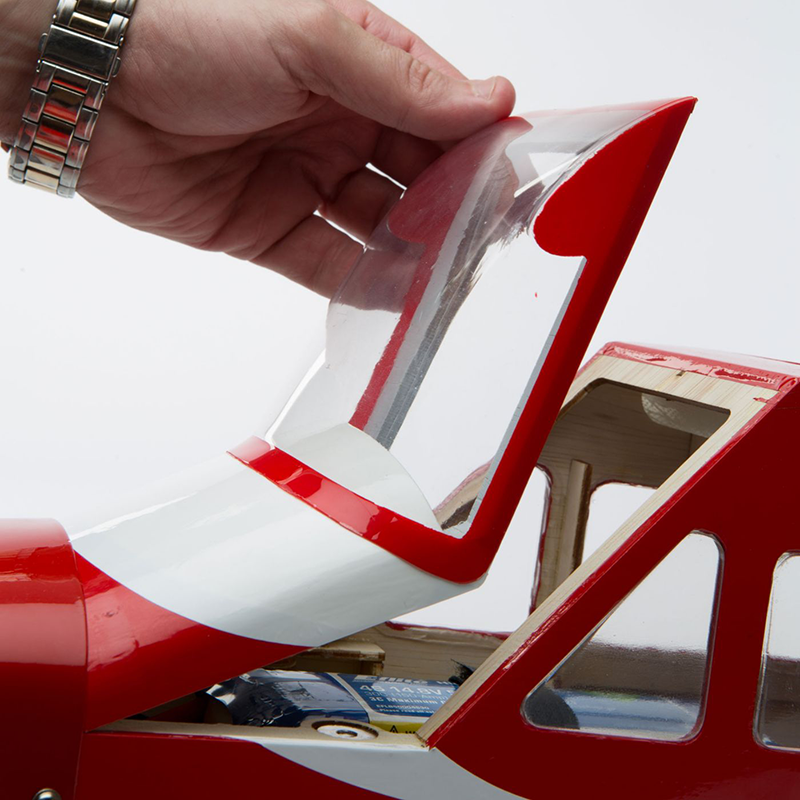

Easy AccessLarge top hatch offers quick battery and interior access

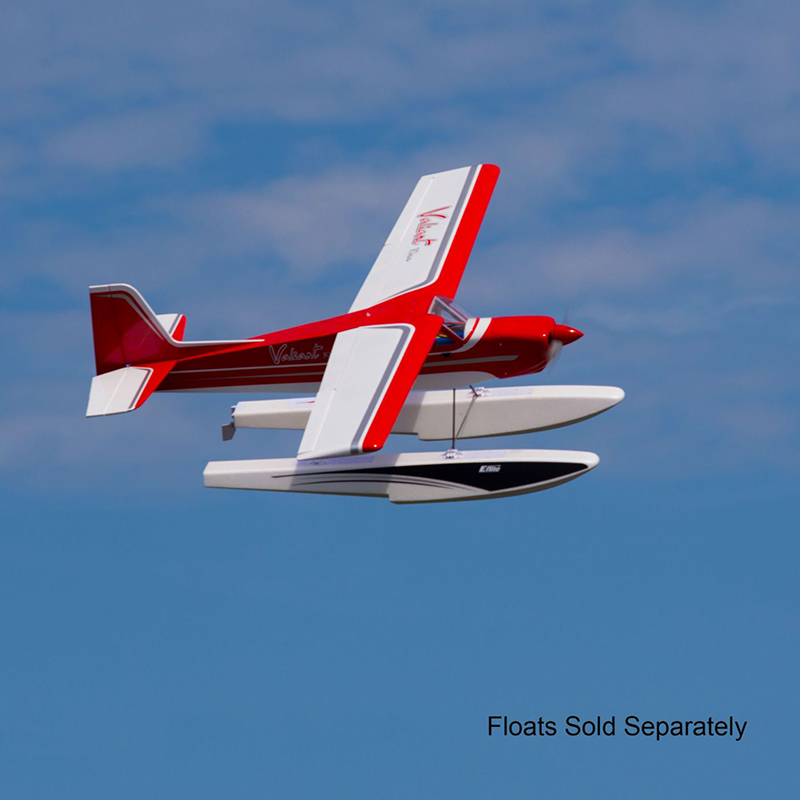

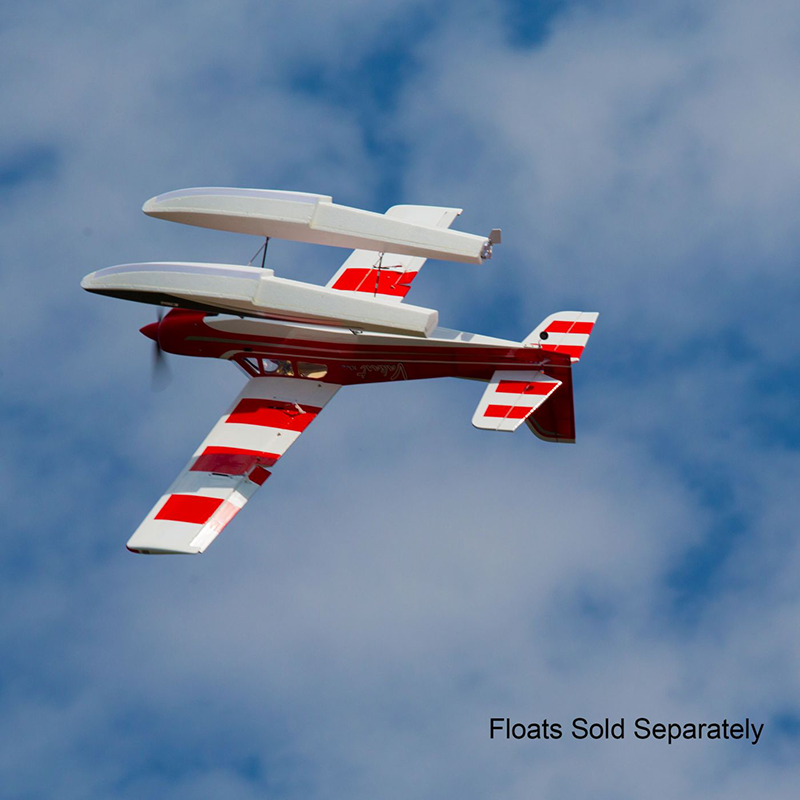

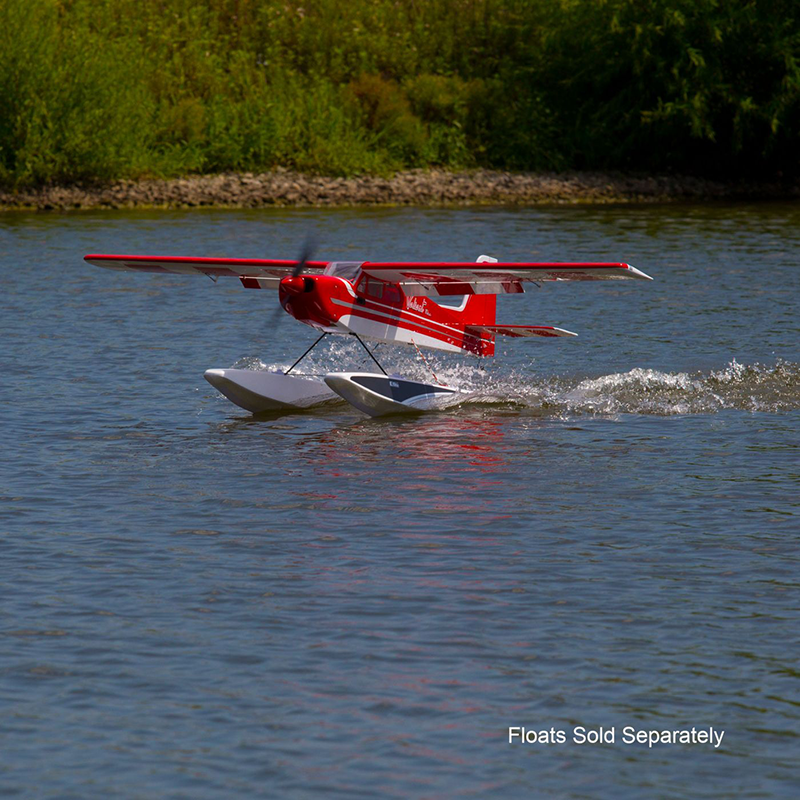

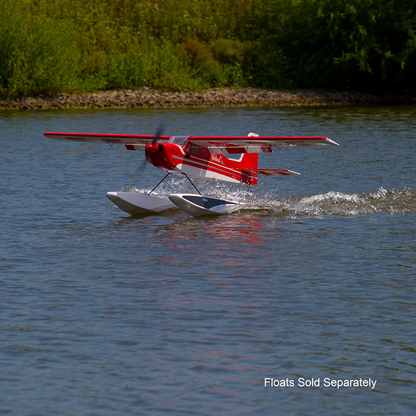

Float MountingFactory-installed belly hard points for quick float set conversion
Parts & Accessories
To run this model you’ll need:
Suggested:
Frequently Asked QuestionsEverything you need to know
What power options can be used with the Hangar 9 Valiant 10cc ARF?
The Hangar 9 Valiant 10cc ARF is designed to accept either a 10cc two-stroke or four-stroke gas engine (such as the Evolution 10GX) or an equivalent electric brushless motor setup using the included motor mount hardware.
Does the Hangar 9 Valiant 10cc ARF come fully assembled?
No, the Hangar 9 Valiant 10cc ARF is an Almost-Ready-to-Fly model. Most of the structure is pre-built, but it requires final assembly, radio gear, power system, and servo installation before flight.

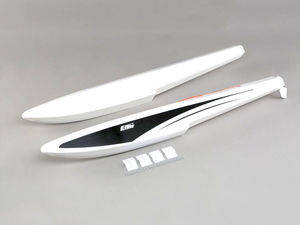

Can I attach floats to the Hangar 9 Valiant 10cc ARF?
Yes, the Hangar 9 Valiant 10cc ARF includes factory-installed mounting hard points on the fuselage belly to accept optional float accessories for water takeoffs and landings.
How many servos are required for the Hangar 9 Valiant 10cc ARF?
The Hangar 9 Valiant 10cc ARF requires 7 standard-size servos for gas engine configurations, or 6 standard-size servos if you choose an electric motor setup.
