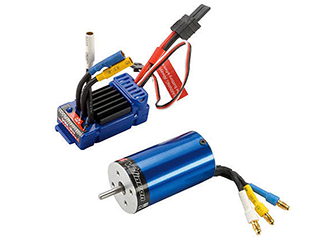

Traxxas Velineon VXL 3m Brushless Power System: 1/16 (3370)
$169.95
Skip to product information
Traxxas Velineon VXL 3m Brushless Power System: 1/16 (3370)
$169.95
Ships From Our Warehouse
Adds 3 days to delivery
Brushless Power
High performance 4000Kv motor
Fully Waterproof
All weather driving capability
3S LiPo Ready
Supports up to 3S LiPo
Sintered Magnets
Maximum torque and linear power
High Current Plug
Unrestricted power flow delivery
Training Mode
Limits full throttle 50 percent
Extreme Brushless EfficiencyUnmatched performance for small scale

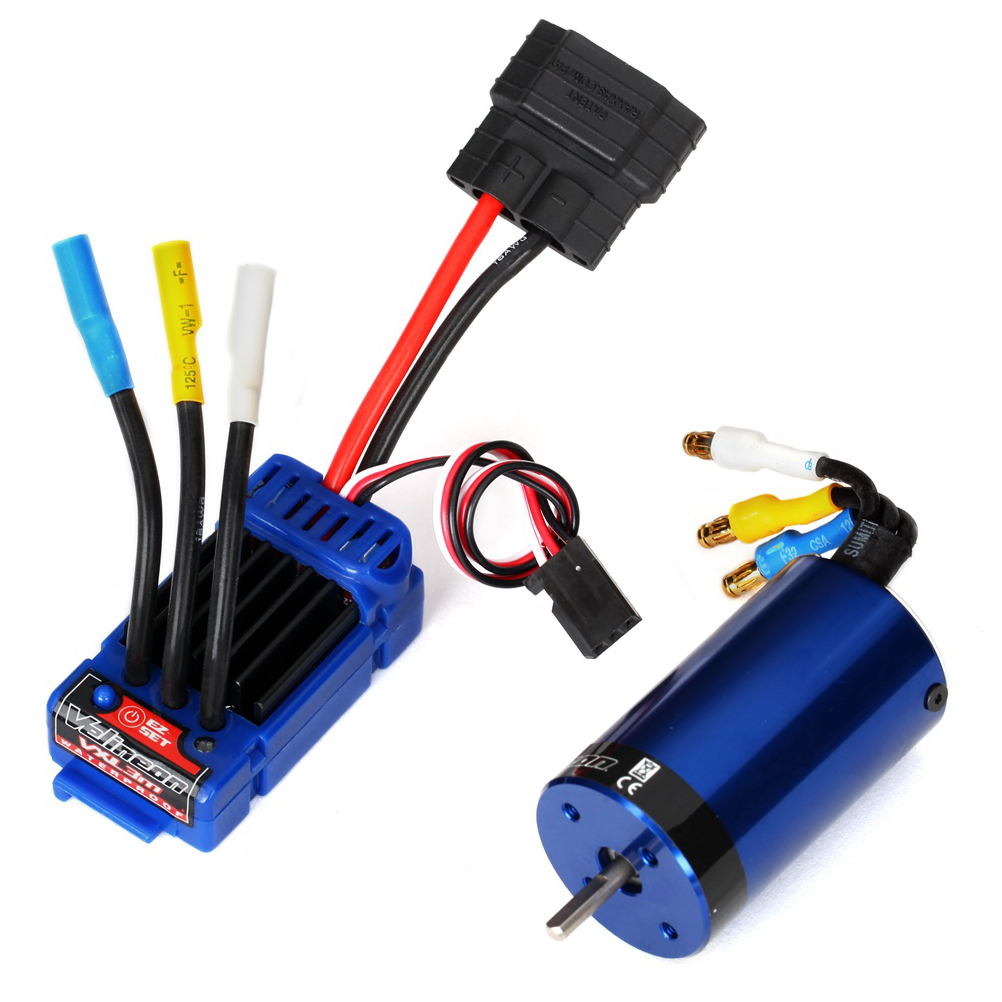

Unleash uncompromising speed and performance with the high-output Traxxas 1/16 Velineon Brushless Power System. Designed specifically for small-scale RC Car models, this combo pairs the waterproof VXL-3m speed control seamlessly with a high-torque 380-size brushless motor.
Featuring advanced high-frequency throttle control, patented Training Mode™, and native support for 3S LiPo batteries, this power package gives hobbyists full control and extreme speed.
Advanced Power ControlEngineering built for extreme performance

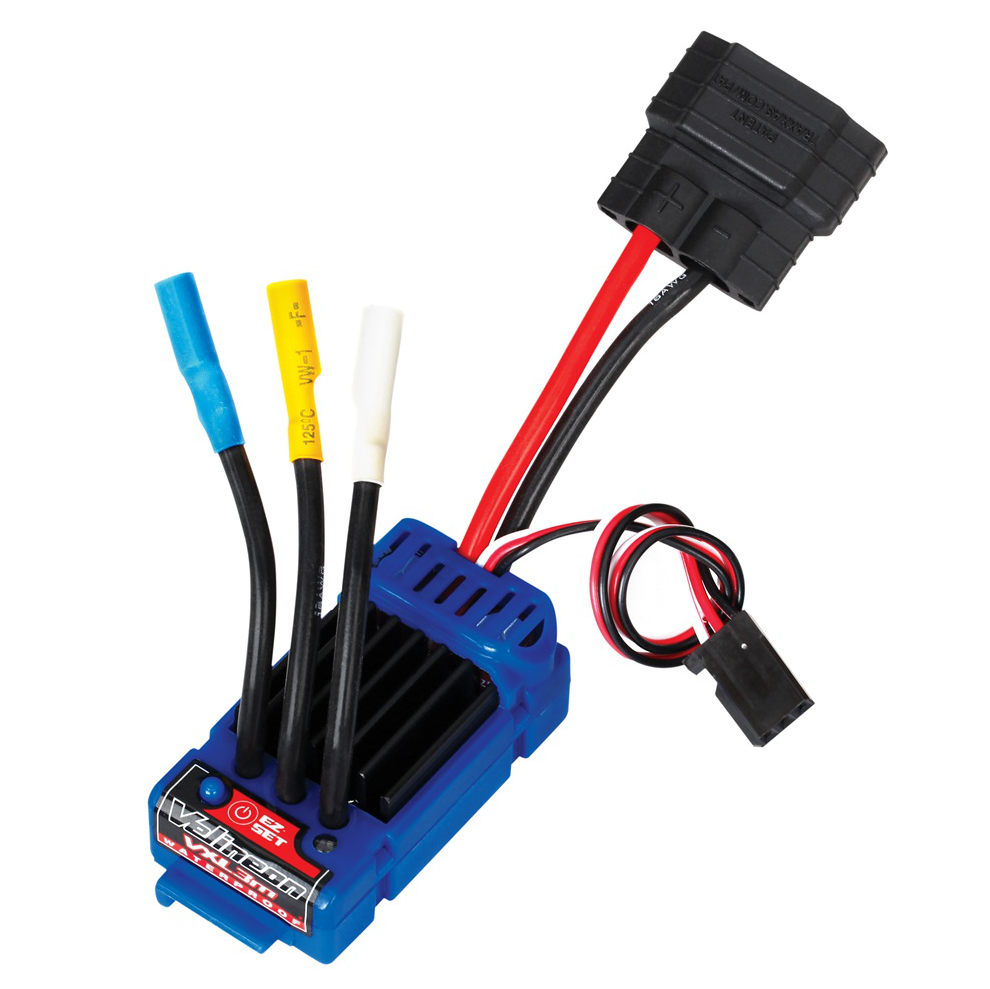

The Traxxas 1/16 Velineon Brushless Power System brings 1/10 scale performance standards straight to small-scale RC vehicles. The VXL-3m electronic speed control features an efficient finned aluminum heatsink, two-stage low voltage detection for LiPo battery safety, and fully waterproof construction to handle wet track conditions, mud, and snow without hesitation. With three programmable drive profiles, drivers can easily switch between full-power Sport Mode, track-ready Race Mode, or a 50% throttle Training Mode designed to help beginners safely master control of a high-speed brushless motor system.

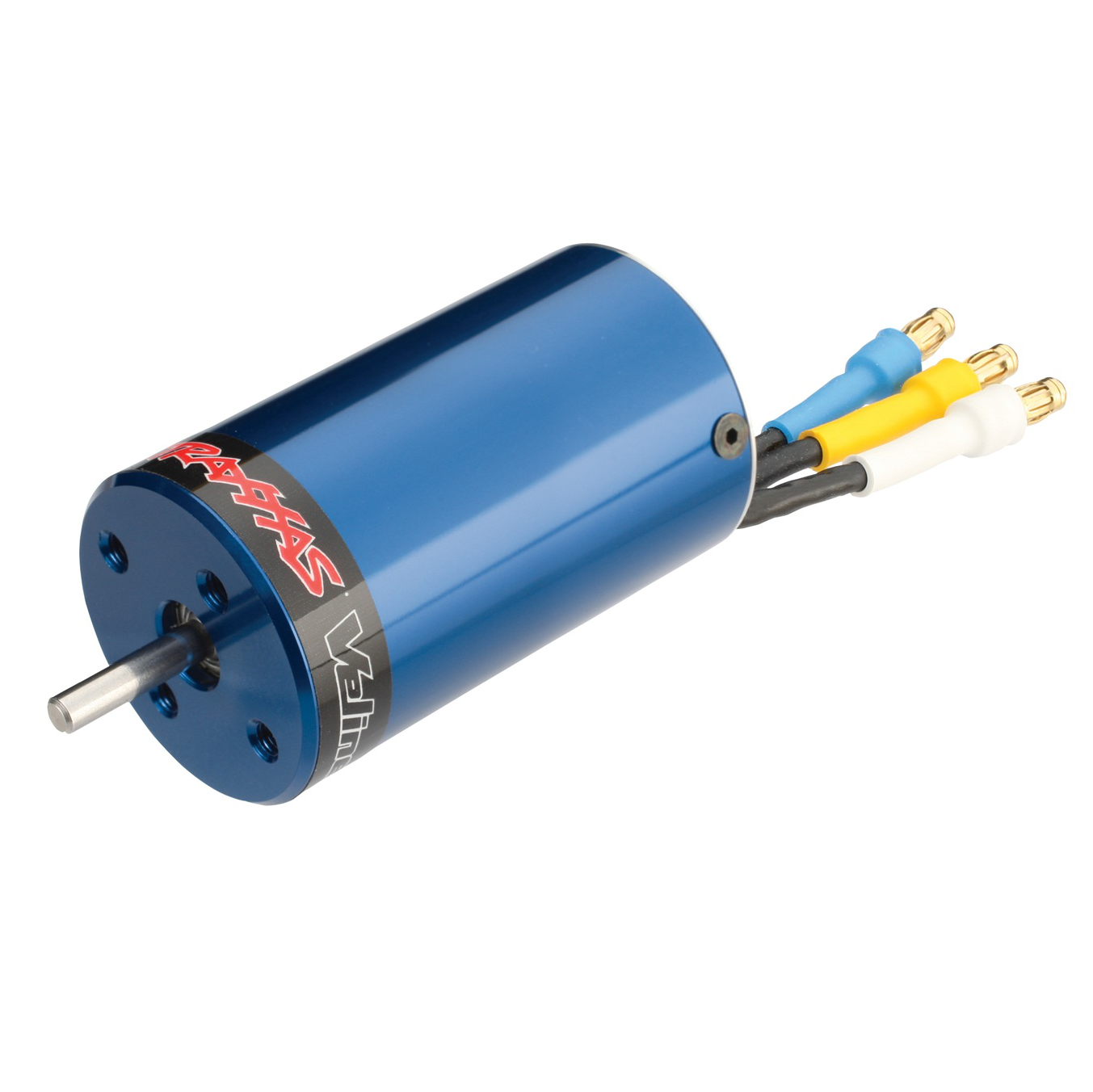

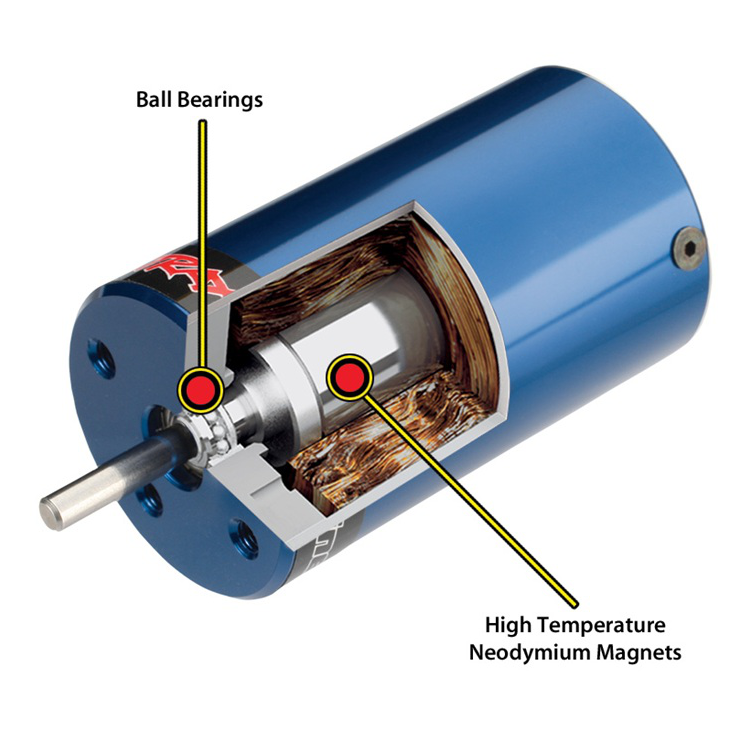

Complementing the electronic speed control, the Velineon 380 motor utilizes ultra high-temperature sintered Neodymium magnets, high-speed ball bearings, and a precision-balanced rotor to deliver smooth, linear power and massive torque. Fitted with low-resistance Traxxas High-Current Connectors, this system maximizes efficiency and guarantees uninterrupted current flow to elevate your RC Car performance.
Detailed System SpecificationsComplete technical and dimension specs
Part Type
Power System Combo
Motor Type
Sensorless Brushless
Motor Kv
4000Kv
Motor Size
380
Motor Shaft Size
3 mm
Motor Weight
4.49 oz / 140 g

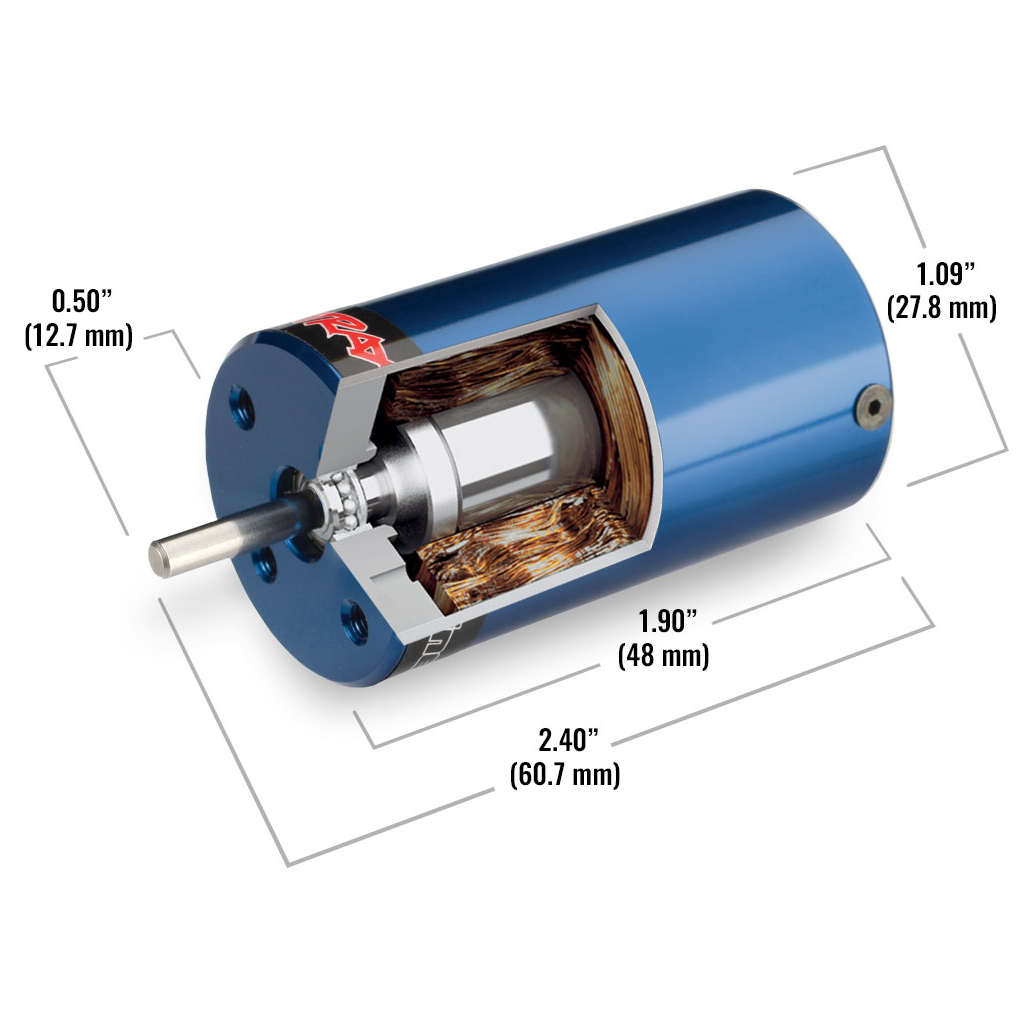

Motor Dimensions
2.4 in (61 mm) length, 1.09 in (28 mm) diameter (ruler)
ESC Type
Waterproof Velineon VXL-3m

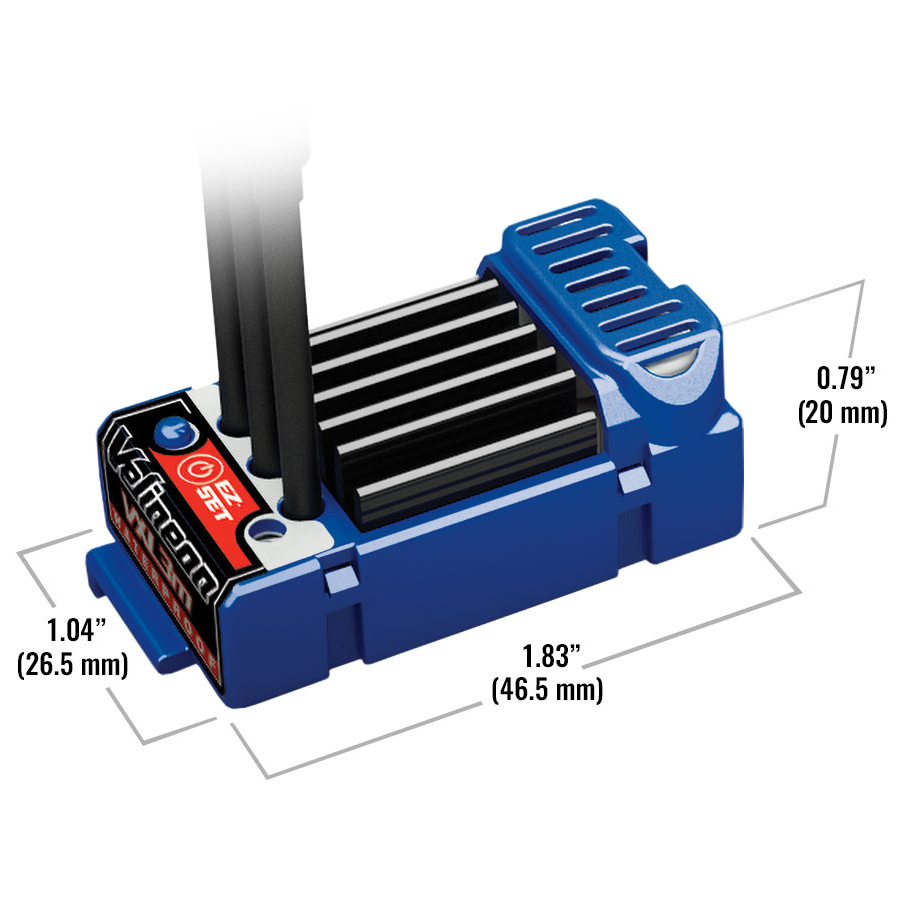

ESC Dimensions
1.06 x 1.85 x 0.87 in / 27 x 47 x 22 mm
ESC Weight
1.34 oz / 38 g
Motor Connectors
3.5 mm bullet connectors
Battery Connector
Traxxas High-Current Connector
Power Wire
16 gauge
Compatible Vehicles
Traxxas 1/16 Scale RC Vehicles
Key System FeaturesInnovative design for maximum responsiveness
Waterproof ConstructionAll-weather electronic speed control protection
Low Voltage DetectionIntegrated two-stage LiPo protection
Thermal ShutdownTwo-stage thermal overload safety protection
Drive ProfilesSport, Race, and 50 percent Training Mode
Sintered MagnetsUltra high-temperature Neodymium magnets for peak torque
High Current ConnectorTraxxas plug for maximum efficiency and flow
Cooling DesignFinned aluminum ESC heatsink dissipates excess heat
Rebuildable MotorLong-lasting maintenance-friendly motor construction
Frequently Asked QuestionsEverything you need to know
Is the Traxxas 1/16 Velineon Brushless Power System waterproof?
Yes, the VXL-3m ESC included in the Traxxas 1/16 Velineon Brushless Power System features fully waterproof construction, allowing you to run your RC Car in water, mud, and snow without damaging the electronics.
Can I run 3S LiPo batteries with the Traxxas 1/16 Velineon Brushless Power System?
Absolutely. The Traxxas 1/16 Velineon Brushless Power System includes built-in two-stage low voltage detection on the VXL-3m ESC, enabling safe operation with powerful 11.1V 3S LiPo battery packs.
What drive modes does the Traxxas 1/16 Velineon Brushless Power System support?
The Traxxas 1/16 Velineon Brushless Power System provides three drive profiles: Sport Mode (100% Forward, Brake, 100% Reverse), Race Mode (100% Forward and Brake only), and Training Mode (50% Forward, 100% Brake, 50% Reverse).
