Tailwheel Bracket .40 .60
$18.97
Skip to product information
Tailwheel Bracket .40 .60
$18.97
Easy Mounting
Includes full installation hardware set
Servo Protection
Dual springs absorb steering shocks
Durable Axle
Strong spring steel axle design
Smooth Landing Gear ControlSteerable tailwheel performance for planes

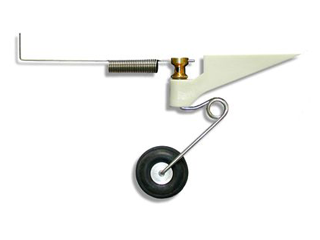

The Sullivan Tailwheel Bracket .40-.60 provides reliable ground steering for RC planes weighing between 5 and 12 lbs. Designed with integrated steering springs, this steerable tailwheel assembly absorbs harsh ground shocks to protect your model airplane's rudder and steering servo. Complete with all necessary mounting hardware, it offers a quick and easy upgrade for your RC aircraft.
Precision Ground HandlingBuilt to handle ground steering shock
Take full control of your taxiing with the Sullivan Tailwheel Bracket .40-.60 (5-12 lb). Built with a solid plastic mounting bracket and a heavy-duty 5/64 inch spring steel axle, this tailwheel assembly is engineered to withstand tough landings and rough runway surfaces. The system includes both heavy and light return springs, allowing RC pilots to tune steering input precisely to match their aircraft's requirements. By isolating shock loads from the servo and rudder hinge line, the Sullivan Tailwheel Bracket extends the lifespan of your flight controls while delivering smooth, precise ground handling.
Technical SpecificationsDetailed bracket dimensions and compatibility
Part Type
Steerable Tailwheel Assembly
Material
Plastic Bracket & Spring Steel Axle
Placement/Position
Tail / Rear Landing Gear
Recommended Aircraft Weight
5 to 12 lbs (.40 - .60 size) (scale)
Axle Diameter
5/64 inch
Hardware Included
4-40 x 1 in Bolts, Blind Nuts, Washers
Manufacturer Part Number
SUL860
Key Mount FeaturesEngineered for maximum scale control
Mount TypeSolid plastic bracket mount
Axle Specs5/64 inch diameter spring steel axle
Tension AdjustmentIncludes 1 heavy and 1 light spring
Rudder ProtectionShock absorbing spring design protects servo
Hardware PackageComes with 4-40 bolts, blind nuts, and washers
CompatibilityDesigned for .40 to .60 size RC planes
Frequently Asked QuestionsEverything you need to know
What size RC aircraft is the Sullivan Tailwheel Bracket .40-.60 suitable for?
The Sullivan Tailwheel Bracket .40-.60 is designed for .40 to .60 size RC airplanes weighing between 5 and 12 lbs.
How does the Sullivan Tailwheel Bracket .40-.60 protect my airplane's rudder and servo?
It features integrated steering return springs that absorb ground shocks and bumps during taxiing, preventing direct force from damaging your airplane's rudder or steering servo.
What hardware is included with the Sullivan Tailwheel Bracket .40-.60?
It includes the complete tailwheel assembly, a 5/64" spring steel axle, two return springs (one heavy, one light), two 4-40 x 1" mounting bolts, matching blind nuts, and washers.
