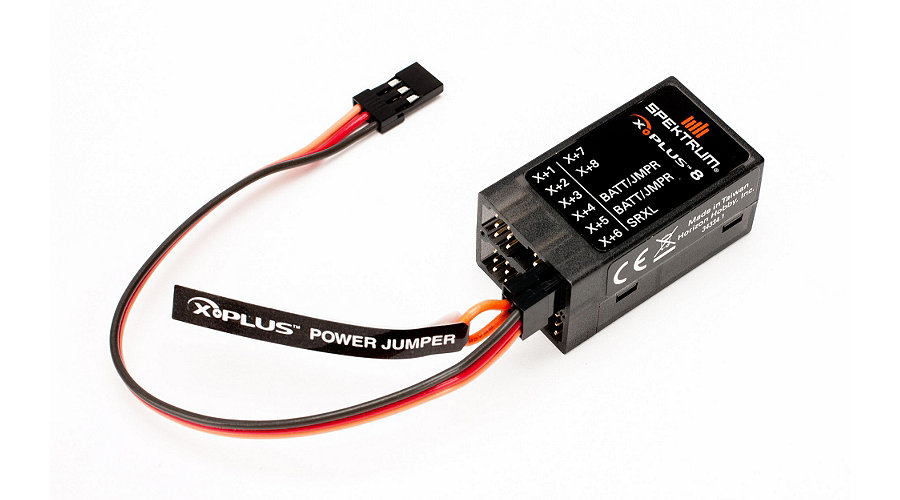

X Plus 8 Expansion Module
$124.99
Skip to product information
X Plus 8 Expansion Module
$124.99
8 Channels
Expand your auxiliary controls
Dual Power
Independent auxiliary battery support
AirWare Tuning
Complete individual servo adjustment
Receiver Jumper
Flexible integrated power options
Wide Voltage
Operates 3.5 to 9.6V
Lightweight Design
Weighs just 11.9 grams
Expanded Auxiliary ControlUnlock extra channels for scale details
The Spektrum X-Plus8 Expansion Module expands your control system by adding 8 extra channels for non-critical auxiliary functions like scale lighting, retracts, bomb drops, and winches. Designed for seamless operation with Spektrum X-Plus transmitters and receivers, this compact expansion board gives scale RC modelers maximum flexibility. Operating across a broad 3.5V to 9.6V range, it delivers reliable performance across aircraft, surface, and marine applications.
Precision Accessory TuningFull servo programming via Spektrum AirWare
Take complete control of complex scale functions with the Spektrum X-Plus8 Expansion Module. When linked to compatible AirWare-powered Spektrum radio systems, each of the eight expansion channels can be assigned to 2-position switches, 3-position switches, or proportional potentiometers. Pilots and builders can independently fine-tune servo travel, sub-trim, reversing, and operational speed for each channel directly through the transmitter interface.
Power management is engineered for maximum versatility. The Spektrum X-Plus8 Expansion Module features dual auxiliary power ports, allowing high-draw scale accessories to run on independent batteries and switches without draining your receiver power. For simpler setups, the included jumper allows power to be drawn directly through the receiver bus, providing a clean and efficient wiring setup for your scale RC airplane or model vehicle.
Technical DetailsSpecifications and physical parameters
Compatible Systems
Spektrum X-Plus Transmitters & Receivers
Part Type
Servo Expansion Module
Model Type
RC Aircraft, Ships, and Surface Vehicles
Number of Channels
8
Voltage Range
3.5 - 9.6V
Dimensions
1.61 x 0.91 x 0.79 in (41 x 23 x 20mm) (box)
Length
1.61 in (41mm) (ruler)
Width
0.91 in (23mm) (ruler)
Height
0.79 in (20mm) (ruler)
Weight
0.42 oz (11.9 g) (feather)
Key FeaturesAdvanced functions for scale modelers
Channel ExpansionExpands setup by 8 individual servo outputs
Dual Power PortsSupports auxiliary batteries for high-load servos
Receiver JumperIncluded jumper allows direct receiver power option
AirWare TuningFine-tune servo travel, sub-trim, reversing, and speed
Flexible AssignmentMaps to 2-position, 3-position, or potentiometer switches
Lightweight DesignUltra-compact footprint weighing under 12 grams
Versatile Scale FunctionsPerfect for lights, bomb drops, winches, and retracts
Frequently Asked QuestionsEverything you need to know
What functions is the Spektrum X-Plus8 Expansion Module designed to control?
The Spektrum X-Plus8 Expansion Module is designed to expand control channels for non-critical scale functions such as bomb drops, navigation lights, winches, retractable landing gear, and other auxiliary accessories.
How is the Spektrum X-Plus8 Expansion Module powered?
The Spektrum X-Plus8 Expansion Module features dual battery ports for independent auxiliary power supply, or it can draw power straight from your receiver using the included BATT/JMPR jumper.
Is the Spektrum X-Plus8 Expansion Module compatible with all RC transmitters?
The Spektrum X-Plus8 Expansion Module is specifically designed for use with Spektrum X-Plus compatible transmitters and receivers using AirWare programming software.
Can I adjust servo speed and endpoints using the Spektrum X-Plus8 Expansion Module?
Yes, when connected to an AirWare-enabled Spektrum transmitter, you can individually adjust each channel's travel adjust, sub-trim, servo reversing, and speed.
