You squeeze the trigger gently, and instead of rolling away smoothly your truck goes "brrt-brrt-brrt," lurches, then takes off. That shudder is called cogging, and it is one of the most common "is my truck broken?" questions at our counter. Sometimes the answer is "no, that is just how your motor works." Sometimes it is a cheap sensor cable. Sometimes it is a battery about to quit.
Here is why brushless motors cog, why sensored motors mostly do not, and a quick checklist to sort out the real problems from the normal quirks. The physics comes from motor-control engineers at Microchip, and the troubleshooting order is what we use on our own repair bench.
The Short Answer
Most low-speed stutter in brushless RC cars comes from sensorless motors: the ESC finds the rotor's position from back-EMF, which is zero at a stop and weak at very low RPM, so starts can be rough. Sensored motors report rotor position directly and start smoothly. A sensored system that suddenly cogs usually has a bad or unplugged sensor cable.
- Slight cogging only from a stop on a sensorless motor is normal.
- Sudden or severe cogging points to a sensor cable, motor wire, overgearing, a binding drivetrain or low voltage.
- Fix order: battery, wires and sensor cable, gearing and drivetrain drag, then ESC settings.
- Go sensored if you crawl, race or need precise low-speed control.
1. Why Brushless Motors Cog: Sensorless vs Sensored
A brushed motor switches its own current with brushes and a commutator, so it starts smoothly every time. A brushless motor relies on the ESC to energize the right coil at the right moment, which means the ESC has to know where the rotor is. There are two ways to find out, and they are the whole story behind cogging.
How sensorless ESCs find the rotor
A sensorless ESC listens to the voltage the spinning motor generates, called back-EMF. Microchip's explanation is the key: back-EMF "is proportional to motor speed and is zero at standstill," so "sensorless systems cannot determine rotor position at startup and at very low speeds." The ESC has to guess at start-up, and a wrong guess feels like a shudder or a small kick backward before it locks on.
How sensored motors avoid it
A sensored motor has Hall effect sensors inside and a small ribbon cable to the ESC. Microchip notes that Hall sensors "enable reliable position detection from zero speed to high speed." The ESC never has to guess, so the motor pulls smoothly from a dead stop. The trade-off is extra parts: a sensor board and a cable that can get damaged or come unplugged.
Which one is in your truck?
Look for a thin flat cable between the motor and ESC. No cable means sensorless. Many RTR bashers use sensorless systems. The Rustler 4X4 VXL owner's manual lists its Velineon 3500 as a sensorless brushless motor, for example. Sensored systems are common in racing, short course and crawling. Some, like the Castle Mamba X SCT Pro combo, can run either way; Big Squid RC notes it "can be used both ways" and called the sensored low-end "buttery smooth."
2. Normal Cogging or a Real Problem? Diagnose It
A sensorless truck that shudders for a split second when you creep away and is smooth everywhere else is behaving normally. Cogging that is new, getting worse, happens at speed, or comes with heat or glitching is a problem. Use this table, then work through the checklist.
| Symptom | Most likely cause | First thing to try |
|---|---|---|
| Slight shudder only when creeping from a stop, smooth once rolling | Normal sensorless start-up behavior | Smoother throttle input; lower gearing |
| Was smooth, now cogs badly from a stop (sensored system) | Sensor cable unplugged, damaged or dirty | Reseat or replace the sensor cable |
| Stutters under load, worse in grass or heat | Overgeared or a binding drivetrain | Smaller pinion; check mesh and spin the drivetrain by hand |
| Pulses or cuts out late in the pack | Low-voltage cutoff or a tired battery | Recharge; check pack health |
| Jerky in both directions, runs rough at all speeds | A bad motor wire, bullet connector or solder joint | Inspect and tug-test all three motor wires |
| Steering glitches when it stutters | Receiver power or signal problem | Check the receiver battery or BEC and plugs |
The 10-minute checklist
- Fresh battery. Test with a fully charged pack. If the stutter shows up only late in a run, the ESC's low-voltage cutoff may be kicking in, or the pack may be worn out.
- Motor wires. With the battery unplugged, tug-test all three motor wires and bullet connectors. Look for cracked solder, loose bullets and melted insulation.
- Sensor cable (sensored only). Unplug it, look for bent pins, dirt or a pinched cable, then reseat it firmly at both ends. A spare cable is cheap, and on our bench it is the most common fix for a sensored system that suddenly cogs.
- Drivetrain drag. Pull the pinion away from the spur, or remove the motor, and turn the drivetrain by hand. It should spin freely. Binding bearings, packed mud or a too-tight gear mesh all make a motor struggle at low speed.
- Gearing. If the truck runs hot and cogs under load, drop a few teeth on the pinion.
- Radio check. If steering twitches at the same moment, look at receiver power and plugs, not just the motor.
Sensored motor wire order matters
On a sensorless system, swapping two motor wires only reverses direction. On a sensored system, Big Squid RC notes that all three motor wires must go to their proper ESC ports. Get them crossed and the motor can run rough, hot or backward even with a perfect sensor cable. Check the ESC and motor labels (usually A, B, C).
When the low-voltage cutoff is the culprit
LiPo-compatible ESCs cut or reduce power when pack voltage drops, and that can feel like stuttering. ARRMA's manual lists "LVC protection activated" among its ESC LED codes, and the Traxxas manual says the VXL-3s limits output to 50 percent throttle as a pack nears its threshold, then shuts down motor output and slowly blinks red. Recharge before you go hunting for other problems. If a fully charged pack still trips it quickly, the pack may be worn out or not up to the current your truck needs.
3. How to Reduce Cogging (or Get Rid of It)
If your system is healthy and you just want smoother low-speed control, you have options, from free to a full electronics swap.
Free fixes
- Smooth throttle. Feed in throttle gently from a stop. Stabbing it at very low RPM is when sensorless ESCs guess most.
- Lower gearing. A smaller pinion lowers the load at start-up and helps the motor lock on sooner.
- Free up the drivetrain. Clean or replace gritty bearings, clear packed debris and set gear mesh with a slight amount of backlash.
ESC settings
Many programmable ESCs have start-up, punch or timing settings that change how aggressive the first moment of throttle is. Change one setting at a time and use your ESC's manual or programming tool, such as a Castle Link for Castle ESCs. Note your original settings first so you can go back.
Going sensored
For crawling, racing and anyone who needs smooth throttle at a walking pace, a sensored ESC and motor is the real fix. Remember that a sensored motor needs a sensored ESC to get the benefit, and check the cell rating of both parts. Big Squid notes, for example, that the Mamba X SCT Pro ESC handles 2S to 6S while its 1410 motor is listed for 2S or 3S. For a bash truck that lives at full throttle, a healthy sensorless system is fine; Horizon Hobby points out brushless motors in general need much less maintenance than brushed.
When to bring it in
If the motor cogs at all speeds, gets very hot quickly, smells burnt or the ESC flashes error codes you cannot clear, stop driving it. A failing sensor board, a damaged winding or a dying ESC can take other parts with it.
Conclusion
A little shudder from a stop is the price of a simple, tough sensorless brushless system. New or severe cogging is a symptom, and the cause is usually something cheap: a tired battery, a loose motor bullet, an unplugged sensor cable, too much gear or a gritty drivetrain. Work through the checklist before you buy anything. If you crawl or race, a sensored system is the upgrade that makes the problem go away.
Stuck? Bring your truck to our Cumming showroom and the repair bench will help you track it down. You can also browse our motors and ESCs, including sensored Castle combos, or contact the shop with your ESC and motor model.
Gear Mentioned in This Guide

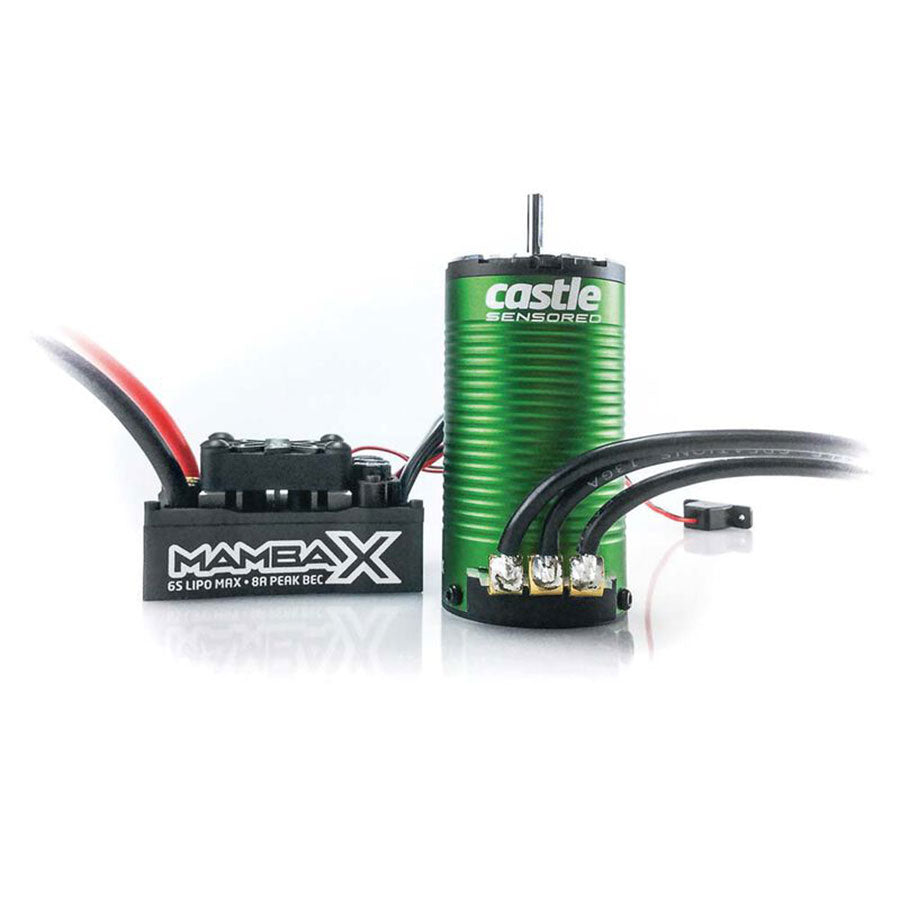

Castle Mamba X SCT Sensored ESC / 1415 2400Kv Combo
A sensored brushless combo for 1/10 trucks when smooth low-speed control matters.
Shop now
Castle Mamba X SCT Pro Sensored ESC / 1410-3800Kv Combo
Runs sensored or sensorless. The ESC is rated higher than the motor, so mind the motor's limit.
Shop now
Traxxas Velineon 3500 Brushless Motor (3351R)
A popular sensorless motor. Some low-speed roughness is normal.
Shop now
Tekin ROC412EP HD Brushless Crawler Motor 2300Kv
A brushless crawler motor. Crawling is where sensored control earns its keep.
Shop now
Castle Link USB Programming Kit V3
Lets you read and change Castle ESC settings from a computer.
Shop nowFrequently Asked Questions
Why does my brushless RC car stutter when I start?
Most likely it has a sensorless motor. The ESC finds the rotor position from the voltage the spinning motor produces, and at a standstill there is none, so it has to guess at start-up. A brief shudder from a stop is normal. Stuttering that is new or severe points to a wiring, battery, gearing or drivetrain problem.
What is cogging in an RC motor?
Cogging is a jerky, stuttering or shuddering motion at very low speed, usually from a stop. In RC cars it is mostly seen with sensorless brushless motors and with sensored motors whose sensor cable is damaged or unplugged.
Do sensored motors cog?
A healthy sensored system should start smoothly because Hall sensors tell the ESC where the rotor is at all times. If a sensored motor starts cogging, check the sensor cable first, then the motor wire order and the sensor board.
Can I run a sensored motor without the sensor cable?
Many sensored systems can run sensorless, and some combos like the Castle Mamba X SCT Pro are described as working both ways. Without the cable, though, you lose the smooth low-speed control that made sensored worth buying.
Is sensored or sensorless better for bashing?
Sensorless is simple, durable and common in RTR bashers, and it is fine for high-speed driving. Sensored is better for crawling, racing and any driving where smooth low-speed throttle matters.
Can a bad battery make my RC car stutter?
Yes. A weak or nearly empty pack can trigger the ESC's low-voltage cutoff, which cuts or pulses power. If the stutter only shows up late in a run, recharge and test again. If a fresh pack still trips it quickly, the battery may be worn out.
