1/10 SCX10 PRO Comp Scaler 4WD Kit
$469.99
1/10 Scale
Competition Scale Crawler Chassis
Kit Completion
Custom Build Your Dream Rig
4WD Drivetrain
Maximum Off Road Climbing Traction
Shiftable Underdrive
Manual or Servo Selectable Rear
Forward Balance
Low Motor Position Distribution
Aluminum Shocks
Smooth Body Oil Filled Clearance
Competition Level Crawler ExcellencePodium Winning Scale Performance Out of Box

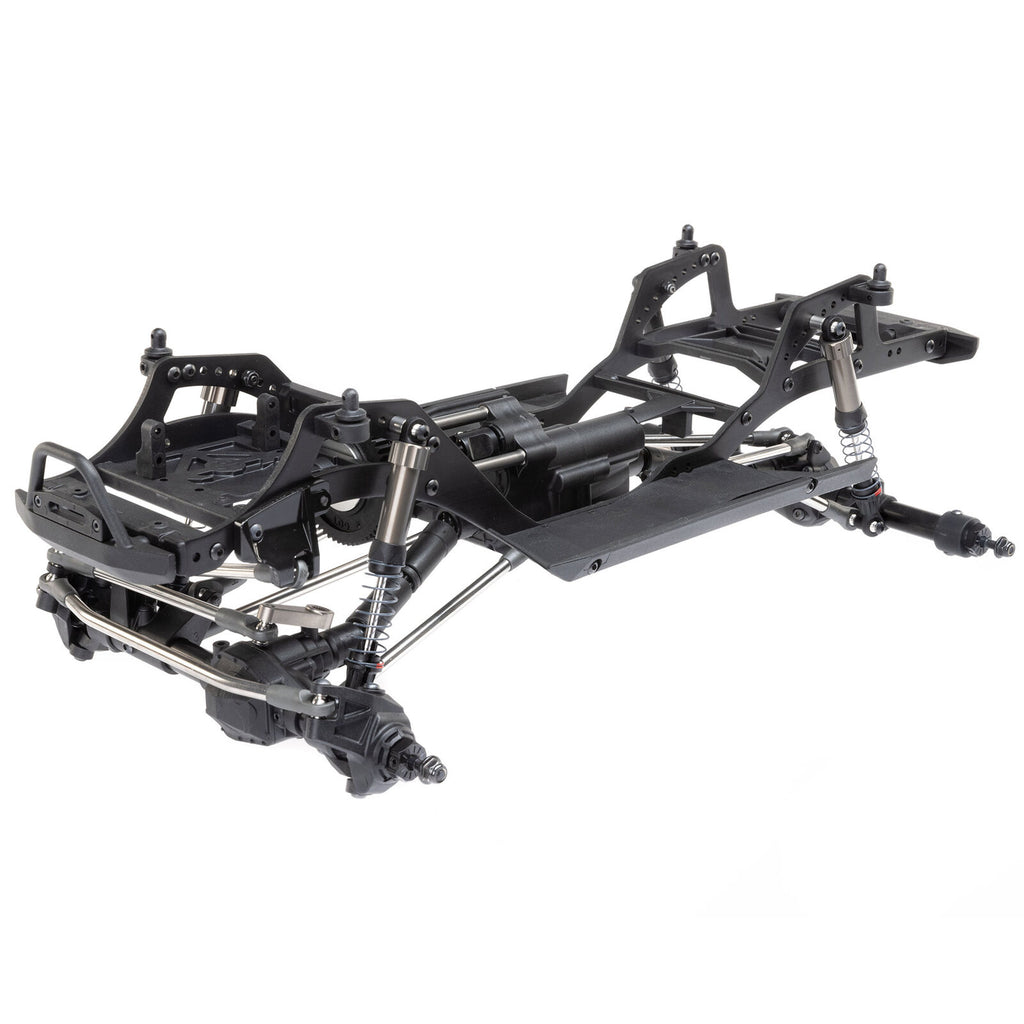

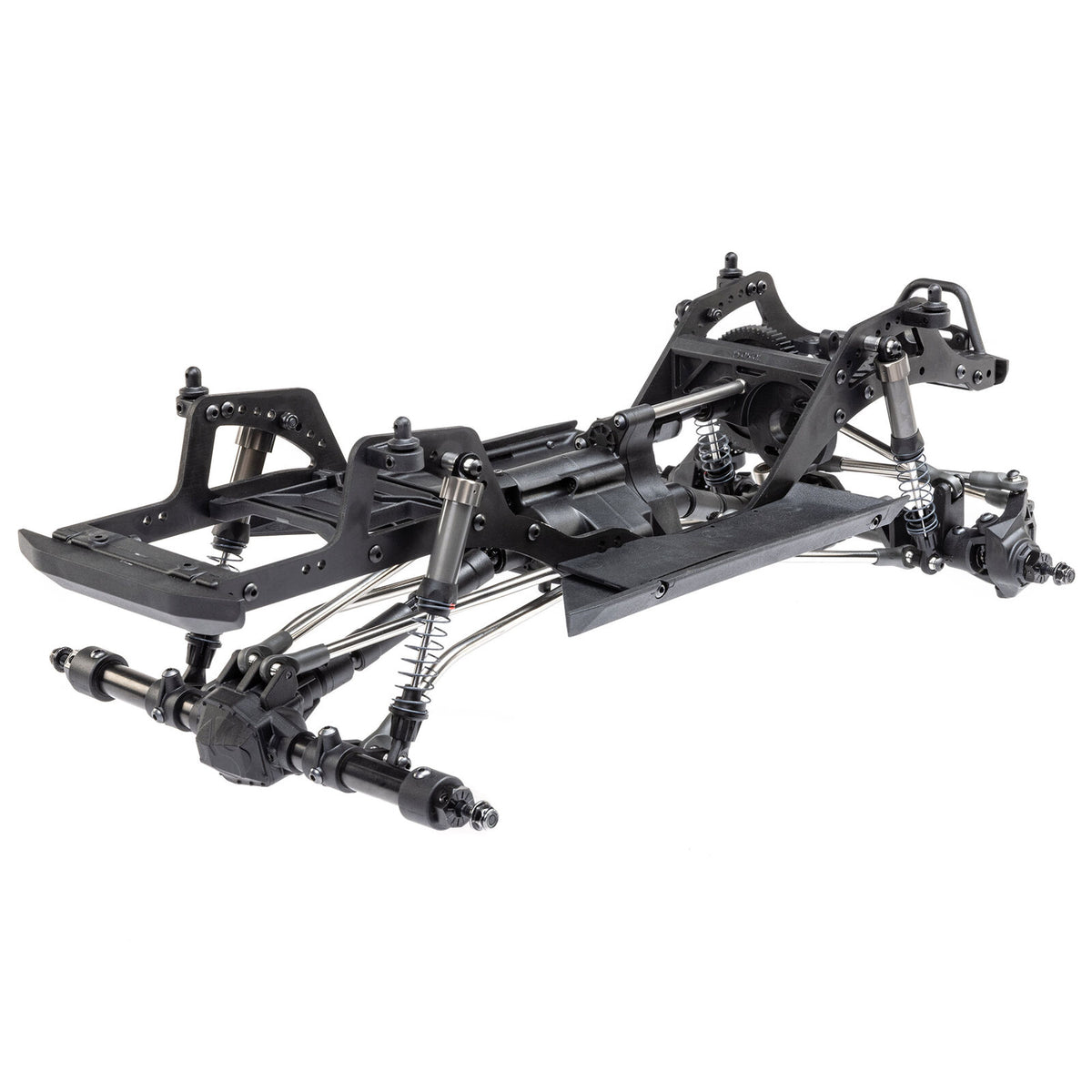

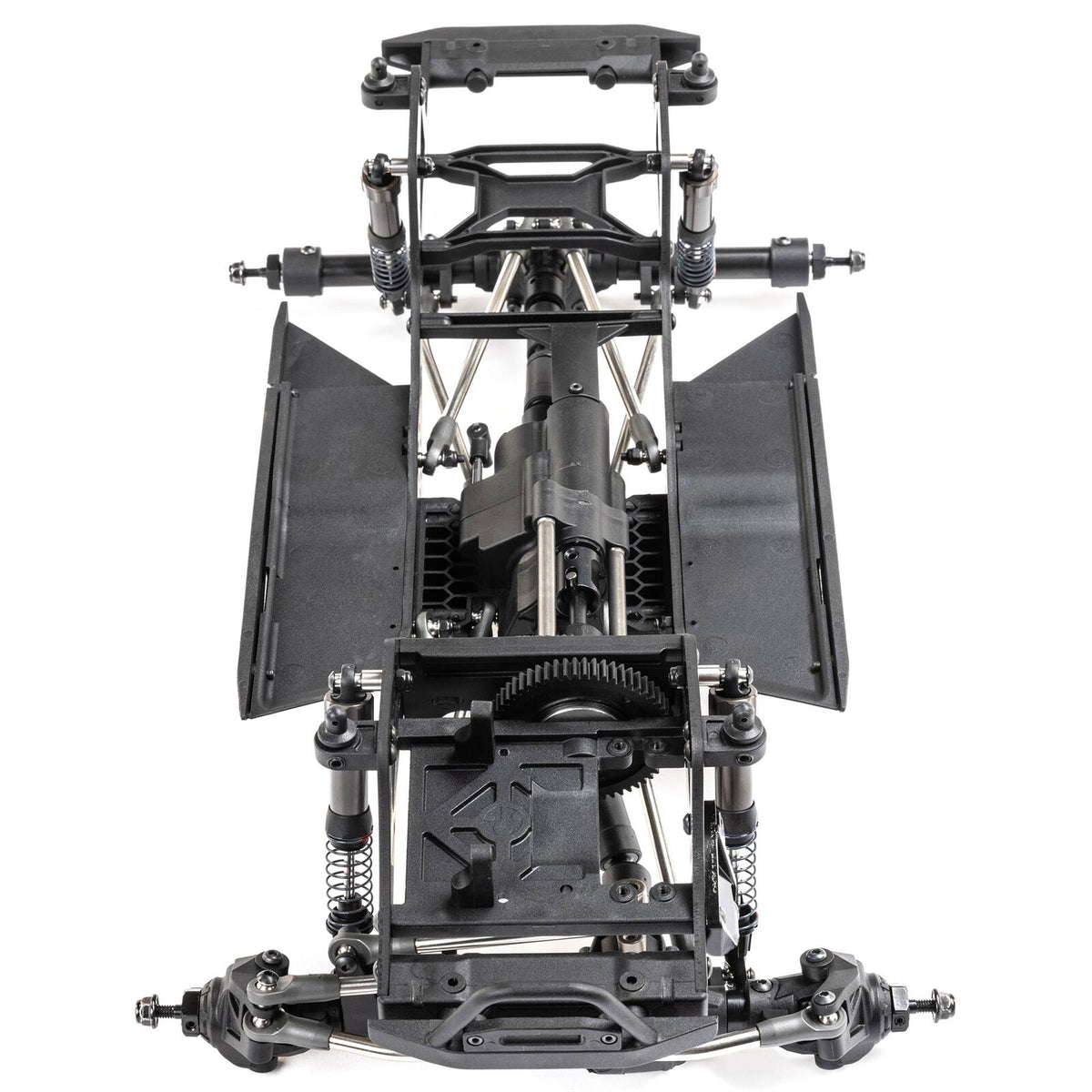

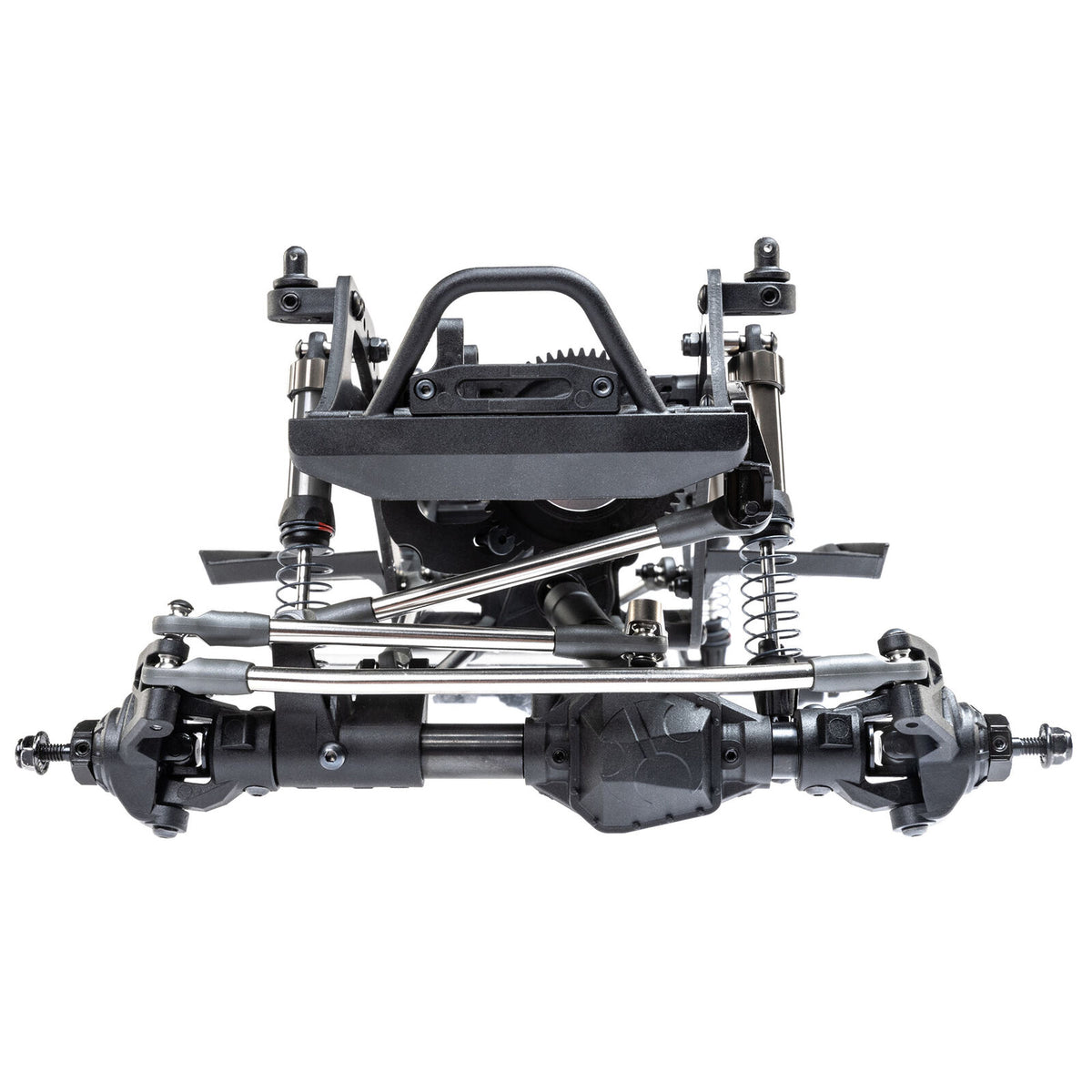

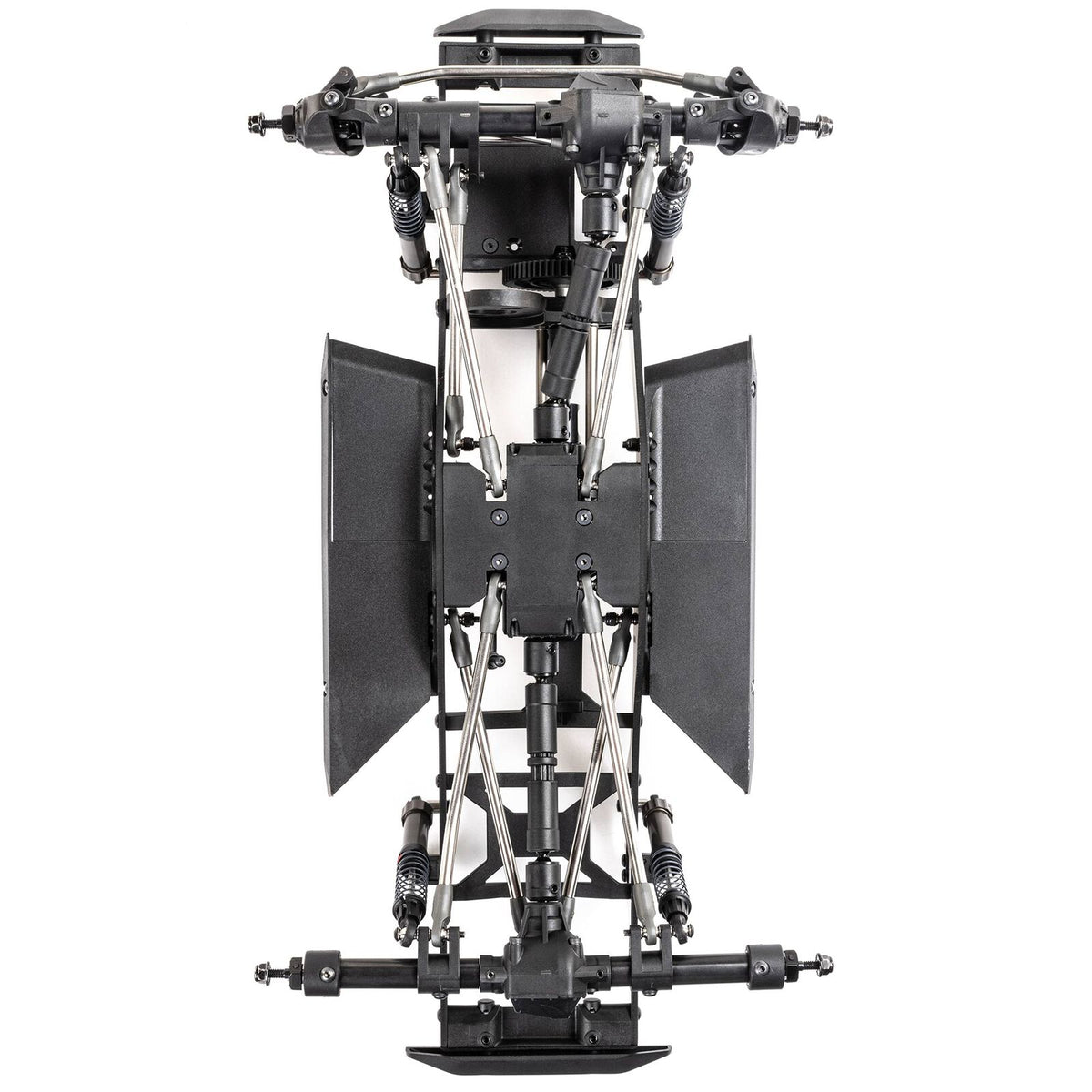

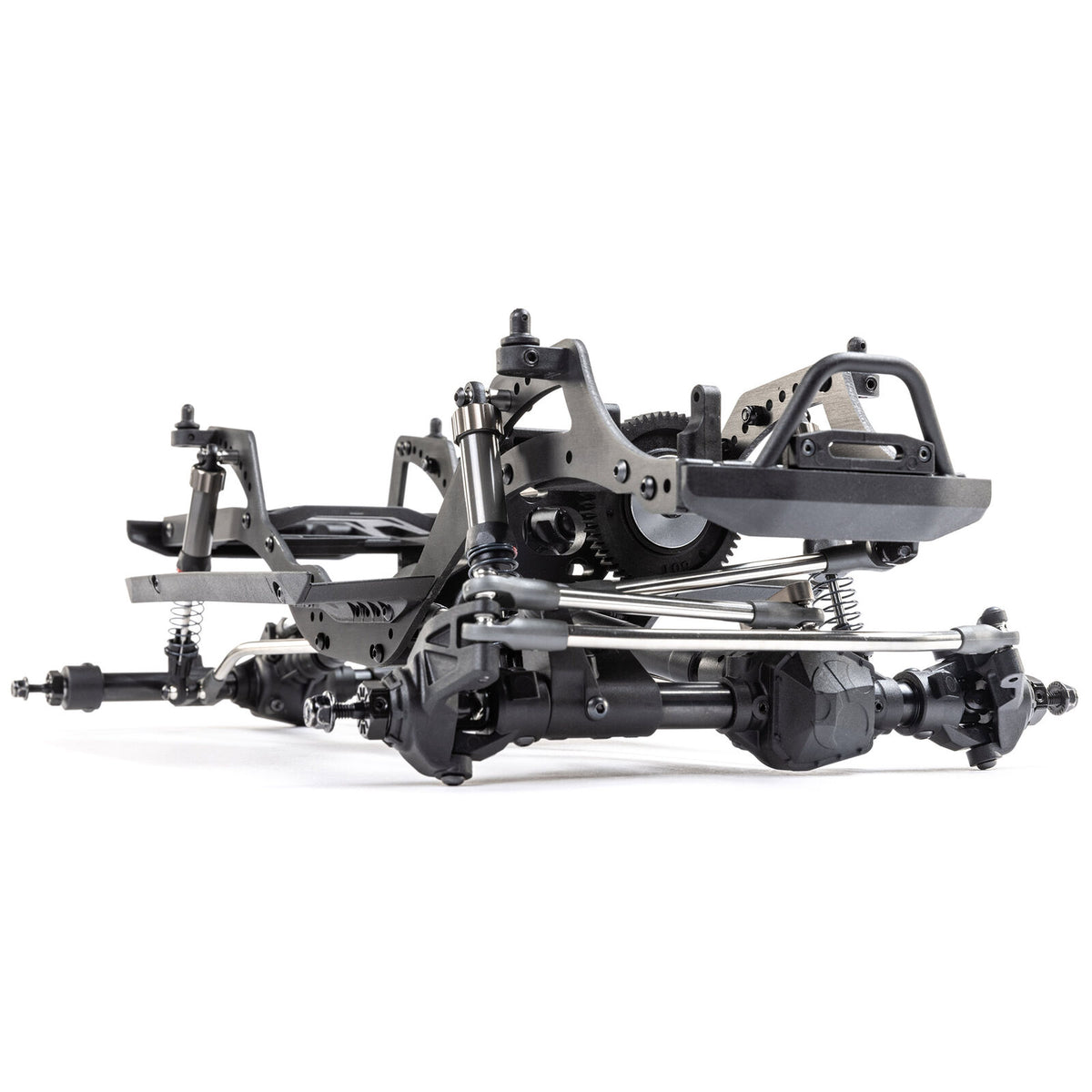

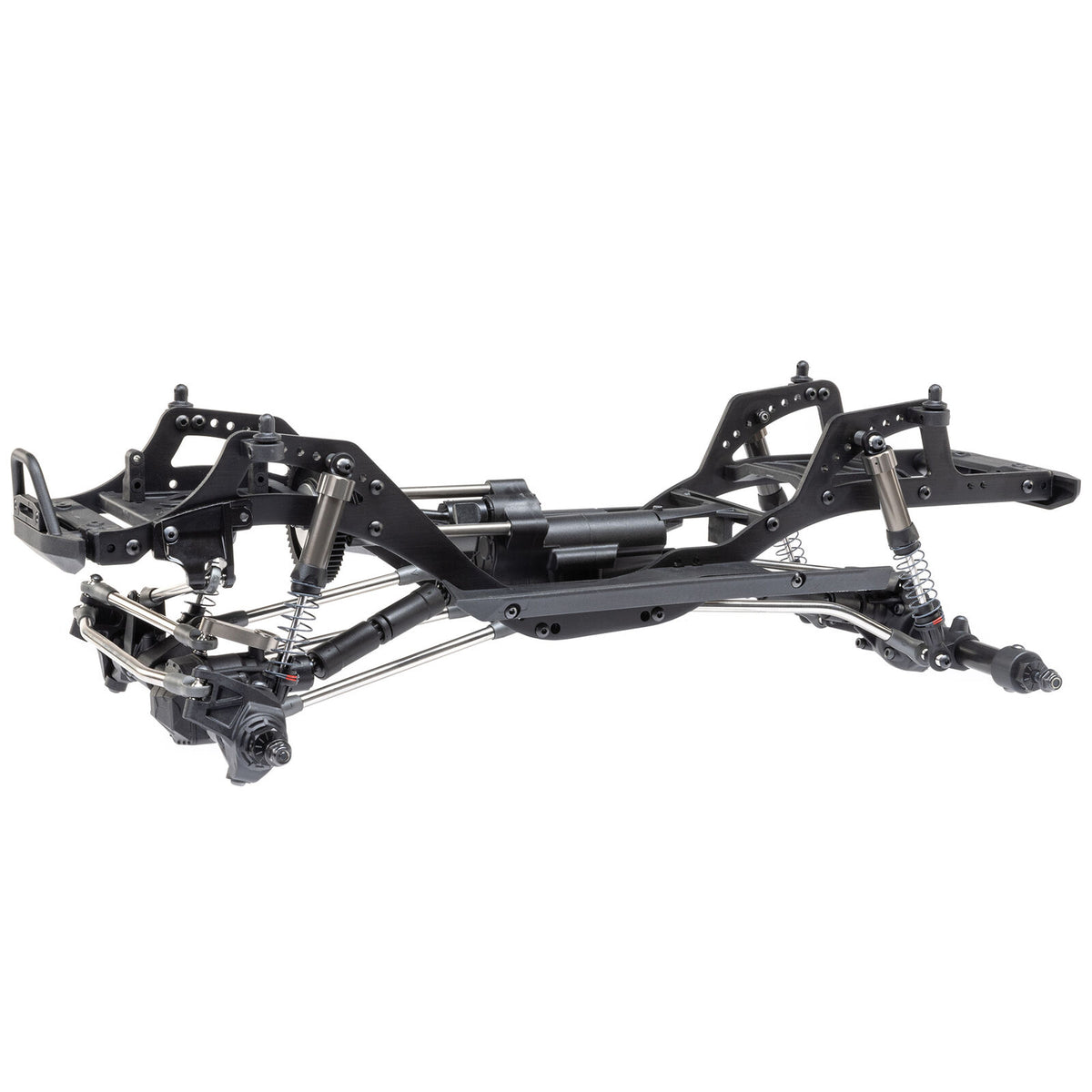

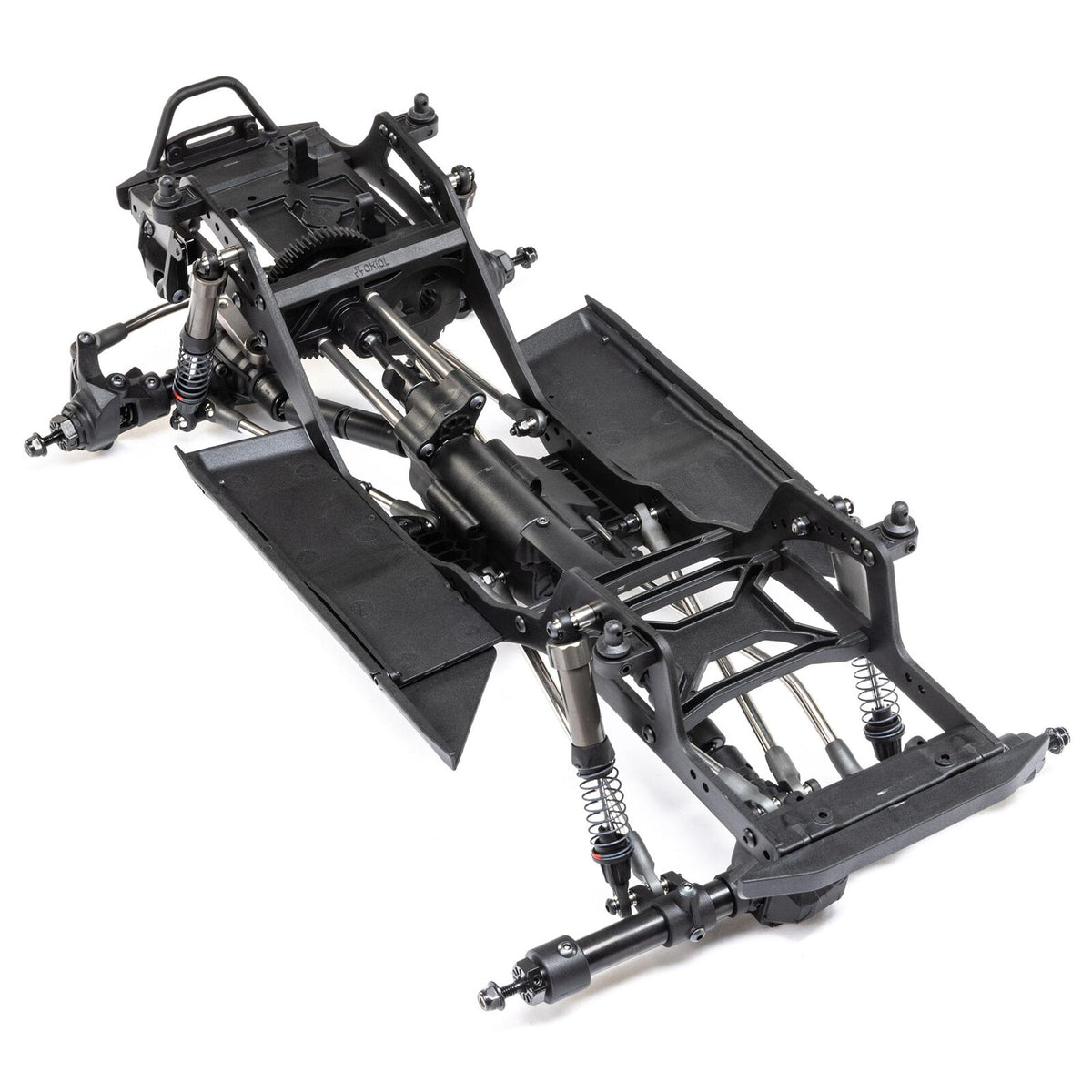

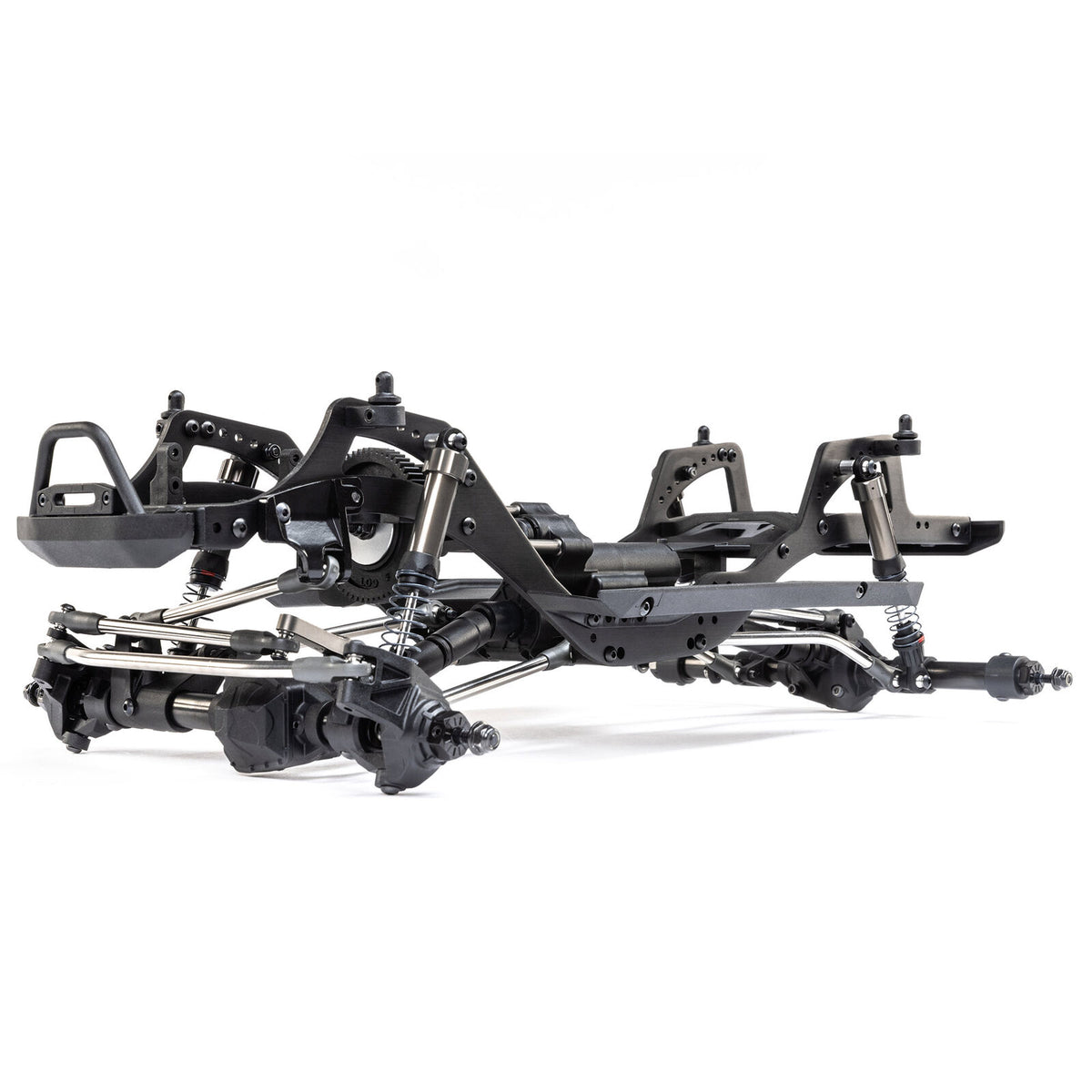

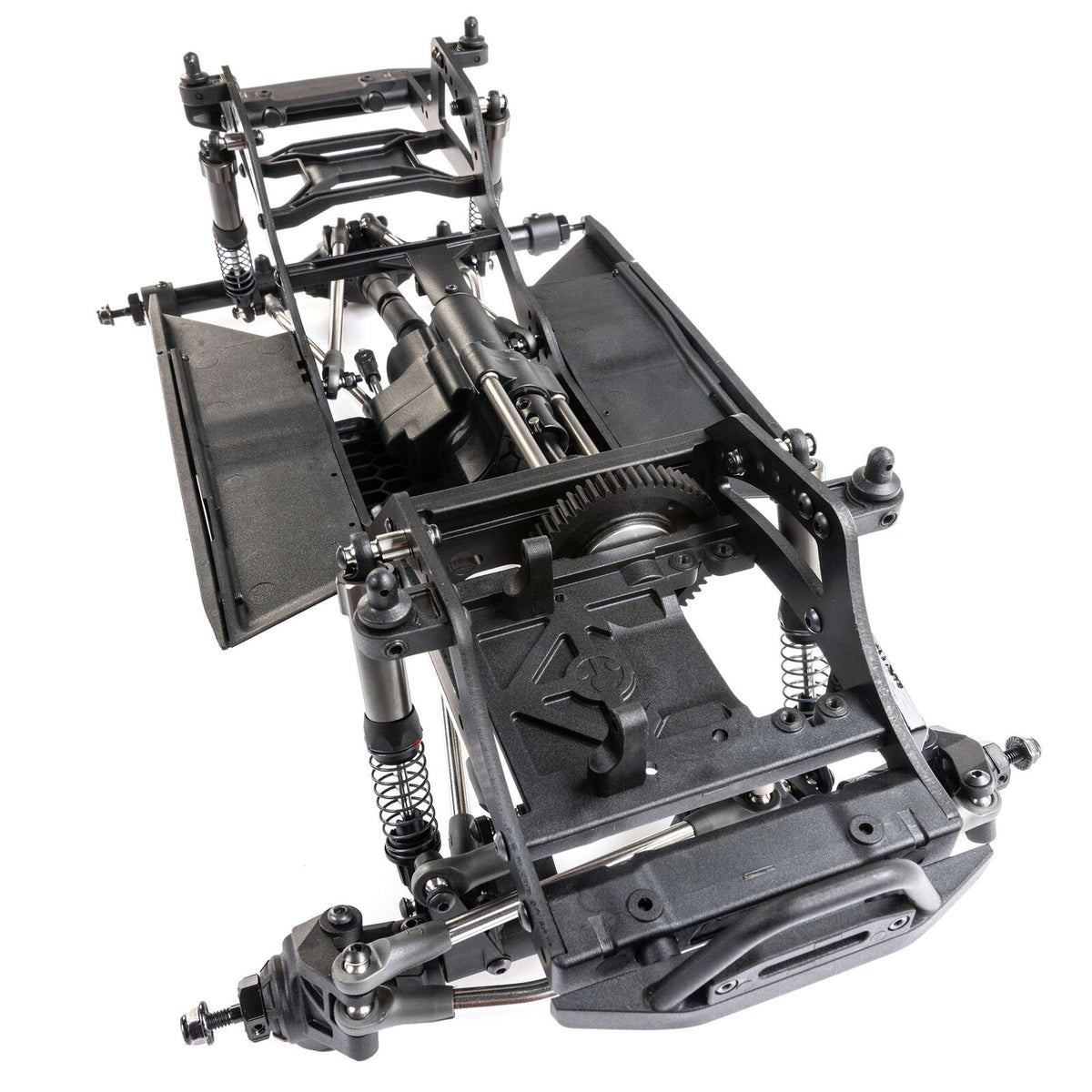

The Axial 1/10 SCX10 PRO Scaler 4WD Kit is engineered specifically to deliver top-level performance in competitive rock crawling. Designed with a lightweight aluminum plate chassis, this 4WD RC scale crawler kit provides optimized balance, superior breakover clearance, and incredible side-hilling capability for tackling tough lines.
Unmatched Scale Crawler EngineeringDesigned for Serious Competitors and Trail Enthusiasts
Build the ultimate competitive rig with the Axial 1/10 SCX10 PRO Scaler 4WD Kit. Featuring multi-piece steel tube axles, drivers can easily choose between a chassis-mounted (CMS) or axle-mounted (AMS) steering servo placement. The innovative motor placement positions your brushless motor or brushed motor low and forward for ideal weight bias. Complete with shiftable rear underdrive and aluminum oil-filled shocks, this RC rock crawler chassis gives you the engineering edge needed to win events without sourcing aftermarket parts.
Technical Performance SpecificationsDetailed Chassis and Drivetrain Configuration
Completion Level
Kit
Drivetrain
4WD
Motor Size
540/550 recommended
Power Type
Electric
Differential
Locked
Vehicle Size
16.65" x 9.25" x 7" (423 x 235 x 178 mm) (ruler)
Product Width
9.25" (235 mm) (ruler)
Product Weight
3lbs (1.4kg) Without Components (weight)
Product Height
7" (178 mm) (ruler)
Charger
Sold Separately (charger)
Connector Type
User Selectable
Spur Gear
Included
Gear Pitch
32-Pitch
Speed Control
Sold Separately
Servo
Sold Separately
Vehicle Type
Rock Crawler
Top Speed
Varies by Gear/Motor Setup
Battery Type
Sold Separately
LiPo Compatibility
2S to 3S LiPo Compatible
Drive Type
Shaft Driven 4WD
Shock Type
2.9" - 3.8" (74-96mm) Aluminum Oil filled (spring)
Body
Not Included
Wheel Hex Size
12mm (hexagon)
Battery Tray
Integrated Forward Chassis Tray
Motor Class
540 or 550 Size
Final Drive Ratio
38.46:1, 57.50:1
Roll Out
Gear Dependent
Radio
Sold Separately
Assembly Time
5-7 Hours
Scale
1/10
Motor Type
Brushless or Brushed Compatible
Power System
Electric DC System
Chassis
Aluminum Plate
Tire Tread/Hub Size
Wheels and Tires Sold Separately
Recommended Battery
2S or 3S Shorty LiPo
Pinion
13T
Internal Gear Ratio
10.26:1, 15.33:1
Oil Type
Silicone Shock Oil
Receiver
Sold Separately
Wheelbase
12.5" (318 mm) (ruler)
Ground Clearance
2.25" (57.1mm) (height)
Steering Type
2WS
Suspension
3-Link/4-Link
Ball Bearings
Complete Vehicle
Chassis Innovations & FeaturesBuilt With Championship Winning Technology
Comp-Ready DesignEasiest and most convenient way to build a competition scale crawler

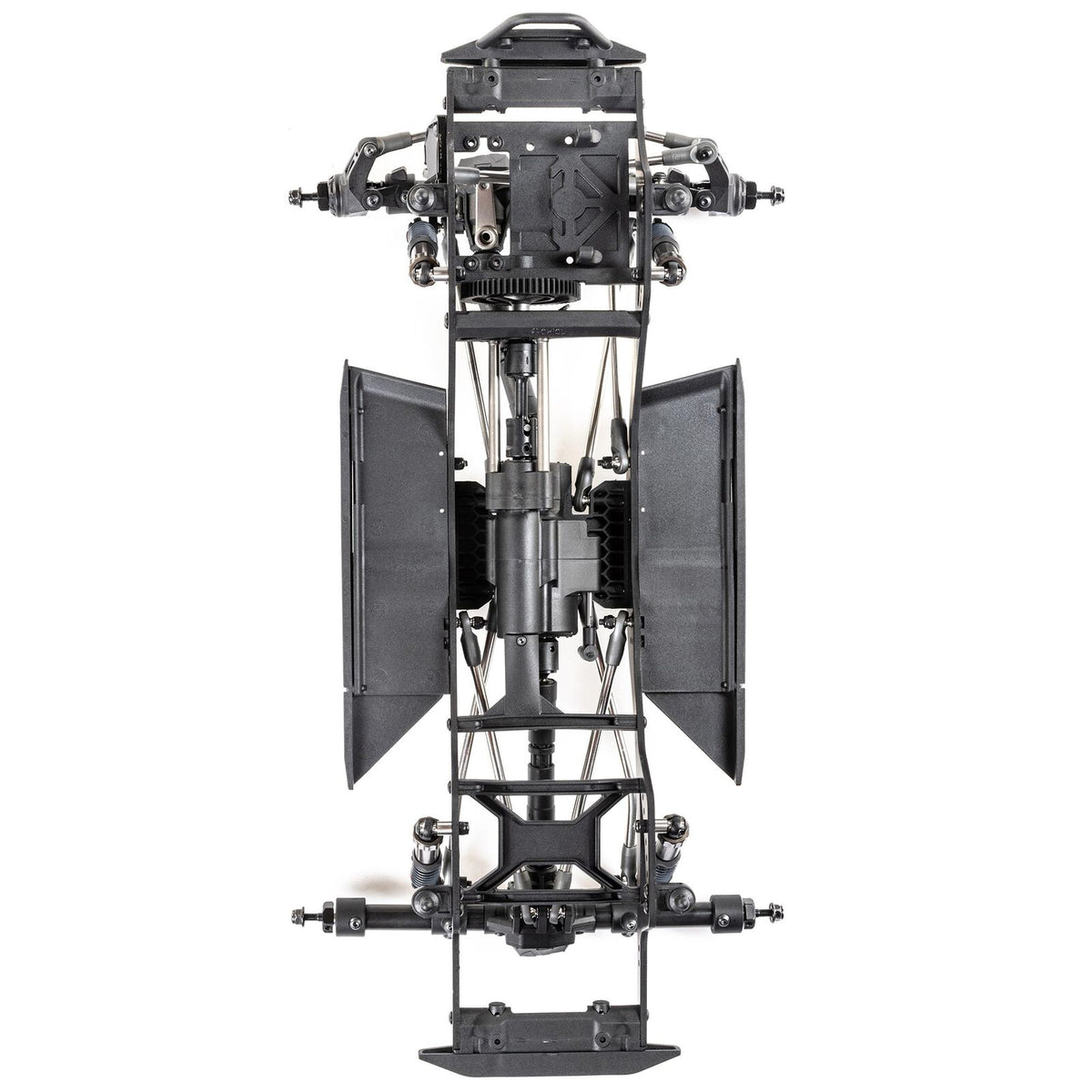

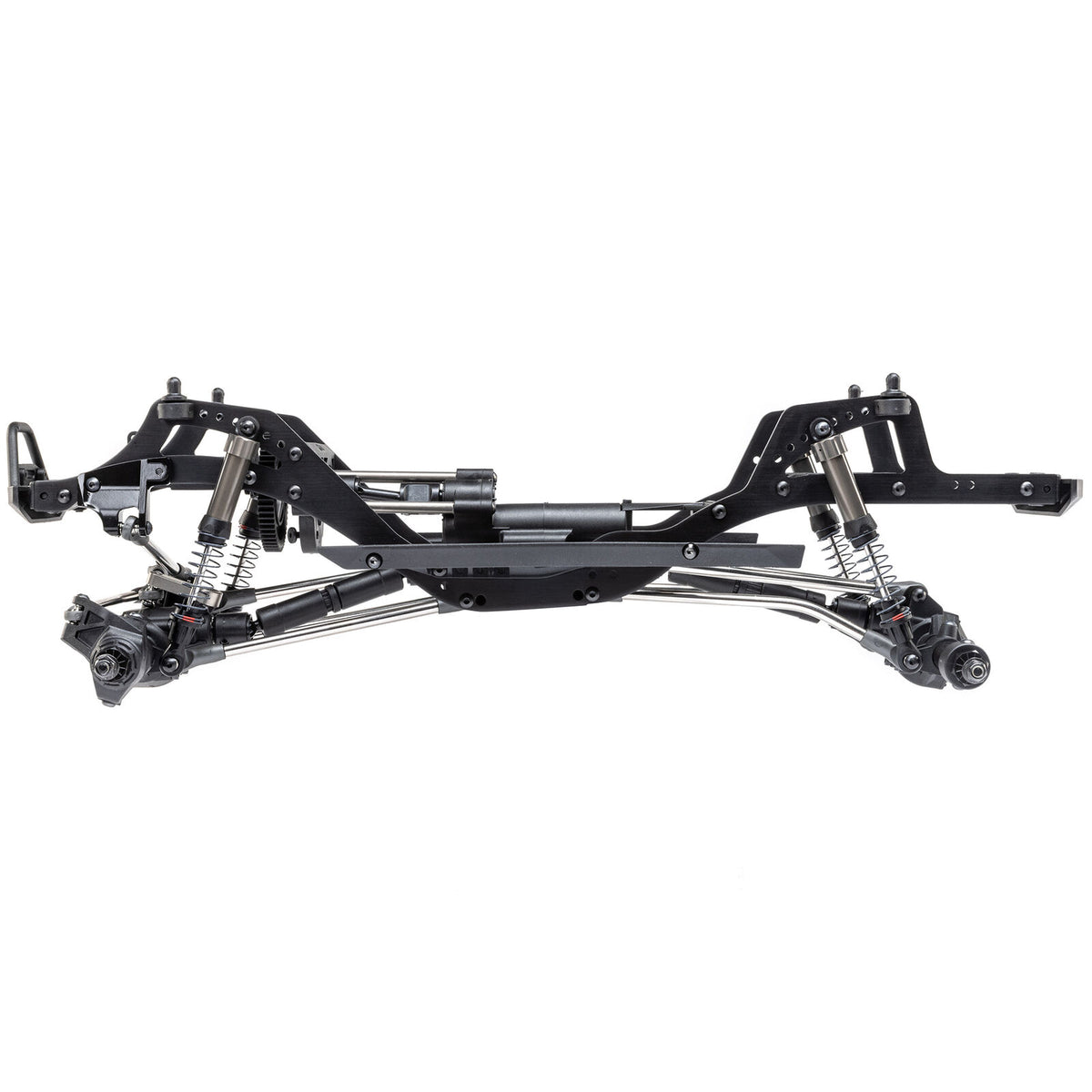

Optimized Aluminum ChassisLowered and lighter chassis optimizes climbing and side-hilling lines
Flexible Servo PlacementSteel tube axles accommodate Chassis-Mounted (CMS) or Axle-Mounted (AMS) servos (steering)

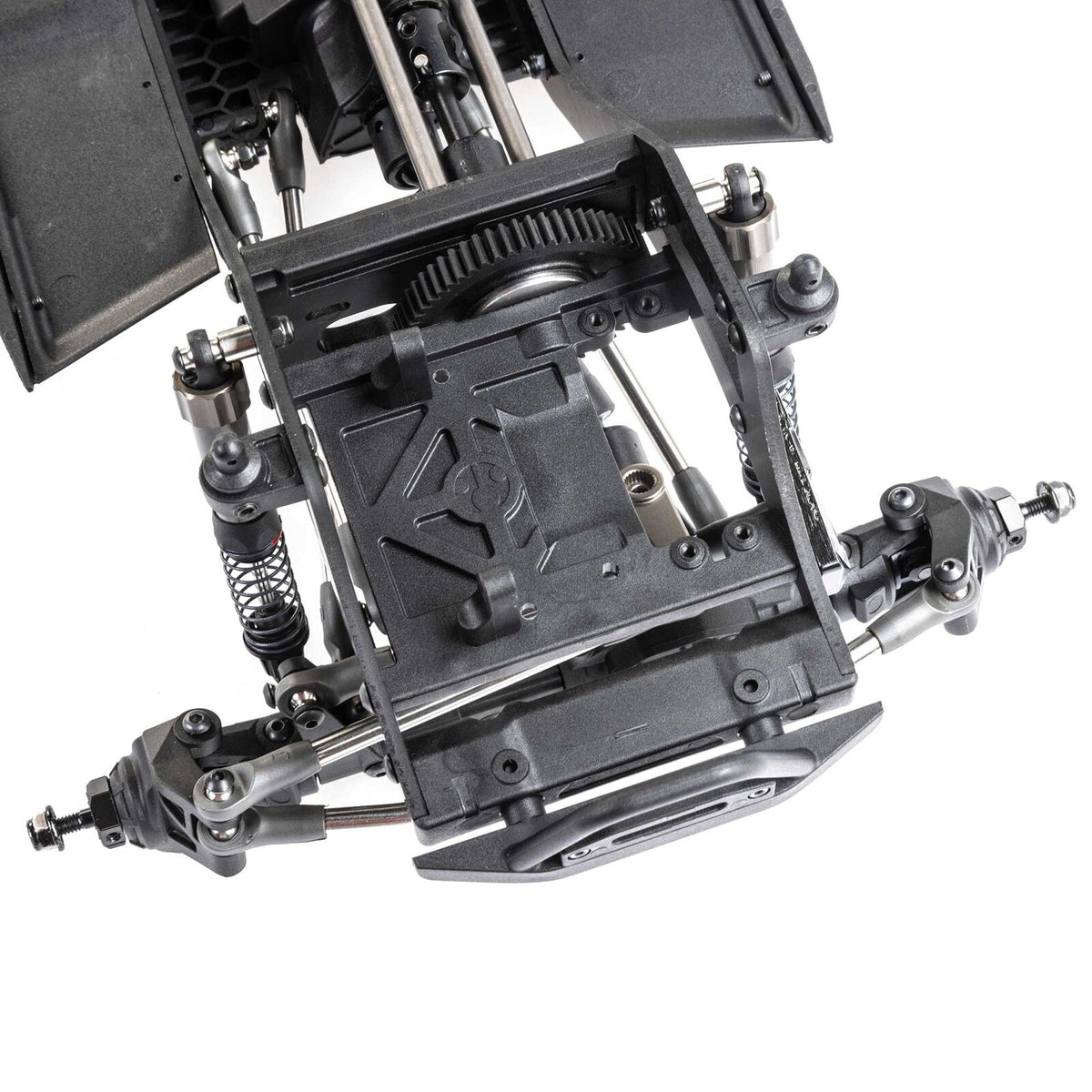

Low Forward Motor MountFront-heavy weight balance improves stability on steep inclines
Shiftable UnderdriveRear axle underdrive can be servo-actuated or locked manually in 1:1 ratio
High Clearance ShocksSmooth body aluminum oil-filled shocks maximize terrain clearance
Championship ProvenOut-of-the-box design has placed at major scale national crawling events
Frequently Asked QuestionsEverything you need to know

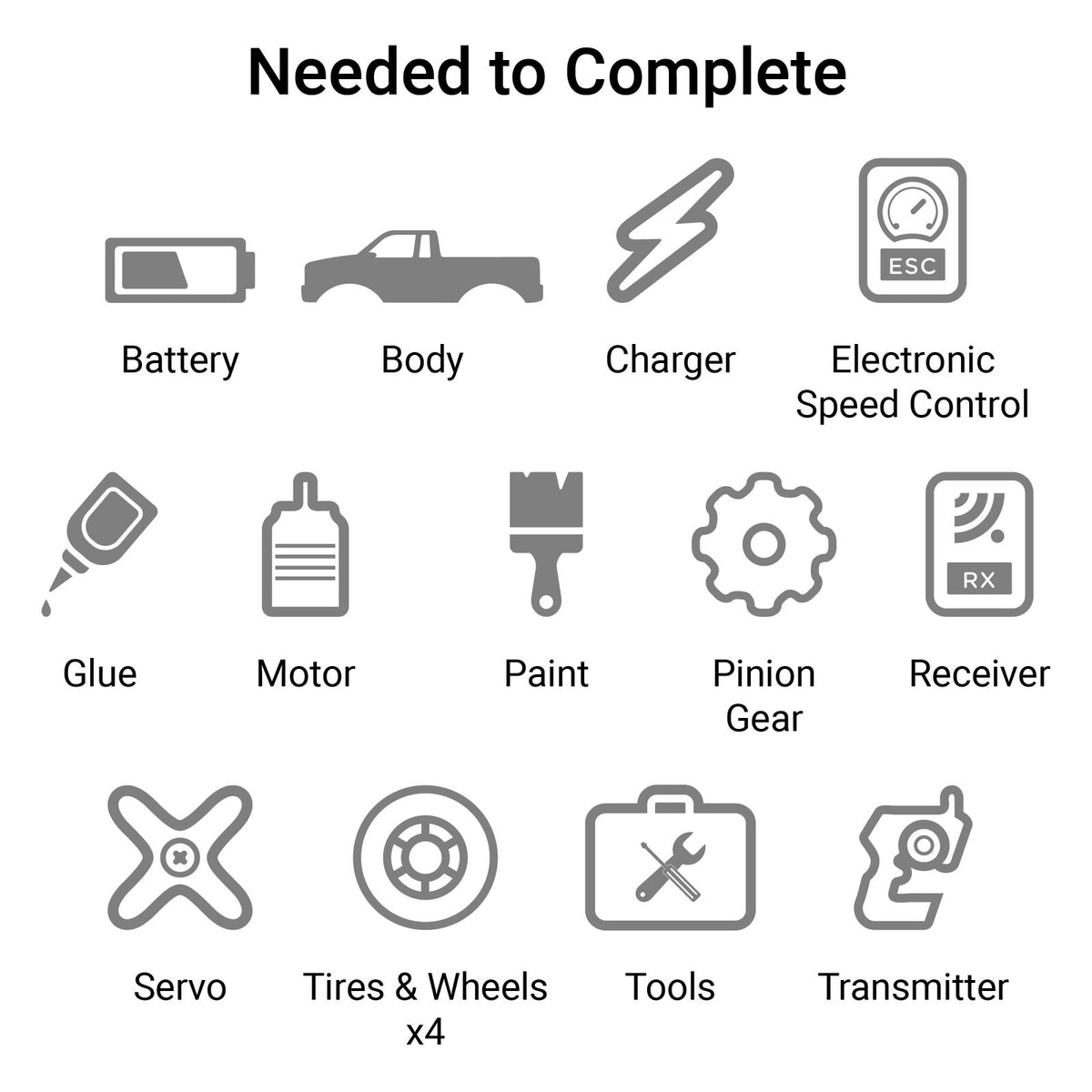

What additional electronics are needed to complete the Axial 1/10 SCX10 PRO Scaler 4WD Kit?

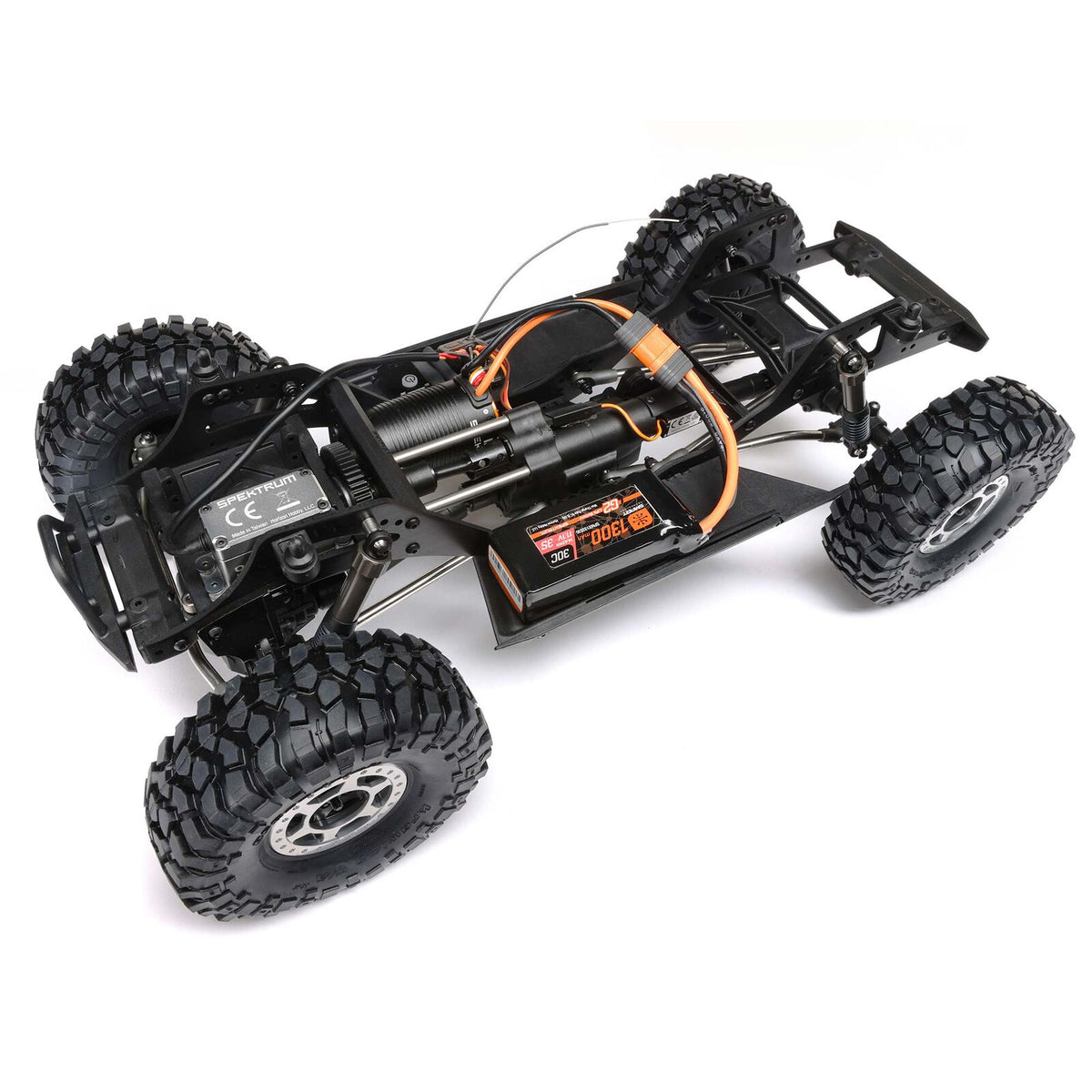

You will need a 2- to 4-channel surface transmitter and receiver, a 540 or 550 size rock crawler motor, an electronic speed controller (ESC), a high-torque steering servo, a scale crawler body, 12mm hex wheels with tires, and a compatible battery with charger. An optional micro servo can also be added for remote underdrive shifting.
Does the Axial 1/10 SCX10 PRO Scaler 4WD Kit come with a body or tires?
No, the Axial 1/10 SCX10 PRO Scaler 4WD Kit is sold strictly as a chassis kit so drivers can customize their build with their preferred scale body, wheels, tires, and power system.
Can I mount my steering servo on the axle with the Axial 1/10 SCX10 PRO Scaler 4WD Kit?
Yes, the multi-piece steel tube axles included with the Axial 1/10 SCX10 PRO Scaler 4WD Kit are designed to support both Axle-Mounted Servo (AMS) and Chassis-Mounted Servo (CMS) configurations right out of the box.
What scale is the Axial 1/10 SCX10 PRO Scaler 4WD Kit?
The Axial 1/10 SCX10 PRO Scaler 4WD Kit is a 1/10 scale rock crawler kit designed around a standard 12.5-inch (318mm) wheelbase.
