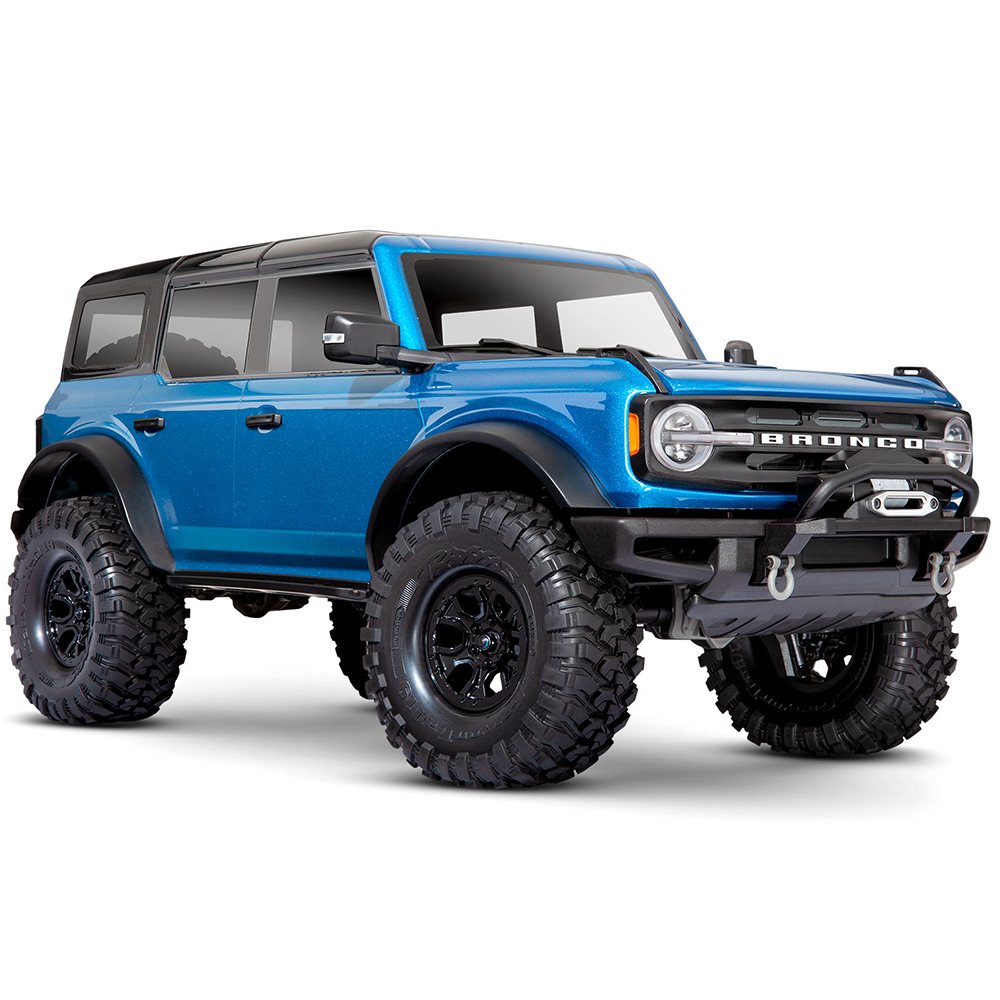

Traxxas 1/10 TRX-4 2021 Ford Bronco, 4WD, RTD (Requires battery & charger): Blue (92076-4-VBLU)

Traxxas 1/10 TRX-4 2021 Ford Bronco, 4WD, RTD (Requires battery & charger): Blue (92076-4-VBLU)

$549.95
Skip to product information
Traxxas 1/10 TRX-4 2021 Ford Bronco, 4WD, RTD (Requires battery & charger): Blue (92076-4-VBLU)

Traxxas 1/10 TRX-4 2021 Ford Bronco, 4WD, RTD (Requires battery & charger): Blue (92076-4-VBLU)

$549.95

Out of Stock

1/10 Scale Authentic Ford Bronco Replica
Ready To Drive Requires Battery And Charger
Titan 21T Motor High Torque 550 Brushed
Portal Axles Extreme Ground Clearance 80mm
T-Lock Diffs Remote Locking Front Rear
Waterproof Build All Weather Trail Capability
Part #: 92076-4-VBLU
SKU: 100023854
45+ YEARS IN BUSINESSServing since 1978
REPAIR SERVICESRC Cars, Planes, Boats, Drones & More
AUTHORIZED DEALERGenuine products from top brands
FAST SHIPPINGNext day shipping anywhere in the country.
EASY RETURNSIn-stock items returnable within 30 days
Trail Dominating RealismScale Detail Meets Extreme Capability

The Traxxas TRX-4 2021 Ford Bronco brings unprecedented realism and extreme capability to the world of 1/10 scale RC crawlers. Combining an officially licensed Ford Bronco body with the award-winning 4WD TRX-4 chassis, this ready-to-drive RC car is built to conquer technical terrain straight out of the box. Equipped with revolutionary portal axles and remote-locking differentials, it delivers ultimate trail performance for hobbyists of all skill levels.

Watch Overview
Engineering The Ultimate CrawlerBuilt To Conquer Extreme Terrain

Engineered for maximum versatility and durability, the Traxxas TRX-4 2021 Ford Bronco sets a new standard for scale RC trail trucks. Underneath the highly detailed Wildtrak replica body lies a heavy-duty steel ladder frame, oil-filled aluminum GTS shocks, and a high-torque Titan 21T 550 brushed motor paired with the XL-5 HV electronic speed control. Innovative portal axles lift the differential pumpkin to provide a massive 3.14 inches of ground clearance while virtually eliminating torque twist. With transmitter-operated high/low range 2-speed transmission and T-Lock remote locking differentials, this scale model 4WD vehicle empowers you to cruise trails at speed or crawl over extreme rock obstacles with surgical precision, all protected by fully waterproof electronics.

Technical SpecsDetailed Engineering Parameters
Completion Level Ready-To-Drive (RTD) (box)
Drivetrain Shaft Driven 4WD (drive)
Motor Size 550 Brushed (21T Reverse Rotation) (engine)
Power Type Electric
Differential 4 Gear Remote Locking
Vehicle Size 1/10 Scale
Product Width 9.78 in / 249 mm
Product Weight 6.42 lbs / 2.91 kg
Product Height 9.4 in / 239 mm
Charger Sold Separately (charger)
Connector Type Traxxas High-Current Connector
Spur Gear 32 Pitch
Gear Pitch 32P
Speed Control XL-5 HV 3S LiPo Compatible

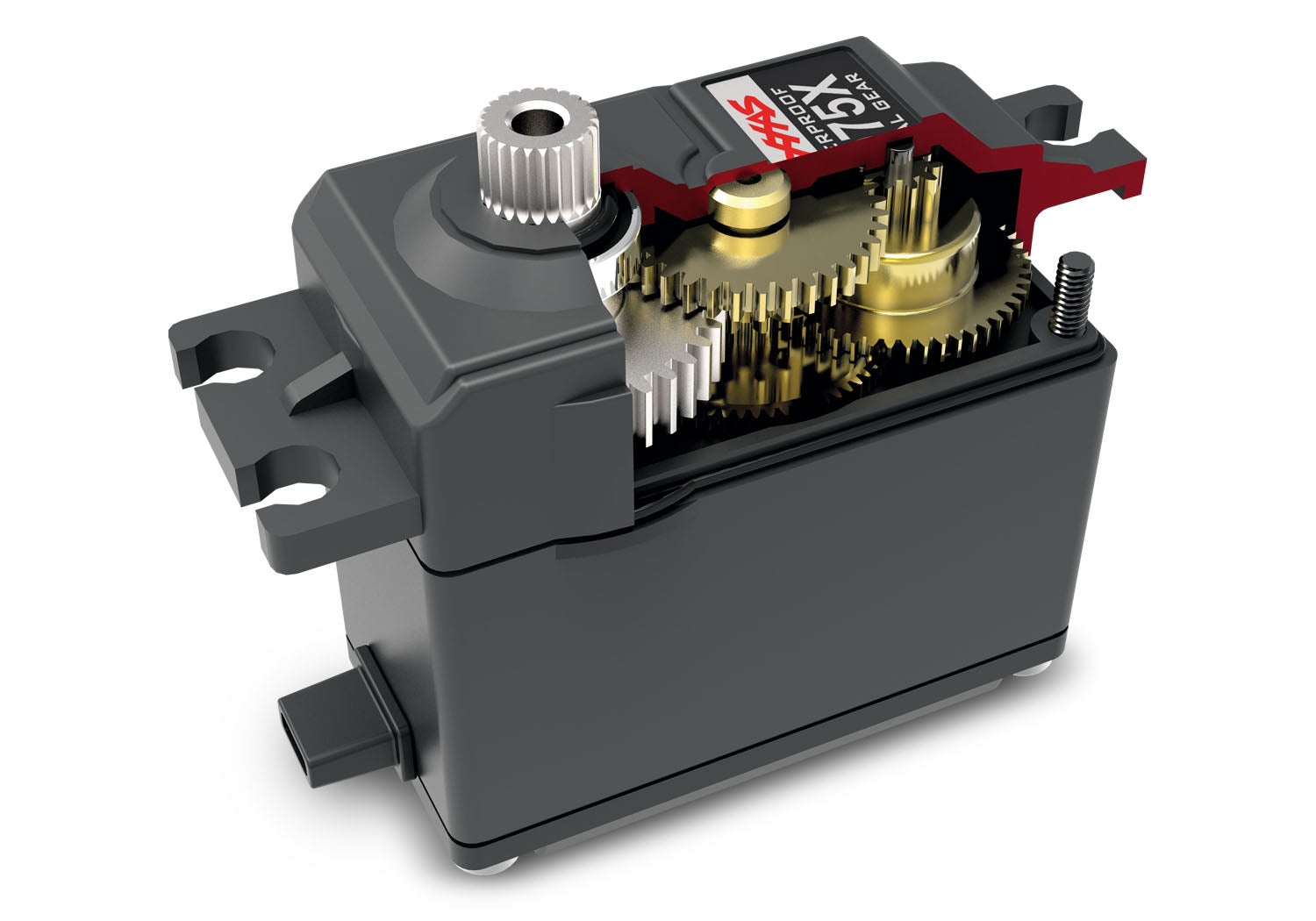

Servo 2075X Metal Gear Waterproof Steering Servo (servo)
Vehicle Type Scale RC Trail Truck / Crawler
Top Speed 15+ mph High Range
Battery Type 6-7 Cell NiMH or 2S-3S LiPo (Required) (battery)
LiPo Compatibility Yes (2S / 3S) (zap)
Drive Type Shaft Drive 4WD (drive)
Shock Type 90mm GTS Aluminum Oil-Filled Coilovers (suspension)
Body Officially Licensed 2021 Ford Bronco
Wheel Hex Size 12mm
Battery Tray 158.75 x 47 x 23/26 mm
Motor Class 550 High-Torque Brushed
Radio TQi 2.4GHz 4-Channel Transmitter
Assembly Time Less than 1 hour
Scale 1/10 Scale
Motor Type Brushed
Power System XL-5 HV / Titan 21T 550
Chassis Steel Ladder Frame with Nylon Composite Crossmembers
Tire Tread/Hub Size Canyon Trail 1.9 in / Wildtrak Wheels
Recommended Battery 3S LiPo or 7-Cell NiMH with Traxxas iD
Receiver Traxxas 6533 TQi 5-Channel with TSM
Overall Length 22.98 in / 584 mm
Wheelbase 12.8 in / 324 mm
Ground Clearance 3.14 in / 80 mm
Approach Angle 52 Degrees
Departure Angle 49 Degrees
Advanced FeaturesBuilt For Serious Off Road Action
Officially Licensed BodyScale 2021 Ford Bronco with molded grille, cowl, and mirrors
Portal AxlesLifts differentials for incredible 3.14-inch center ground clearance
T-Lock Remote DifferentialsLock and unlock front and rear differentials from the transmitter
High/Low Range TransmissionRemote switchable 2-speed transmission for cruising and crawling
Steel Ladder FrameRigid 1.5mm steel frame rails eliminate chassis flex
Titan 21T 550 MotorHigh-torque brushed motor with internal cooling fan
XL-5 HV ESC3S LiPo compatible with Trail and Crawl hill-hold modes
TQi 2.4GHz Radio4-channel transmitter featuring integrated cruise control

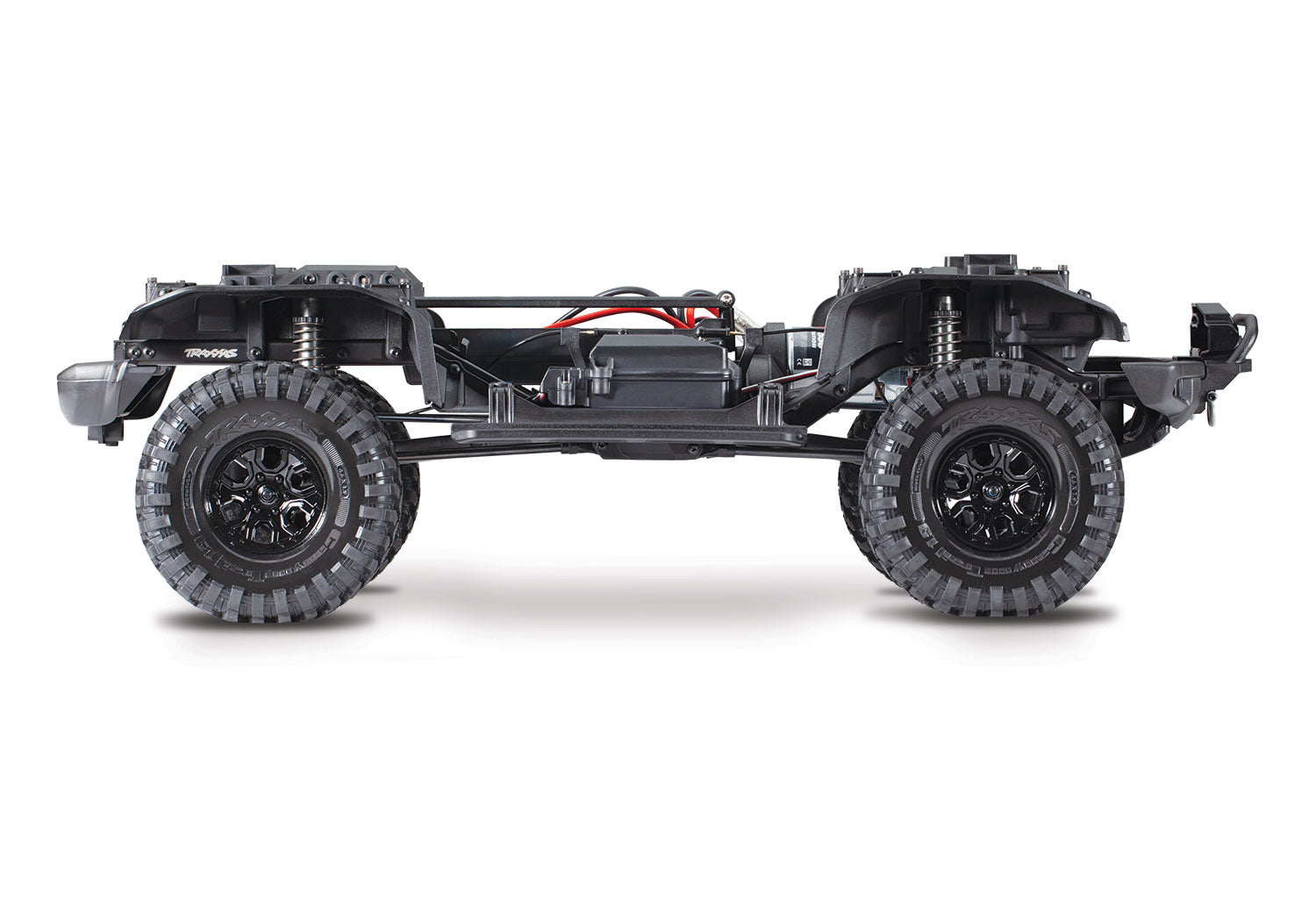

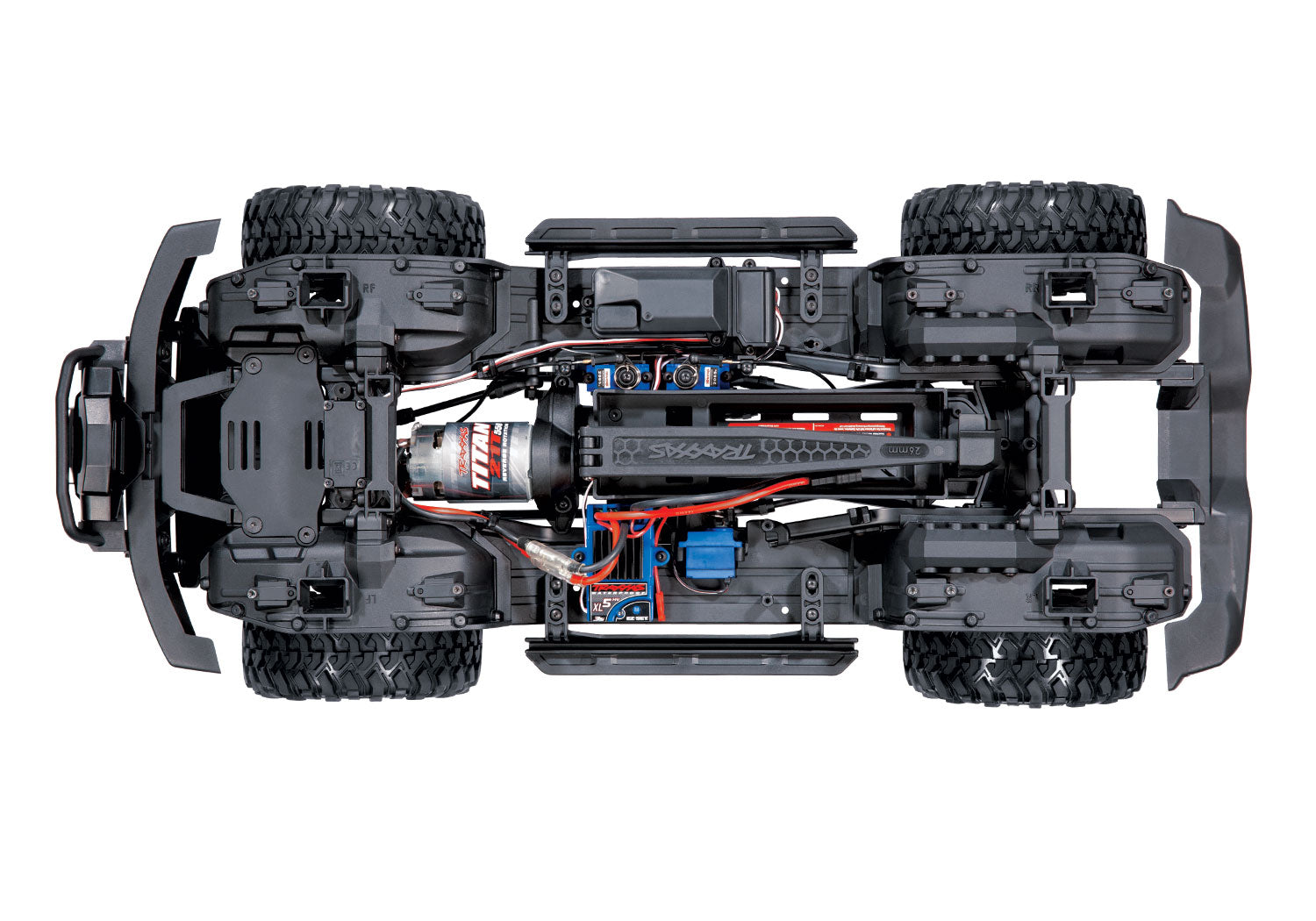

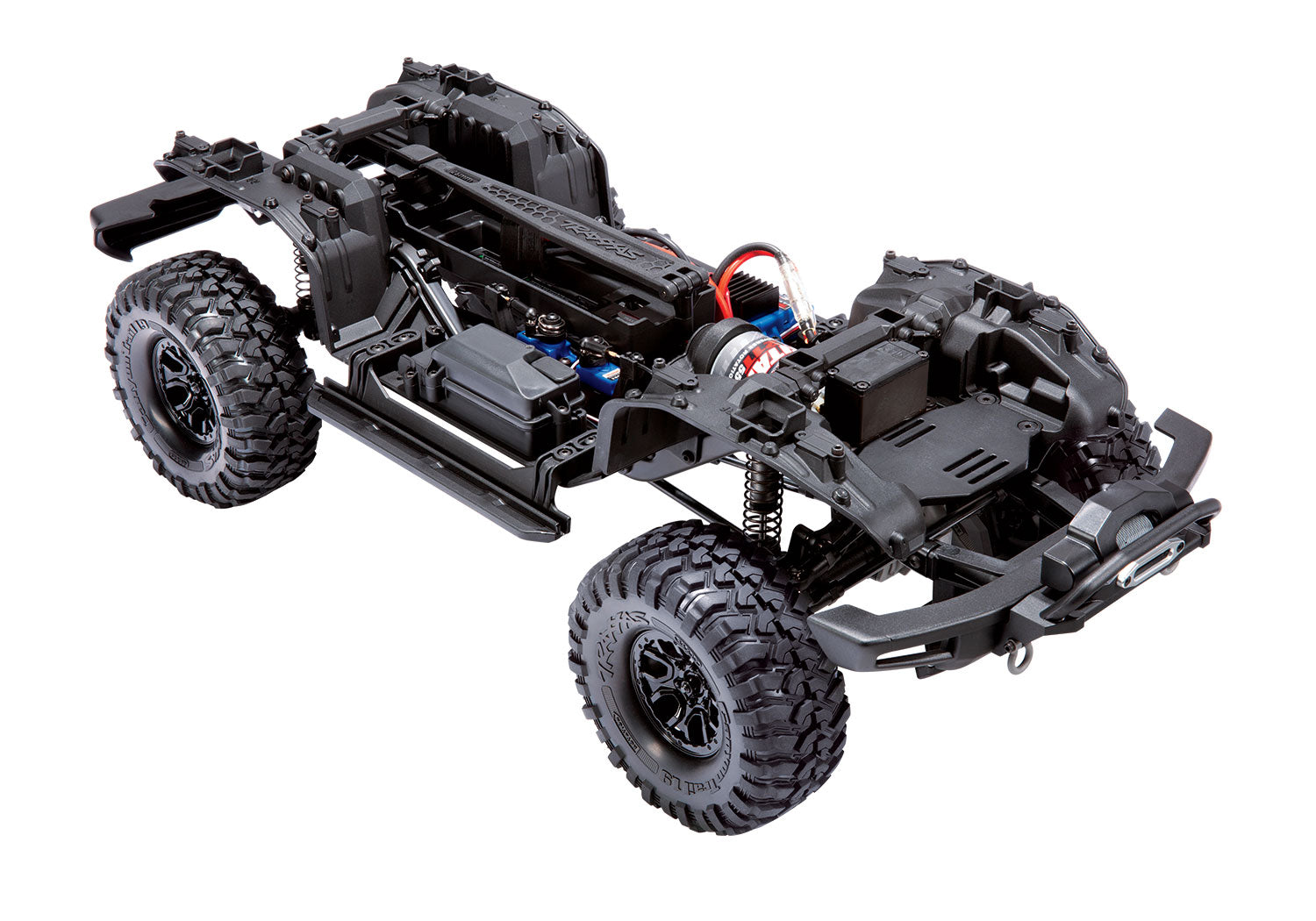

Heavy-Duty Steel Frame RailsA thick 1.5mm steel ladder frame with molded cross members provides exceptional torsional rigidity to resist even the worst chassis twisting articulation. This extremely rigid backbone lets the suspension do the work it was designed to do.
Metal Servo HornA heavy-duty metal servo horn comes standard on the TRX-4 Bronco.
Molded Wire RetainersThe finer details matter so we incorporated wire retainers into the frame rails, which provide a clean look and keep the wiring more secure from off-road hazards.
Dual Battery TrayTRX-4's main battery tray accommodates a full-length 5000mAh 3-cell LiPo or 7600mAh 2-cell LiPo for extended run times. A hinged battery strap provides quick and secure battery mounting without pins to lose in the field.
Floor PansTough floor pans integrate with the wheel wells to enhance the scale appearance and keep debris out of the chassis.

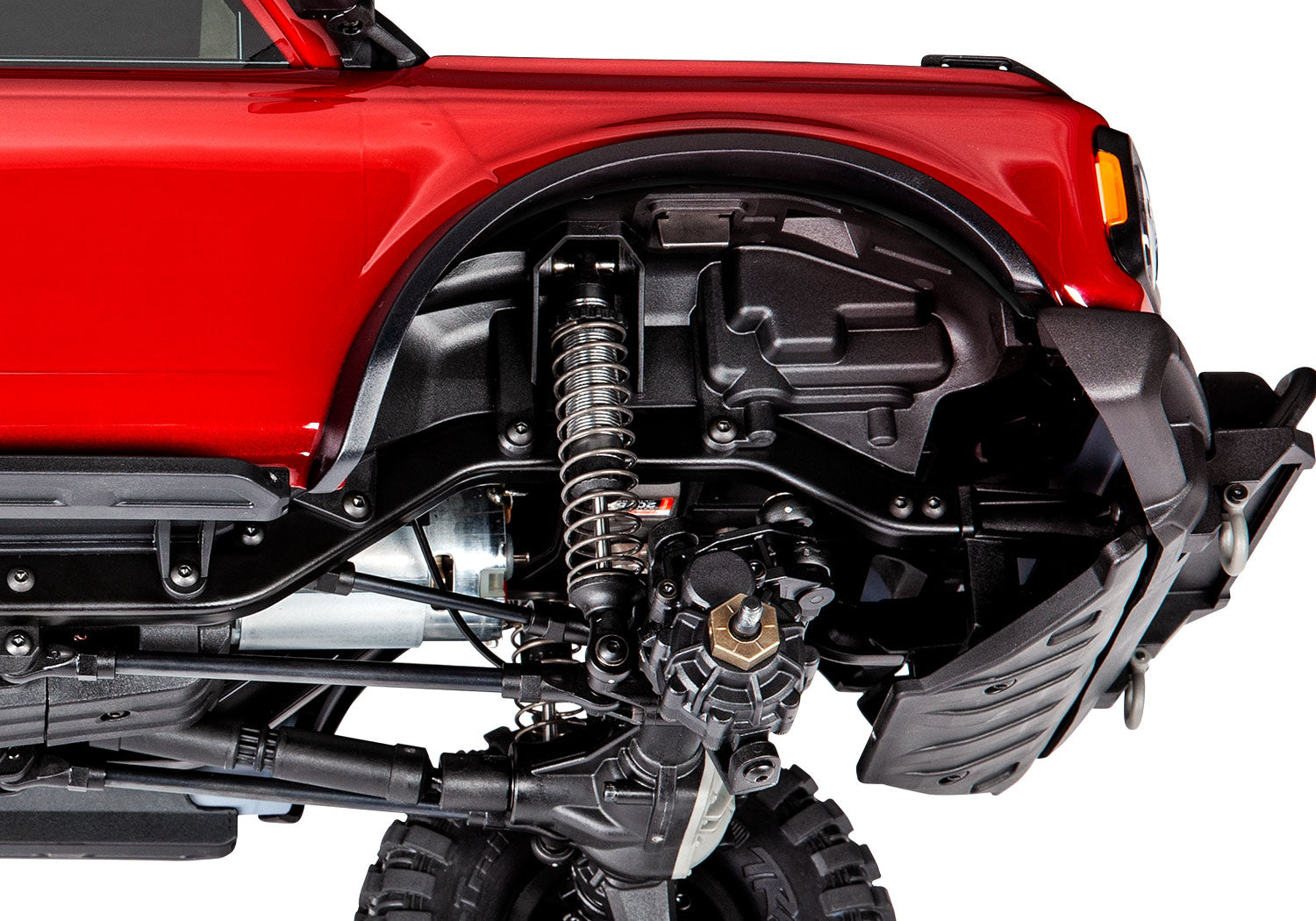

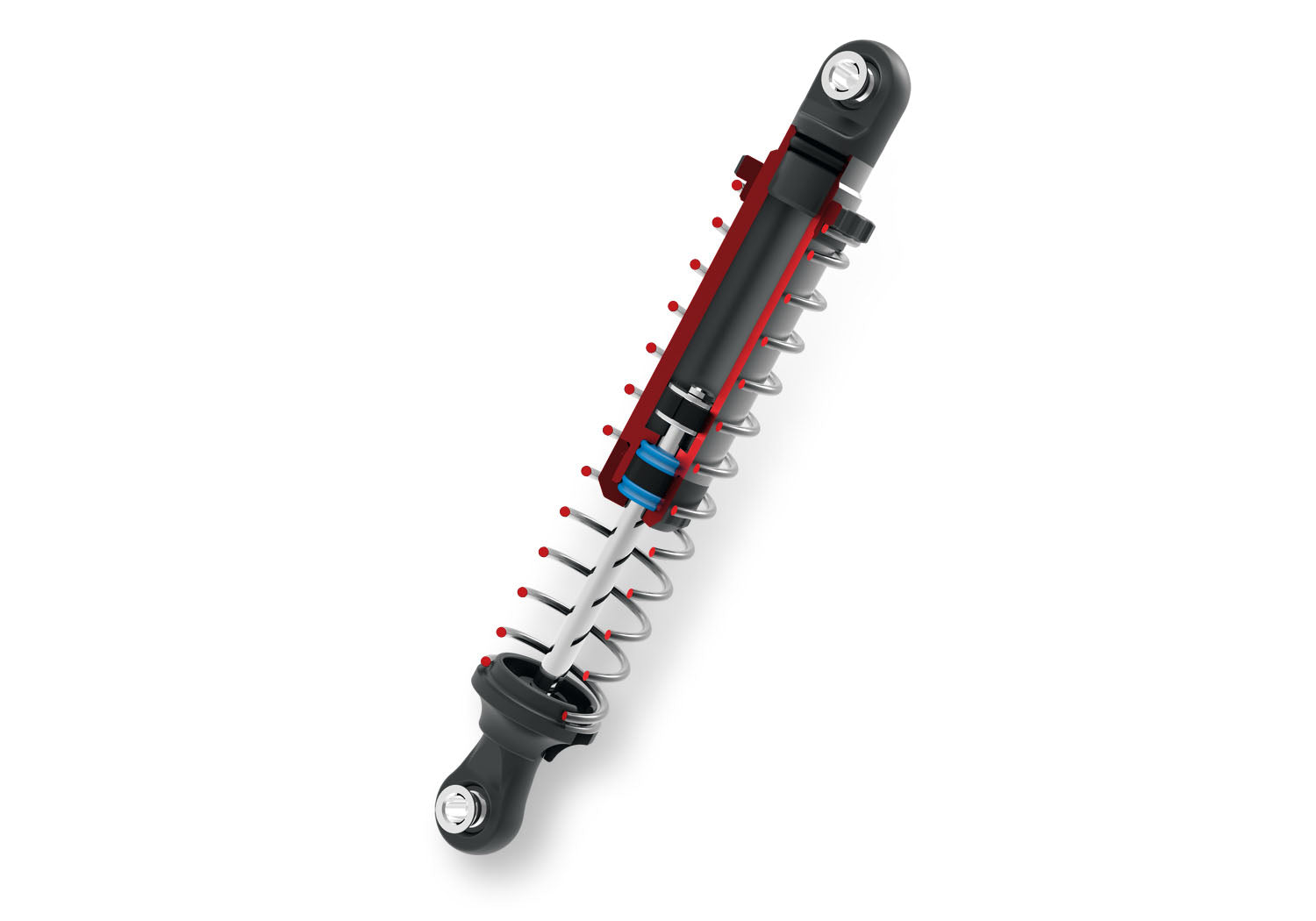

Aluminum Scale ShocksOil-filled coil-over GTS shocks were created exclusively for the TRX-4 chassis to smooth out even the roughest trails. These silver-anodized aluminum shocks deliver silky-smooth damping and feature threaded bodies for easy ride height adjustment.

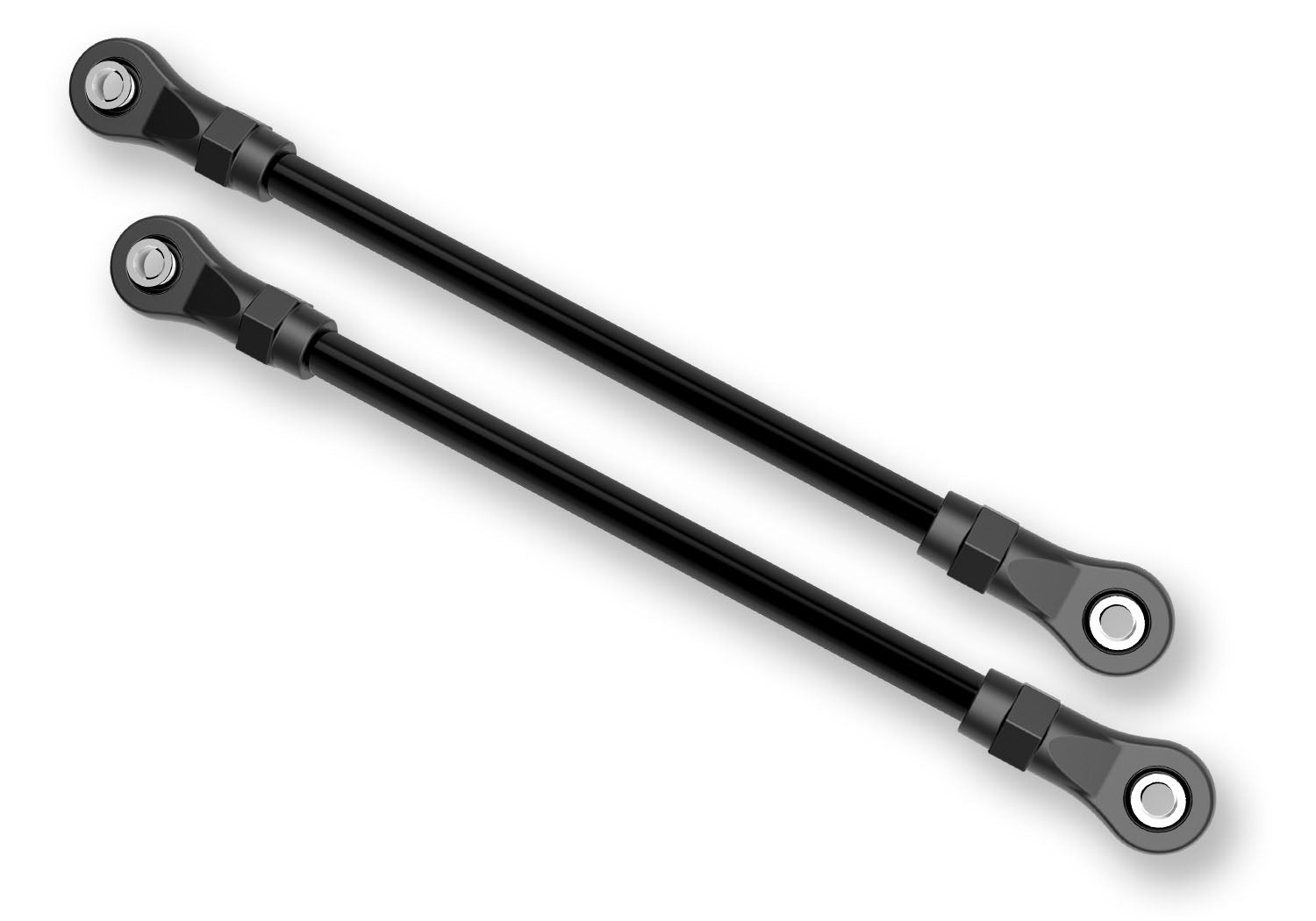

Heavy-Duty Steel LinksThick 5mm diameter steel links feature tough, fully-captured heavy-duty rod ends with steel hollow balls for exceptional strength and durability. This is one rig that won't strand you on the trail with a broken suspension link.

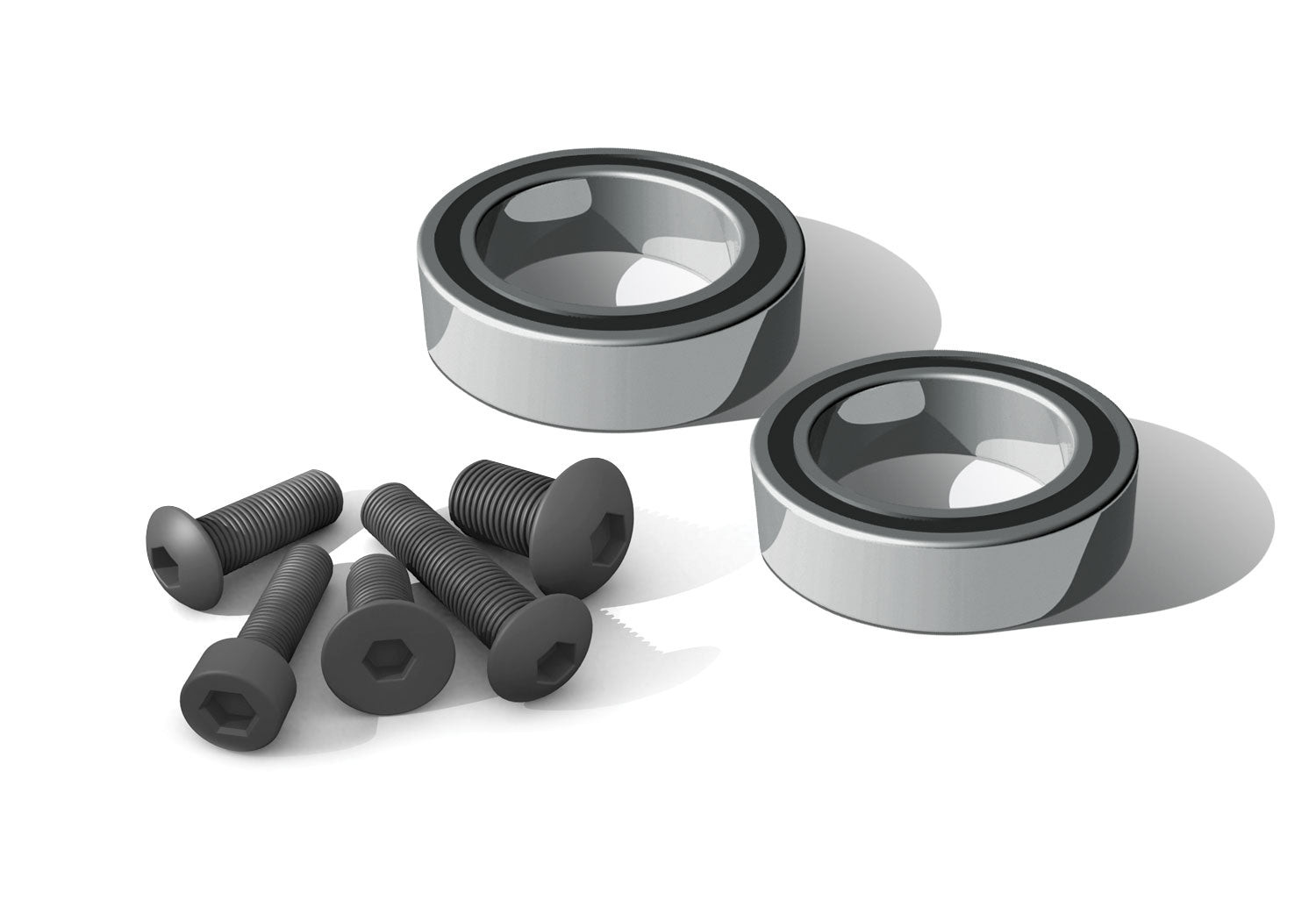

Precision Hex HardwareThe TRX-4 uses tough hex hardware throughout for improved strength and easy servicing.

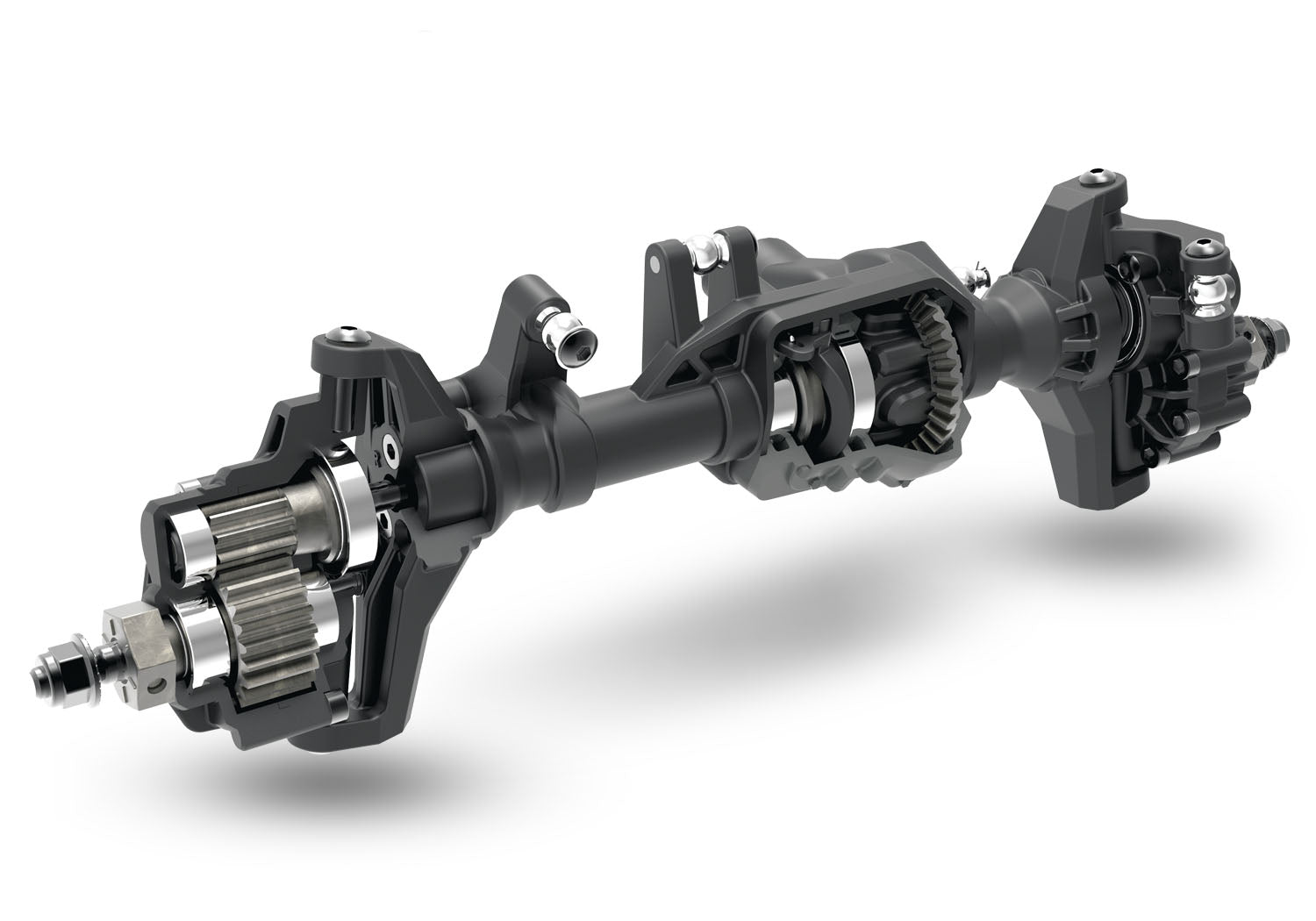

Portal Axle ClearanceExclusive to TRX-series trucks, portal axles lift the differential pumpkin to provide incredible ground clearance. This radical design also improves axle geometry and reduces strain on the driveshafts.
Torque Twist EliminatedOn conventional rigs with the limited gear reduction in the differentials, motor torque is applied to the frame to the point of twisting you right off the rocks.

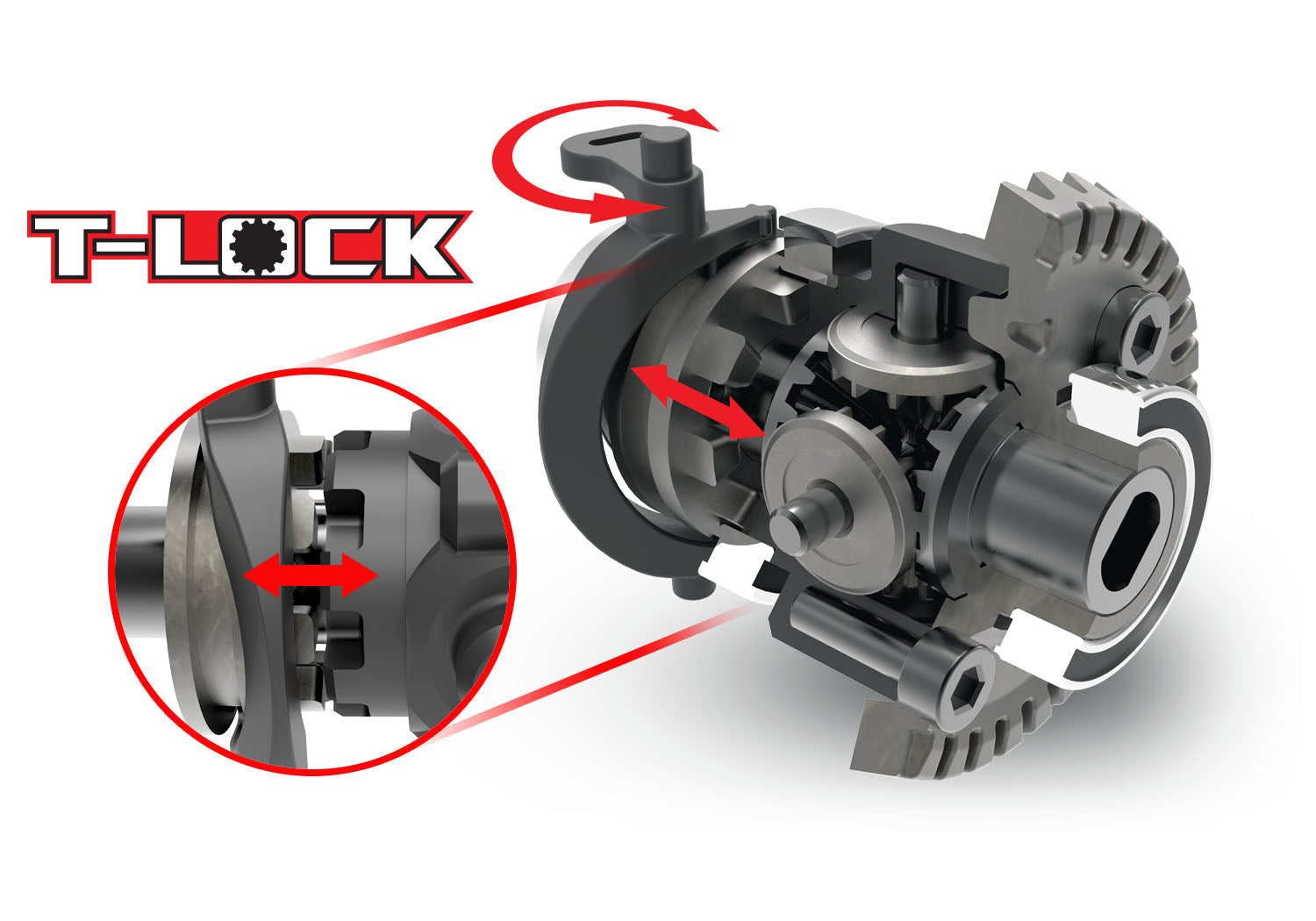

T-Lock™ Remote Locking DifferentialsConventional crawlers equipped with axle spools sacrifice turning radius for traction. Traxxas gives you the freedom and versatility to lock and unlock both the front and rear differentials to suit your driving needs, all controlled remotely from your transmitter.

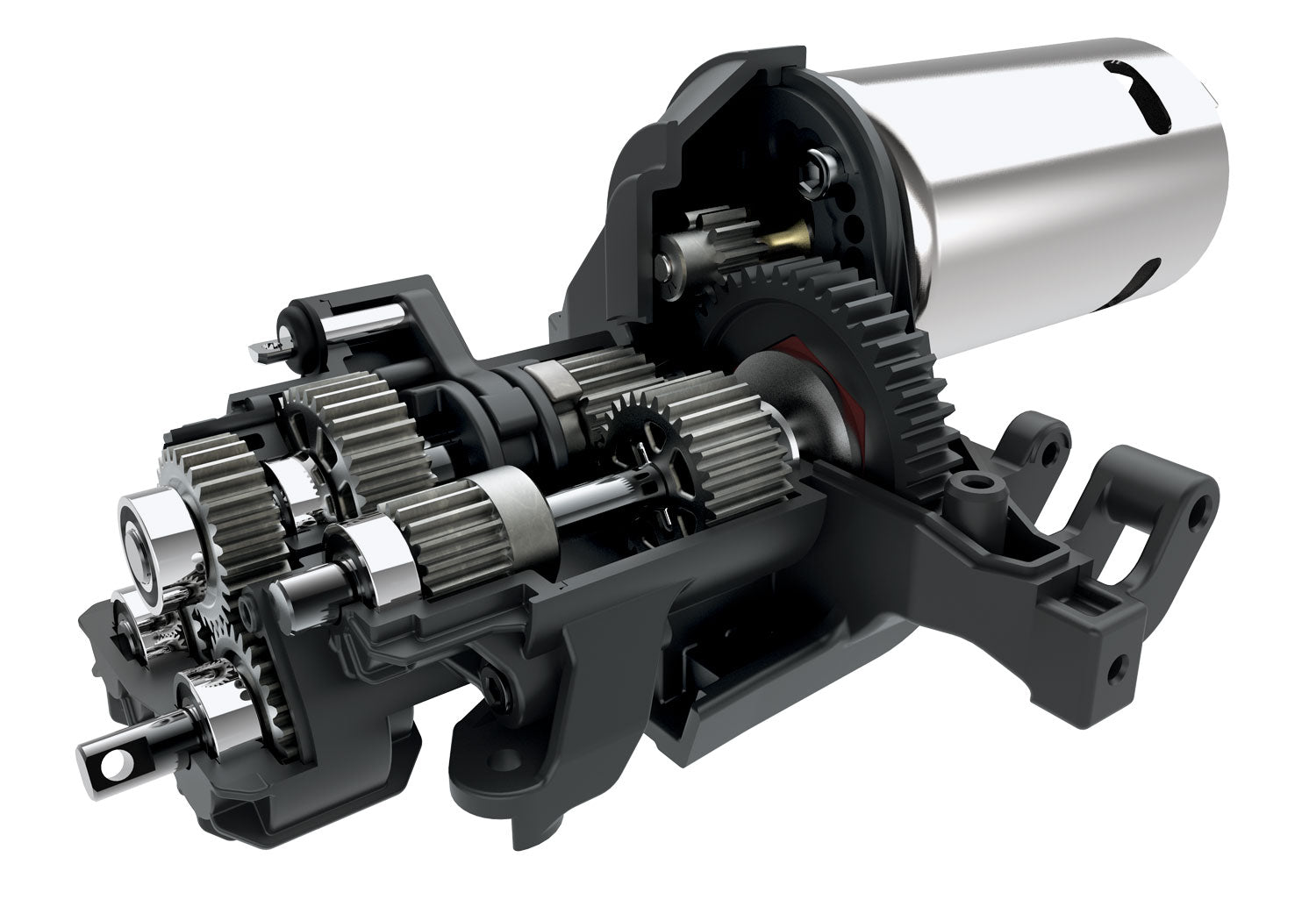

High/Low TransmissionWhy carry your crawler down the trail when you can drive? The TRX-4 features a high speed gear to get you to your next crawling challenge quickly. When you get there, flip the rocker switch on your transmitter to engage low range and conquer tough terrain with exceptional torque.
Hardened Steel U-JointsHardened steel U-joints on the front and rear driveshafts provide smooth, reliable power delivery for non-stop fun.
Twin Friction Plate Slipper ClutchA twin friction plate slipper clutch provides some additional protection from motor stalls in extreme crawling conditions.
Sealed Ball BearingsBlack sealed ball bearings resist mud and dirt to keep your rig rolling smoothly.

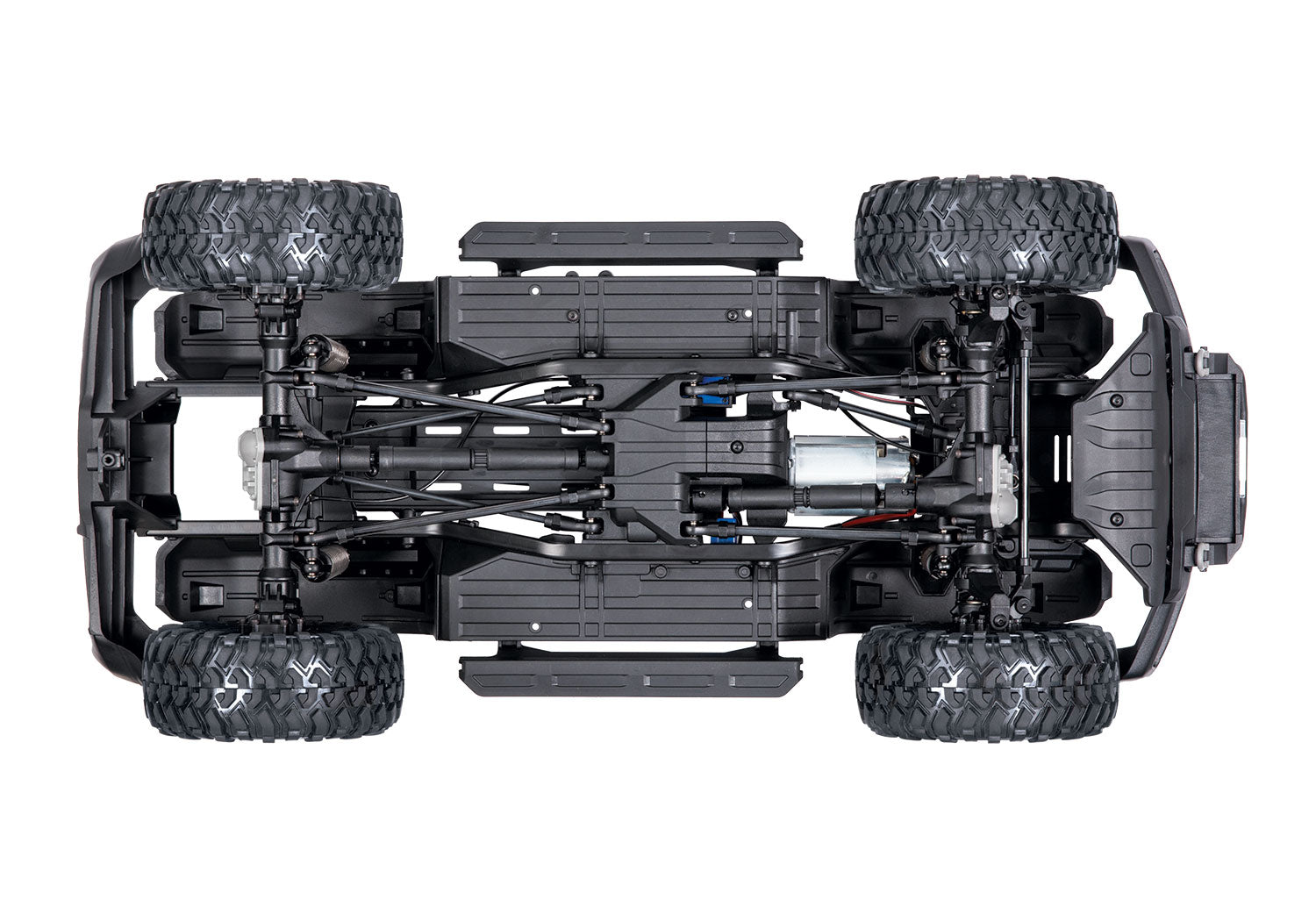

Raised Center Driveshafts and Suspension LinksTRX-4's radical portal axle design raises the driveshafts higher to improve axle geometry and reduce driveshaft angles. Higher driveshafts and suspension links pass over obstacles to avoid high-centering your truck and reduce overall grinding wear.

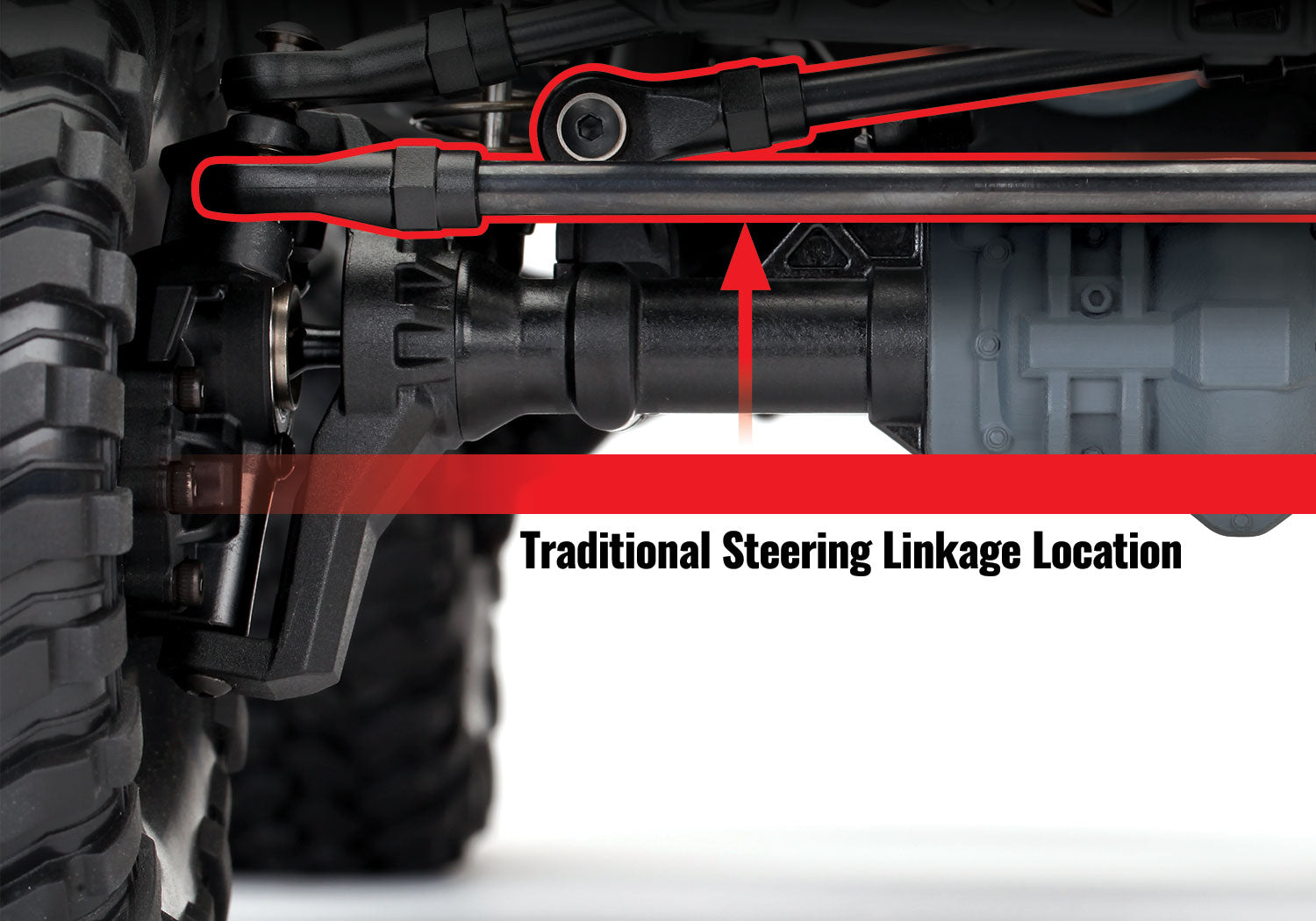

High Steering and Drag LinksThe steering link and drag link attach high on the portal axles, raising them away from possible damage. This allows the TRX-4 to attack obstacles head on, reducing the risk of hitting the steering linkage on rocks.
45-Degree Steering AngleWith the front differential unlocked, the superior 45-degree steering angle negotiates around even the tightest bends with ease. This helps avoid awkward reversing maneuvers in tight spaces.
Extreme Approach AnglesWith a 52 degree out-of-box approach angle in the front, TRX-4 is ready to climb walls. An equally impressive 49 degree rear approach angle provides extreme capability, even in the deepest ruts.
TQi 4-Channel Radio SystemThe Traxxas TQi radio system features exclusive cruise control for long-distance treks. Set your speed using the transmitter and then use the multi-function knob to fine-tune it faster or slower to match your pace.
Waterproof Micro Servos with Sleeved CablesThree fully-waterproof micro servos actuate the front and rear differentials as well as the transmission's high/low range selection. Sleeved micro cables eliminate complicated linkages that would otherwise limit suspension articulation.
Pro Scale Lighting ReadyElevate your 2021 Bronco to the next level of lighting performance with the Traxxas Pro Scale Advanced Lighting Control System, sold separately.

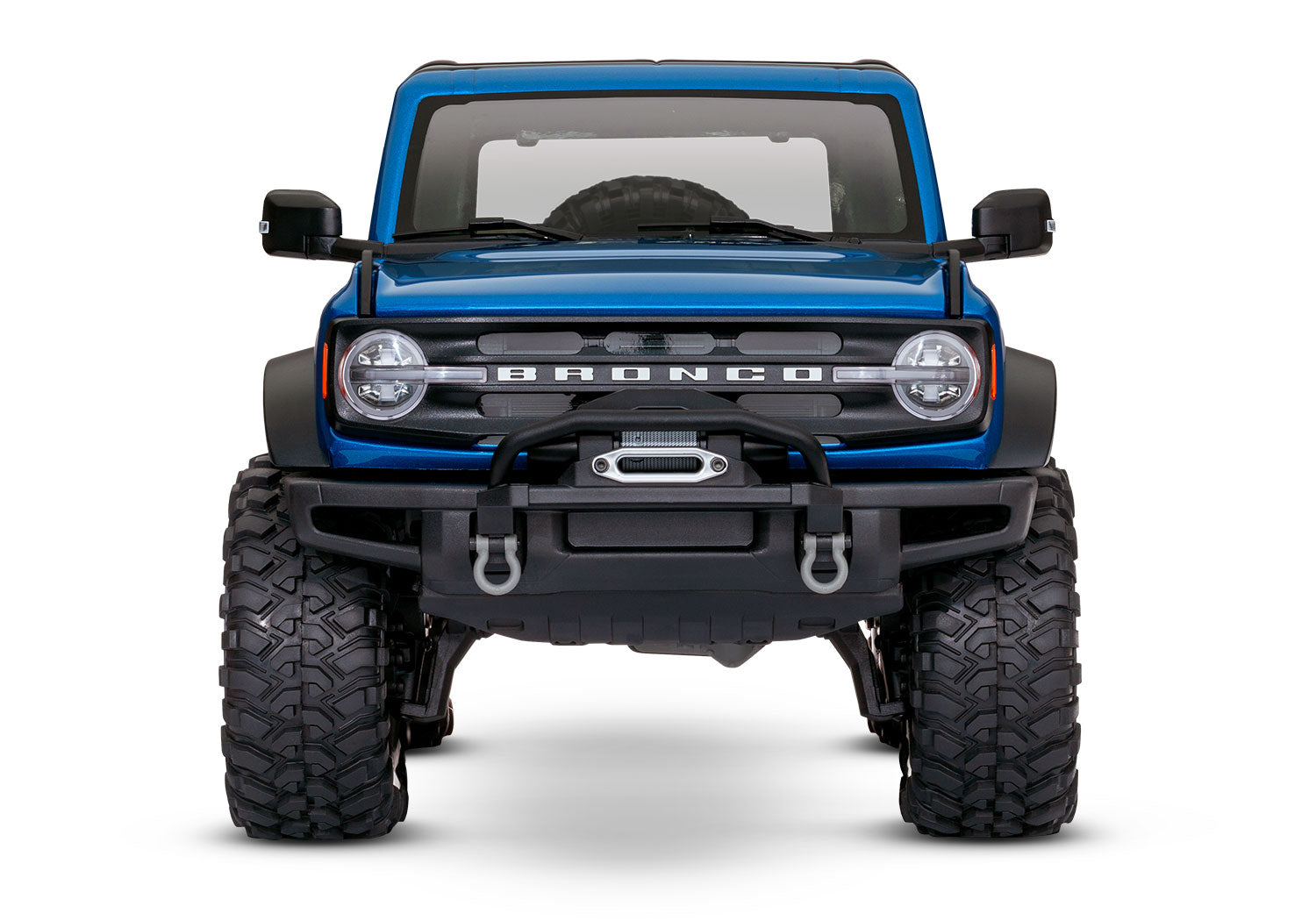

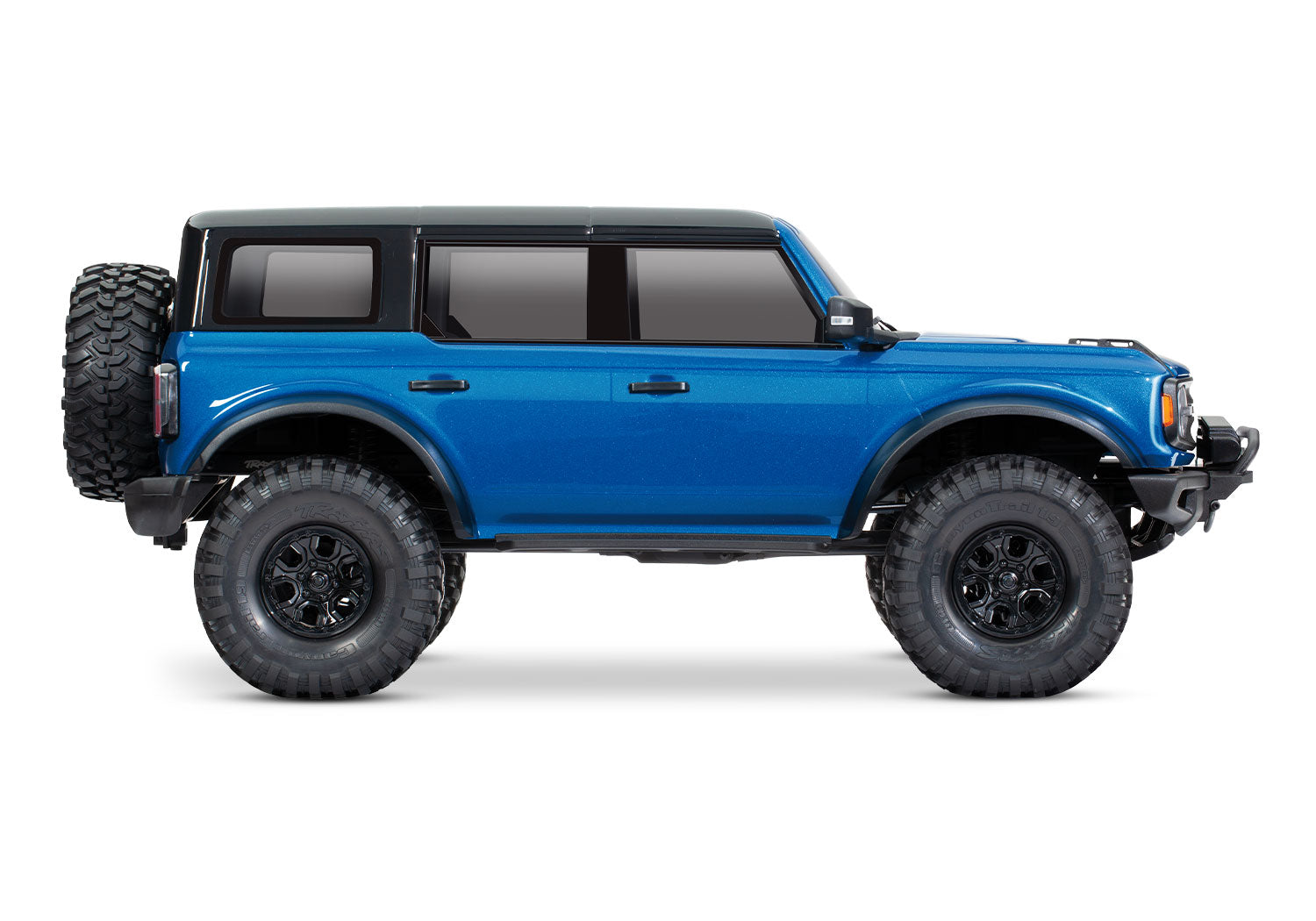

Officially Licensed Replica BodyThe 2021 Bronco brings replica realism to new heights. Rugged fender flares accentuate the Bronco's muscular styling. The grille is deeply molded and equipped unique LED-ready lenses. The heavy-duty, winch-ready bumper is outfitted with a metallic fairlead.

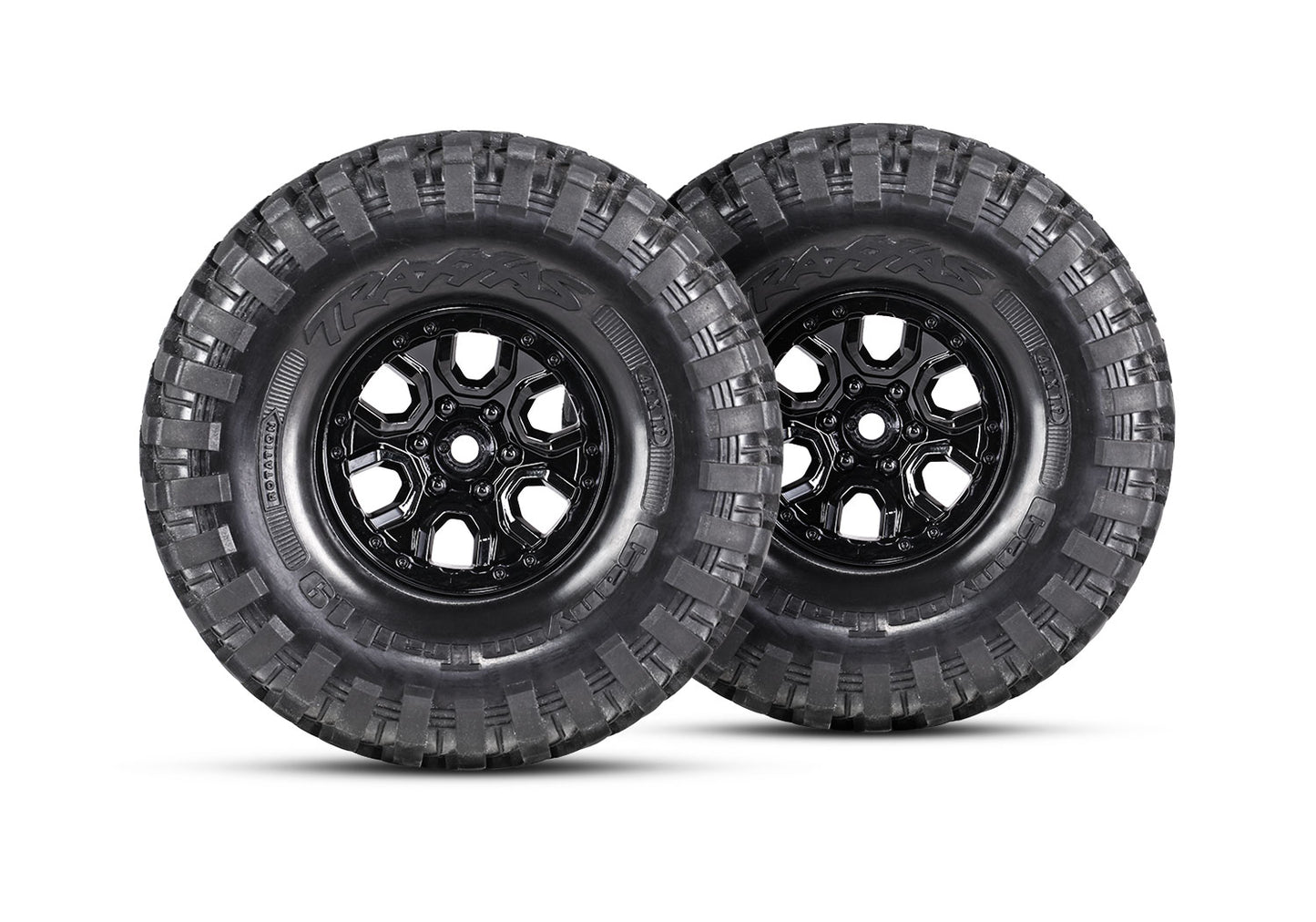

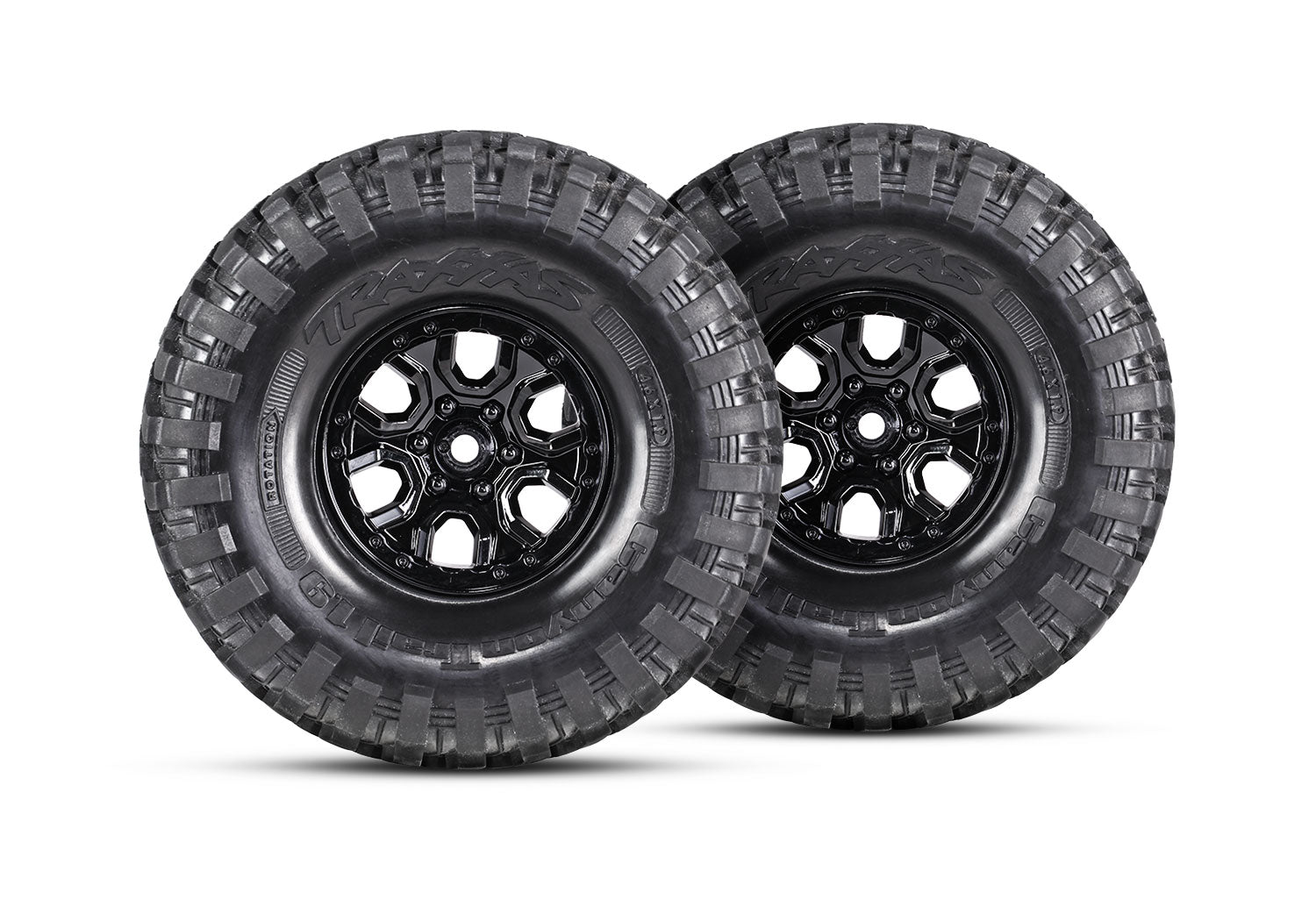

1.9” Replica Wildtrak WheelsFord Bronco rolls out on 1.9" replicas of the gloss-black alloy wheels that outfit the premium Wildtrak Bronco. The bold six-spoke design is accented with beadlock detailing and six simulated lugs, and proven Canyon Trail tires wrap the rims.
Rock SlidersFunctional rock sliders help prevent damage and provide extra support for the body. The additional bracing adjusts for different widths.
Molded Cowl and MirrorsTo achieve total realism, the Bronco's unique windshield cowl with integrated side mirrors and wiper blades are recreated as injection-molded parts. No effort was spared to deliver the most authentically-detailed and accurate model possible.

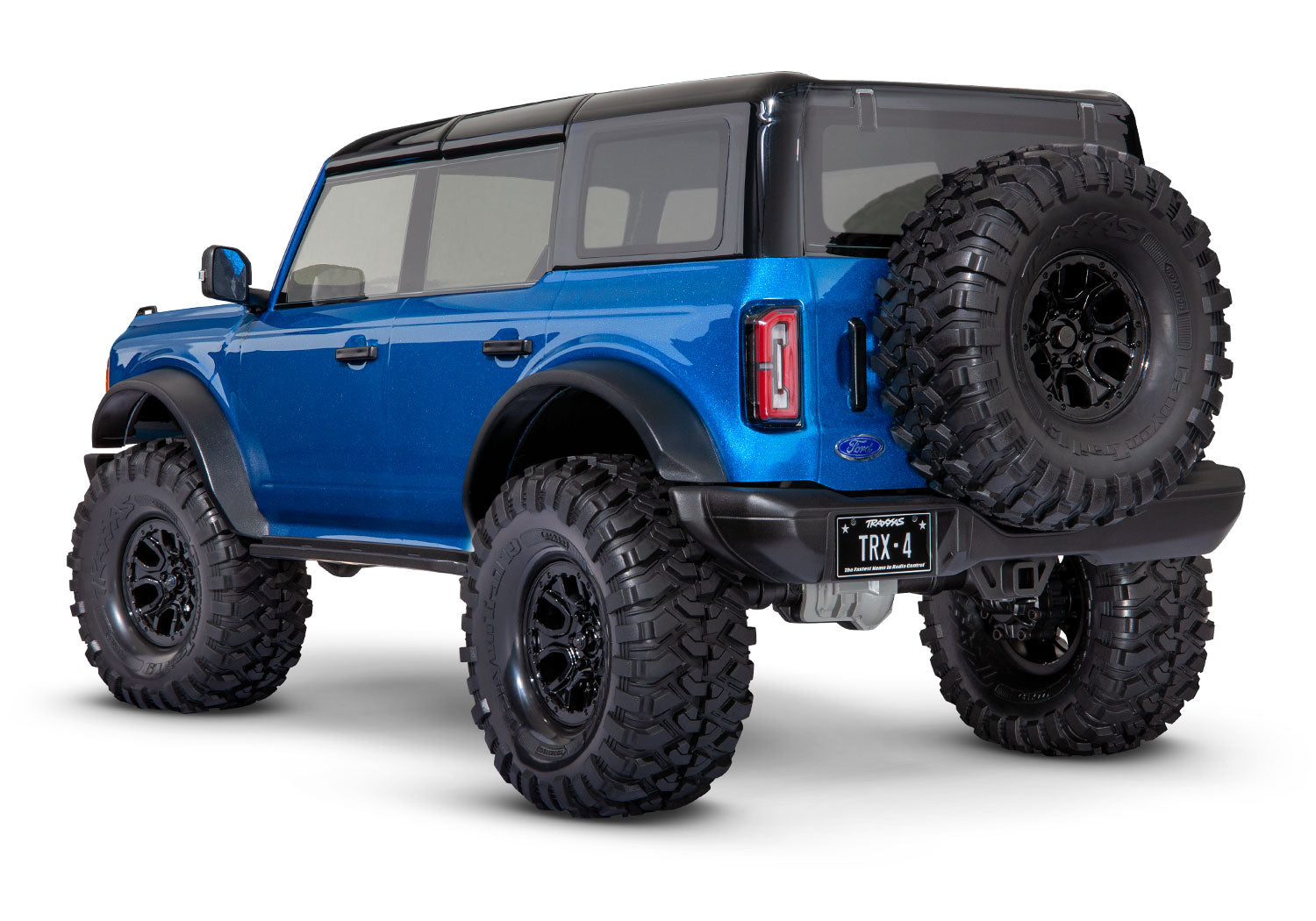

Functional Spare TireYou won't get a flat out on the trail in the TRX-4 Bronco, but it's nice to know you've got a fully-functional spare riding on the back.
Parts & Accessories

To run this model you’ll need:

Suggested:

Frequently Asked QuestionsEverything you need to know
What batteries are required to run the Traxxas TRX-4 2021 Ford Bronco?

The Traxxas TRX-4 2021 Ford Bronco requires a 6 to 7-cell NiMH battery or a 2S to 3S LiPo battery with a Traxxas High-Current Connector, a compatible battery charger, and four AA alkaline batteries for the TQi transmitter.

Is the Traxxas TRX-4 2021 Ford Bronco waterproof?

Yes, the Traxxas TRX-4 2021 Ford Bronco features fully waterproof electronics, including the XL-5 HV ESC, 2075X metal-gear steering servo, micro diff servos, and receiver box, allowing you to run through mud, wet grass, and snow without worry.

Does the Traxxas TRX-4 2021 Ford Bronco come fully assembled?

Yes, the Traxxas TRX-4 2021 Ford Bronco is a Ready-To-Drive (RTD) vehicle that comes fully pre-assembled with factory-installed electronics and a pre-painted licensed body. You only need to add a battery, charger, and AA batteries for the radio.

How do the remote locking differentials work on the Traxxas TRX-4 2021 Ford Bronco?

The Traxxas TRX-4 2021 Ford Bronco features T-Lock remote locking differentials operated directly from a rocker switch on the TQi transmitter. You can keep them unlocked for tight turning on open trails or lock them on the fly for maximum traction over steep rocks and obstacles.
