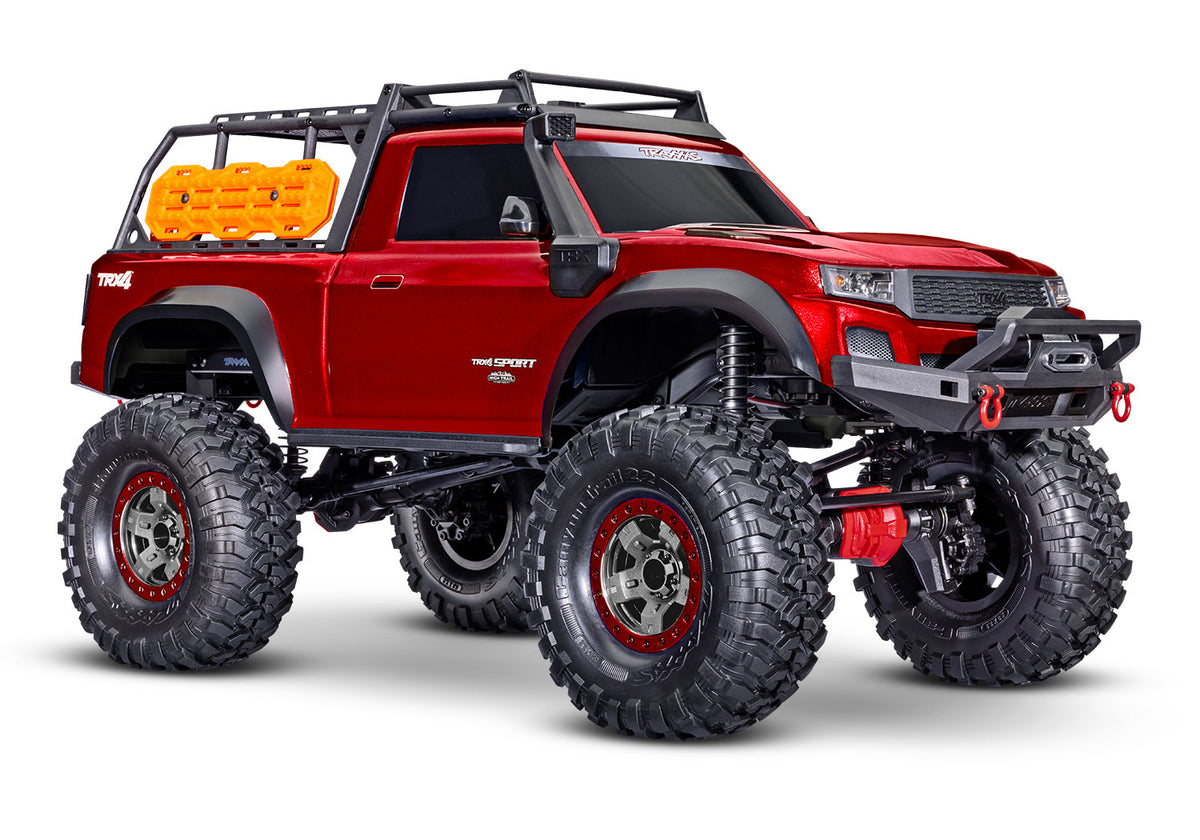

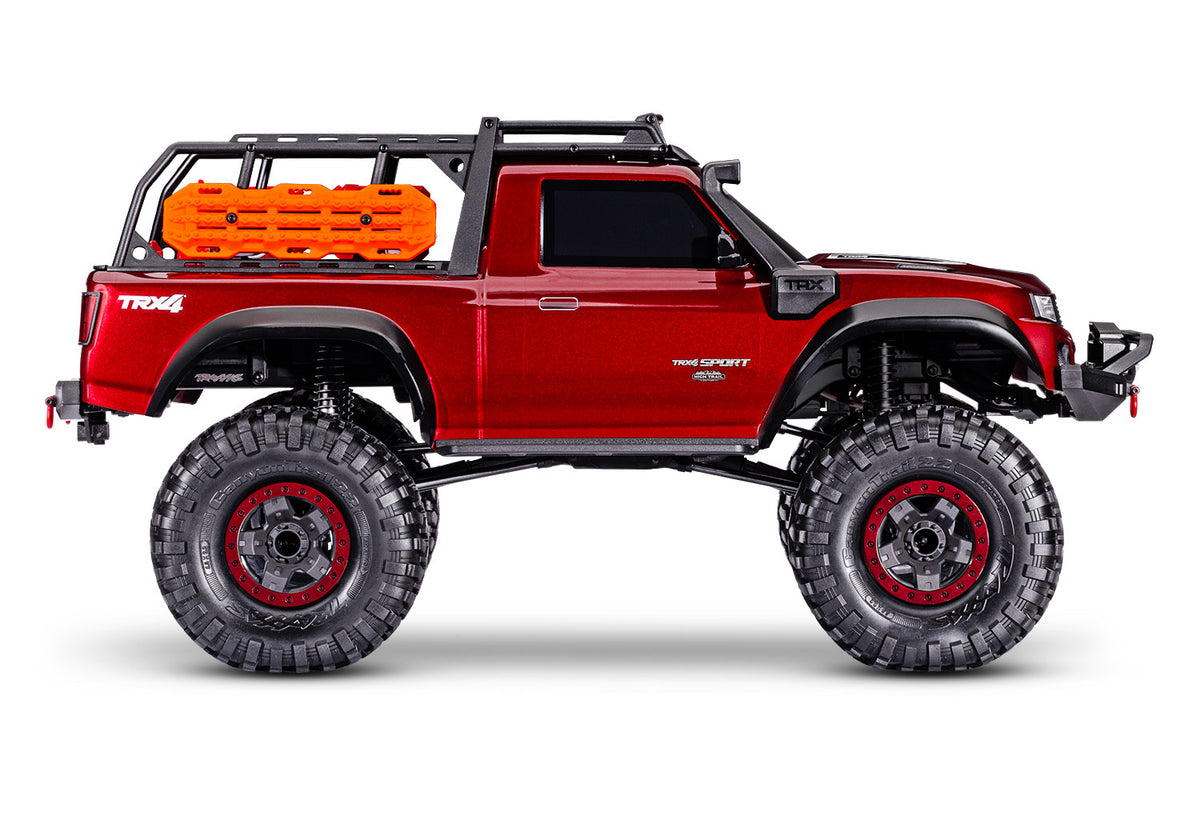

1/10 TRX-4 Sport High Trail; Metallic Red

1/10 TRX-4 Sport High Trail; Metallic Red

$379.95
1/10 Scale Ready to Drive Off-Road
Portal Axles Extreme Center Ground Clearance
Factory Lifted Long Arm Kit Installed
3S LiPo Power Titan 21T Brushed Motor
Waterproof ESC Traxxas XL-5 HV System
Clipless Body Scale Accessories Included

In Stock

SKU: 82044-4-Red
Part #: 100025332
45+ YEARS IN BUSINESSServing since 1978
REPAIR SERVICESRC Cars, Planes, Boats, Drones & More
AUTHORIZED DEALERGenuine products from top brands
FAST SHIPPINGNext day shipping anywhere in the country.
EASY RETURNSIn-stock items returnable within 30 days

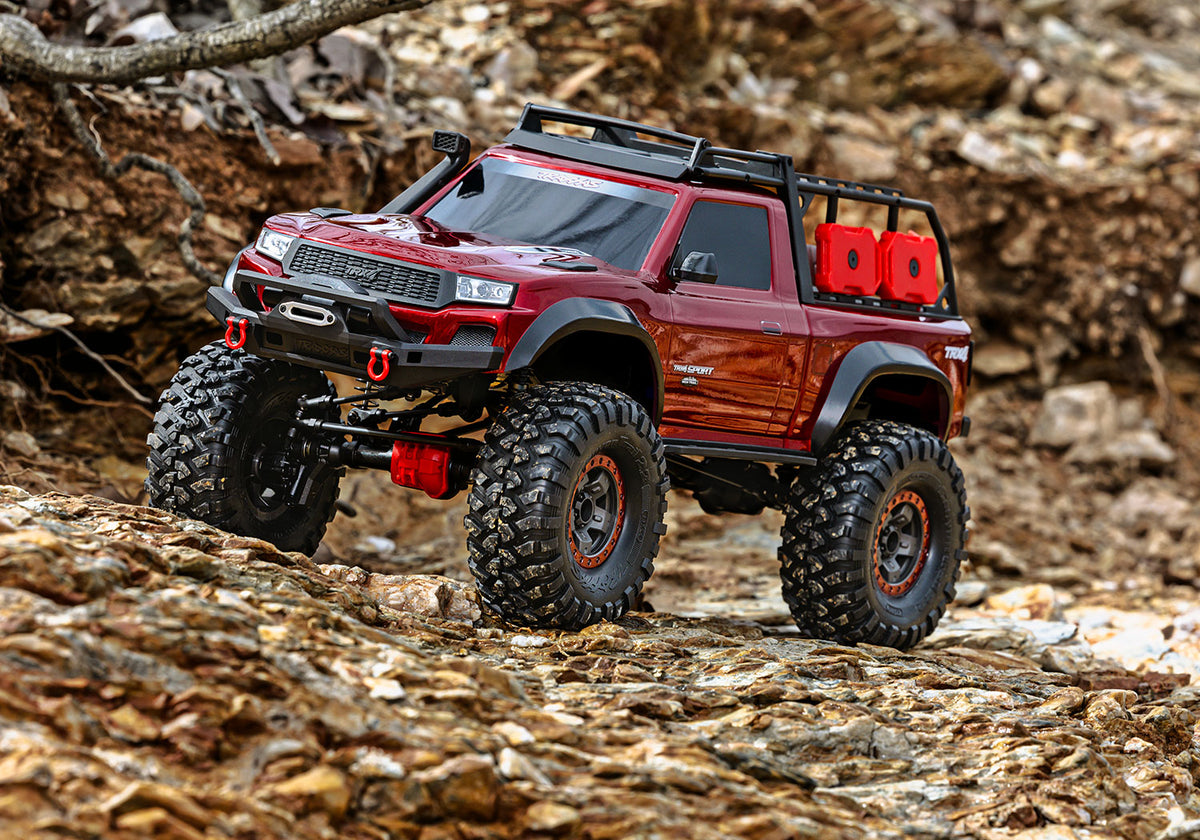

Conquer Any TerrainUnmatched Off-Road Trail Performance

The Traxxas TRX-4 Sport High Trail Edition delivers extreme off-road capability with its factory-installed Long Arm Lift Kit and high-clearance portal axles. Designed for technical trails, this 1/10 scale RC crawler combines aggressive ground clearance with scale authenticity. Tackle rugged challenges effortlessly powered by the versatile XL-5 HV ESC and high-torque Titan 21T motor.

Built For Trail DominanceEngineered For Extreme Technical Climbing

Take your rock crawling adventures to new heights with the Traxxas TRX-4 Sport High Trail Edition 1/10 scale model. Featuring a factory-installed lift kit that adds over an inch of ground clearance, extended 110mm GTS oil-filled shocks, and oversized 2.2-inch Canyon Trail tires, this rig easily dominates steep inclines and deep ruts. The clipless body mounting system allows quick battery access while keeping the scale Expedition Rack and molded trail accessories firmly secured. Supported by a rigid steel ladder frame and 4WD shaft-driven drivetrain, this high-performance trail truck delivers smooth, reliable power through mud, snow, and streams thanks to its fully waterproof electronics.

Technical SpecificationsDetailed Breakdown of Components
Completion Level Ready-To-Drive
Drivetrain Shaft Driven 4WD
Motor Size 550
Power Type Electric
Differential Spool (no differential) (settings)
Vehicle Size 1/10 Scale
Product Width/Weight/Height 10.6 in / 7.04 lbs / 10.8 in
Charger Sold Separately (battery-charging)
Connector Type Traxxas iD
Spur Gear 32 Pitch
Gear Pitch 32P
Speed Control Traxxas XL-5 HV

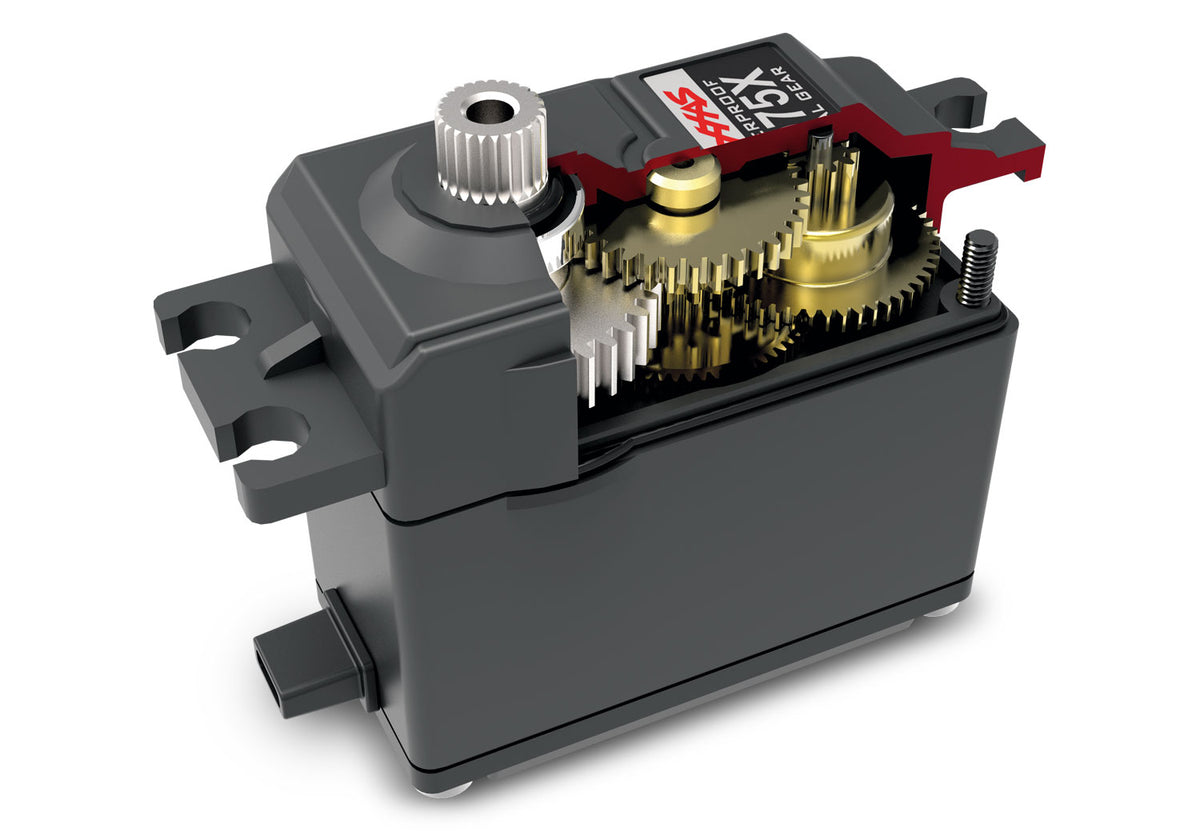

Servo 2075X Metal Gear
Vehicle Type Rock Crawler / Trail Truck
Top Speed Trail / Crawling Speeds
Battery Type 6-7 Cell NiMH or 2S-3S LiPo
LiPo Compatibility 2S - 3S LiPo
Drive Type Shaft Drive
Shock Type 110mm GTS Aluminum Oil-Filled
Body Clipless TRX-4 Sport with Expedition Rack
Wheel Hex Size 12mm (hexagon)
Battery Tray 158.75 L x 47 W x 23/26mm H
Motor Class 550 Brushed
Final Drive Ratio Single Speed (refresh-cw)
Roll Out Standard
Radio TQ 2.4GHz 4-Channel Transmitter
Assembly Time None
Scale 1/10 Scale
Motor Type Titan 21T Reverse Rotation
Power System 3S Capable XL-5 HV

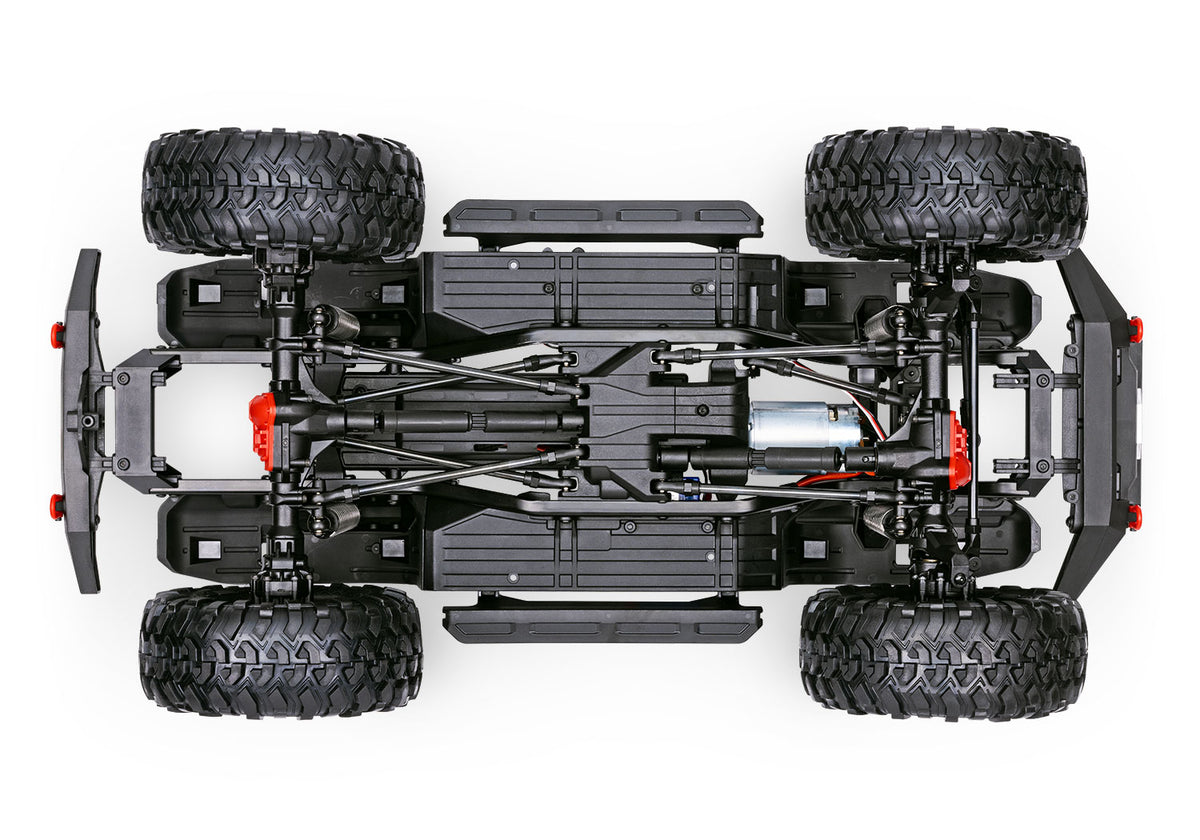

Chassis Steel Ladder Frame with Nylon Composite Crossmembers
Tire Tread/Hub Size Canyon Trail S1-Compound / 2.2 in Wheel
Recommended Battery 3S 5000mAh iD LiPo
Pinion Standard
Internal Gear Ratio Portal Axle Reduction
Oil Type Silicone Shock Oil
Receiver Traxxas 6533 5-Channel
Trail-Ready EngineeringKey Hardware and Scale Details

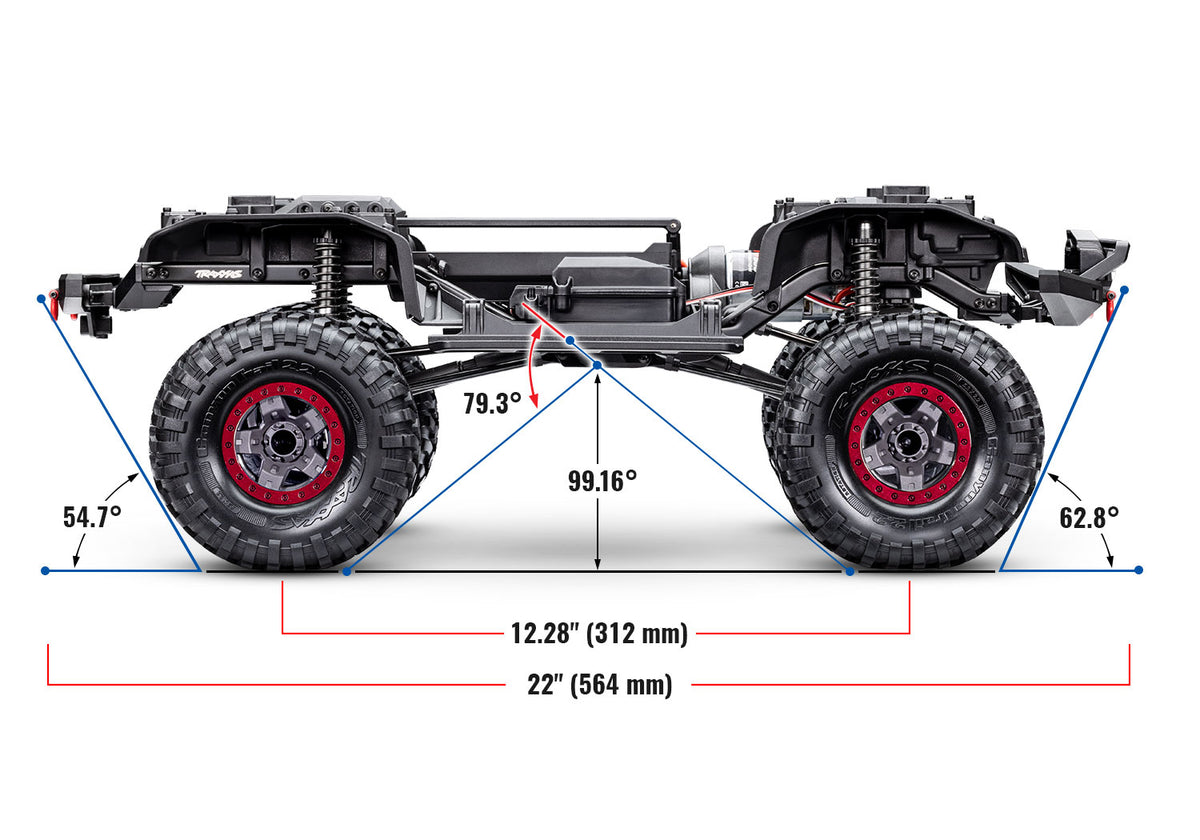

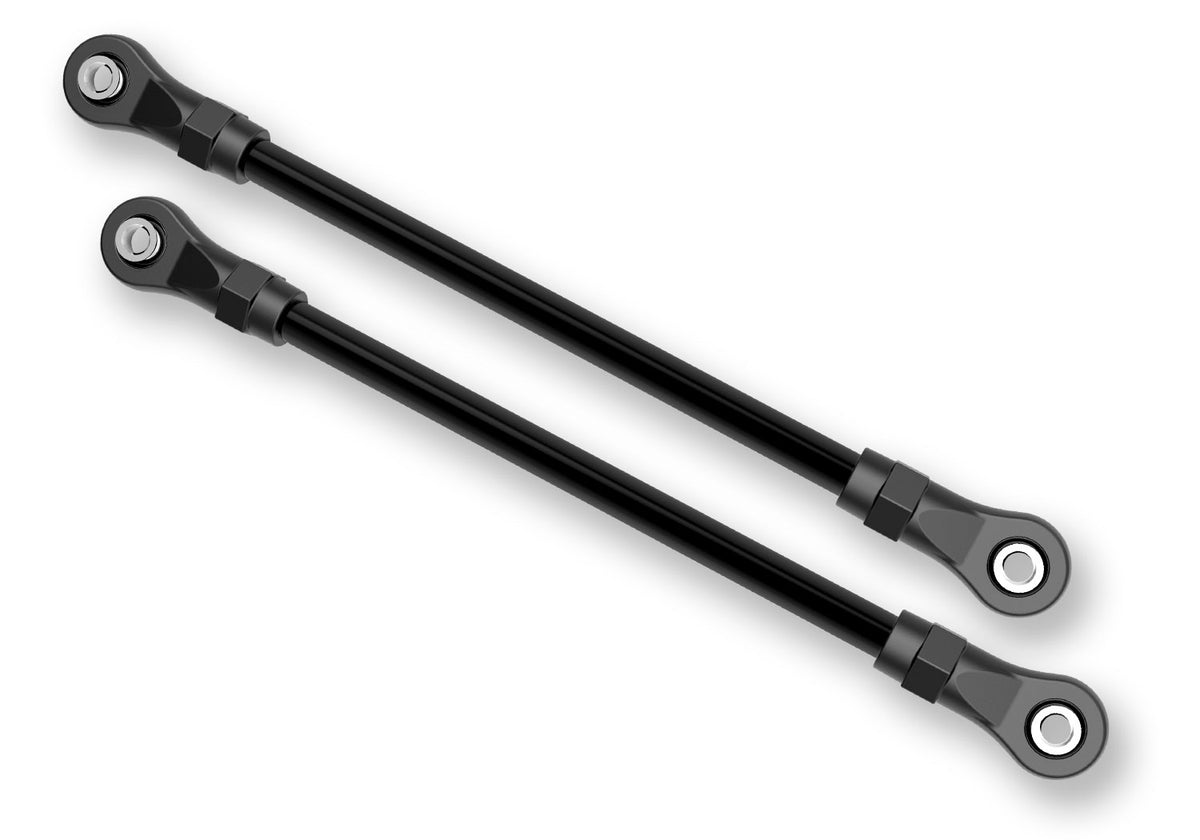

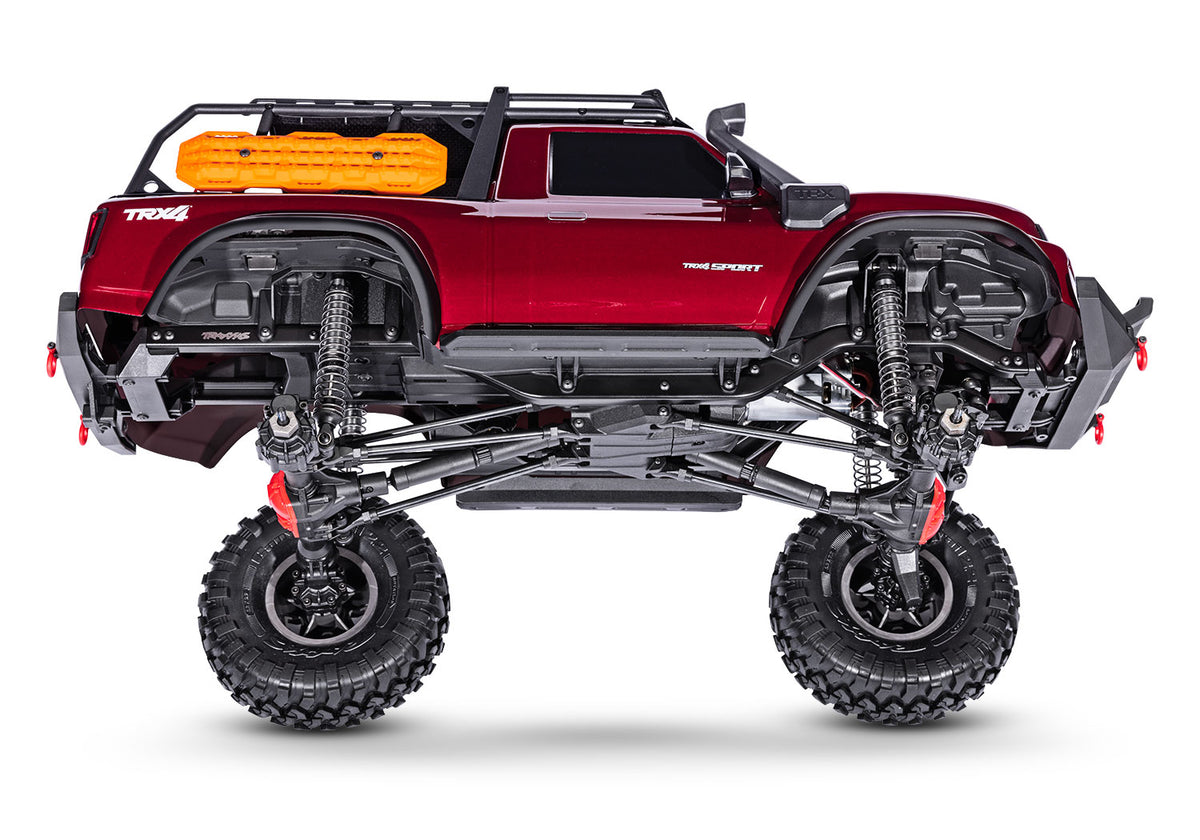

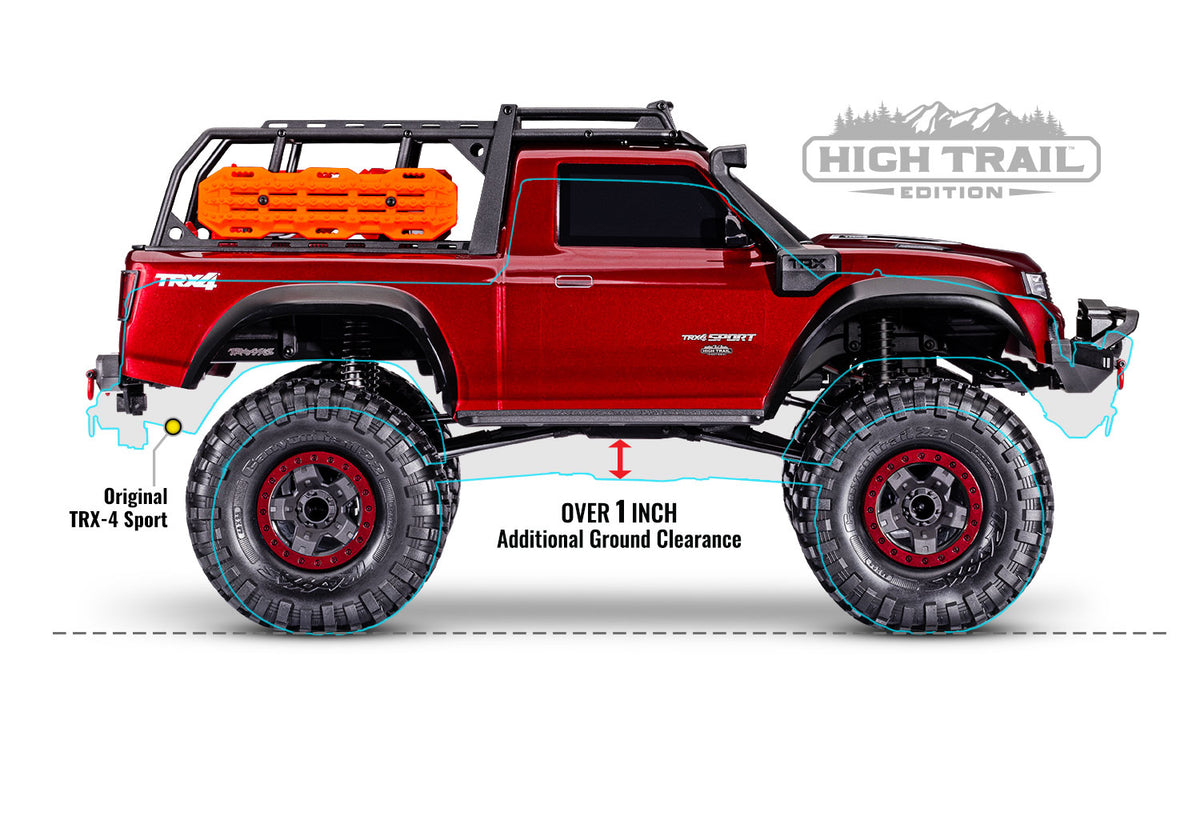

Factory Long Arm Lift KitOver 1 inch of added ground clearance

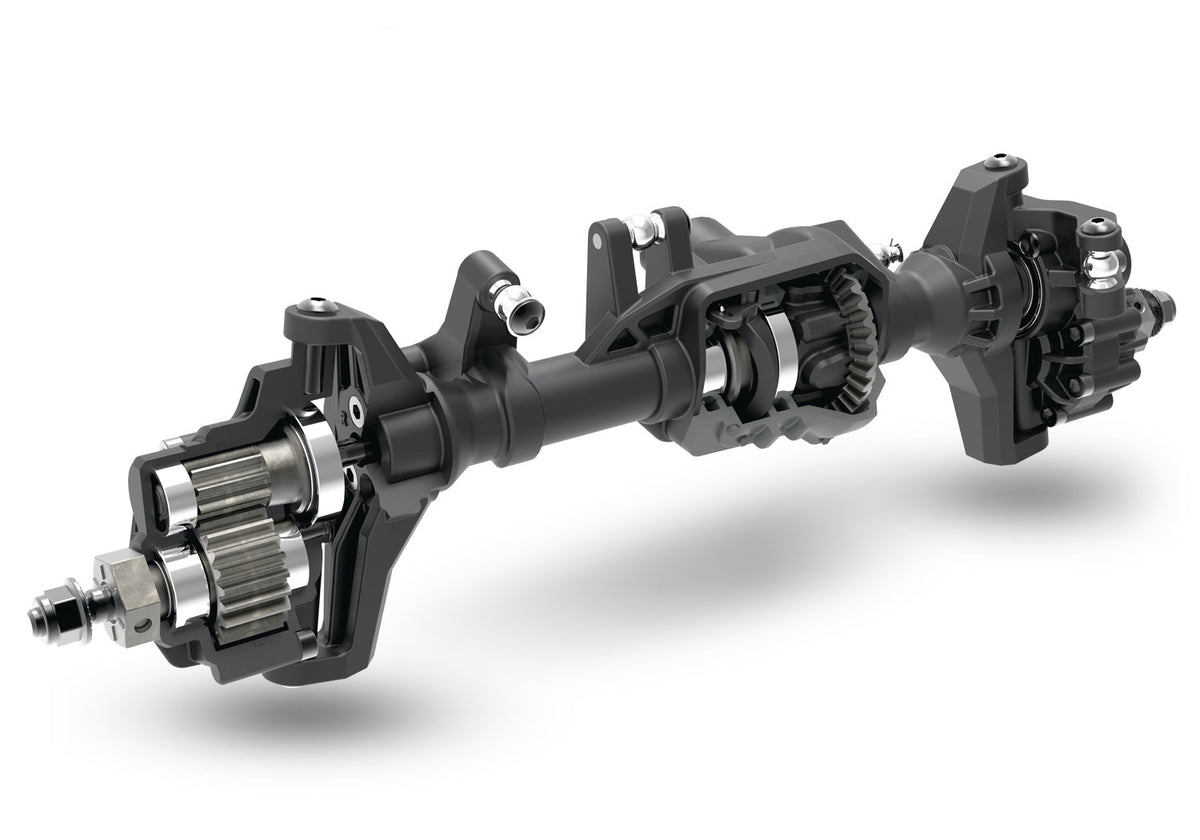

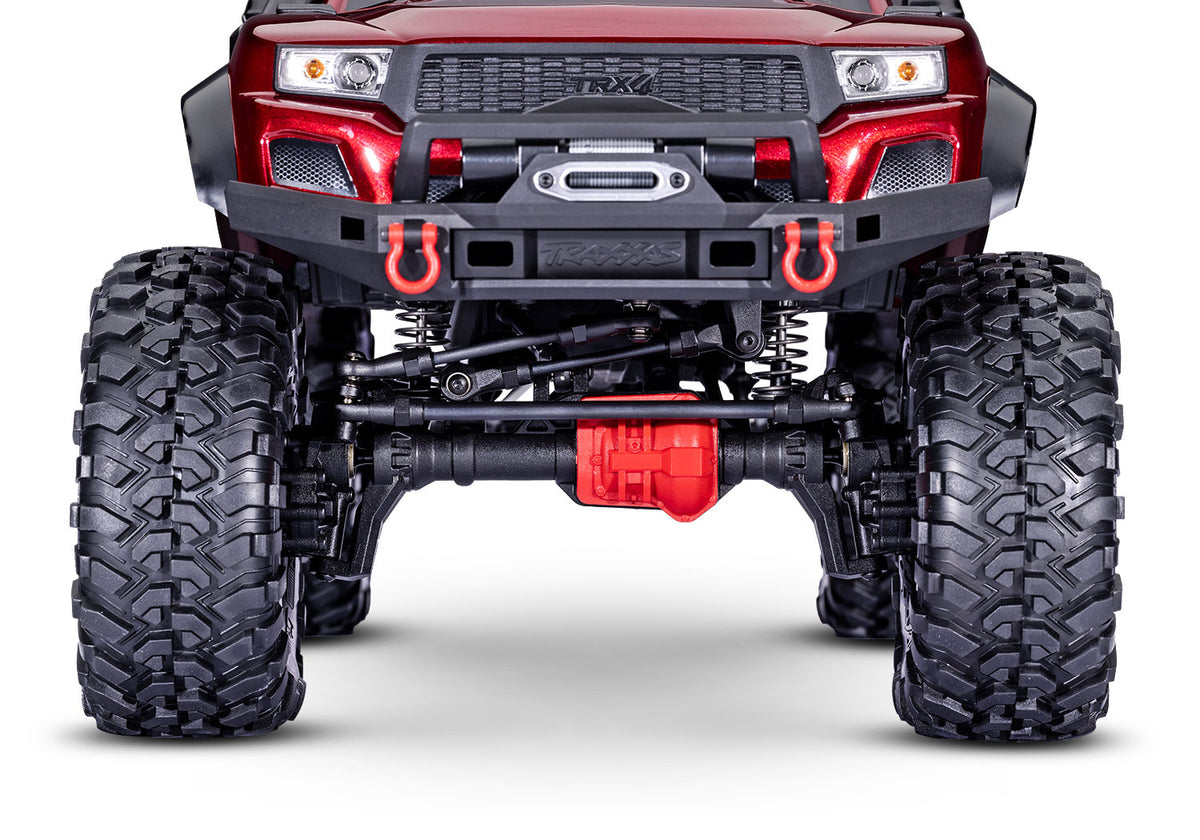

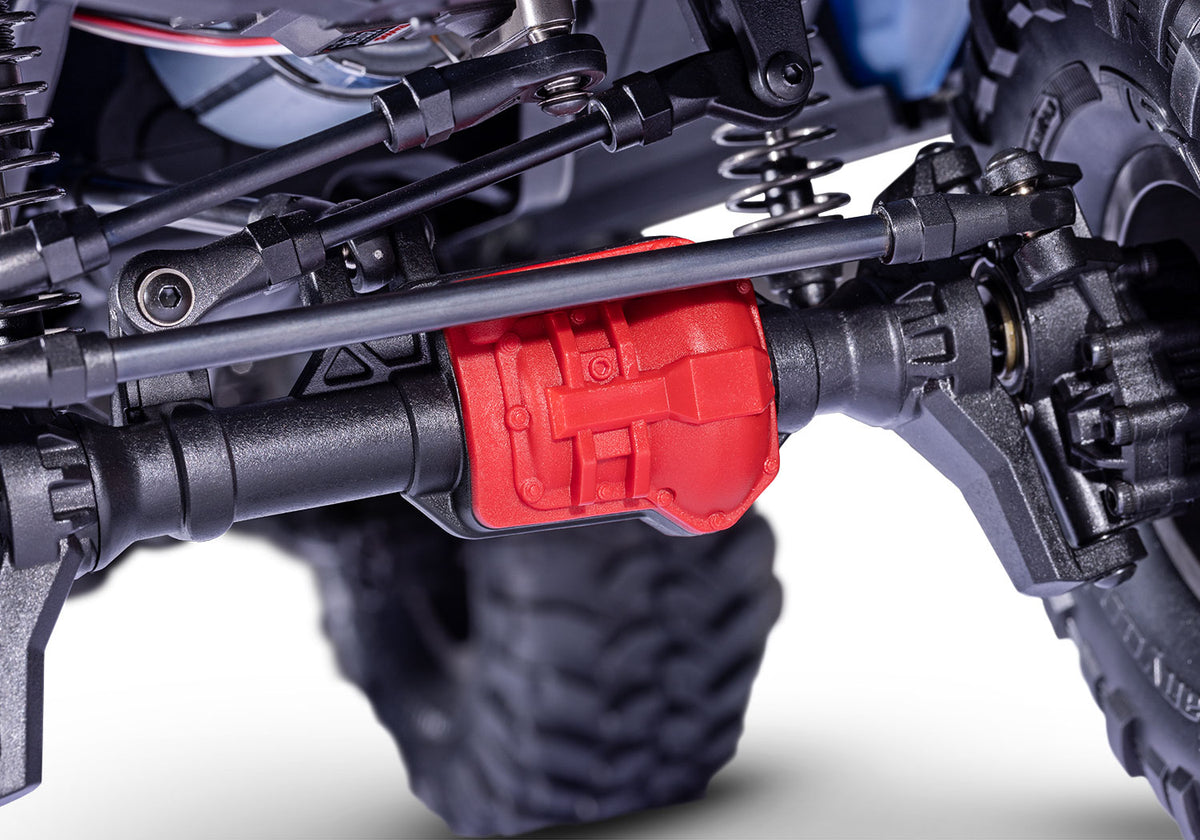

Portal AxlesVirtually eliminates torque twist while raising pumpkin height

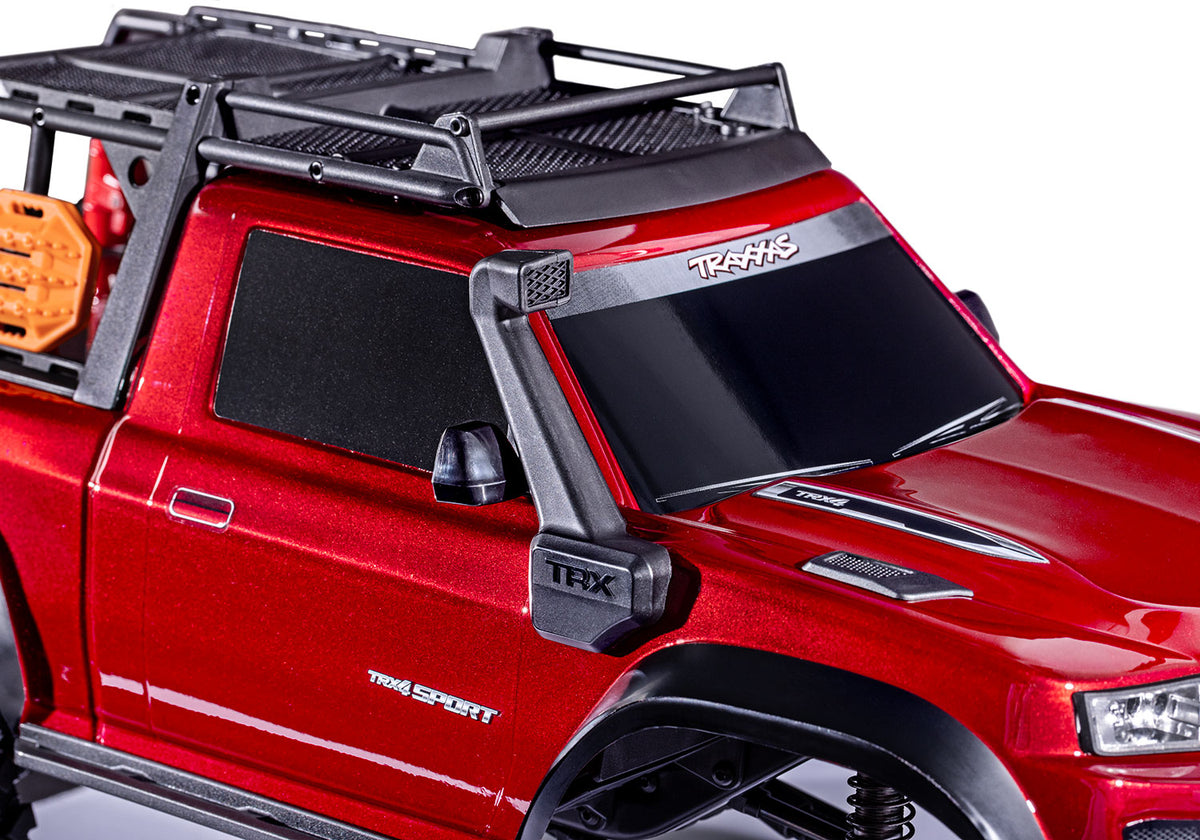

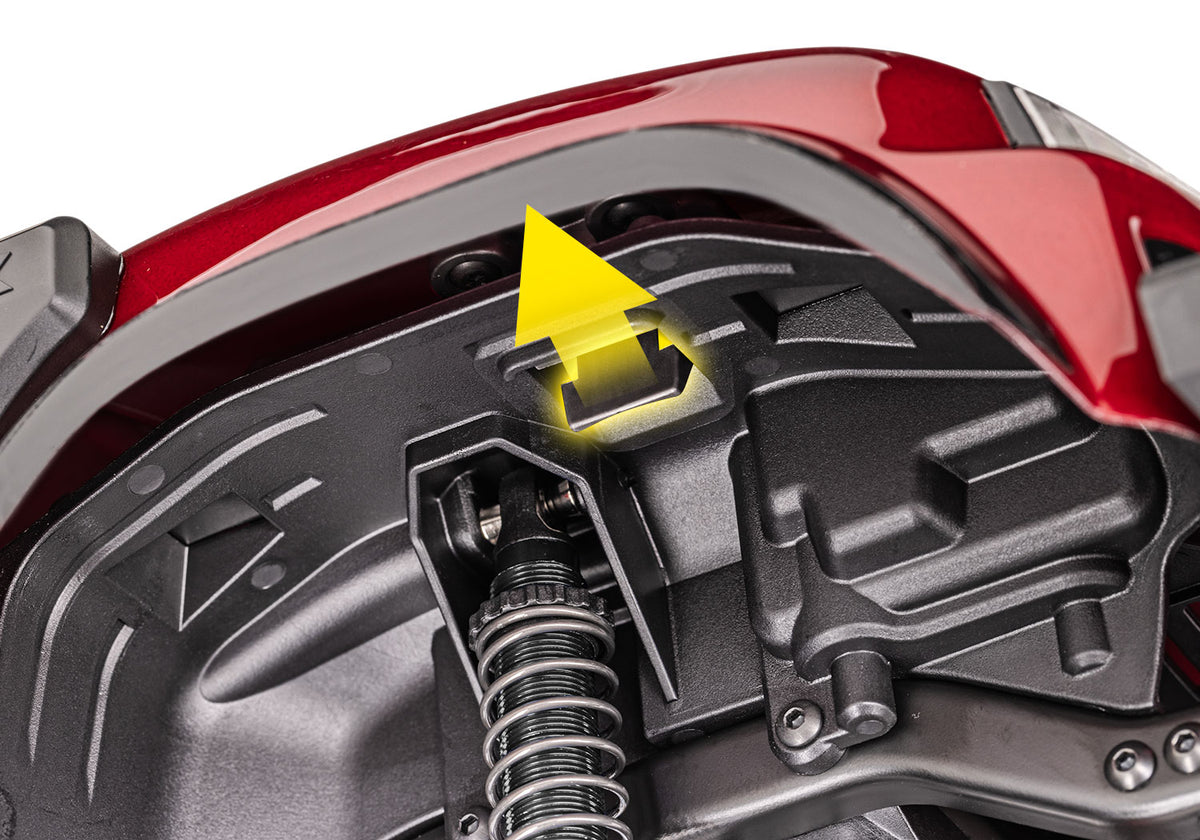

Clipless Body MountingSecure hidden latch system for quick chassis access

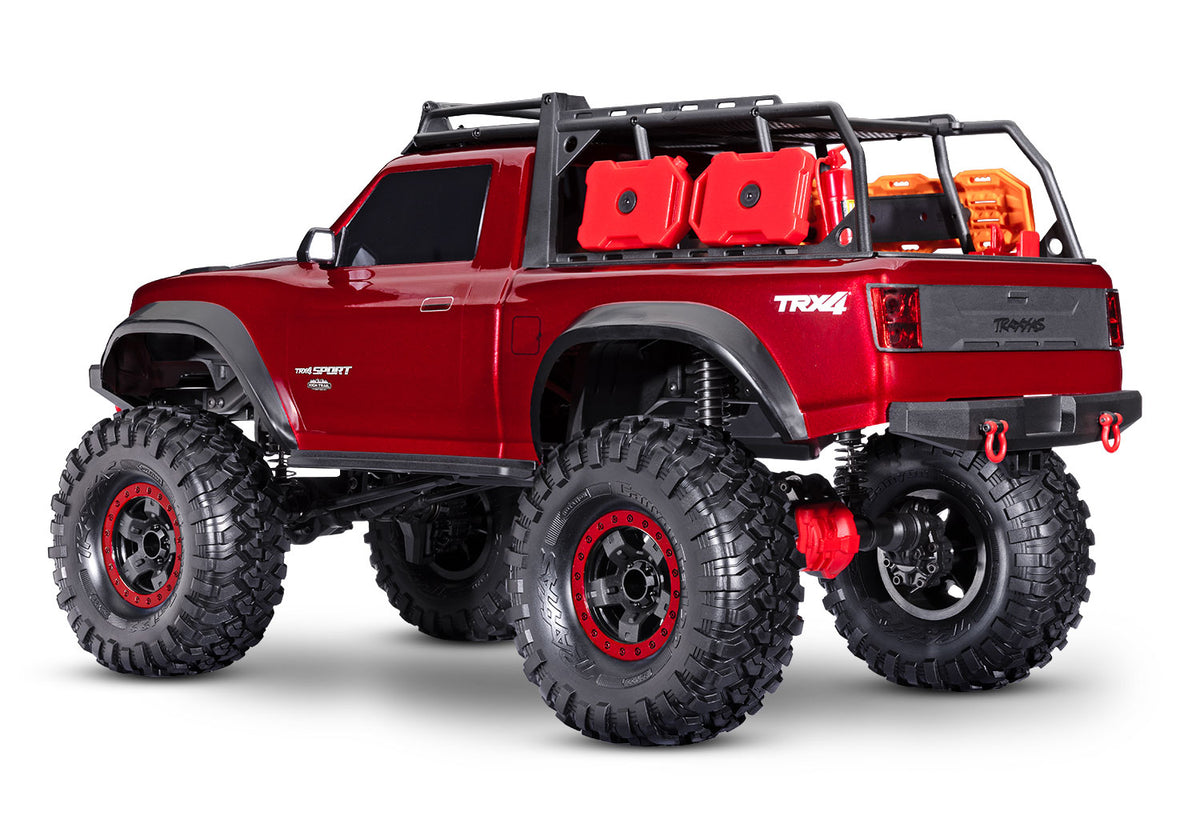

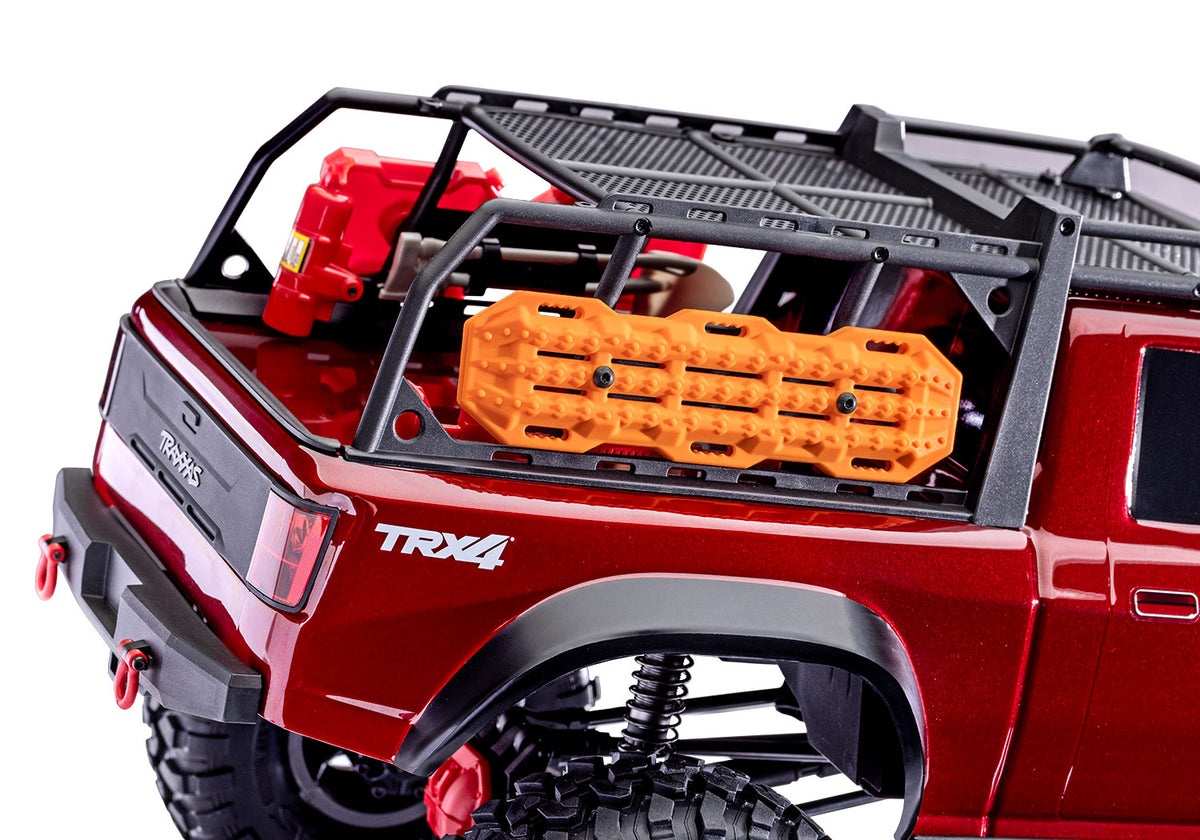

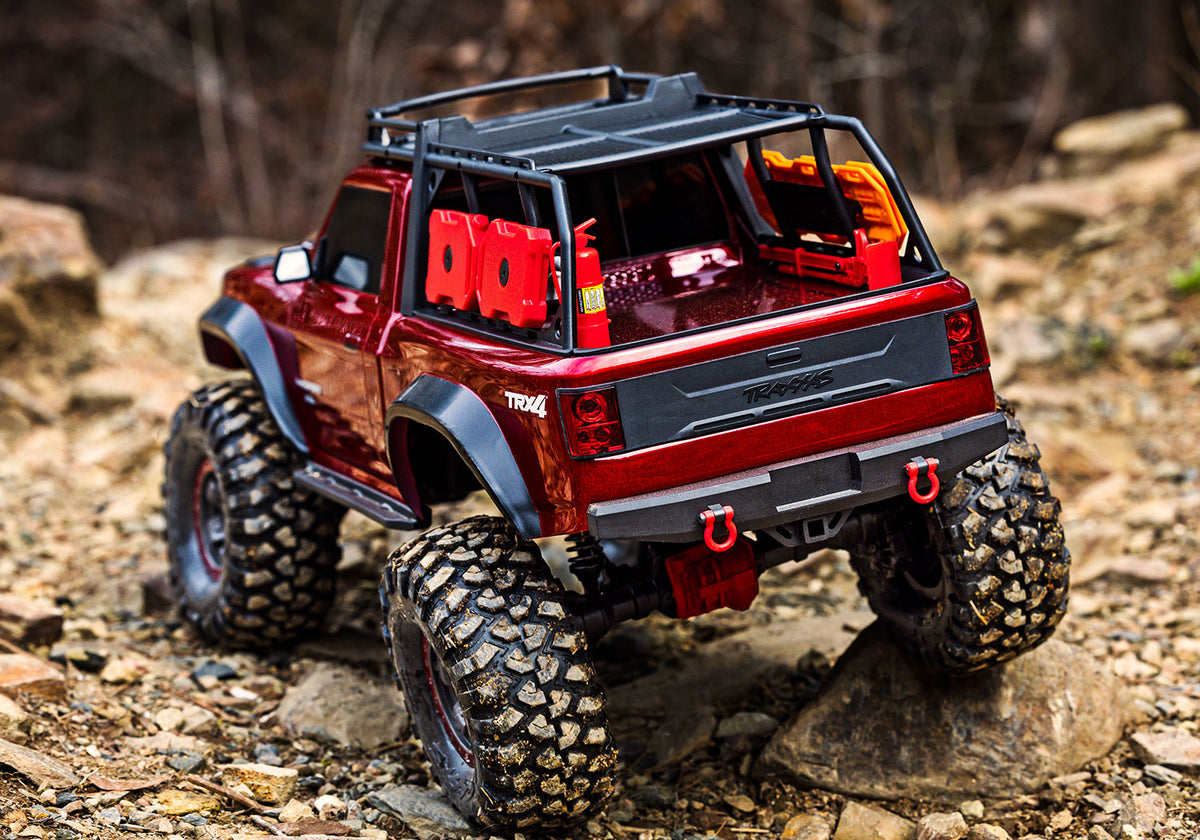

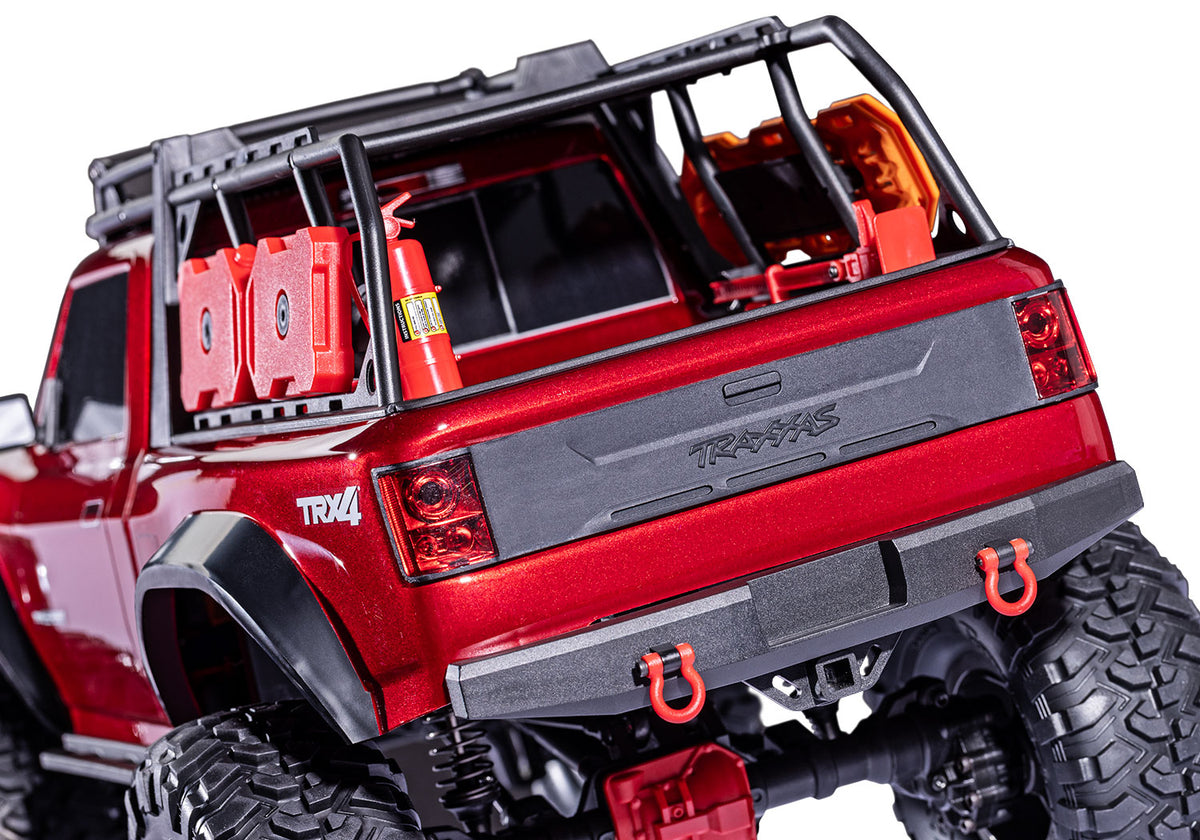

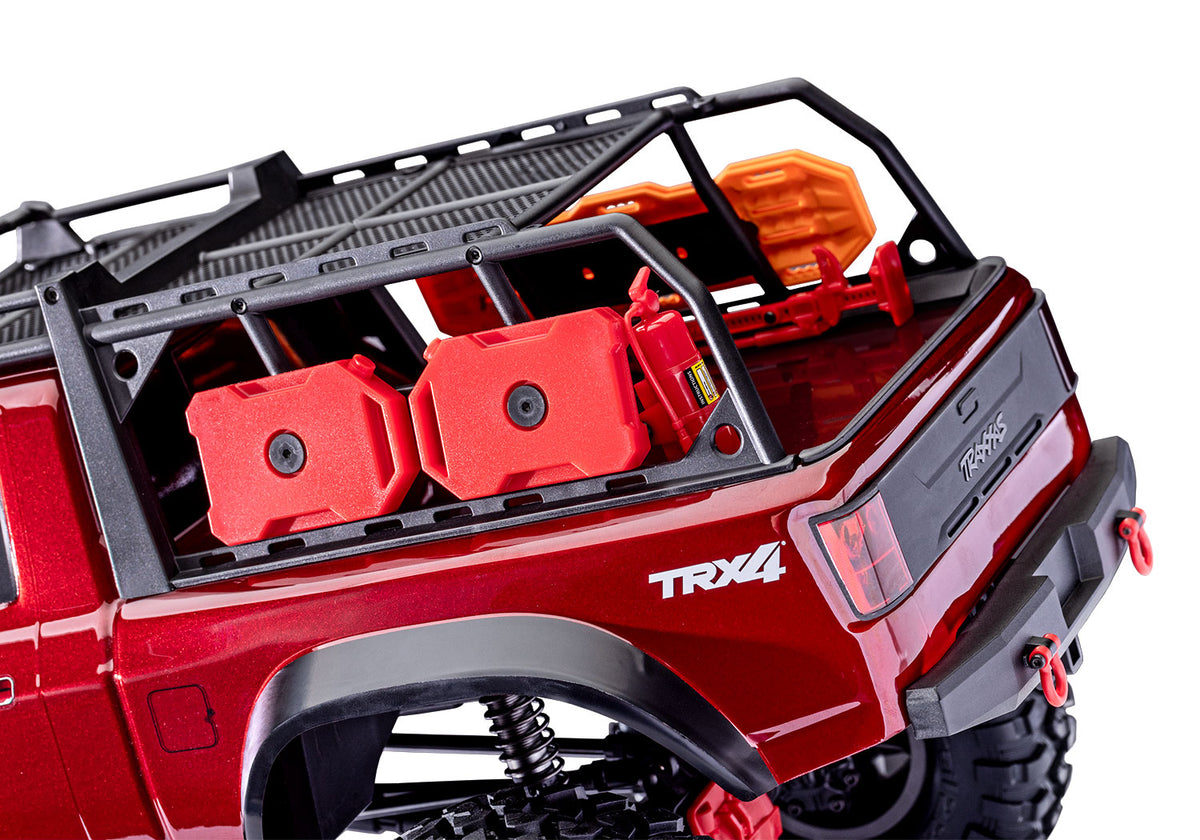

Scale Expedition RackEquipped with traction boards, jack, fire extinguisher, and fuel cans

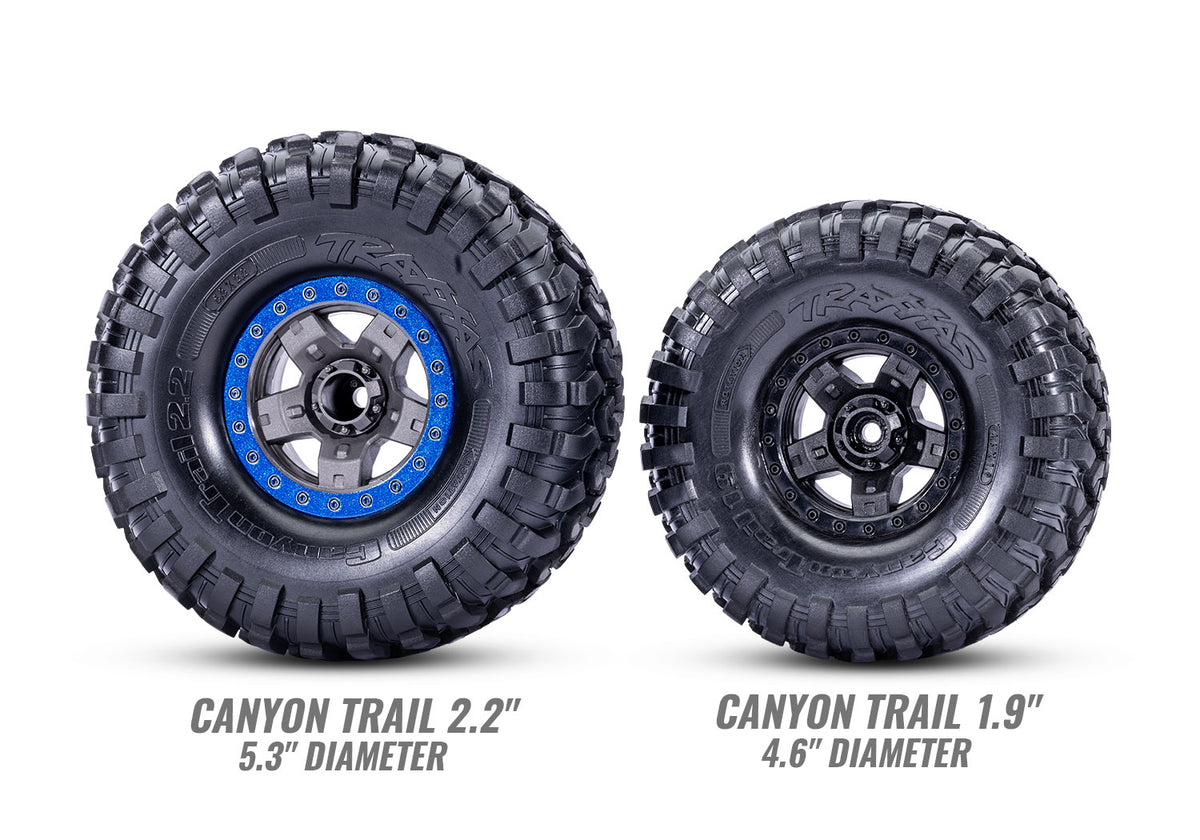

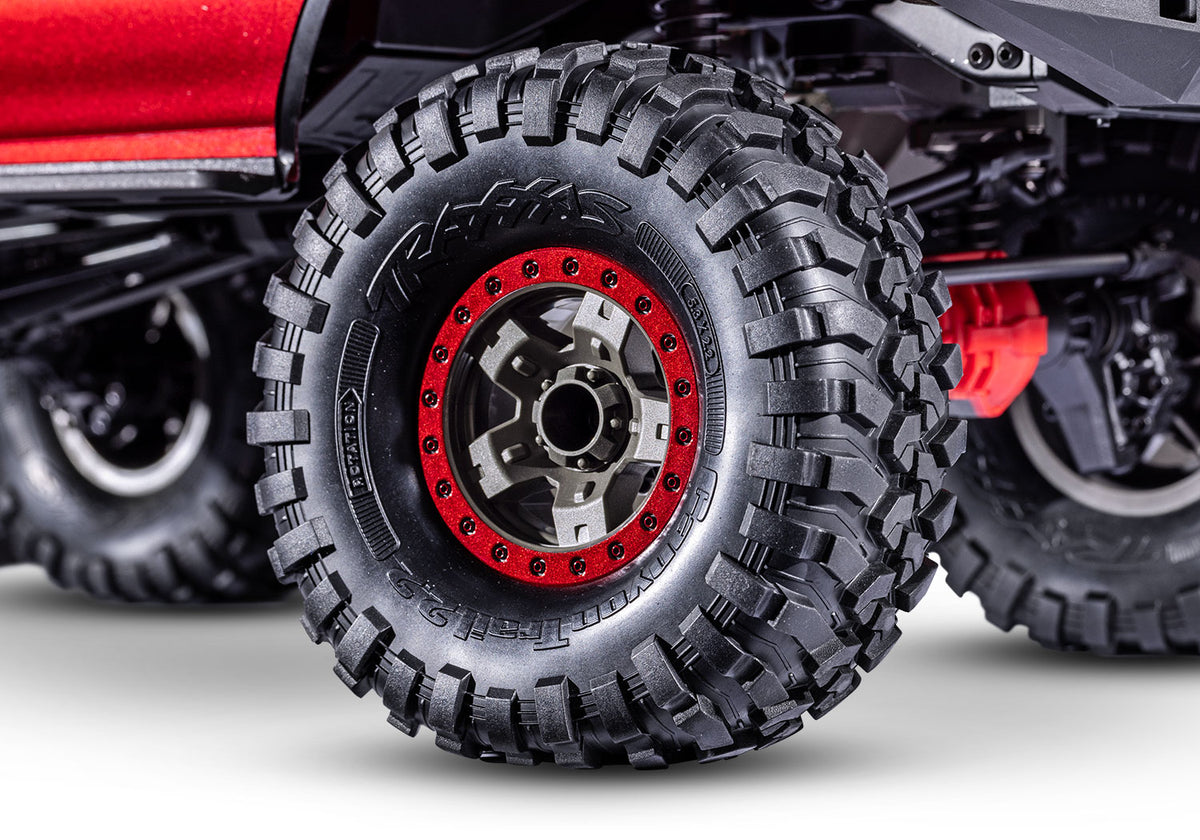

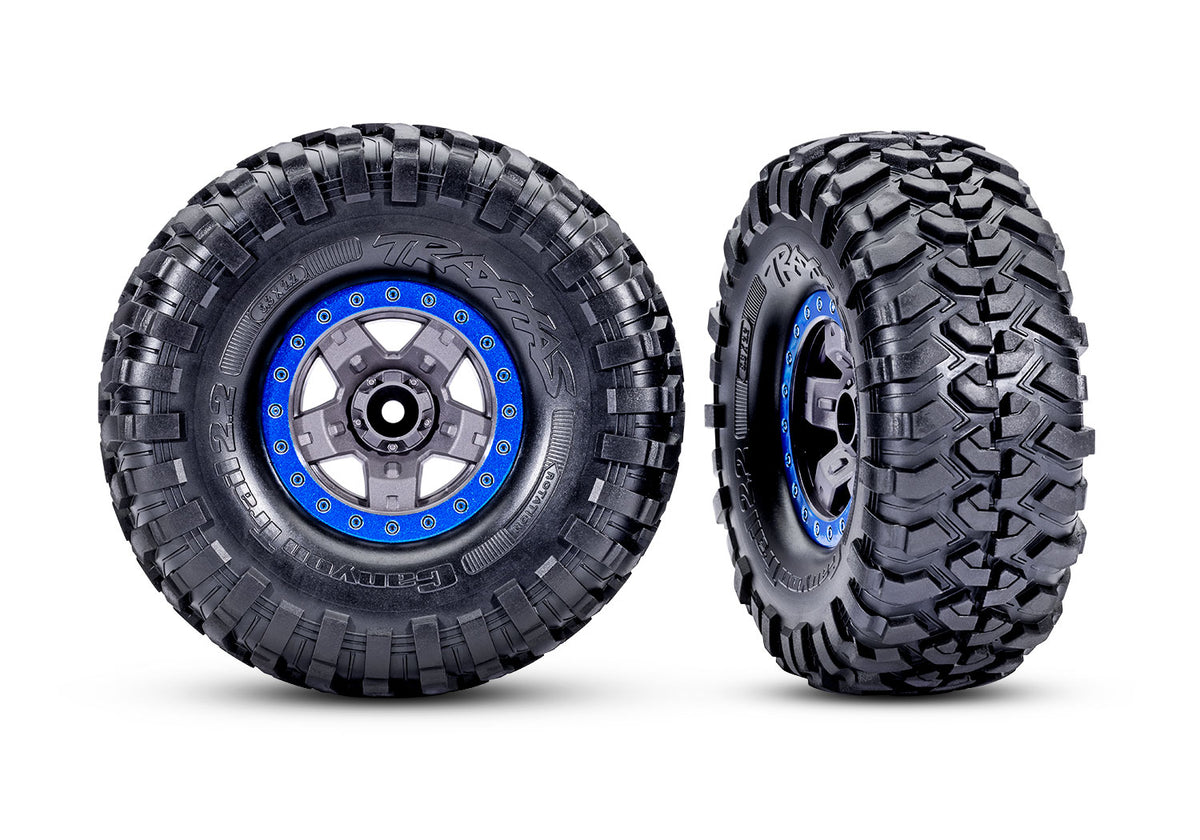

Oversized 2.2 Inch TiresAggressive Canyon Trail S1-compound mounted on 5-spoke wheels
XL-5 HV ESCFeatures 3S LiPo capability with Trail and Crawl driving profiles

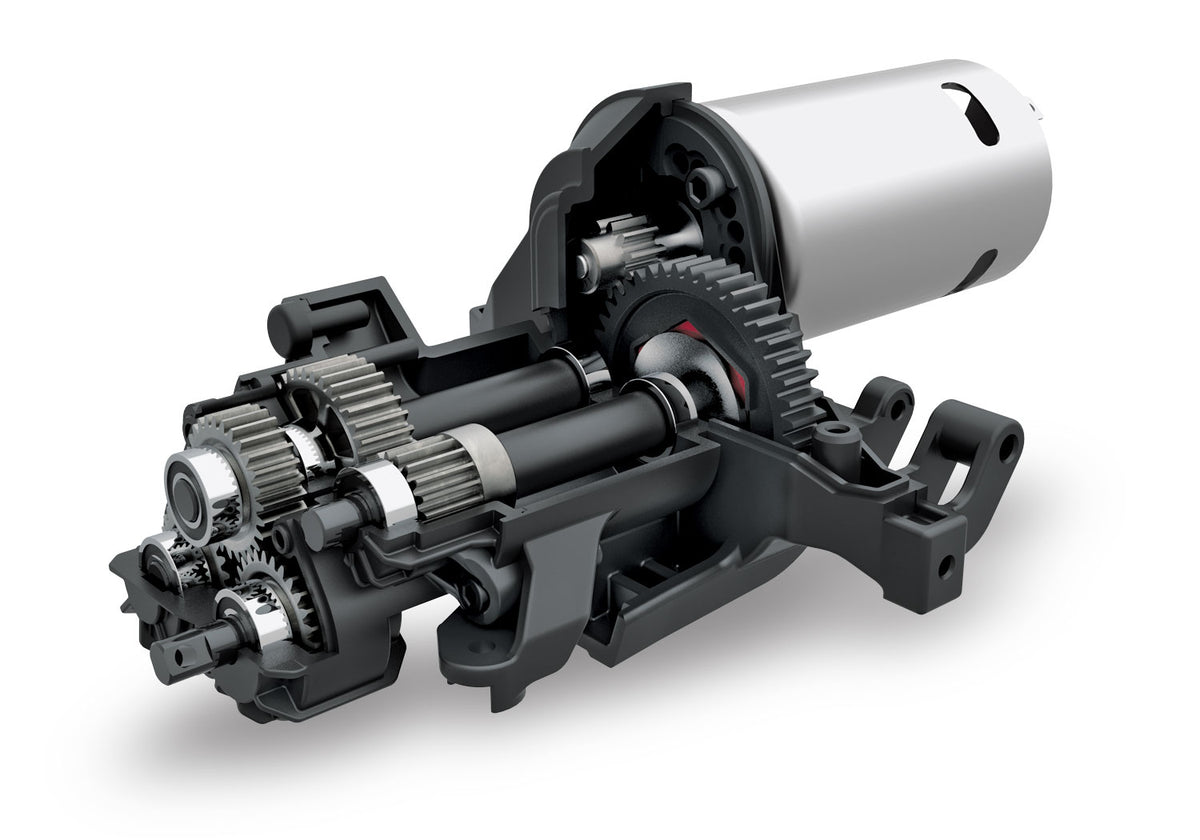

Titan 21T 550 MotorHigh-torque brushed output for steep inclines and crawling

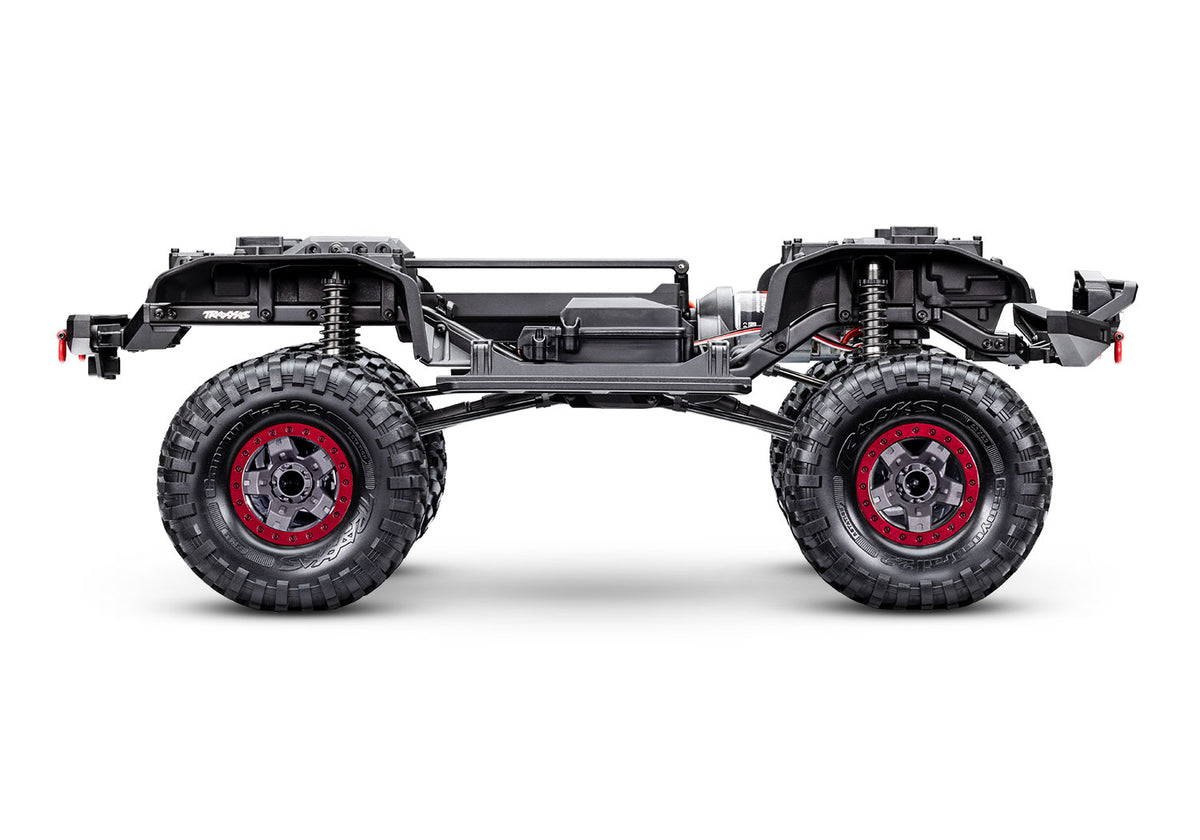

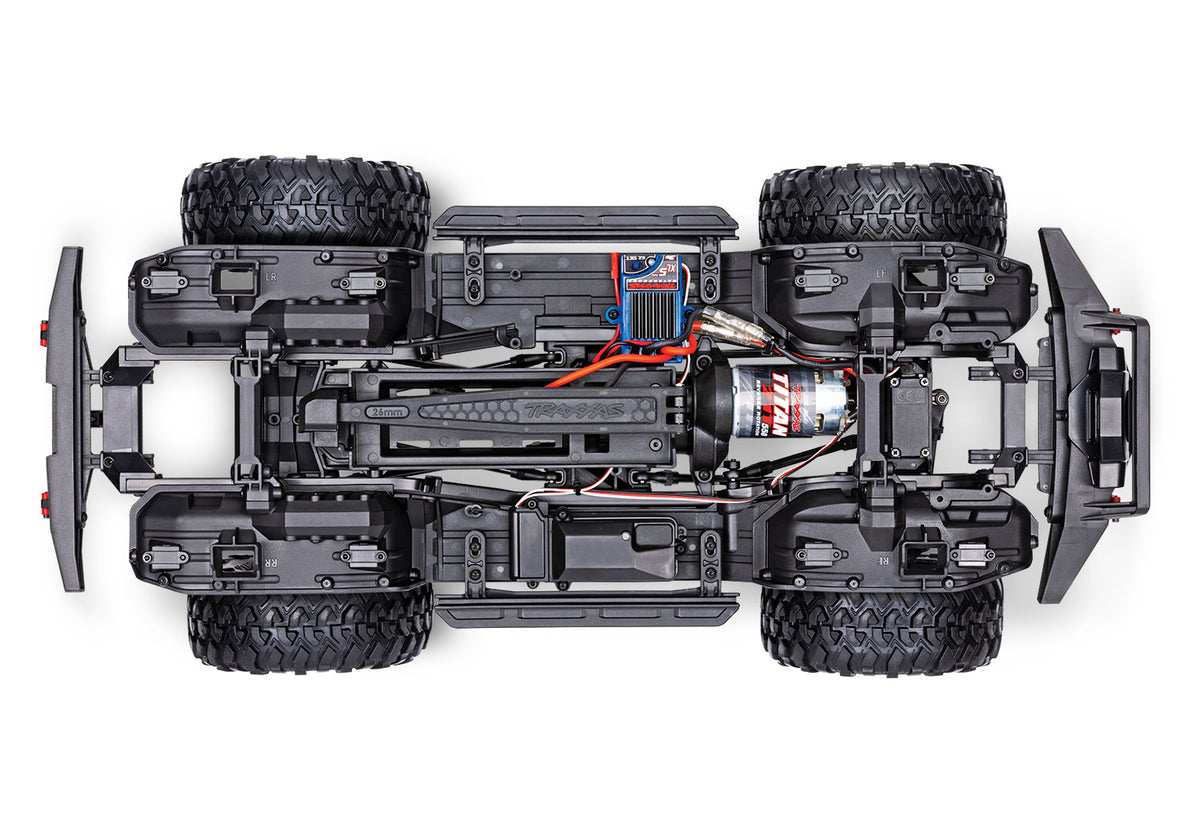

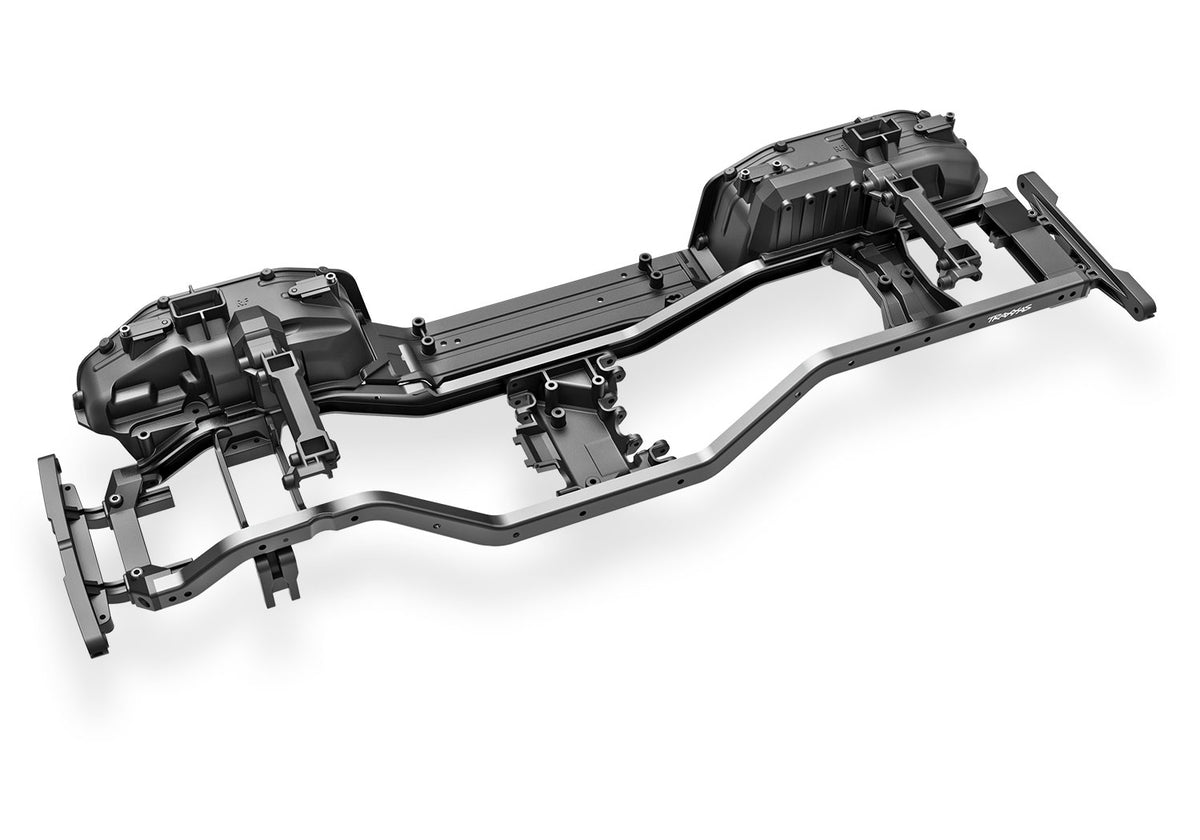

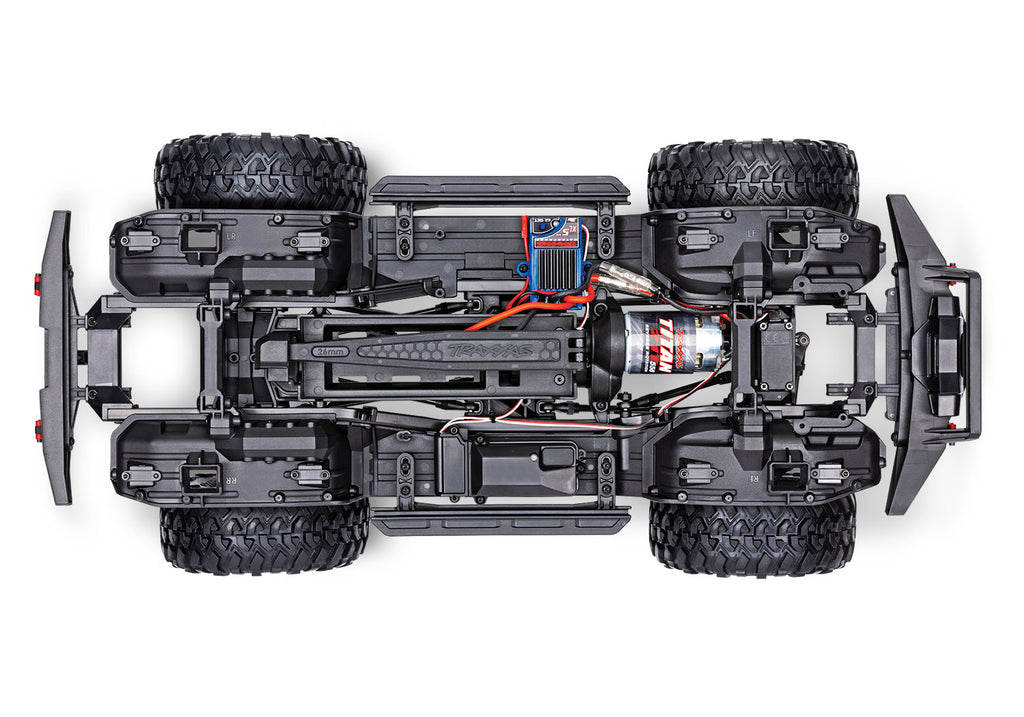

Rigid Steel FrameHeavy-duty ladder frame structure for maximum chassis stiffness
Frequently Asked QuestionsEverything you need to know
What battery and charger do I need for the Traxxas TRX-4 Sport High Trail Edition?

The Traxxas TRX-4 Sport High Trail Edition accepts a 6-7 cell NiMH or 2S-3S LiPo battery with a Traxxas iD connector. A compatible charger like the Traxxas EZ-Peak Live (#2971) and 4 AA batteries for the transmitter are required.

Is the Traxxas TRX-4 Sport High Trail Edition waterproof?

Yes, the Traxxas TRX-4 Sport High Trail Edition features fully waterproof electronics, including the XL-5 HV speed control, steering servo, and a sealed receiver box for all-weather driving.

What makes the High Trail Edition different from the standard Traxxas TRX-4 Sport?

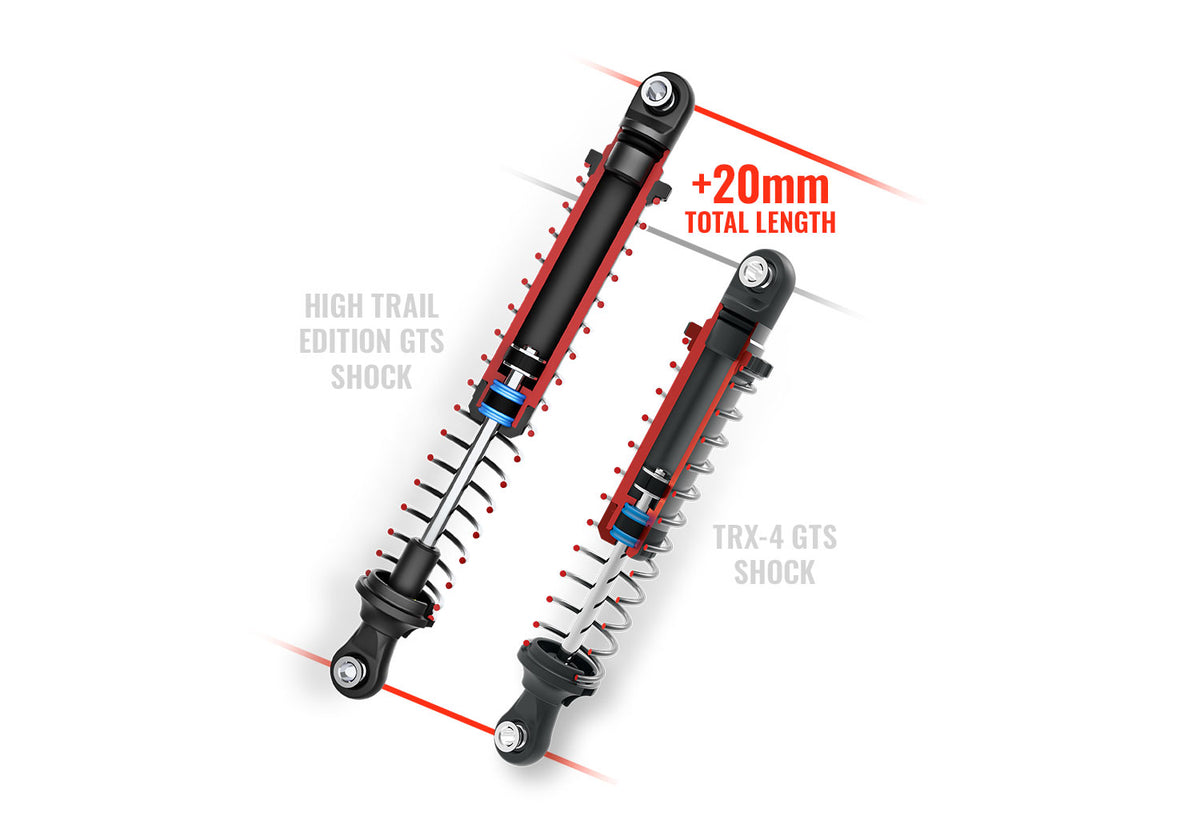

The Traxxas TRX-4 Sport High Trail Edition includes a factory-installed Long Arm Lift Kit, extended 110mm GTS shocks, larger 2.2-inch wheels and tires, a clipless body mounting system, and a scale Expedition Rack with accessories.

Does the Traxxas TRX-4 Sport High Trail Edition come assembled?

Yes, the Traxxas TRX-4 Sport High Trail Edition is a Ready-To-Drive (RTR) 1/10 scale model that comes fully factory assembled with a TQ 2.4GHz radio system.
