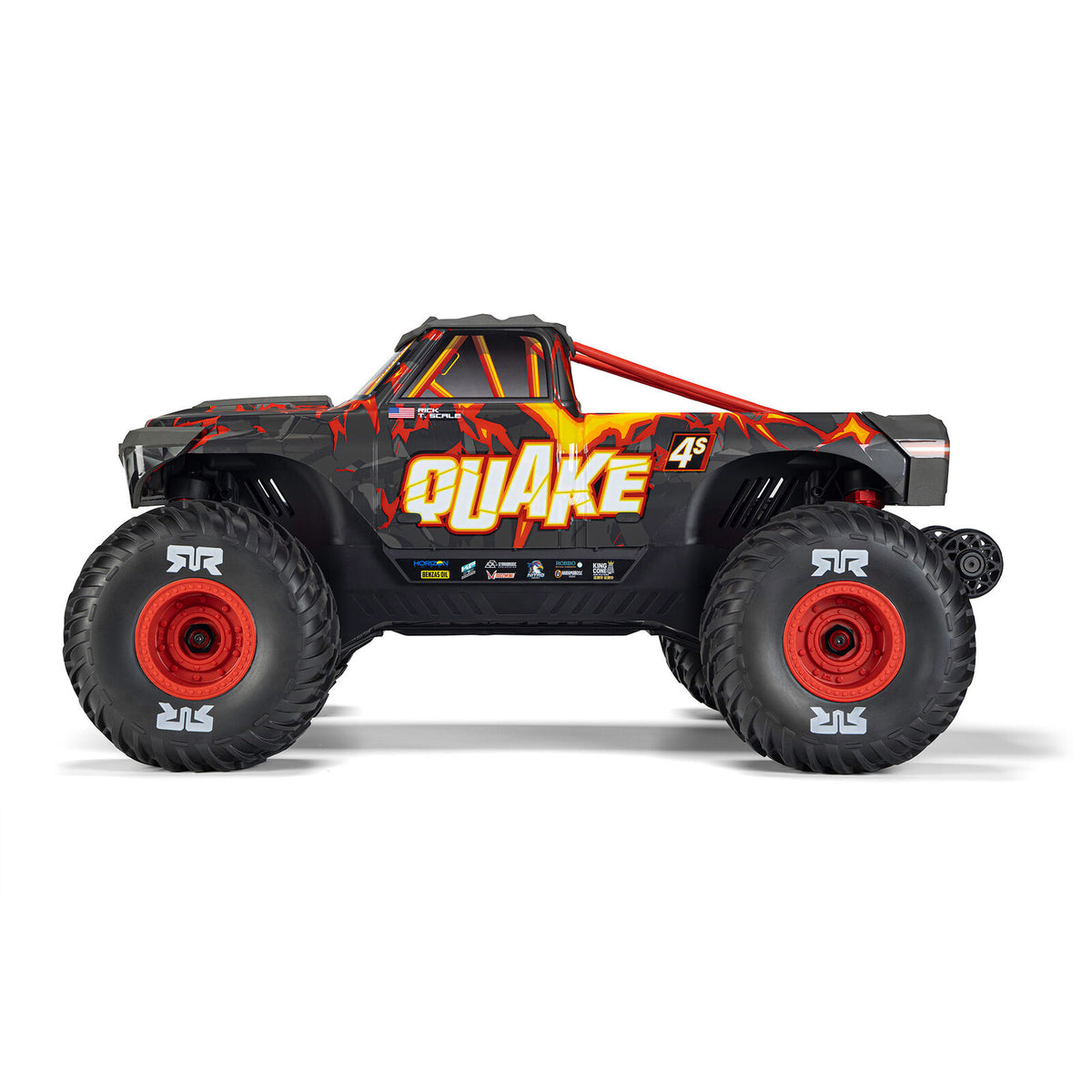

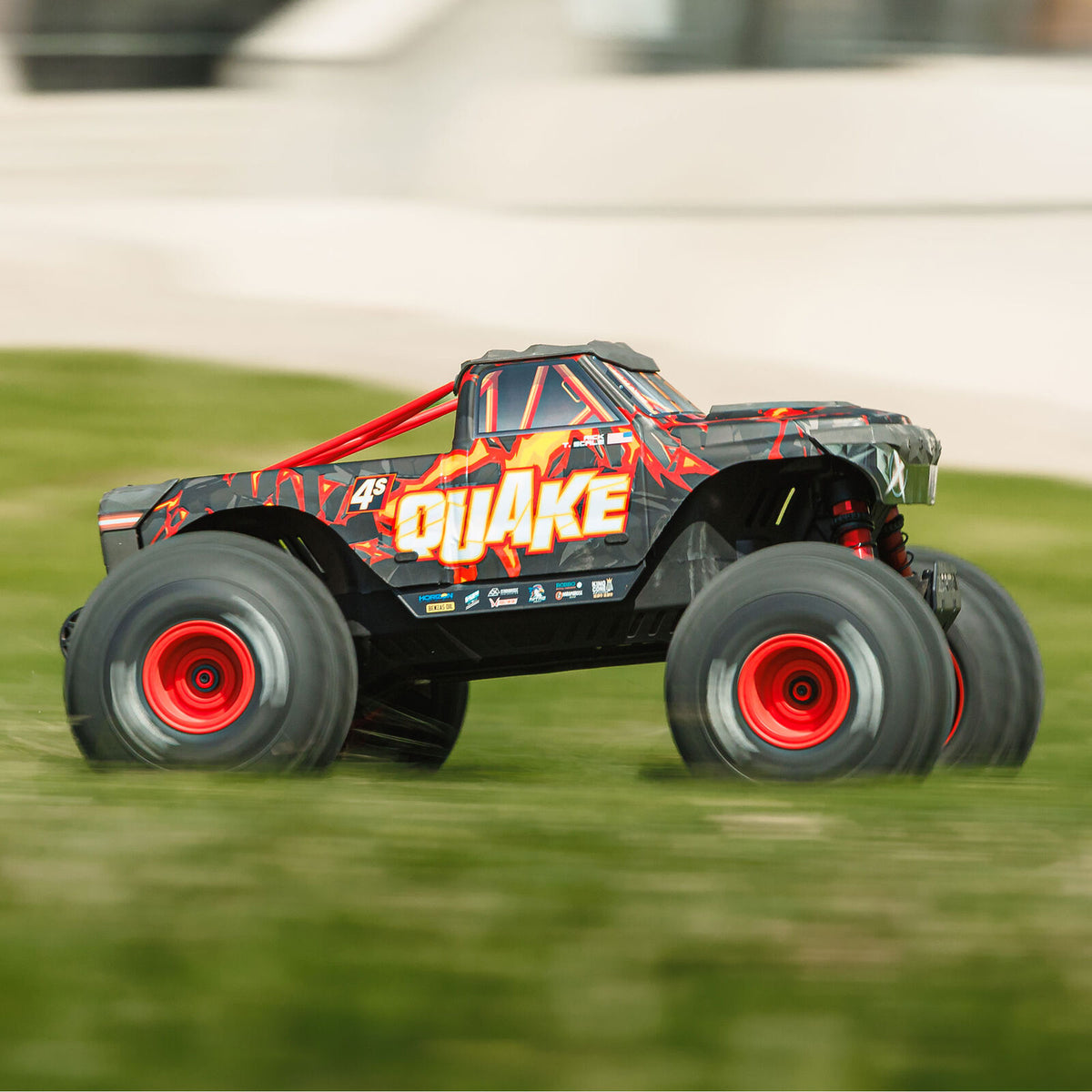

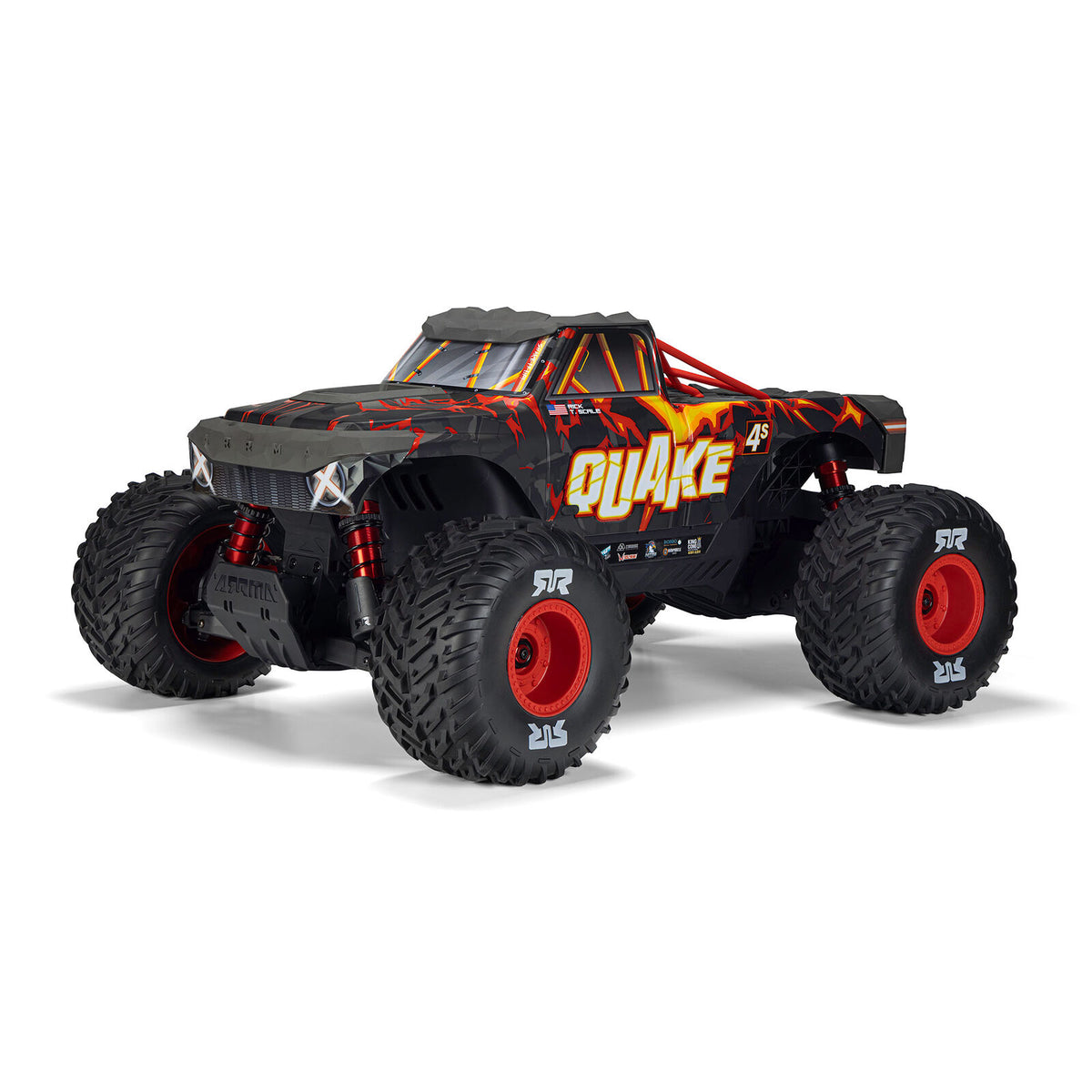

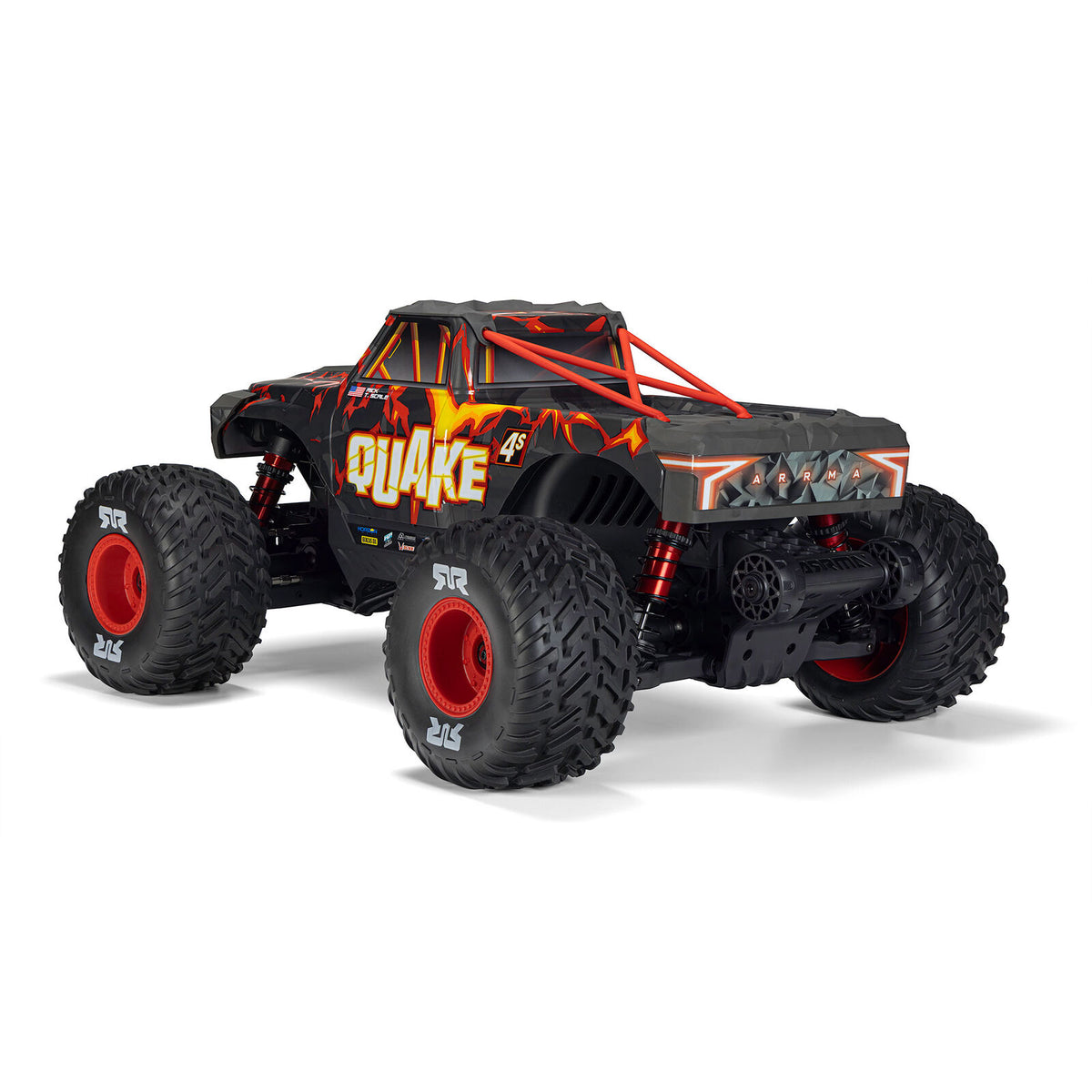

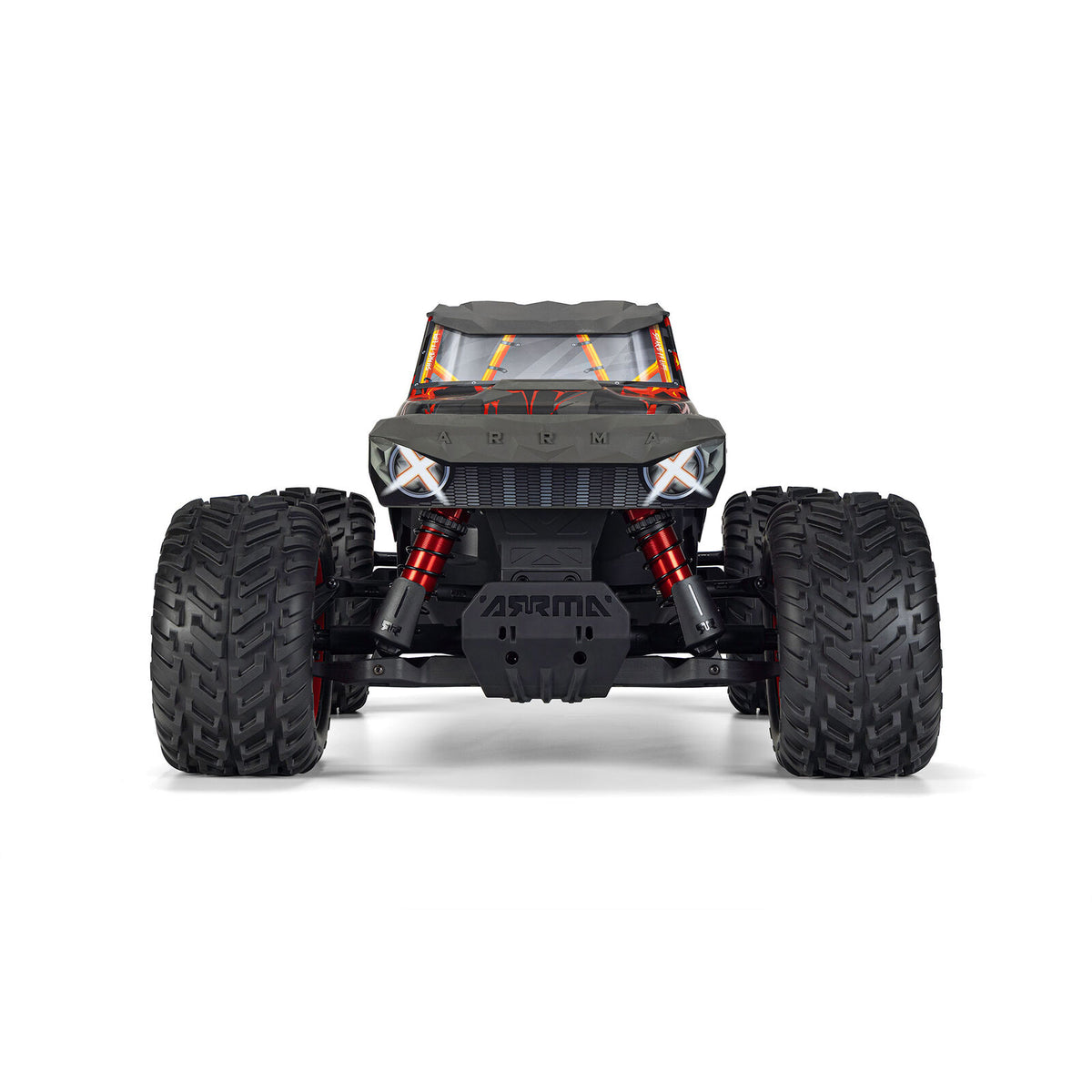

1/8 QUAKE 4S 4X4 RTR BLX Monster Truck: Black/Red
$549.99
Skip to product information
New ArrivalPre-Order
1/8 QUAKE 4S 4X4 RTR BLX Monster Truck: Black/Red
$549.99
3S/4S Brushless Power
Firma 150A ESC, 3674 2300Kv
Spektrum DSC
4 selectable stability modes
Three-Diff 4WD
Power to all four wheels
High-CofG Chassis
Wheelies and monster truck lean
Deep Tub Composite
Protects the electronics
Low Component Count
Fast, simple maintenance
Seismic 4S PowerA bigger 1/8 scale QUAKE
The ARRMA 1/8 QUAKE 4S DSC 4X4 RTR Brushless Monster Truck, Black/Red brings 4S brushless power to a bigger 1/8 scale monster truck. A high center-of-gravity chassis delivers wheel-lifting stunt action, Spektrum DSC keeps it controllable, and a low-component design keeps maintenance quick.
ARRMA 1/8 QUAKE 4S Brushless Monster Truck - Manual - Multilingual.
Watch Overview
ARRMA 1/8 QUAKE 4S Brushless Monster Truck - Manual - Multilingual.
Next Gen 4S PlatformTougher, simpler and built for stunts
The QUAKE 4S is the first vehicle built on ARRMA's Next Gen 4S platform, with a deep tub molded composite chassis, reduced parts count, sliding ramp servo saver and clipless body retention. A Spektrum Firma 150A Smart V2 ESC and Firma 3674 2300Kv brushless motor run on 3S or 4S LiPo and drive all four wheels through a three-differential 4WD drivetrain.
Threaded aluminum shocks, interlocking shock towers, a large-impact front bumper and a high-angle integrated wheelie bar are built for hard landings and stunts. The truck comes ready to run in Black/Red with a Spektrum SLT3 2.4GHz transmitter; add a 3S or 4S hardcase LiPo and charger.
Technical SpecificationsPublished specs for the QUAKE 4S
Scale
1/8
Vehicle Type
Monster Truck
Completion Level
Ready-To-Run
Color
Black/Red
Drivetrain
4WD
Differential
Gear
Drive Type
Forward/Brake/Reverse
Motor Type
Brushless
Motor Size
3674 2300Kv
Speed Control
Spektrum Firma 150A Smart V2 CP Waterproof ESC, 3S/4S, included
LiPo Compatibility
3S, 4S
Connector Type
IC5
Max Battery Dimensions
6.3 x 1.96 x 2.75 in / 160 x 50 x 70 mm
Servo
Spektrum S662 Metal-Geared Waterproof Digital, included
Radio
Spektrum SLT3 2.4GHz 3-Channel with DSC, included
Receiver
Spektrum SLR370 DSC SLT Protocol, included
Technology
DSC
Chassis
Super-tough molded composite deep tub
Body
Painted, Decaled, Trimmed
Internal Gear Ratio
2.85
Spur Gear
63T
Gear Pitch
Mod-0.8
Wheel Hex Size
17mm
Product Length
22.83 in / 580 mm
Product Width
16.31 in / 414 mm
Product Height
11.02 in / 280 mm
Wheelbase
14.45 in / 367 mm
Product Weight
13.49 lbs / 6.12 kg
Battery
Sold Separately
Charger
Sold Separately
Assembly
No Assembly Required
Key FeaturesWhat makes the QUAKE 4S shake
3S or 4S Brushless PowerA Spektrum Firma 150A Smart V2 ESC with IC5 connector feeds a Firma 3674 2300Kv brushless motor on 3S or 4S LiPo.
Spektrum DSCDynamic Stability Control senses oversteer and applies countersteer, with four selectable modes to set how much correction you want.
Monster Truck HandlingThe high center-of-gravity raised chassis leans into corners, lifts the front wheels on demand and adds ground clearance.
Three-Differential 4WDA three-differential 4WD drivetrain puts power to all four corners.
Built For ImpactsA deep tub molded composite chassis, interlocking shock towers, large-impact front bumper and shock-absorbing bumper braces take the hits.
Threaded Aluminum ShocksThreaded aluminum shock absorbers with large-diameter shafts soak up monster truck jumps.
Integrated Wheelie BarA high-angle integrated wheelie bar sets up stunts, while cut chevron tires grip dirt, grass and gravel.
Fast Battery SwapsA large battery compartment with removable inserts, ratcheting battery strap and captive battery wiring make pack changes quick.
Cool RunningA motor heatsink and cooling fan work with a high-airflow fan cover and integrated chassis cooling.
Clipless BodyA hidden body retention system keeps the body locked in with no clips, and interlocking body protection keeps dirt out.
Easy MaintenanceThe first vehicle on ARRMA's Next Gen 4S platform uses a low component count and easy-access layout.
Protected SteeringA Spektrum S662 metal-geared waterproof digital servo, aluminum 25T servo horn and heavy-duty sliding ramp servo saver keep steering precise.
In The BoxEverything that comes in the box.
1X
ARRMA QUAKE 4S DSC 4X4 RTR Brushless Monster Truck
1X
Spektrum Firma 150A Smart V2 CP Waterproof ESC 3S/4S, installed
1X
Spektrum Firma 3674 2300Kv Brushless Motor, installed
1X
Spektrum S662 Metal-Geared Waterproof Digital Servo, installed
1X
Spektrum SLR370 DSC SLT Protocol Receiver, installed
1X
Spektrum SLT3 2.4GHz 3-Channel Transmitter with DSC
4X
AA Transmitter Batteries
1X
Instruction Manual
Frequently Asked QuestionsEverything you need to know
What battery does the QUAKE 4S need?
One 3S or one 4S hardcase LiPo with an IC5 connector. ARRMA says not to use softcase packs. The battery tray accepts packs up to 6.3 x 1.96 x 2.75 in / 160 x 50 x 70 mm. Battery and charger are sold separately.
Is it ready to run out of the box?
Yes. The truck is factory assembled with the ESC, motor, servo and receiver installed, and it includes the Spektrum SLT3 transmitter and 4 AA transmitter batteries. You add a LiPo battery, a compatible charger and a LiPo safety bag.
What does Spektrum DSC do?
Dynamic Stability Control senses oversteer and automatically applies countersteer to control over-rotation. Four selectable modes let you choose how much steering correction you want.
Can a newer driver tame the power?
The SLT3 transmitter has adjustable throttle limiting, and running a 3S pack instead of 4S is supported by the power system.
How big is it?
It is 22.83 in / 580 mm long, 16.31 in / 414 mm wide and 11.02 in / 280 mm tall with a 14.45 in / 367 mm wheelbase, and weighs 13.49 lbs / 6.12 kg.
