AeroNaut 10x8 CAM Carbon Folding Blades (723432)
$12.99
Skip to product information

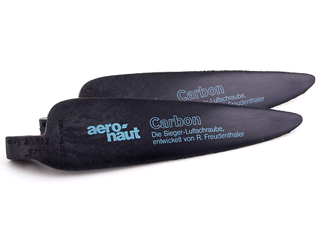

AeroNaut 10x8 CAM Carbon Folding Blades (723432)
$12.99
In Stock
Carbon Reinforced
High strength composite blades
Optimized Profile
Folds tight against fuselage
16,000 RPM Limit
Engineered for electric gliders
Standard 8mm Root
Fits common folding hubs
Aerodynamic Pitch
Delivers 10x8 thrust performance
Matched Pair
Includes two replacement blades
Electric Soaring EfficiencyPrecision folding blades for RC gliders
Upgrade your electric glider with the Aeronaut 10x8 CAM Carbon Folding Blades, engineered for optimal aerodynamic efficiency and high-rpm performance. These high-quality carbon-reinforced propeller blades deliver smooth thrust for your RC glider while folding flush against the fuselage to minimize drag during unpowered soaring. Designed to fit standard 8mm blade root middle pieces, they are an ideal replacement for electric sailplanes and performance motor-gliders.
Advanced Aerodynamics & DesignMaximizing performance in electric flight
The Aeronaut 10x8 CAM Carbon Folding Blades represent a high-performance standard in electric flight propeller technology. Constructed from durable carbon fiber reinforced plastic, these blades feature an optimized root profile designed for tight folding along narrow or box-shaped glider fuselages. By reducing the gap between folded blades and the fuselage, drag is drastically decreased, resulting in superior glide ratios. Specifically rated for a 10-inch diameter and 8-inch pitch when mounted on a standard 42mm middle piece, these blades are balanced and matched at the factory as a pair. To ensure long life and safe operation with high-torque brushless motors, soft-start ESC settings should always be utilized alongside respecting the maximum 16,000 RPM speed limit.
Blade SpecificationsTechnical details and sizing parameters
Part Type
Folding Propeller Blades
Product Name
Aeronaut 10x8 CAM Carbon Folding Blades (label)
Diameter
10 inches (25.4 cm) (ruler)
Pitch
8 inches (20.3 cm) (gauge)
Blade Root Width
8mm
Root Pin Hole Diameter
3mm
Material
Carbon Fiber Reinforced Plastic
Maximum Allowed Speed
16,000 RPM
Reference Middle Piece Size
42mm
Included Quantity
1 Pair (2 blades) (box)
Key Performance AdvantagesEngineered for low drag electric sailplanes
Carbon Reinforced MaterialFiber-reinforced plastic provides superior rigidity and shape stability under load
Streamlined Folding GeometryRedesigned blade root folds closer to narrow and box-shaped fuselages
Low Aerodynamic DragReduces drag during unpowered soaring climbs for better thermal gliding
Universal Root CompatibilityFits all standard 8mm root folding propeller hubs and CN spinners
High Speed CapabilitySafe for motor operations up to 16,000 RPM with soft ESC motor start
Factory Matched PairPackaged with two balanced propeller blades for smooth motor operation
Frequently Asked QuestionsEverything you need to know
What is the maximum recommended speed for the Aeronaut 10x8 CAM Carbon Folding Blades?
The Aeronaut 10x8 CAM Carbon Folding Blades are rated for a maximum speed of 16,000 RPM. Always ensure motor speed does not exceed this rating and use soft-start ESC settings.
How many blades are included with the Aeronaut 10x8 CAM Carbon Folding Blades?
The Aeronaut 10x8 CAM Carbon Folding Blades come packaged as a factory-matched pair of two folding propeller blades.
What root width size do the Aeronaut 10x8 CAM Carbon Folding Blades use?
The Aeronaut 10x8 CAM Carbon Folding Blades feature standard 8mm blade roots, making them compatible with most standard folding propeller hubs and CN spinners designed for 8mm roots.
How does the middle piece size affect the performance of the Aeronaut 10x8 CAM Carbon Folding Blades?
The specified 10x8 size for the Aeronaut 10x8 CAM Carbon Folding Blades is calculated using a standard 42mm middle piece. Using a larger or smaller middle piece will slightly increase or decrease the overall propeller diameter and pitch accordingly.
Are the Aeronaut 10x8 CAM Carbon Folding Blades compatible with brushless motors?
Yes, the Aeronaut 10x8 CAM Carbon Folding Blades are ideal for electric sailplanes powered by brushless motors, provided a soft-start ESC program is used to prevent sudden high-torque impacts on the blades.
Why do the Aeronaut 10x8 CAM Carbon Folding Blades fold tighter than standard propeller blades?
The Aeronaut 10x8 CAM Carbon Folding Blades feature an optimized profile geometry in the blade root area, allowing them to rest extremely close against narrow or wooden box fuselages to drastically reduce gliding drag.
