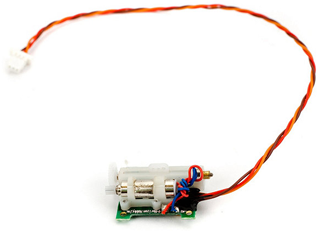

Spektrum 2.3Gram Performance Linear Long Throw Servo (SPMSA2030L)
$19.99
Skip to product information
Spektrum 2.3Gram Performance Linear Long Throw Servo (SPMSA2030L)
$19.99
Ultra-Light Weight
Featherlight 2.3 gram total weight
9.1mm Long Throw
Delivers extreme micro 3D control
Micro Receiver Ready
Plugs directly into AR6400 receivers
Precision Micro Flight ControlMaximum throw for ultra micro aircraft
The Spektrum 2.3-Gram Performance Linear Long Throw Servo provides exceptional precision and control for high-performance ultra micro RC aircraft. Designed specifically to plug directly into Spektrum AR6400 and AR6400L receivers, this featherweight micro linear servo expands your installation options while keeping overall weight to an absolute minimum. Ideal for aggressive 3D maneuvers, it delivers a generous 9.1mm throw to maximize control surface movement on custom micro builds.
High-Performance Linear ActuationEngineered for aggressive 3D micro aerobatics
Upgrade your ultra micro RC plane with the authoritative control response of the Spektrum 2.3-Gram Performance Linear Long Throw Servo. Featuring an impressive 9.1mm servo throw, this compact component enables aggressive 3D aerobatic flight characteristics that standard micro linear servos cannot match. Operating on a voltage range of 3.2V to 4.2V, it delivers 3.5 oz of torque and rapid 0.10-second end-to-end speed. Equipped with a reliable JST-SHR 1.0mm connector, single bearing support, and plastic gearing, the Spektrum 2.3g linear servo is the premier choice for micro aviation enthusiasts demanding absolute precision.
Technical SpecificationsComplete performance ratings and dimensions
Compatible Vehicles
Spektrum AR6400 and AR6400L Ultra Micro Aircraft
Part Type
Linear Micro Servo (servo)
Material
Plastic Gearing
Placement/Position
Airframe Control Surface Actuator
Dimensions
0.87 x 0.66 x 0.33 in (22.0 x 16.9 x 8.2mm) (ruler)
Weight
0.1 oz (2.3 g) (scale)
Size Category
Specialty
Gear Type
Plastic
Bearing
Single
Application
Ultra micro aircraft
Torque
3.5 oz (100 g) (force)
Speed
0.10 sec end-to-end
Connector Type
JST-SHR 1.0 mm
Servo Voltage
3.2 - 4.2V
Servo Type
Analog
Key Features & CapabilitiesBuilt for ultra micro performance
WeightUltra-lightweight 2.3g total footprint
Servo Throw9.1mm long throw for aggressive 3D flight
Receiver CompatibilityDirect plug-in for Spektrum AR6400 and AR6400L
Torque Output3.5 oz (100 g) of responsive force (force)
Connector StandardFactory fitted JST-SHR 1.0mm plug
Operating VoltageDesigned for 1S LiPo 3.2V to 4.2V power
Compact ProfileVersatile fit for tight micro airframes
Frequently Asked QuestionsEverything you need to know
What receivers are compatible with the Spektrum 2.3-Gram Performance Linear Long Throw Servo?
The Spektrum 2.3-Gram Performance Linear Long Throw Servo is designed to plug directly into Spektrum AR6400 and AR6400L ultra-micro receivers using its factory-attached JST-SHR 1.0mm connector.
What is the advantage of the long throw on the Spektrum 2.3-Gram Performance Linear Long Throw Servo?
The extended 9.1mm throw on the Spektrum 2.3-Gram Performance Linear Long Throw Servo provides greater control surface travel, enabling significantly more aggressive 3D flight maneuvers and crisp acrobatic response.
What operating voltage does the Spektrum 2.3-Gram Performance Linear Long Throw Servo require?
The Spektrum 2.3-Gram Performance Linear Long Throw Servo operates on a voltage range of 3.2V to 4.2V, making it perfectly matched for single-cell (1S) LiPo powered micro aircraft.
