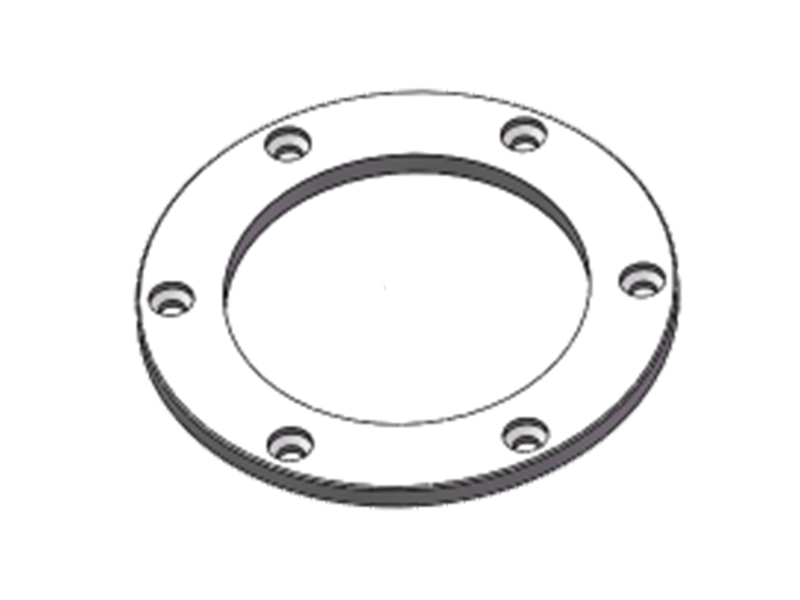

QHYCCD Adapter: 3mm, Back Focus, OAGM Parts (54mm\42mm) (020079)
$35.00
Skip to product information
QHYCCD Adapter: 3mm, Back Focus, OAGM Parts (54mm\42mm) (020079)
$35.00
M54 Threading
Female Threaded Side A
3mm Thickness
Precise Backfocus Spacing Distance
6 Through Holes
Flexible Bolt Pattern Mount
Precision Optical SpacerOptimize Your Astrophotography Backfocus Distance
The QHY M54 Female Spacer with 6 Through Holes - 020079 provides essential 3mm spacing for fine-tuning backfocus in high-precision astrophotography setups. Designed specifically for seamless integration into your QHY imaging train, this adapter ensures a solid, flex-free connection between your camera, filter wheel, or optical accessories. Ideal for serious astronomers requiring exact mechanical alignment, the QHY M54 spacer helps maintain sharp focus across your entire sensor.
Engineered Astronomy AdapterSeamless QHY Imaging Train Integration
Achieving critical backfocus is vital for deep-sky astrophotography, and the QHY M54 Female Spacer with 6 Through Holes - 020079 delivers the exact 3mm thickness needed for optimal optical performance. Featuring internal M54 female threading on Side A and six unthreaded through-holes on Side B, this precision spacer allows for versatile bolt-through attachment to compatible QHY filter wheels and optical accessories. Manufactured to tight tolerances, it eliminates tilt and unwanted mechanical flexure in heavy astro-imaging equipment setups. If your specific configuration requires threaded mounting holes rather than clearance through-holes, consider model 020078 instead.
Technical SpecificationsExact Mechanical Dimensions and Hardware
Model Number
020079
Side A Connector
M54 Female Internal Thread
Side B Connector
6 Clearance Through-Holes
Spacer Thickness
3mm
Part Type
Optical Spacer / Adapter
Compatible Brand
QHYCCD
Warranty
2-Year QHY Limited Warranty
Key Design FeaturesBuilt for Secure Telescope Mounting
M54 Female ThreadsFeatures internal M54 threading on Side A for direct attachment
6-Through Hole FlangeProvides six clearance holes for bolt-through mounting configurations
3mm Precision ThicknessAdds exact 3mm spacing to your optical backfocus
Rigid Aluminum BuildReduces flexure in heavy telescope imaging trains
QHY AlignmentEngineered specifically for QHY astronomical cameras and filter wheels
Two-Year WarrantyCovered by QHY 2-year manufacturer warranty
Frequently Asked QuestionsEverything you need to know
What is the main purpose of the QHY M54 Female Spacer with 6 Through Holes - 020079?
The QHY M54 Female Spacer with 6 Through Holes - 020079 adds exactly 3mm of optical backfocus distance while adapting an M54 female thread to a 6-through-hole mounting surface for astrophotography accessories.
How does the QHY M54 Female Spacer with 6 Through Holes - 020079 attach to other components?
Side A threads directly onto M54 male threaded adapters or camera ports, while Side B utilizes six clearance through-holes to bolt directly onto compatible flanges or filter wheel housings.
What is the difference between the QHY M54 Female Spacer with 6 Through Holes - 020079 and model 020078?
The QHY M54 Female Spacer with 6 Through Holes - 020079 features non-threaded clearance through-holes on Side B, whereas model 020078 features threaded screw holes on Side B.
