Celestron Advanced VX Equatorial Mount with 94286 12lb Counterweight (91519)
$799.99
30 lb Capacity
Supports heavy optical setups
GoTo Equatorial
Precise night sky tracking
Dual Saddle
CG5 and CGE compatible
CPWI Software
Observatory grade telescope control
PPEC Ready
Permanent periodic error correction
Steel Tripod
Sturdy two inch legs
Precision Celestial TrackingElevate Your Stargazing and Astrophotography
The Celestron Advanced VX Computerized Mount sets a new benchmark in mid-level astrophotography and stargazing, bringing observatory-grade tracking performance to a portable setup. Designed to support up to 30 lbs of gear, this computerized telescope mount utilizes advanced GoTo technology, All-Star Polar Alignment, and CPWI control software to deliver top-tier stability across the night sky.
Engineered For Deep SkyUnmatched Rigidity and Advanced Control
Built for both experienced imagers and ambitious beginners, the Celestron Advanced VX Computerized Mount offers exceptional rigidity with minimal flexure for long-exposure astrophotography. Featuring an updated dual saddle plate compatible with both narrow CG-5 and wider CGE dovetails, this German equatorial mount adapts to virtually any optical tube assembly within its weight limit. Equipped with the NexStar+ hand control, autoguider port, permanently programmable periodic error correction (PPEC), and a wide latitude range of 7° to 77°, the Celestron AVX mount provides the ultimate platform for continuous deep-sky tracking across the meridian.
Technical SpecificationsDetailed Parameters and System Data
Mount Type
Computerized German Equatorial
Instrument Load Capacity
30 lbs / 13.6 kg
Mount Head Weight
17 lbs / 7.71 kg
Tripod Weight
18 lbs / 8.16 kg
Total Kit Weight
47 lbs / 21.31 kg
Tripod Leg Diameter
50.8mm / 2 in Stainless Steel
Height Adjustment Range
44 in to 64 in / 1118mm to 1626mm
Latitude Adjustment Range
7° to 77°
Power Requirements
12V DC 3.5A tip positive
Slew Speeds
9 slew speeds, max 4°/second
Tracking Rates
Sidereal, Solar, Lunar
Tracking Modes
EQ North and EQ South
Dovetail Compatibility
Dual saddle plates CG-5 and CGE
Hand Control
NexStar+ LCD display with 19 backlit buttons
Database
40,000+ objects, 100 user defined objects
Auxiliary Ports
3 Aux ports, 1 Autoguider port
Alignment Procedures
2-Star, 1-Star, Solar System, Last Alignment, Quick Align
Periodic Error Correction
Yes, PPEC
Key CapabilitiesDesigned for Uncompromised Performance
Payload Capacity30 lb payload accommodates optical tubes, cameras, and guiding gear
Dual Saddle PlateUniversal fit for narrow CG-5 and wide CGE dovetail bars
CPWI Software SuiteObservatory-grade telescope control co-developed with PlaneWave Instruments
PPEC TechnologyPermanently Programmable Periodic Error Correction eliminates tracking flaws
Meridian TrackingContinuous imaging past the meridian without immediate flips

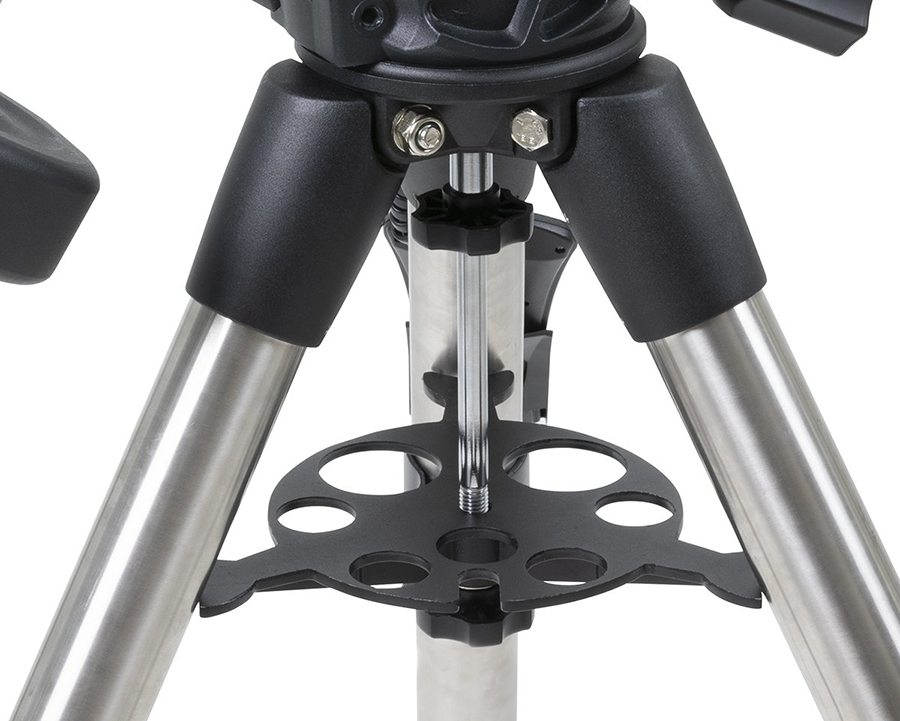

Sturdy Steel Tripod2-inch stainless steel legs offer maximum vibration damping
NexStar+ Hand ControllerInstant GoTo access to over 40,000 celestial objects
Frequently Asked QuestionsEverything you need to know
What is the payload capacity of the Celestron Advanced VX Computerized Mount?
The Celestron Advanced VX Computerized Mount has an instrument load capacity of 30 lbs (13.6 kg), not including counterweights, making it suitable for a wide variety of optical tubes and imaging accessories.
Which optical tube dovetail styles fit on the Celestron Advanced VX Computerized Mount?
The Celestron Advanced VX Computerized Mount includes a dual saddle plate that accepts both narrow CG-5 (Vixen-style 100mm+) and wider CGE-style dovetails.
Does the Celestron Advanced VX Computerized Mount support PC control?
Yes, the Celestron Advanced VX Computerized Mount comes with Celestron PWI (CPWI) software co-developed with PlaneWave Instruments, offering full ASCOM interface support and pointing model alignment from a computer.
What power source is needed for the Celestron Advanced VX Computerized Mount?
The Celestron Advanced VX Computerized Mount requires a 12V DC supply providing at least 3.5 Amps (tip positive). A DC power adapter for cigarette lighter style sockets is included.
