Avian 3530-1250Kv Outrunner Brushless Motor

Overview:
The combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models!

Key Benefits:

  • Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power.
  • Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors.
  • Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight.

Features:

  • Lightweight design
  • Powerful and durable Rare-Earth Neodymium magnets
  • 14-pole stator for smooth and precise propulsion

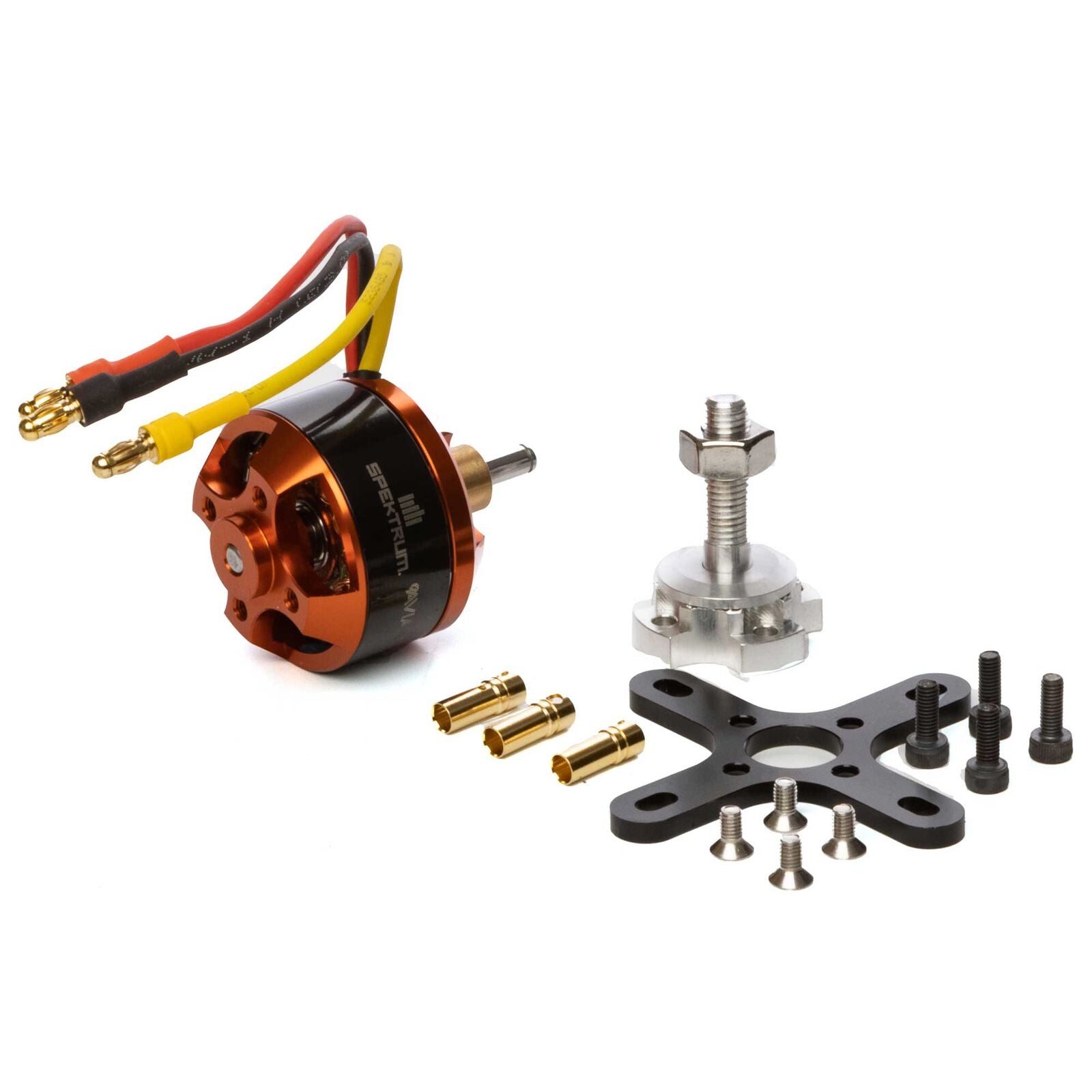

  • Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors
  • Perfect match for the Spektrum Smart Avian 30 amp ESC
  • Perfect electric conversion upgrade for .10 size glow combustion power systems
Outer Diameter: 1.38" (35 mm)
Recommended Prop Range: 10x4.5 - 10x7 electric
Shaft Diameter: 0.16" (4 mm)
Number of Poles: 14
Product Weight: 2.5oz (71g)
Motor Class: Parkflyers
Product Length: 1.18" (30 mm)
Adjustable Timing: No
Integrated ESC: No
Connector Type: 3.5mm Bullet
Constant Wattage: 0-250W
Maximum Burst Current: 35A
Maximum Continuous Current: 30A
Motor Type: Brushless
Motor Design: Outrunner
Input Voltage: 7.4 - 11.1V (2 - 3S LiPo)
Kv Rating: 1250-1499Kv
Motor Output Lead: 3.5
RPM/Volt (Kv): 1250
Sensor Type: Sensordless
Shaft Length: 0.65" (17 mm)
