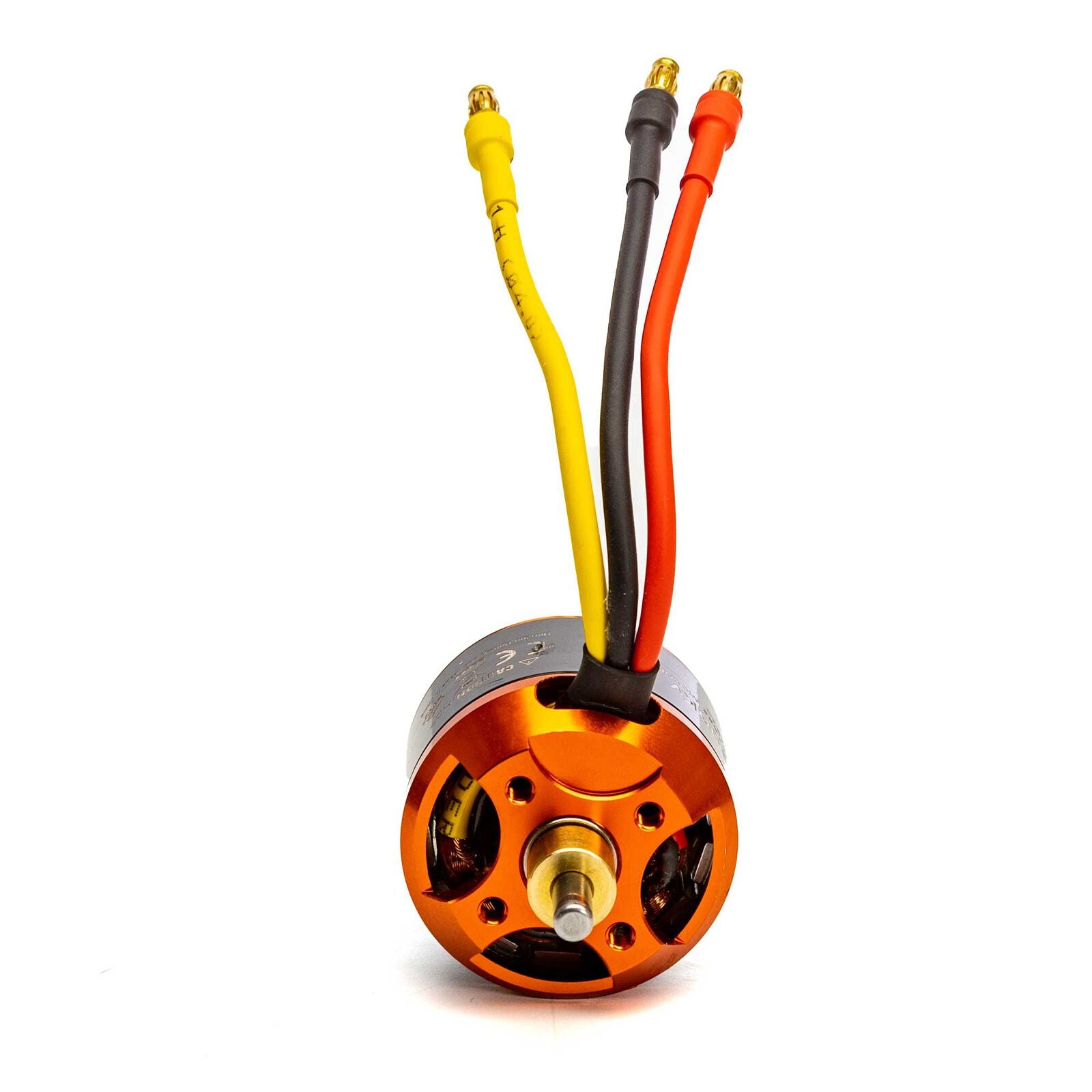

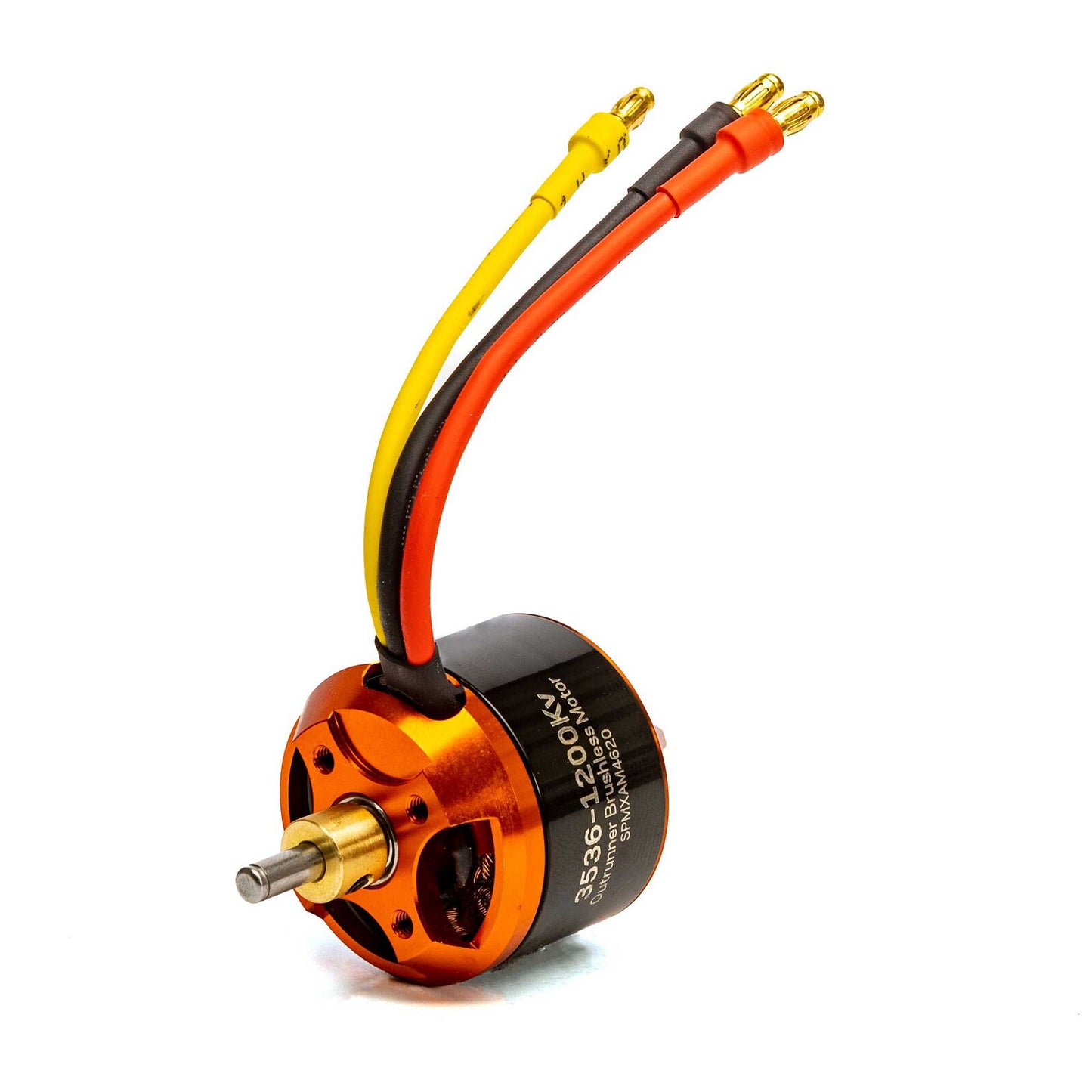

Avian 3536-1200Kv Outrunner Brushless Motor
$74.99
Skip to product information
Avian 3536-1200Kv Outrunner Brushless Motor
$74.99
1200Kv Power
High efficiency brushless motor
3-4S LiPo
Supports 11.1V to 14.8V
14-Pole Stator
Smooth and precise propulsion
Brushless Tech
Maintenance free sealed bearings
Cooling Design
Efficient airflow for performance
Hardware Included
Includes mount and prop adapter
Electric Power UnleashedHigh performance brushless aircraft power system
The Spektrum Avian 3536-1200Kv Outrunner Brushless Motor delivers superior performance, extreme torque, and high reliability for your RC plane projects. Ideal for combustion-to-electric conversions or brushless motor upgrades, this outrunner brushless motor ensures rapid acceleration and efficient cooling during flight. Equip your aircraft model with Spektrum Smart Technology compatibility for an unbeatable flying experience.
Unmatched Brushless PerformanceEngineered for maximum torque and continuous durability
Designed for demanding RC aircraft applications, the Spektrum Avian 3536-1200Kv Outrunner Brushless Motor provides exceptional torque and smooth propulsion thanks to its precision 14-pole stator and powerful rare-earth neodymium magnets. Engineered with double-shielded sealed bearings and a balanced motor bell, this motor offers a virtually maintenance-free operational life. Intelligent housing design facilitates continuous airflow through the assembly, maintaining cool operating temperatures during aggressive 3D and sport maneuvers. Supplied complete with gold-plated bullet connectors, aluminum motor mount, and prop adapter, the Avian 3536-1200Kv brushless motor serves as a direct upgrade for .15-size glow engines and pairs seamlessly with 45-amp electronic speed controls.

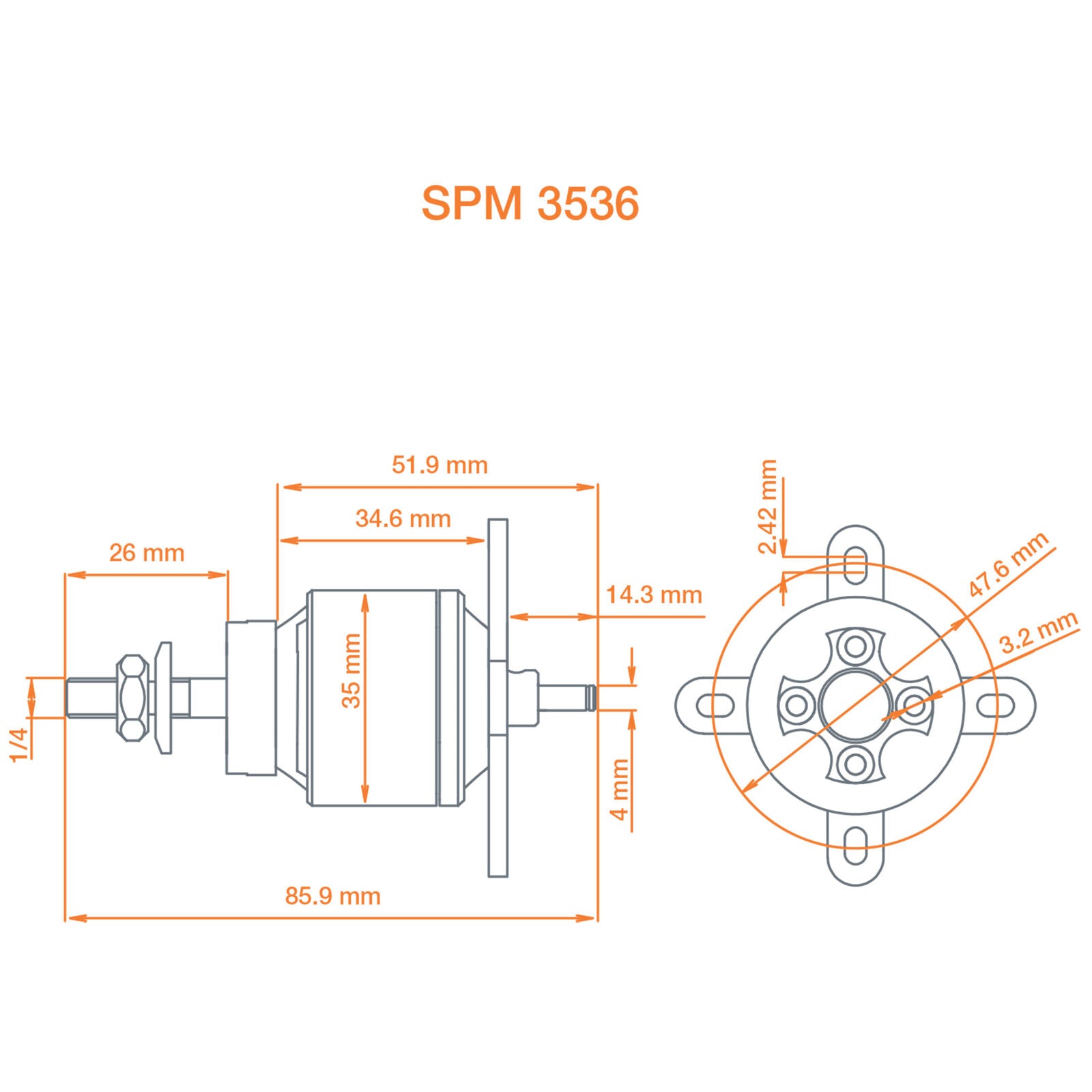

Technical SpecificationsDetailed physical and electrical measurements
Motor Type
Brushless Outrunner
Motor Size
3536-1200Kv
Kv Rating
1200 RPM/Volt
Input Voltage
11.1V - 14.8V (3S - 4S LiPo) (battery)
Maximum Continuous Current
35A
Maximum Burst Current
45A
Constant Wattage
250-499W
Product Weight
3.6 oz / 102 g
Outer Diameter
1.37 in / 35 mm
Product Length
1.42 in / 36 mm
Shaft Diameter
0.16 in / 4 mm
Shaft Length
0.65 in / 17 mm
Number of Poles
14
Connector Type
3.5mm Gold Bullet
Recommended Propeller
10x7 to 11x7 Electric Propeller
Application
Sport airplanes up to 4lbs and 3D airplanes up to 2.5lbs
Key Performance FeaturesEngineered standard features for modern flight
High Torque Output14-pole stator delivers fast, smooth, and precise acceleration
Neodymium MagnetsPowerful rare-earth magnets ensure smooth performance and torque
Maintenance-FreeDouble-shielded sealed bearings provide long operational life
Efficient AirflowMotor housing designed to move air quickly for optimal cooling

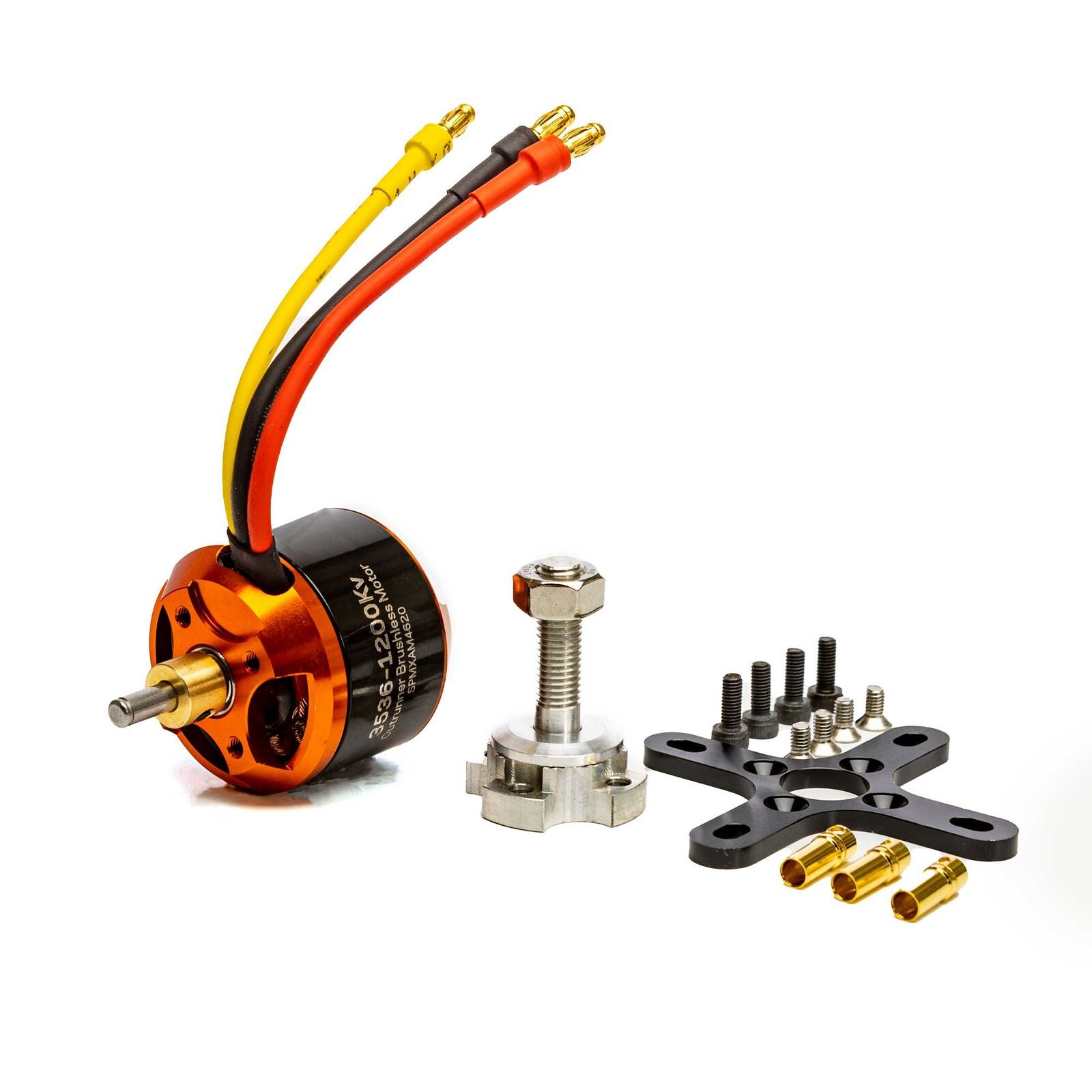

Hardware IncludedComes with aluminum motor mount, prop adapter, and connectors
Glow ConversionPerfect electric conversion power unit for .15-size glow power systems
ESC MatchEngineered for an easy match with the Spektrum Smart Avian 45A ESC
Frequently Asked QuestionsEverything you need to know
What size propeller should I use with the Spektrum Avian 3536-1200Kv Outrunner Brushless Motor?
We recommend using an electric propeller sized between 10x7 and 11x7 for optimal flight efficiency and performance with the Spektrum Avian 3536-1200Kv Outrunner Brushless Motor.
What battery voltage does the Spektrum Avian 3536-1200Kv Outrunner Brushless Motor require?
The Spektrum Avian 3536-1200Kv Outrunner Brushless Motor is designed to operate on 3S to 4S LiPo batteries (11.1V to 14.8V).
What ESC is recommended for the Spektrum Avian 3536-1200Kv Outrunner Brushless Motor?
The Spektrum Avian 3536-1200Kv Outrunner Brushless Motor pairs perfectly with a 45A electronic speed control, such as the Spektrum Smart Avian 45 Amp ESC.
Can the Spektrum Avian 3536-1200Kv Outrunner Brushless Motor replace a glow engine?
Yes, the Spektrum Avian 3536-1200Kv Outrunner Brushless Motor is an ideal electric upgrade for .15-size glow combustion power systems on sport models up to 4lbs.
