Avian 4260-480Kv Outrunner Brushless Motor
$109.99
Skip to product information
Only 1 Left!

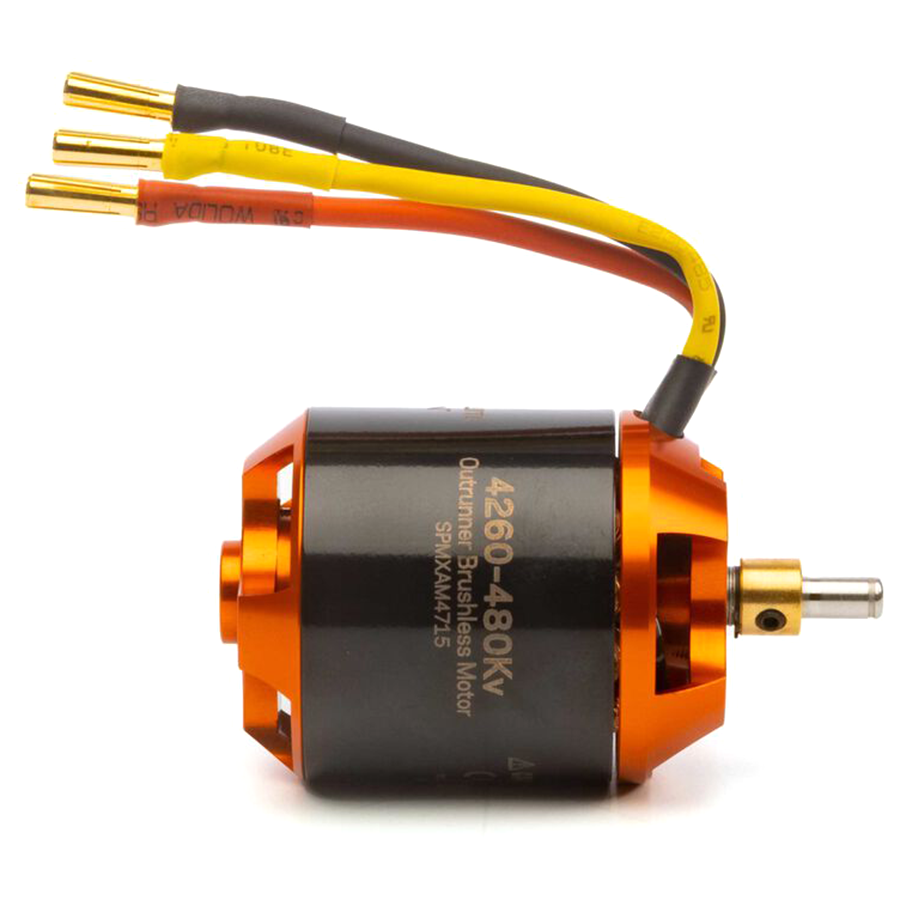

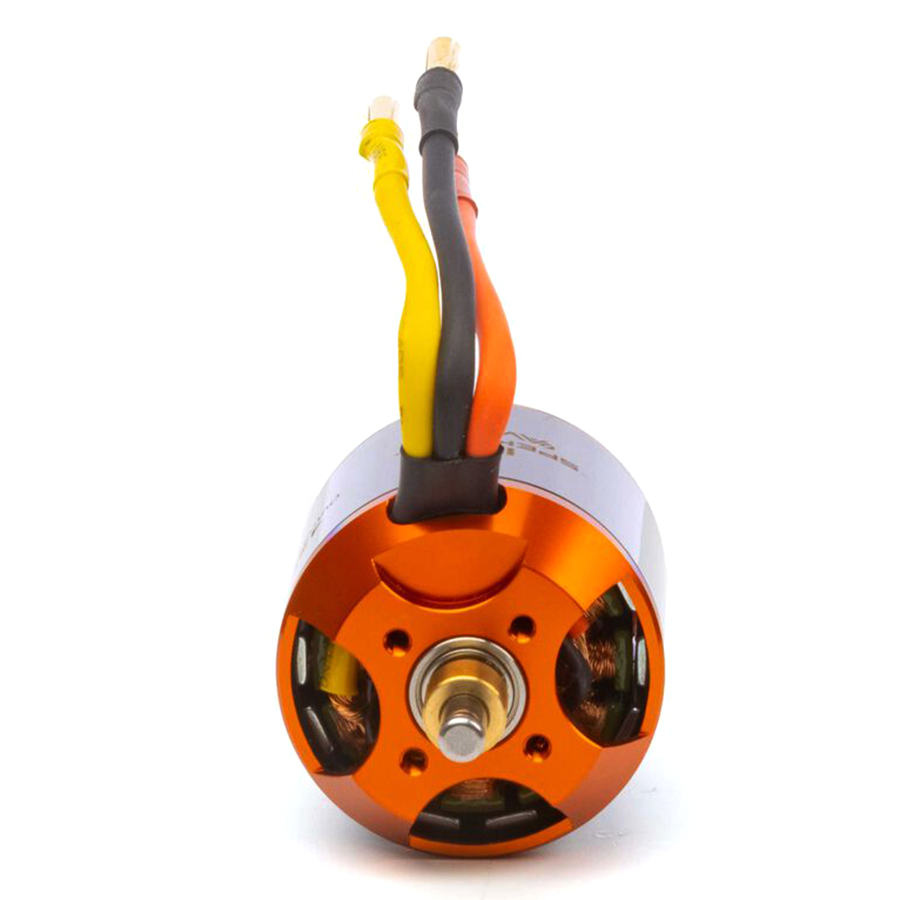

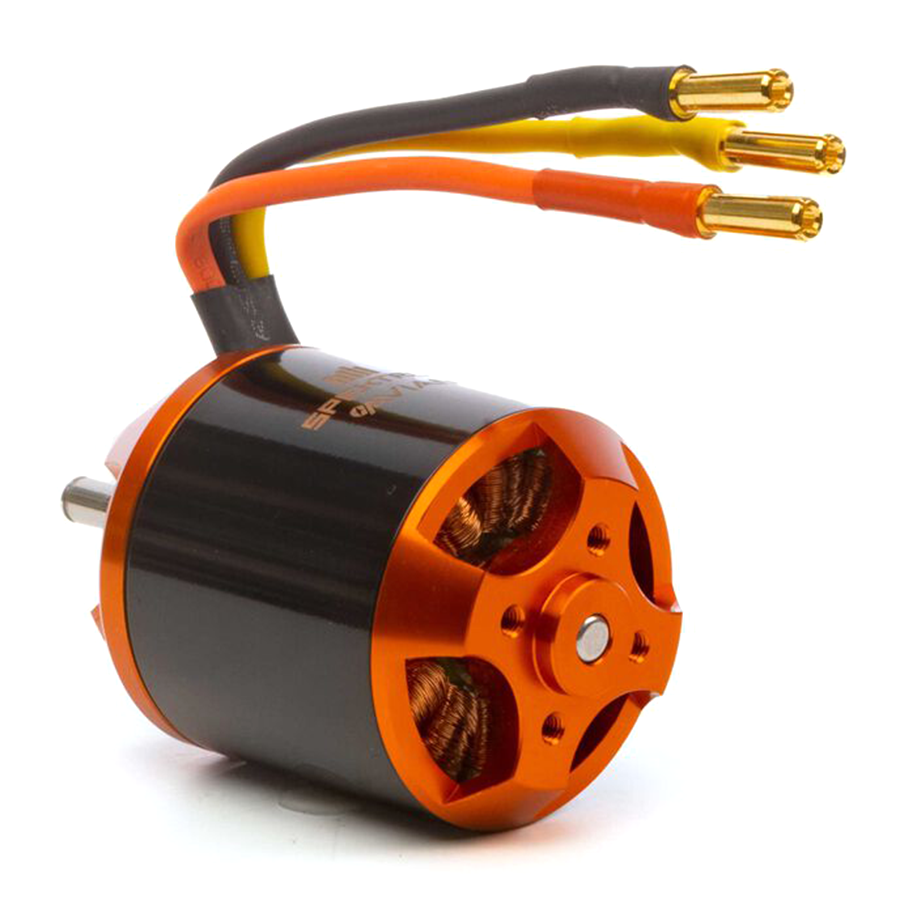

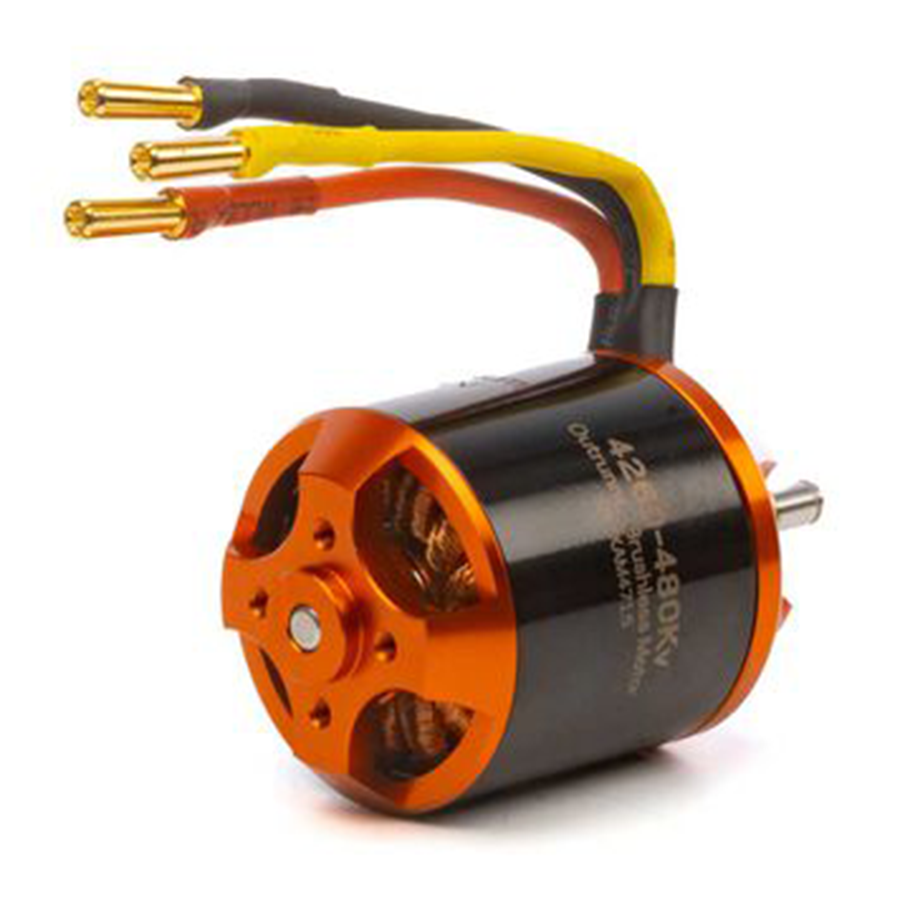

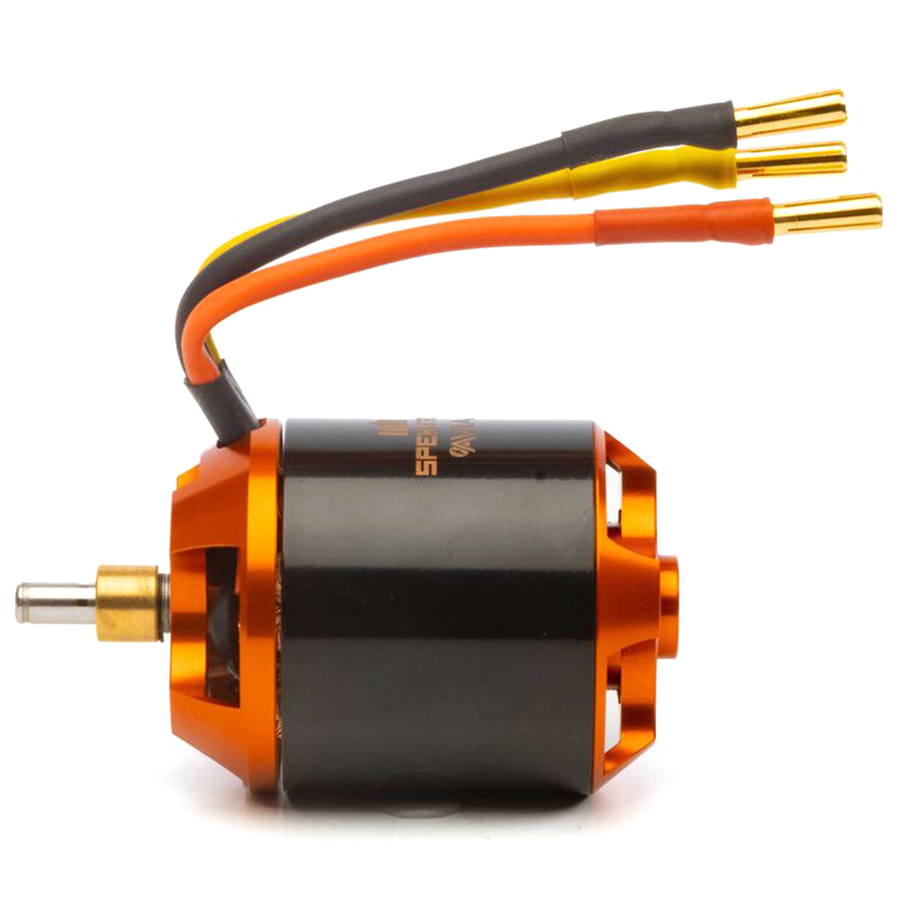

Avian 4260-480Kv Outrunner Brushless Motor
$109.99
Brushless Power
High Torque Outrunner Design
480Kv Rating
Optimized Aircraft Motor Efficiency
5S-6S LiPo
18.5V to 22.2V Range
Neodymium Magnets
14 Pole Smooth Propulsion
Efficient Cooling
Maximum Airflow Housing Architecture
Glow Conversion
Fits 55 Size Airplanes
In Stock
Next-Level PropulsionHigh Torque Electric Airplane Power
Engineered for exceptional power and reliability, the Spektrum Avian 4260-480Kv Outrunner Brushless Motor delivers incredible torque and immediate throttle response for fixed-wing models. Perfect for converting .55-size combustion models or outfitting high-performance builds, this RC airplane brushless motor integrates seamlessly with Smart technology systems. Featuring double-shielded bearings and optimized thermal management, experience smooth, low-maintenance flight after flight.
Engineered For Peak PerformanceSuperior Efficiency and Aircraft Reliability
The Spektrum Avian 4260-480Kv Outrunner Brushless Motor provides high-thrust efficiency and rapid acceleration across 3D aerobatic and sport RC airplane applications. Built with high-purity rare-earth neodymium magnets and a precision-balanced 14-pole stator, this motor delivers dependable torque while maintaining cool operating temperatures through its vented casing. Complete with pre-installed 4mm gold-plated bullet connectors, an aluminum mount, and prop adapter hardware, upgrading your electric setup or converting from glow power is straightforward and hassle-free. Pair this outrunner brushless motor with a 60A Smart ESC and a 5S-6S LiPo battery for ultimate performance in the air.
Technical SpecificationsPrecision Motor Details and Dimensions
Application
Sport airplanes up to 9.5lbs (4310g) and 3D airplanes up to 6lbs (2720g) (plane)
Part Type
Brushless Outrunner Motor
Motor Type
Brushless
RPM/Volt (Kv)
480
Input Voltage
18.5-22.2V (5-6S LiPo) (battery)
Maximum Continuous Current
830W / 60A
Maximum Burst Current
1850W / 105A
Outer Diameter
1.7" (43 mm) (ruler)
Product Length
2.4" (61 mm) (ruler)
Product Weight
9.5oz (268g) (scale)
Shaft Diameter
0.2" (5 mm) (pin)
Shaft Length
0.67" (17 mm) (ruler)
Connector Type
4mm Bullet
Recommended Prop Range
13x10E - 15x8E
Motor Key FeaturesBuilt For High Power Output
AccelerationFast, smooth, and precise torque delivery
ConstructionLightweight design with rare-earth Neodymium magnets
Stator Design14-pole stator for ultra-smooth power delivery
BearingsDouble-shielded low-friction sealed ball bearings
Cooling SystemIntegrated airflow vents for efficient thermal management

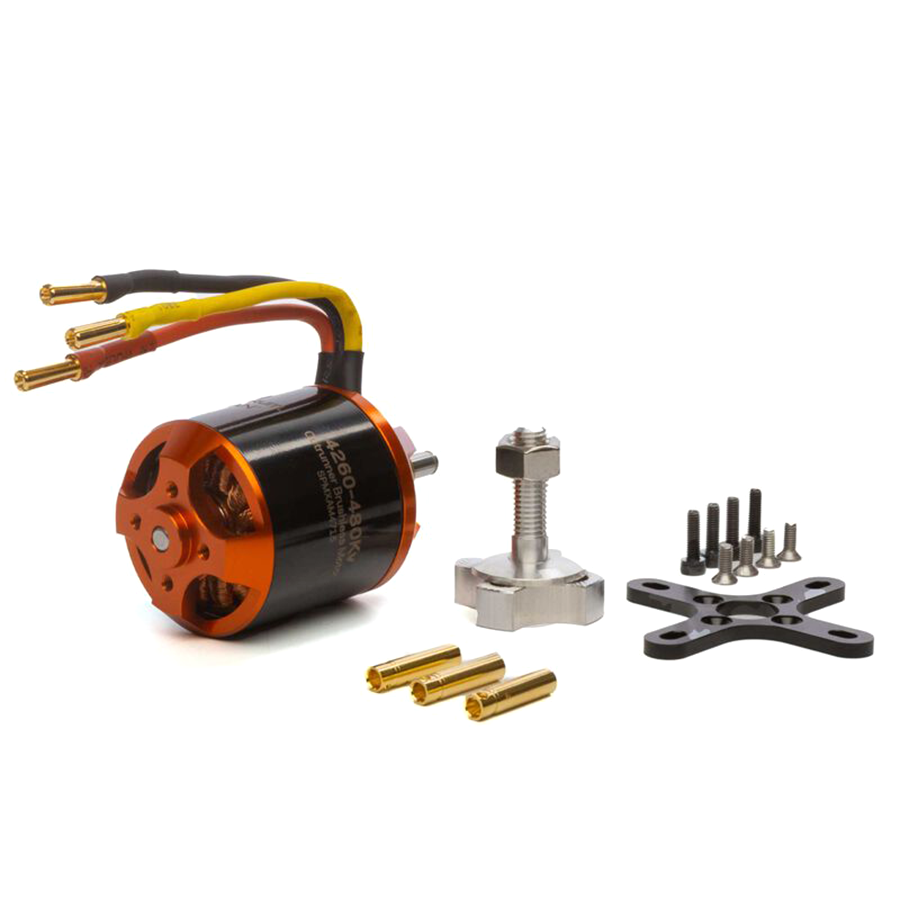

Hardware IncludedBullet connectors, aluminum mount, and prop adapter
Glow ConversionPerfect electric conversion upgrade for .55 size glow combustion engines
Smart IntegrationIdeal match for Spektrum Smart Avian 60 amp ESC
Frequently Asked QuestionsEverything you need to know
What battery voltage range is recommended for the Spektrum Avian 4260-480Kv Outrunner Brushless Motor?
The Spektrum Avian 4260-480Kv Outrunner Brushless Motor is designed to operate on a 5S to 6S LiPo setup, corresponding to an input voltage range of 18.5V to 22.2V.
What ESC should I use with the Spektrum Avian 4260-480Kv Outrunner Brushless Motor?
It is recommended to use a 60-amp Electronic Speed Control, such as the Spektrum Smart Avian 60 Amp ESC, to safely handle continuous current loads up to 60A.
What propeller sizes work best with the Spektrum Avian 4260-480Kv Outrunner Brushless Motor?
Recommended electric propeller sizes range from 13x10E to 15x8E, depending on whether you are setting up a sport model or a 3D aerobatic plane.
Can the Spektrum Avian 4260-480Kv Outrunner Brushless Motor replace a glow engine?
Yes, this brushless outrunner motor serves as an ideal electric power upgrade for .55-size glow combustion aircraft setups.
