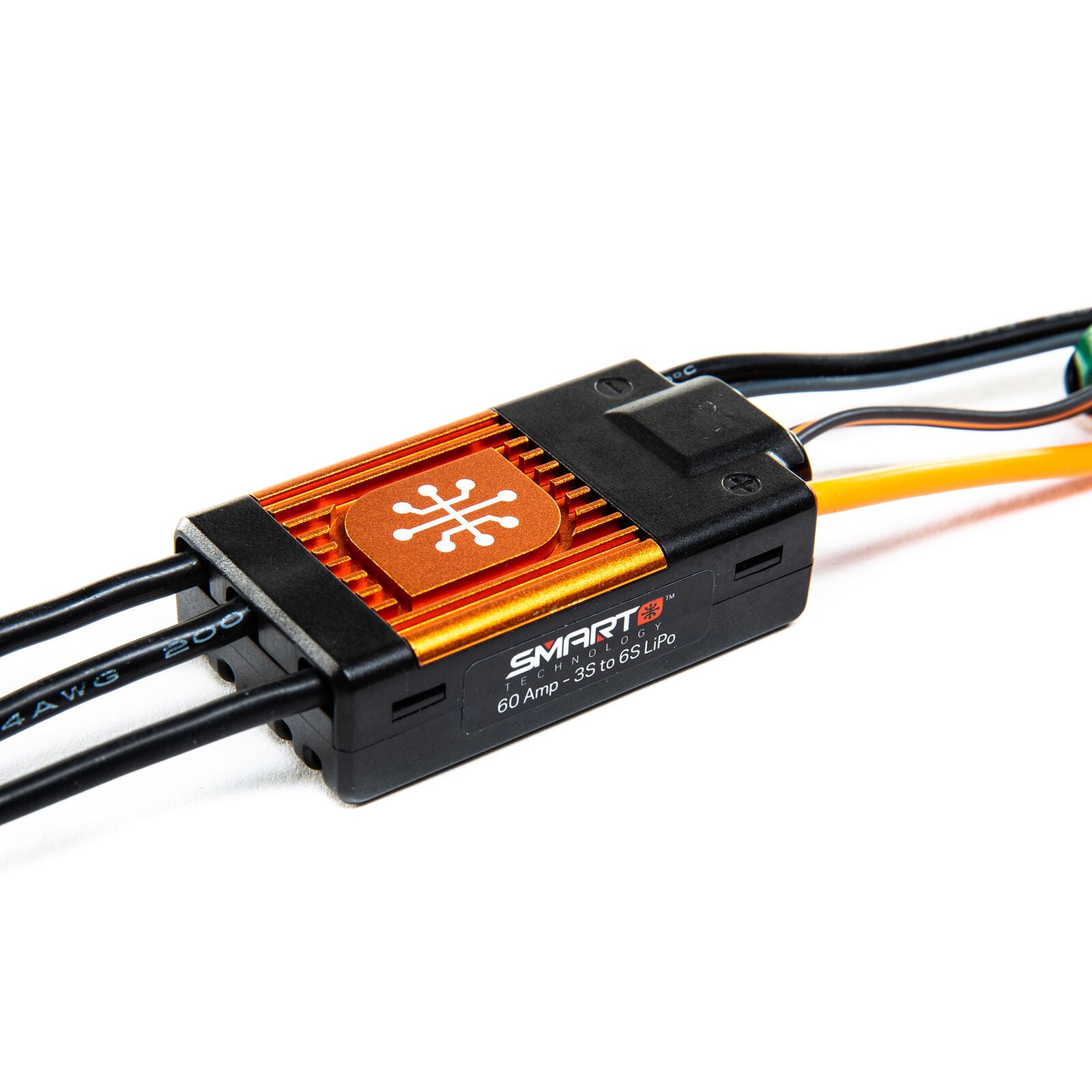

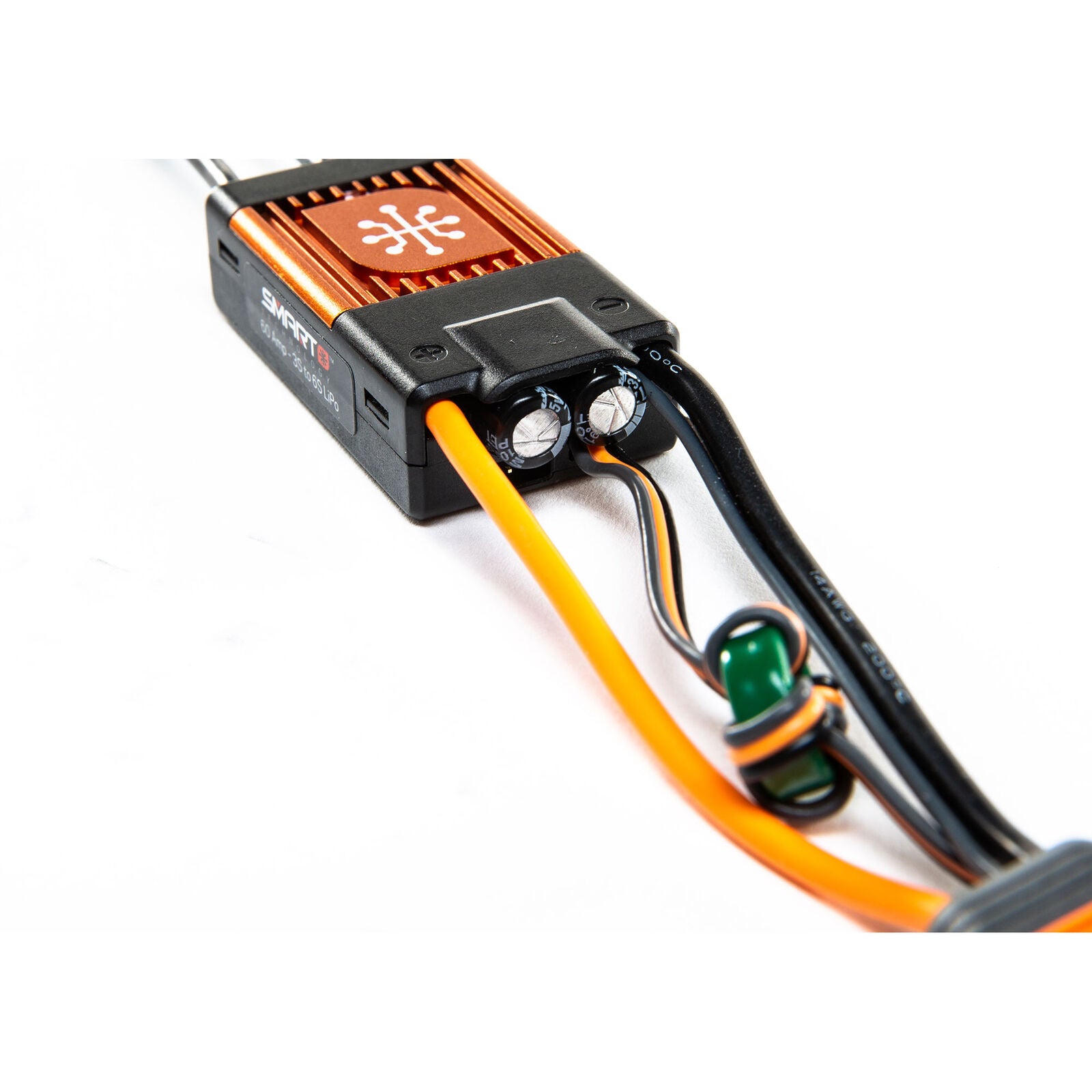

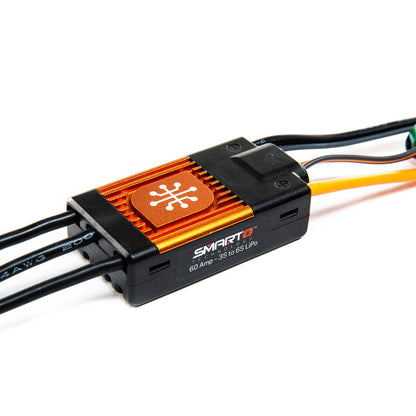

Avian 60 Amp Brushless Smart ESC, 3S-6S (IC5)

Overview:

Like every component in the Spektrum™ Smart ecosystem, Avian™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your aircraft imaginable.

Avian Smart Air ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Avian Smart Air ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Avian Smart Air ESCs, you'll be better connected to your aircraft than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as current, voltage, cell balance, temperature and RPM.

Avian ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Avian Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

Features:

• Smart all-in-one telemetry
• Fast, powerful 32-bit ARM M4 processor
• Multiple options for easy programming:
   • Smart ESC Programming Box
   • SmartLink USB Updating and Programmer application
   • Throttle stick programming
• Multi-point protection:
   • Over-current protection
   • Automatic LiPo low-voltage cutoff
   • Thermal protection
   • Failsafe protection
• Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
• Compact for easy installation in most applications
• Ready to install — no soldering required
• Heat dissipating design
• Dual BEC power connectors
• Firmware updatable through the Smart ESC Programming Box and SmartLink PC application
• High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
• Limited 1-year warranty

What's in the Box?
(1) Spektrum™ Avian™ Smart ESC
(1) Spektrum Smart sticker sheet
(1) Product Manual

Needed to Complete:
(1) Spektrum™ Aircraft Receiver
(1) Spektrum Smart Technology LiPo Battery
(1) Spektrum Transmitter

Adjustable Timing: Yes
Brakes: Yes
Programmable: Yes
Battery Input Lead: 3.9" (100mm) 14AWG
Product Width: 1.2" (30 mm)
Technology: Smart
BEC Maximum Burst Current: 20A
BEC Voltage: 6V/7.2V adjustable
Input Voltage: 3S - 6S LiPo

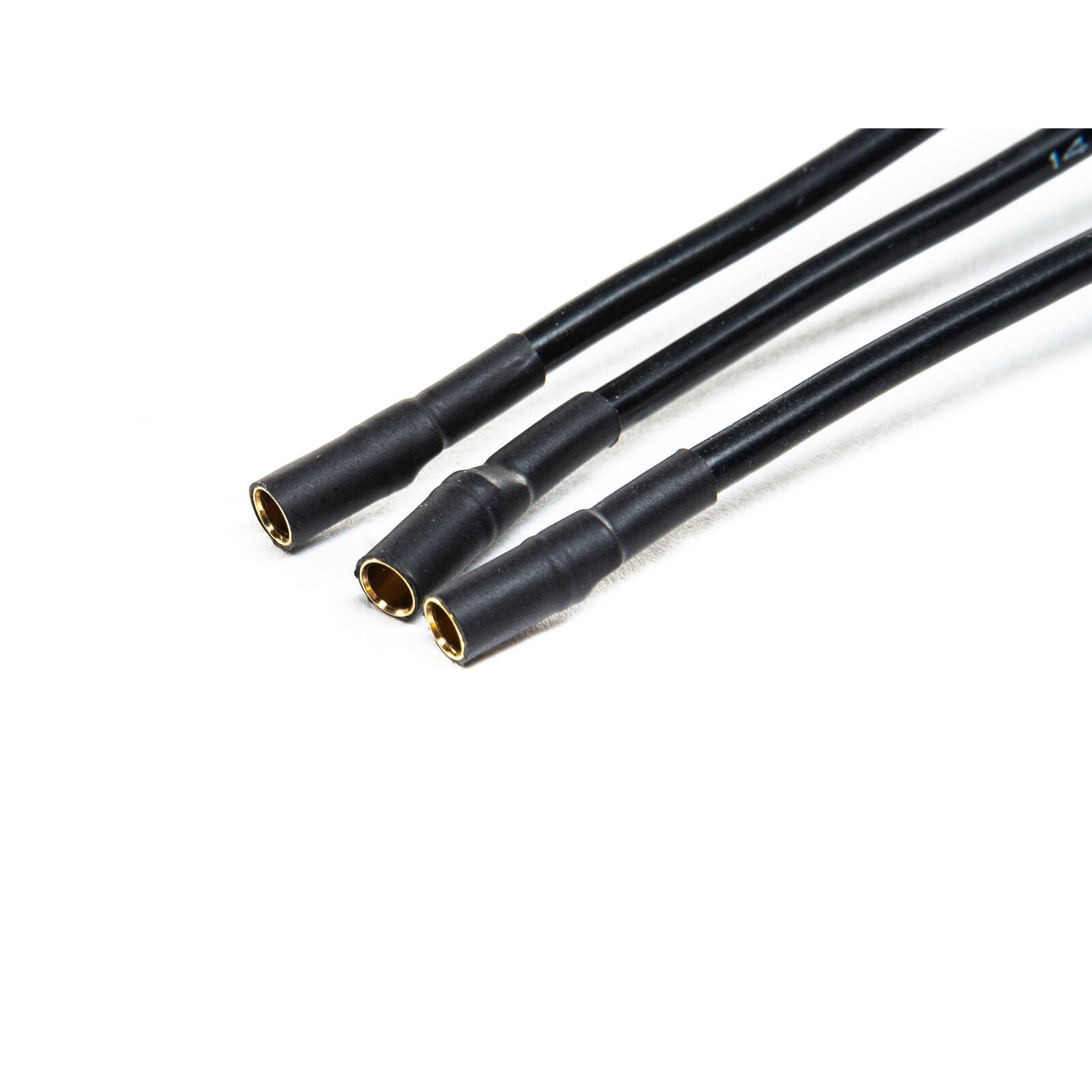

Motor Output Lead: 3.9" (100mm) 14AWG
Product Height: 0.6" (15 mm)
Forward: Yes
Reverse: Yes
Connector Type: IC5
Product Length: 2.3" (58 mm)
Auto Cutoff: Yes
BEC Continous Current: 7A
Low-Voltage Cutoff Programmable: Yes
Product Weight: 2.0oz (56g)
BEC Type: Switching
Maximum Burst Current: 80A
Maximum Continuous Current: 60A
