Blade InFusion 210 BNF Basic with AS3X and SAFE (BLH01550)
$299.99
Direct-Drive Power
Oversized 3907-600Kv main motor
Optional SAFE
Switch self-leveling on or off
Carbon And Aluminum
Carbon frame, aluminum head
3S 850-1000mAh LiPo
IC2 connector, sold separately
Bind-N-Fly Basic
Needs a 6-7+ channel Spektrum
Smart Telemetry
Voltage and RPM to your radio
Direct-Drive Mini HeliCarbon and aluminum 3D-capable helicopter

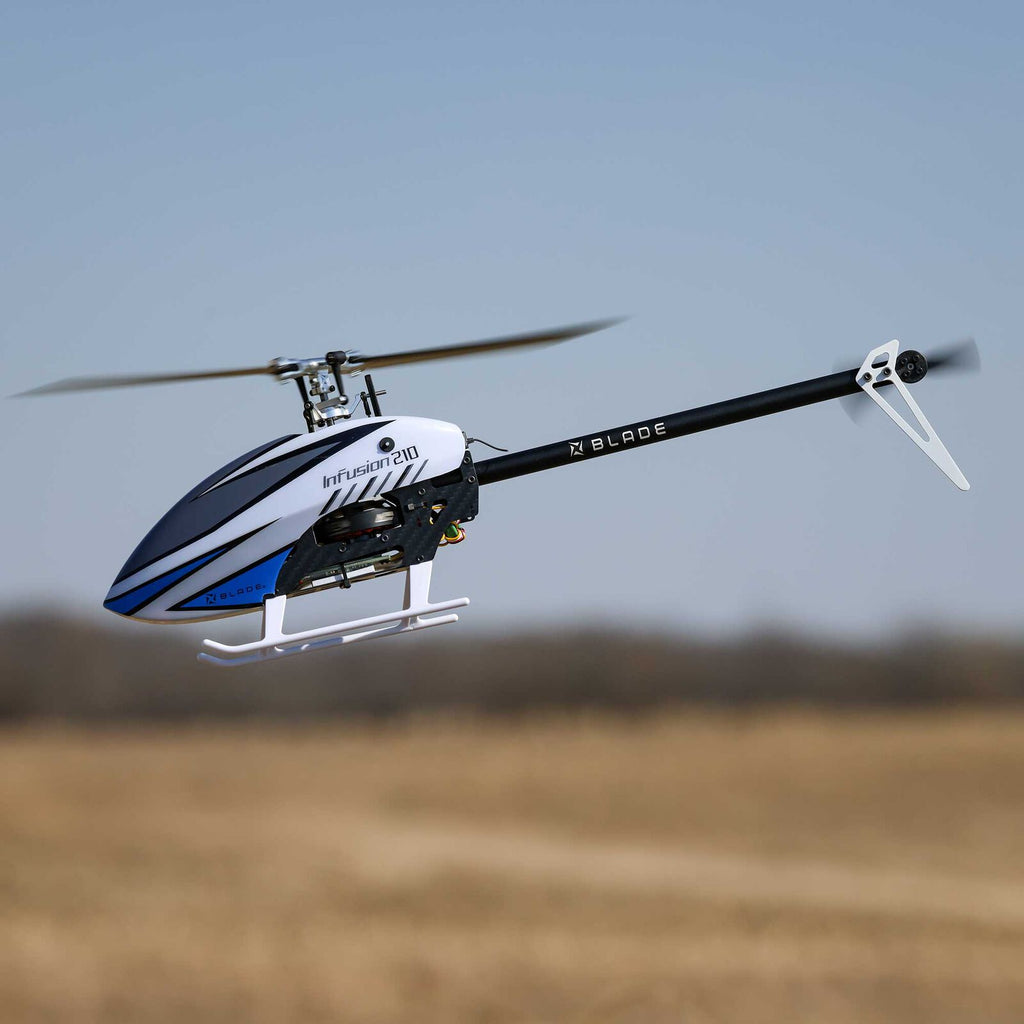

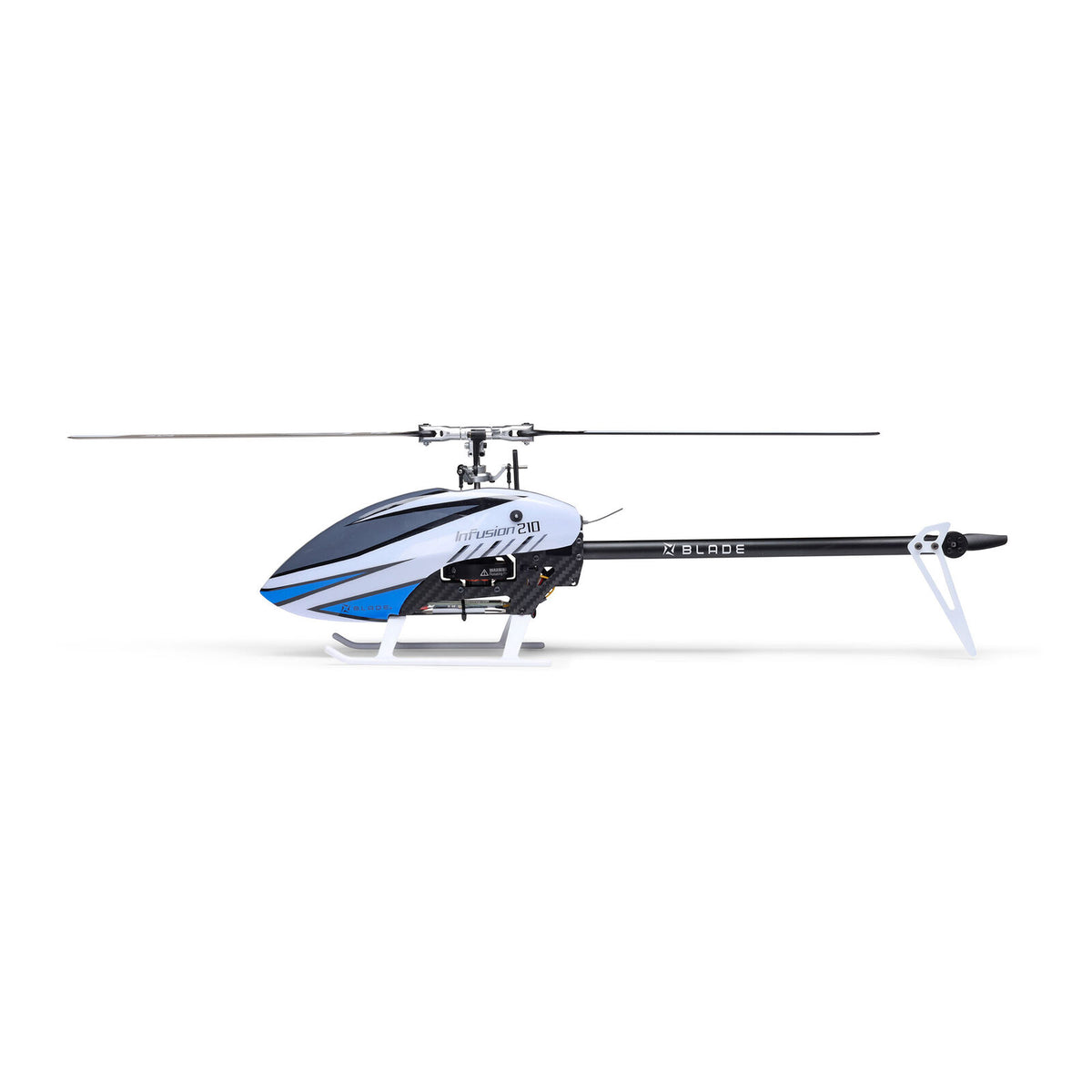

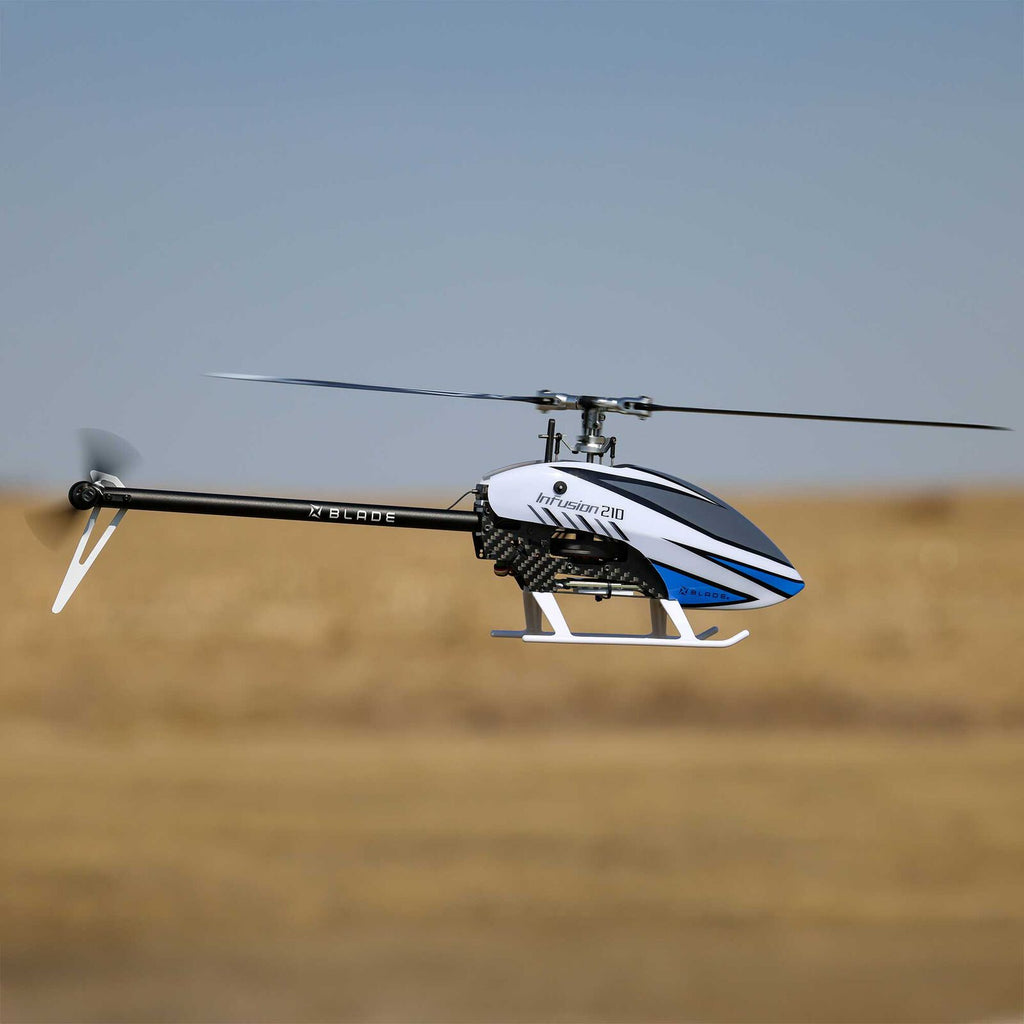

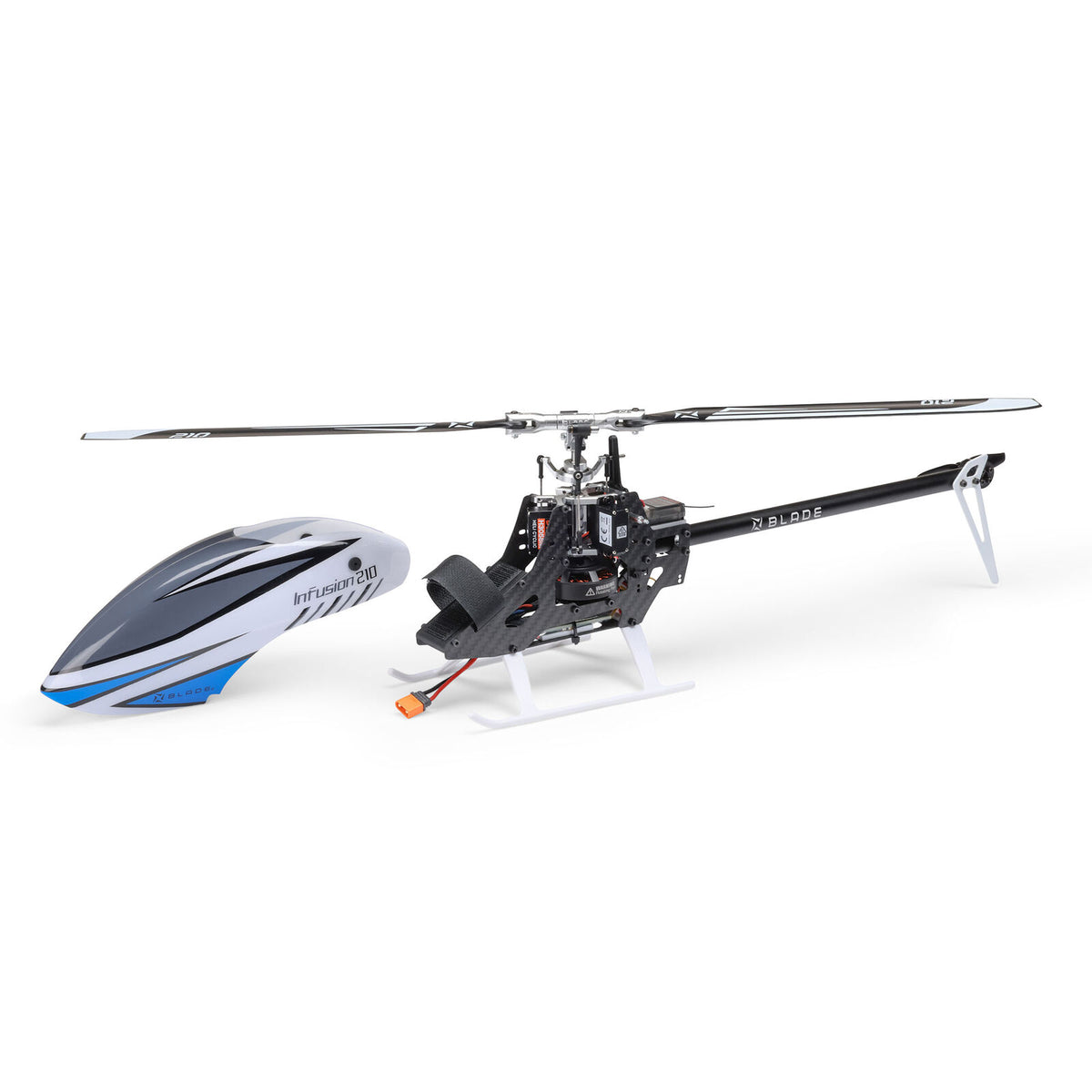

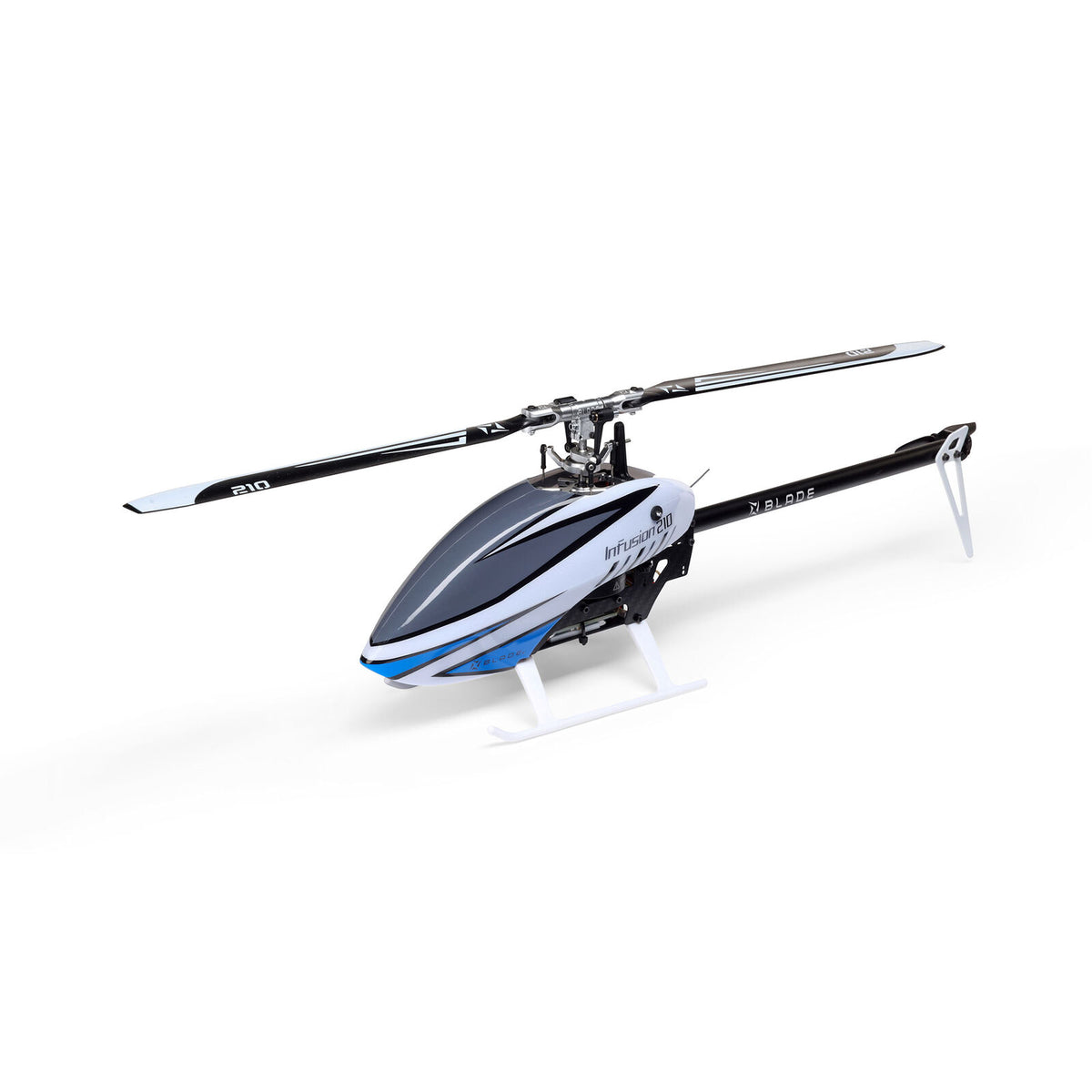

The Blade InFusion 210 BNF Basic with AS3X and SAFE (BLH01550) is a mini electric collective pitch flybarless RC helicopter with a 19.09 in / 485 mm main rotor diameter. It arrives factory assembled and flight tested, and needs a 6-7+ channel Spektrum DSMX/DSM2 transmitter, a 3S 850-1000mAh LiPo with an IC2 connector and a charger to fly. An oversized direct-drive main motor and a carbon fiber and aluminum airframe set it apart from earlier Blade mini helicopters.
From Sport To 3DSAFE when you want it, AS3X always
The InFusion 210 is an all-new design aimed at intermediate to experienced pilots, with smooth hovering and sport flying on one end and full 3D aerobatics on the other. The Spektrum AR6250MHXF flybarless flight controller runs AS3X in every flight mode with no angle limits, and optional-use SAFE adds angle limits and self-leveling that can be switched on or off at any time from a separate channel.
A brushless direct-drive tail motor and an oversized aluminum tail boom hold the tail through aggressive maneuvers, and a Spektrum Dual Smart Lite ESC sends battery voltage and motor RPM to compatible Spektrum transmitters. The receiver carries a Smart Transmitter File that loads the full setup into NX and iX series radios during binding. Horizon Hobby rates it Skill Level 2, so it is not a first helicopter.
Technical SpecificationsPublished details for the InFusion 210
Completion Level
Bind-N-Fly Basic
Skill Level
Level 2, Some Experience Required
Main Rotor Head
Collective Pitch Flybarless

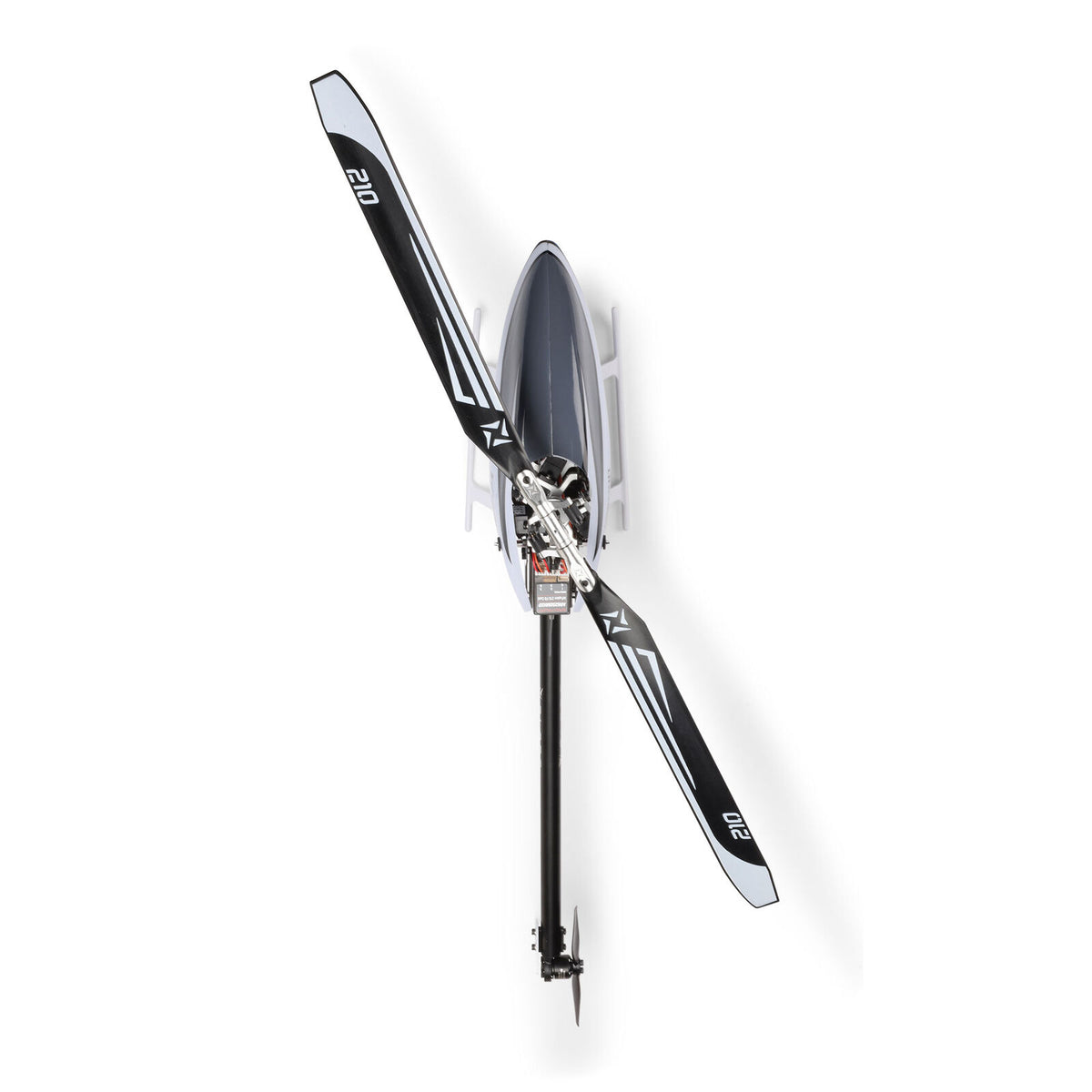

Main Rotor Diameter
19.09 in / 485 mm
Main Rotor Blade Length
8.2 in / 208 mm
Tail Rotor Diameter
3 in / 76 mm
Length
17.1 in / 434 mm
Width
2.56 in / 65 mm
Height
5.9 in / 150 mm
Weight Without Battery
10.2 oz / 290 g
Weight With 3S 850mAh Battery
12.66 oz / 359 g
Main Motor
3907-600Kv Brushless Outrunner, Direct Drive
Tail Motor
4200Kv Brushless Outrunner, Direct Drive
Speed Control
Spektrum Dual 15A Main and 8A Tail Brushless Smart Lite ESC

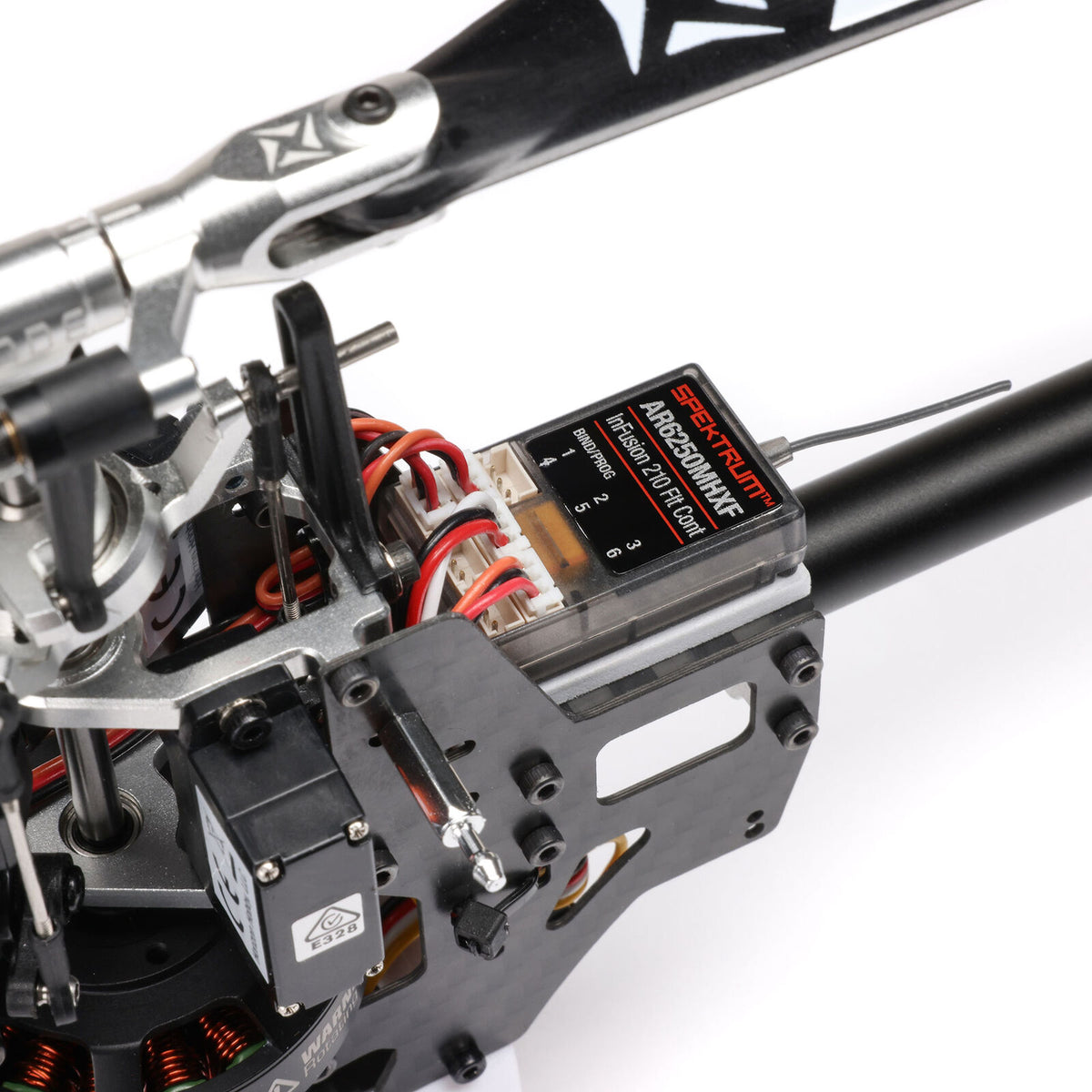

Flight Controller
Spektrum AR6250MHXF Flybarless with AS3X and SAFE
Servos
3 Spektrum Digital Metal-Geared
Receiver
Spektrum DSMX/DSM2, Included
Transmitter
Sold Separately, 6-7+ Channel Spektrum DSMX/DSM2
Compatible Battery
3S 11.1V 850-1000mAh LiPo, Sold Separately
Recommended Battery
850mAh 3S 11.1V 30C LiPo

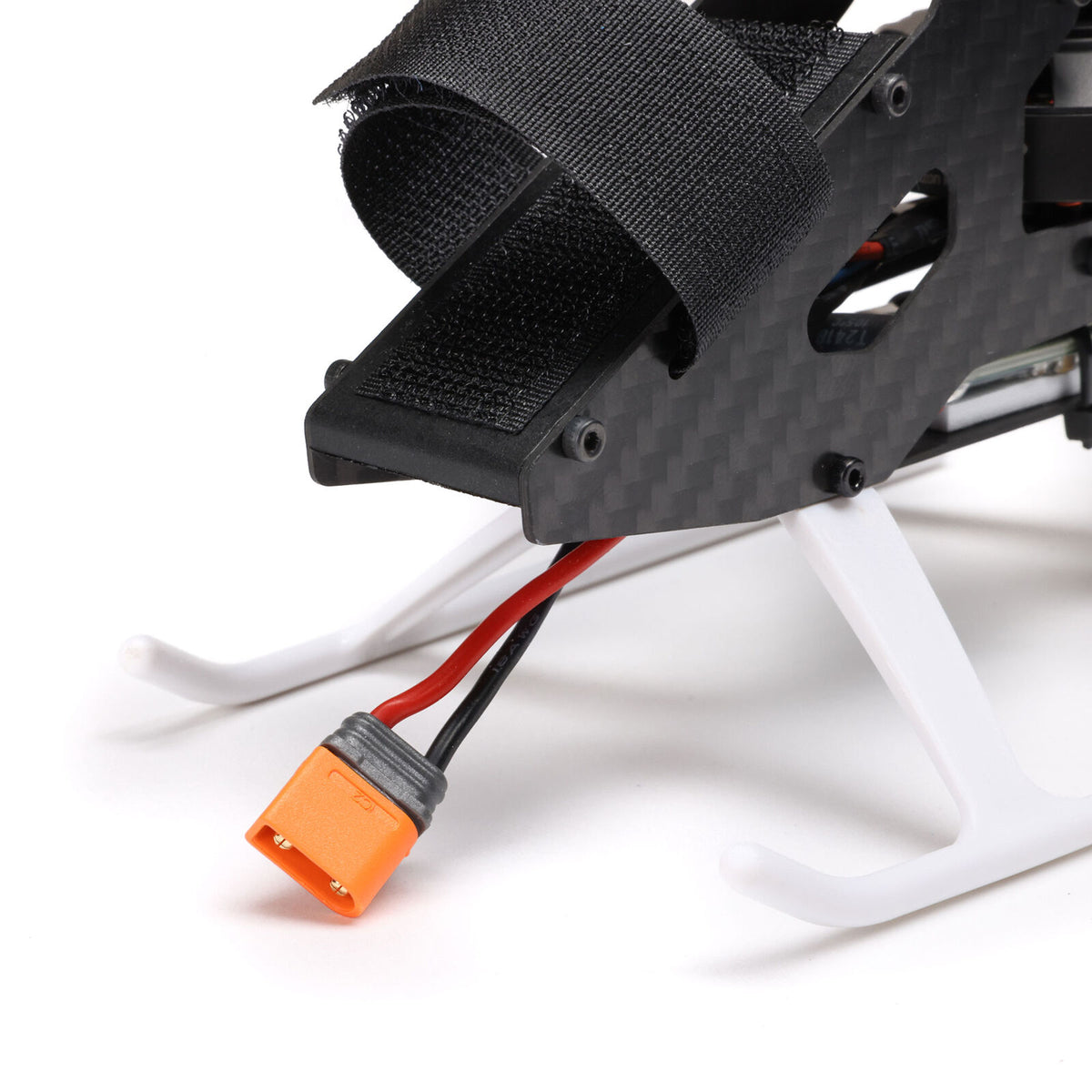

Connector Type
IC2
Main Frame Material
Carbon Fiber
Main Blade Material
Composite
Canopy Material
Plastic
Tail Blade Material
Plastic
Assembly
No Assembly Required
Country of Origin
China
Key FeaturesWhat sets the InFusion 210 apart

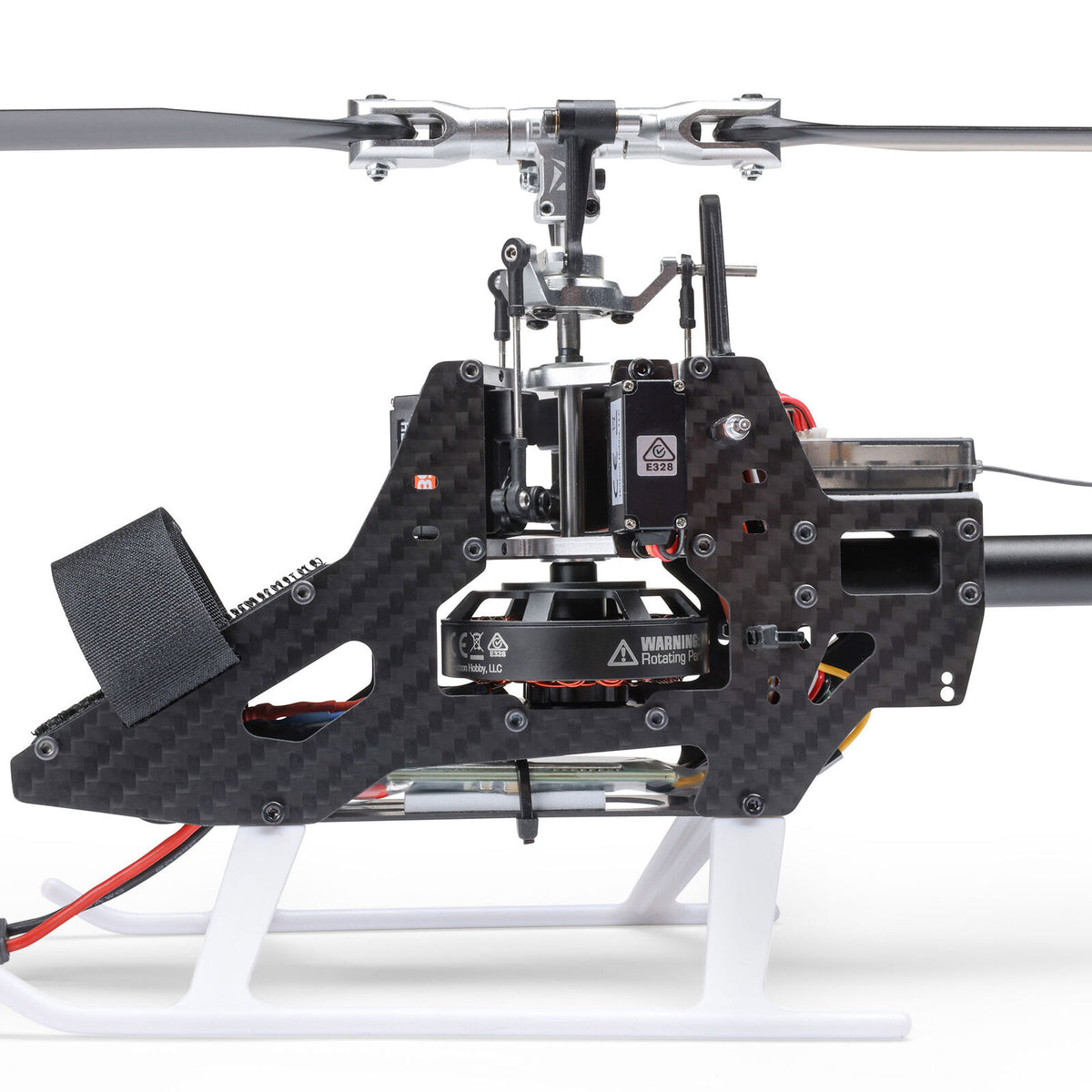

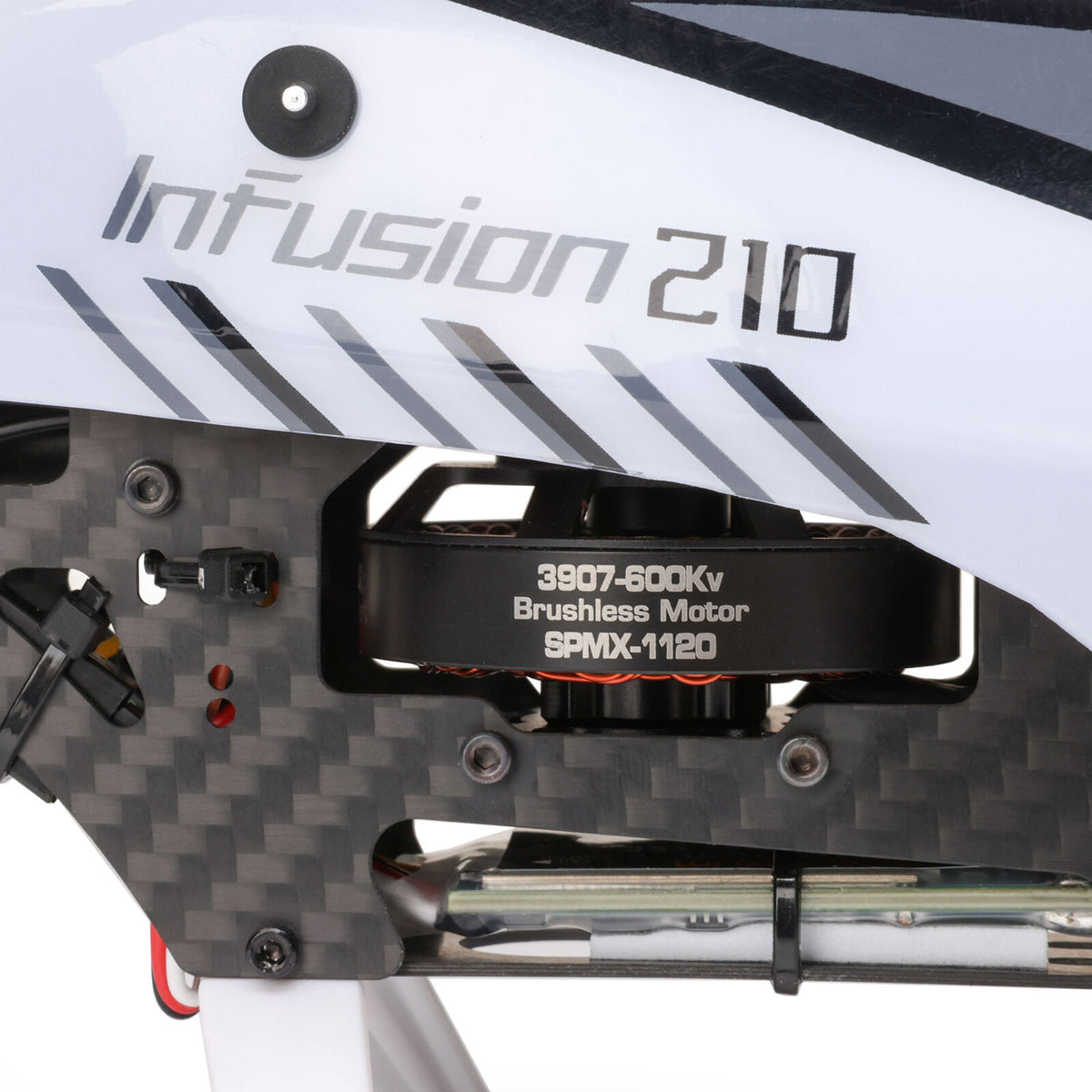

Direct-Drive Main MotorAn oversized 3907-600Kv brushless main motor drives the rotor directly for instant power and a lower parts count.

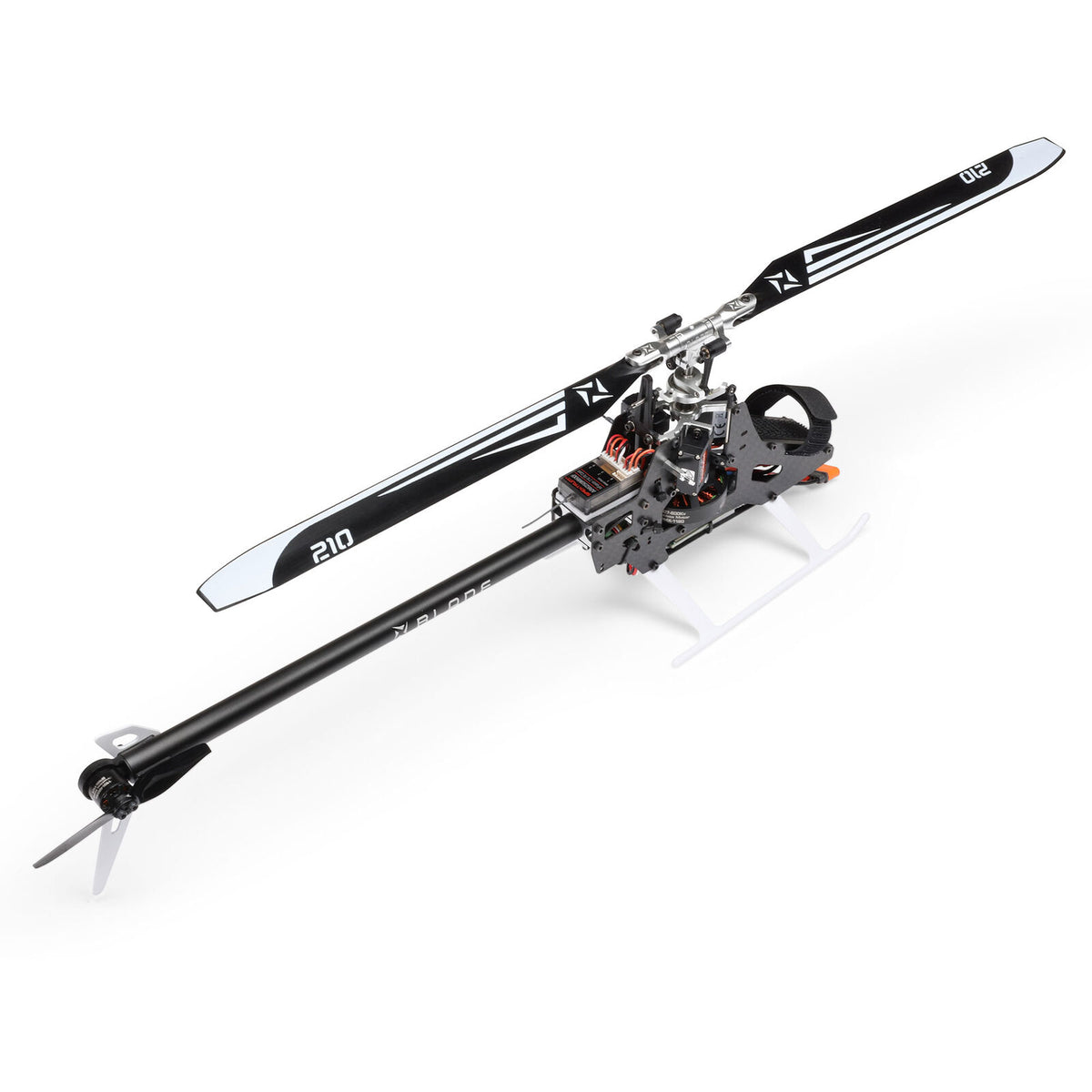

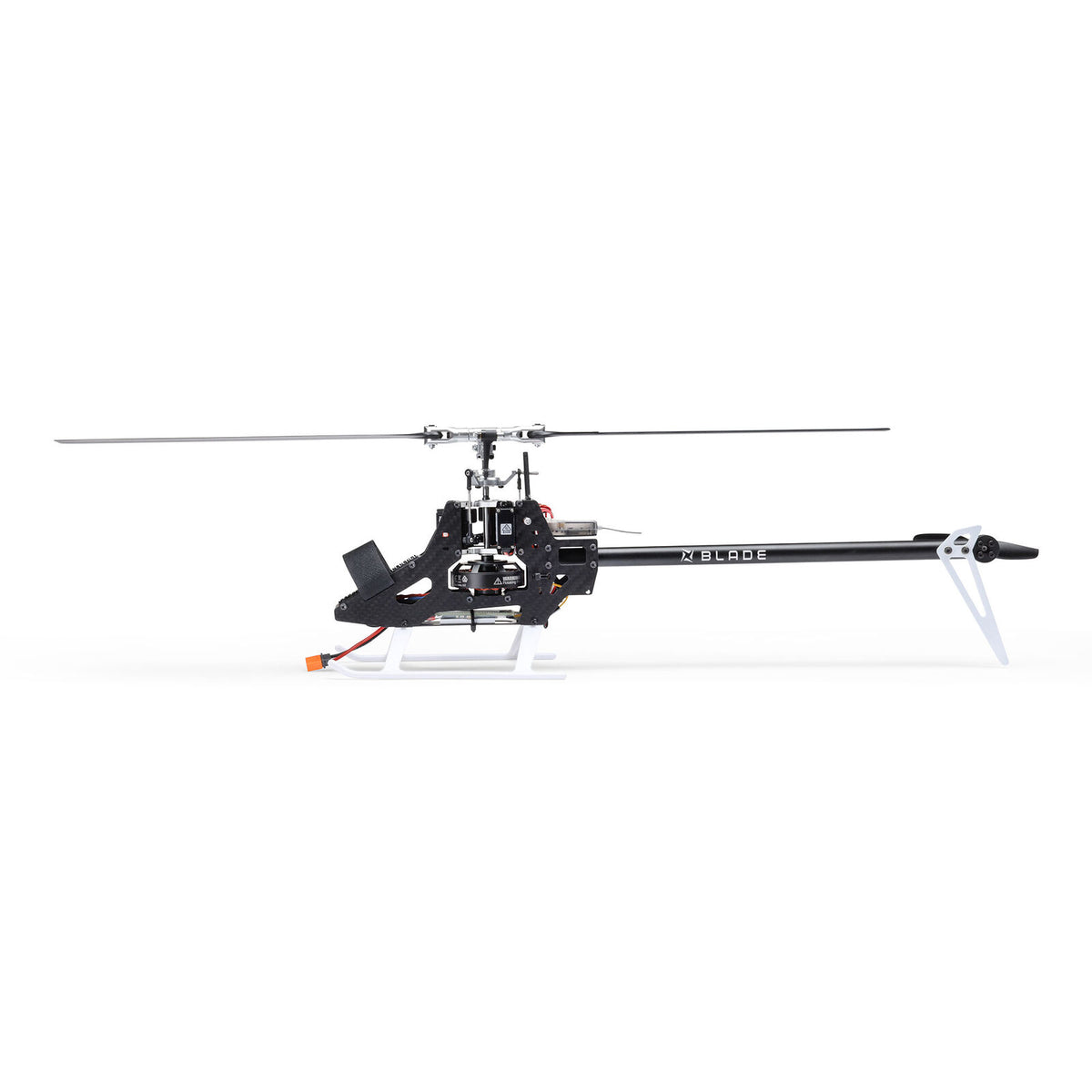

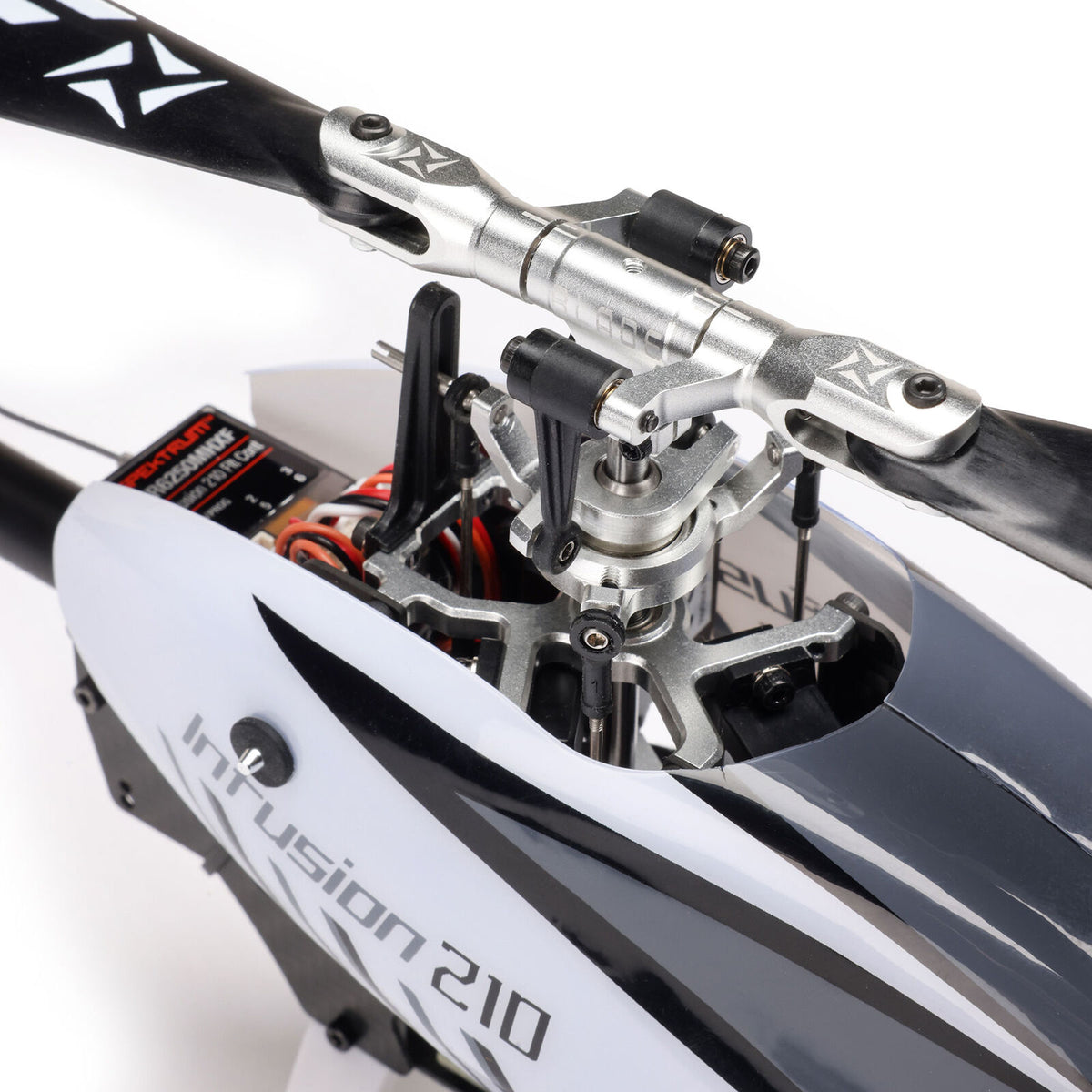

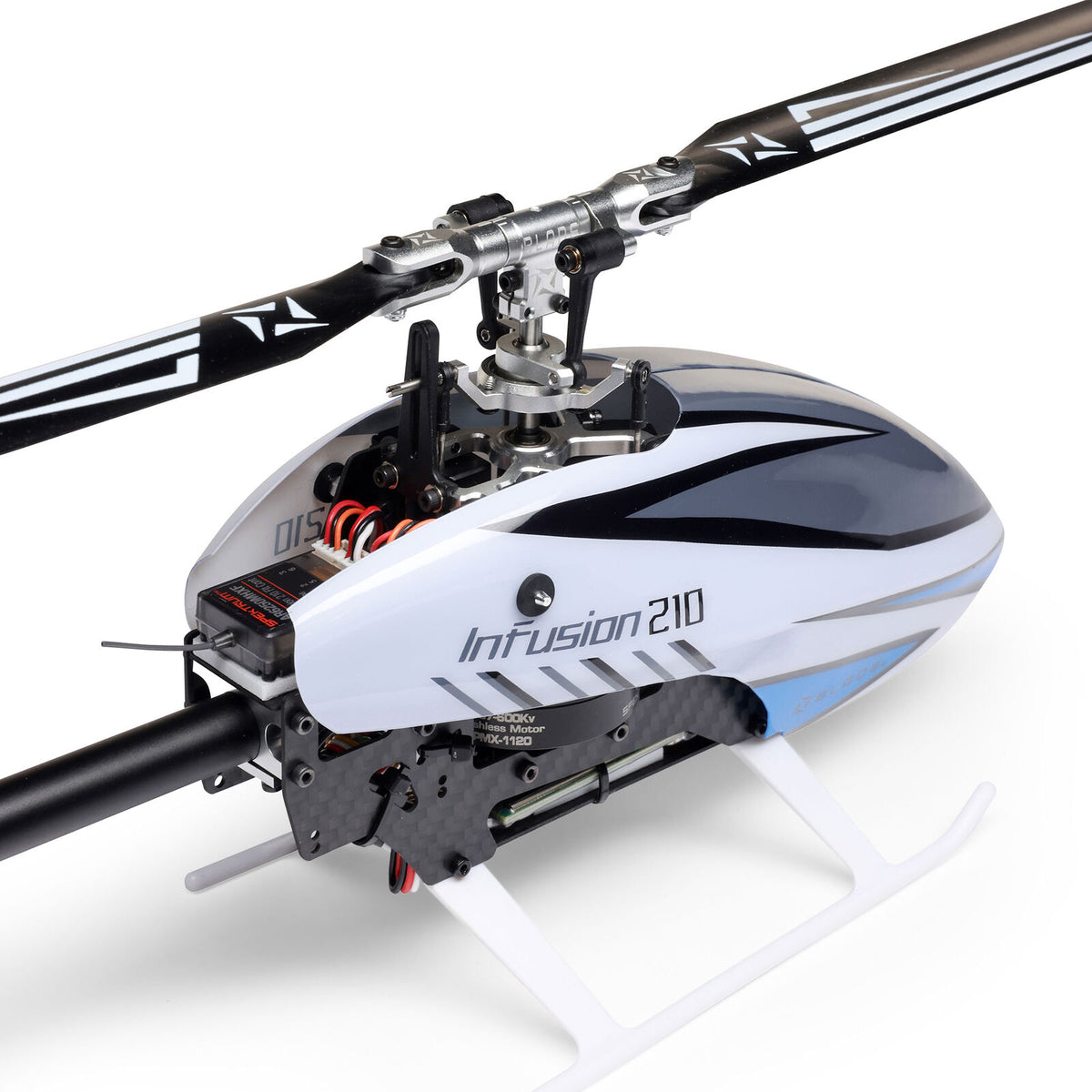

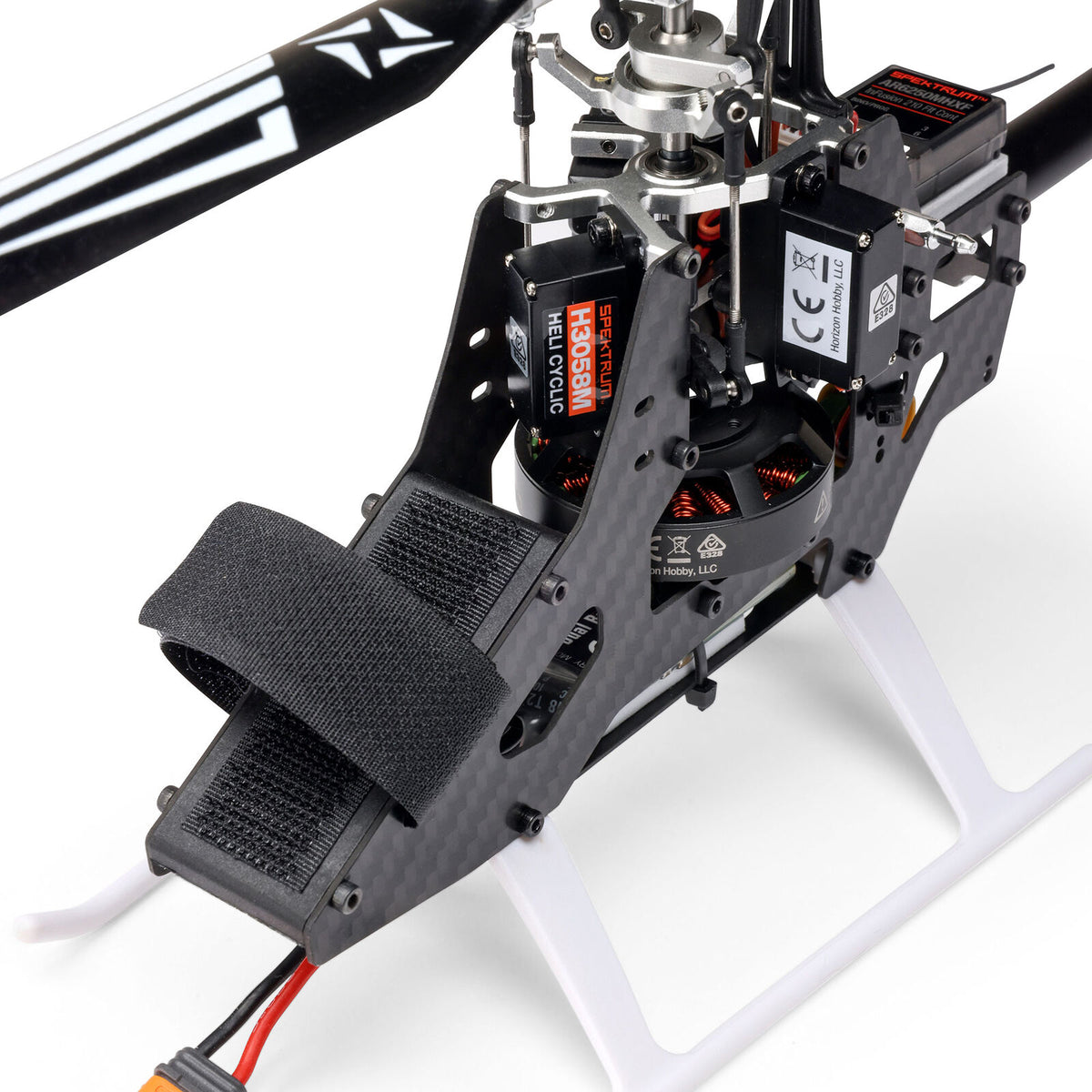

Carbon Fiber And Aluminum AirframeA carbon fiber main frame, all-aluminum head and oversized aluminum tail boom give the airframe its strength and precision.
Optional-Use SAFESAFE angle limits and self-leveling can be turned on or off at any time in any flight mode from a separate channel or switch.
AS3X In Every ModeAS3X smooths out wind and turbulence with no angle limits or self-leveling, so inverted flight and aerobatics stay open.

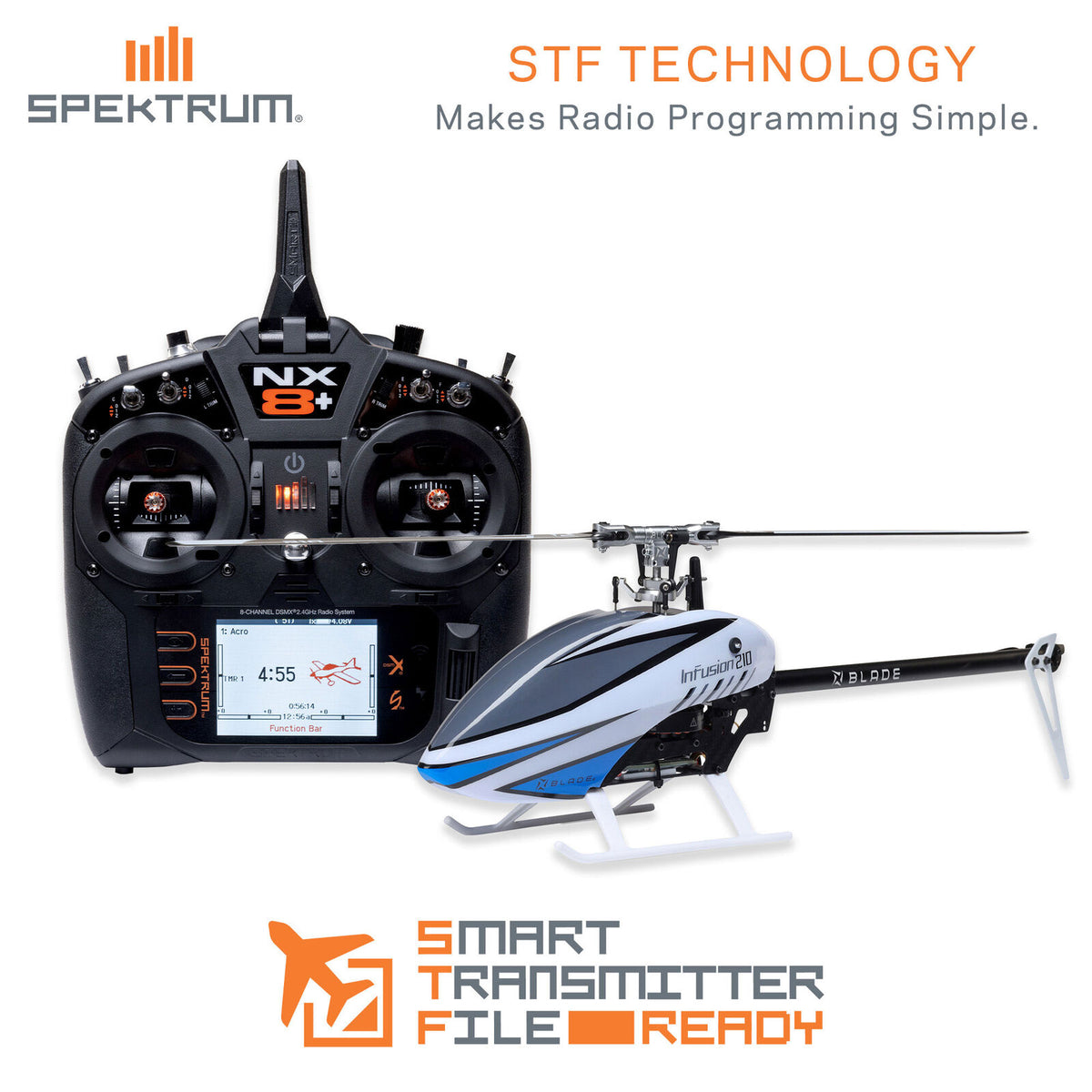

Smart Transmitter FileThe receiver holds a Smart Transmitter File that imports all settings into NX and iX series transmitters during binding.
Smart TelemetryThe Spektrum Dual Smart Lite ESC reports battery voltage, motor RPM and other data to compatible Spektrum transmitters with Smart and non-Smart batteries.
Forward ProgrammingAS3X and SAFE settings can be adjusted directly from a compatible Spektrum transmitter.
Metal-Geared ServosThree digital, metal-geared cyclic servos with ball-link linkages come factory installed.
Optional Belt-Driven TailThe Belt Drive Conversion kit BLH-2929, sold separately, replaces the tail motor with a belt-driven tail run from the main motor.
Indoor And Outdoor SizeThe mini size suits large indoor spaces as well as outdoor flying.
In The BoxEverything that comes in the box.
1X
Blade InFusion 210 Helicopter, factory assembled
1X
Brushless Outrunner Main Motor, installed
1X
Brushless Outrunner Tail Motor, installed
3X
Spektrum Digital Metal-Geared Servos, installed
1X
Spektrum AR6250MHXF Flybarless Flight Controller and Receiver with AS3X and SAFE
1X
Spektrum Dual 15A Main and 8A Tail Brushless Smart Lite ESC, installed
1X

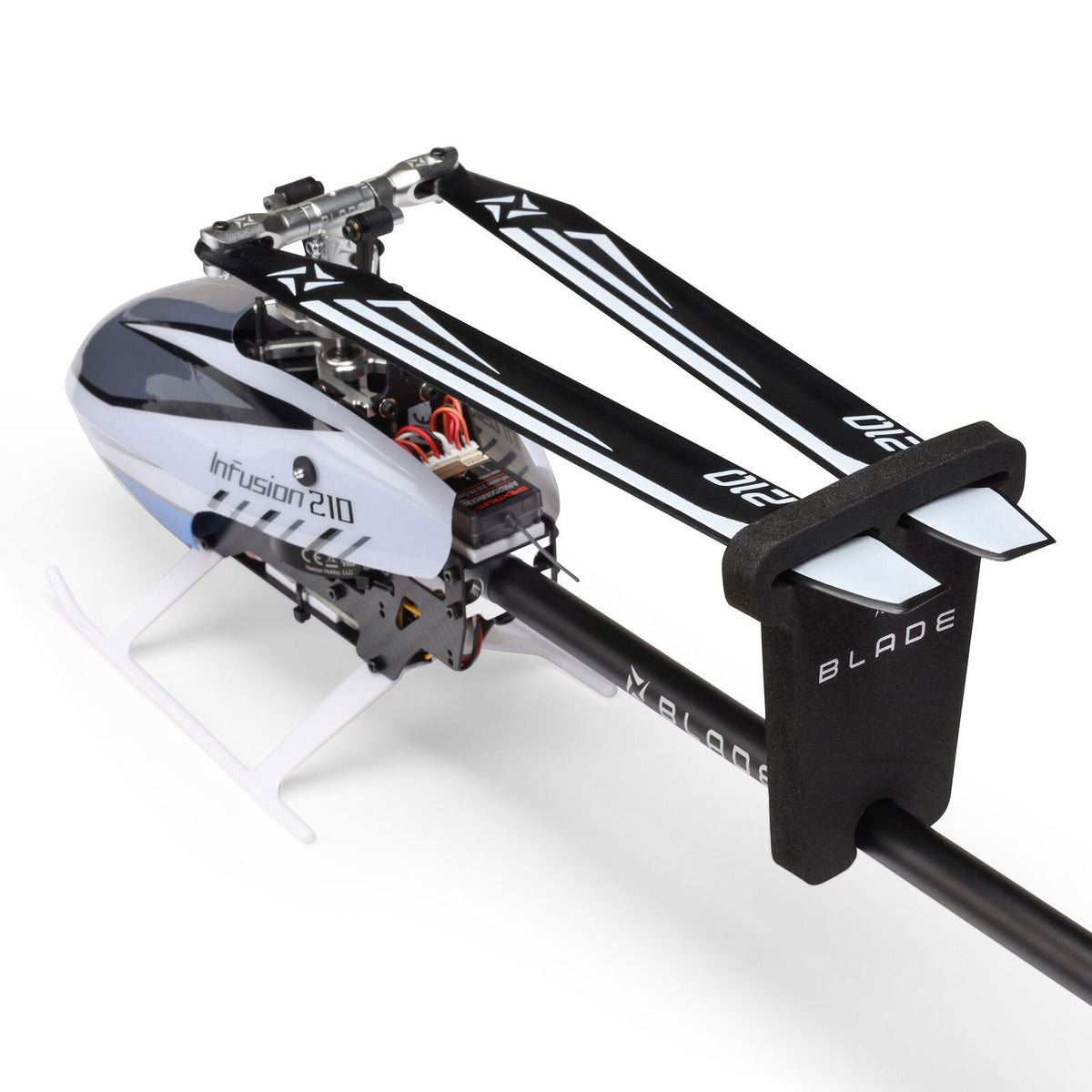

Main Blade Holder
1X
Product Manual
Parts & Accessories
To run this model you’ll need:
Frequently Asked QuestionsEverything you need to know
What do I need to fly the Blade InFusion 210 BNF Basic?
The Blade InFusion 210 BNF Basic (BLH01550) needs a full-range 6-7+ channel Spektrum DSMX/DSM2 transmitter that is programmable for helicopters, a 3S 11.1V 850-1000mAh LiPo battery with an IC2 connector and a compatible LiPo charger. The helicopter itself arrives factory assembled with the receiver, ESC, motors and servos installed.
What battery does the Blade InFusion 210 use?
The InFusion 210 (BLH01550) uses a 3S 11.1V 850-1000mAh LiPo with an IC2 connector, Smart or non-Smart. Horizon Hobby recommends an 850mAh 3S 11.1V 30C pack, and batteries with other connectors need a suitable IC2 adapter.
Is the Blade InFusion 210 good for beginners?
No. Horizon Hobby rates the Blade InFusion 210 as Skill Level 2 and says it is not a suitable first RC helicopter, even with optional SAFE. Pilots should already be able to fly collective pitch helicopters such as the Blade 230, 330, Revolution 155 or 235.

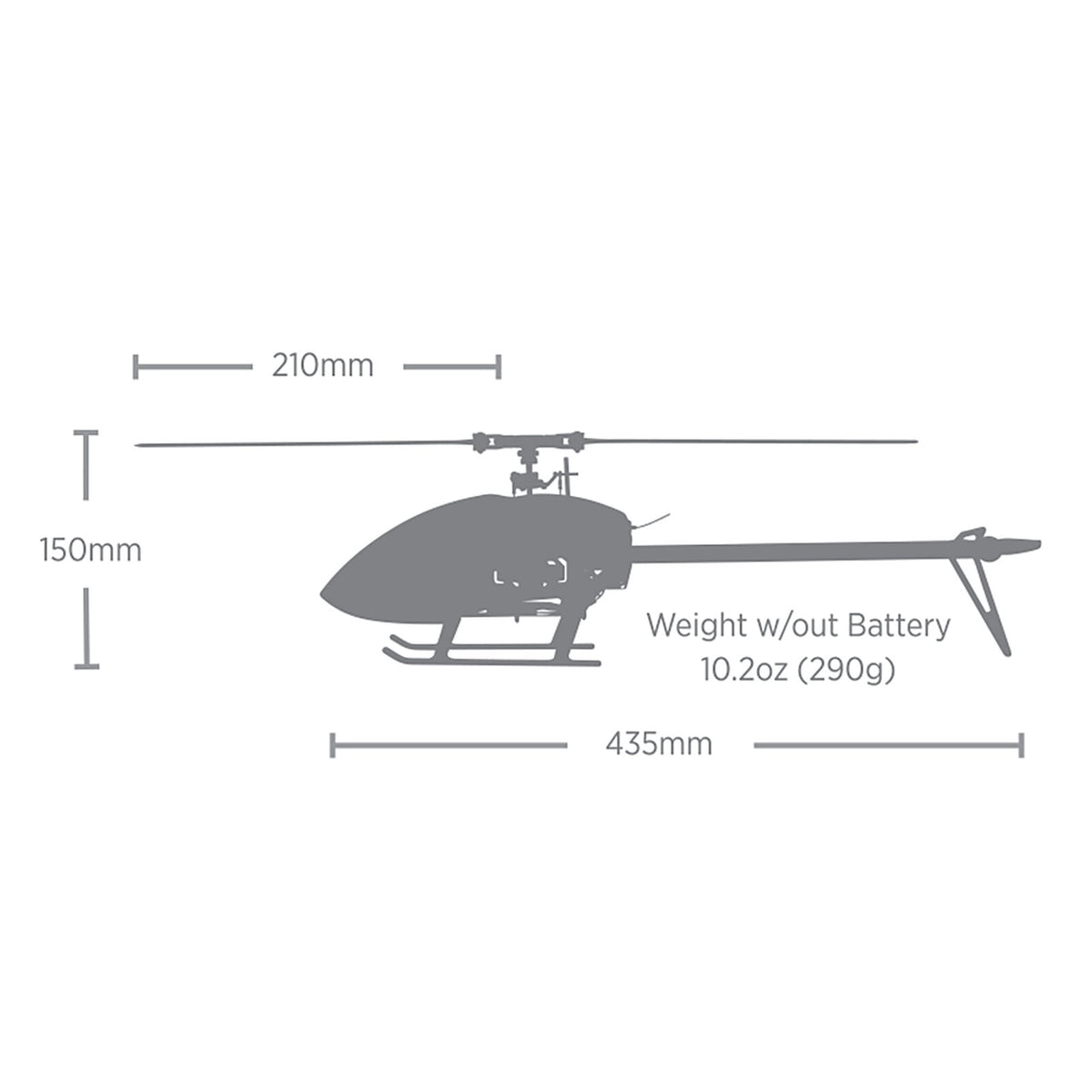

How big is the Blade InFusion 210?
The Blade InFusion 210 (BLH01550) has a 19.09 in / 485 mm main rotor diameter and is 17.1 in / 434 mm long and 5.9 in / 150 mm tall. It weighs 10.2 oz / 290 g without a battery and 12.66 oz / 359 g with the recommended 3S 850mAh pack.
Can the Blade InFusion 210 be converted to a belt-driven tail?
Yes. Blade offers the optional Belt Drive Conversion kit BLH-2929, sold separately, for the InFusion 210. It includes a factory-assembled tail assembly driven off the main motor, a digital metal-geared servo and the required hardware.
