CB2000C - Compound Binocular Microscope
$559.95
Skip to product information
CB2000C - Compound Binocular Microscope
$559.95
2000x Magnification
Explore extreme cellular details
Trinocular Head
Attach cameras for imaging
LED Illumination
Lower lighting with condenser

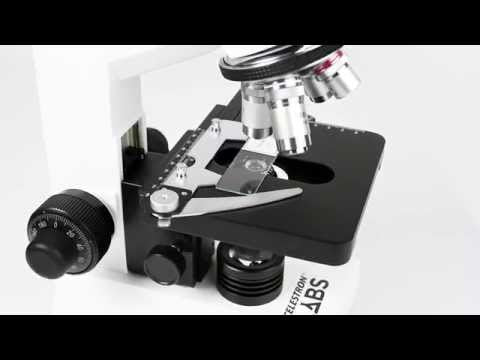

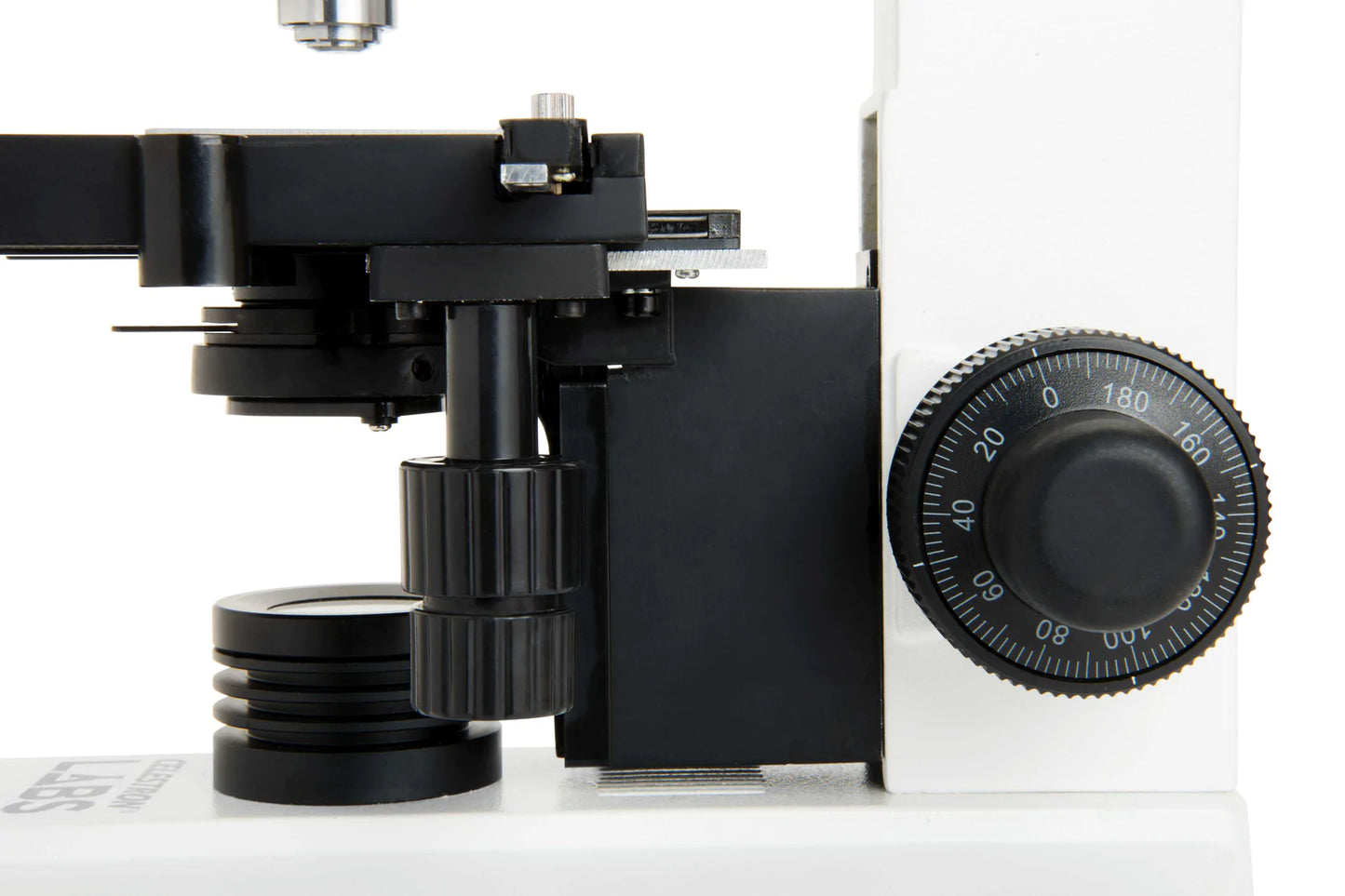

Mechanical Stage
Precise dual axis control
Achromatic Lenses
Four high quality objectives
Metal Construction
Built for long durability
Explore The Microscopic WorldProfessional Binocular & Trinocular Precision Instrument

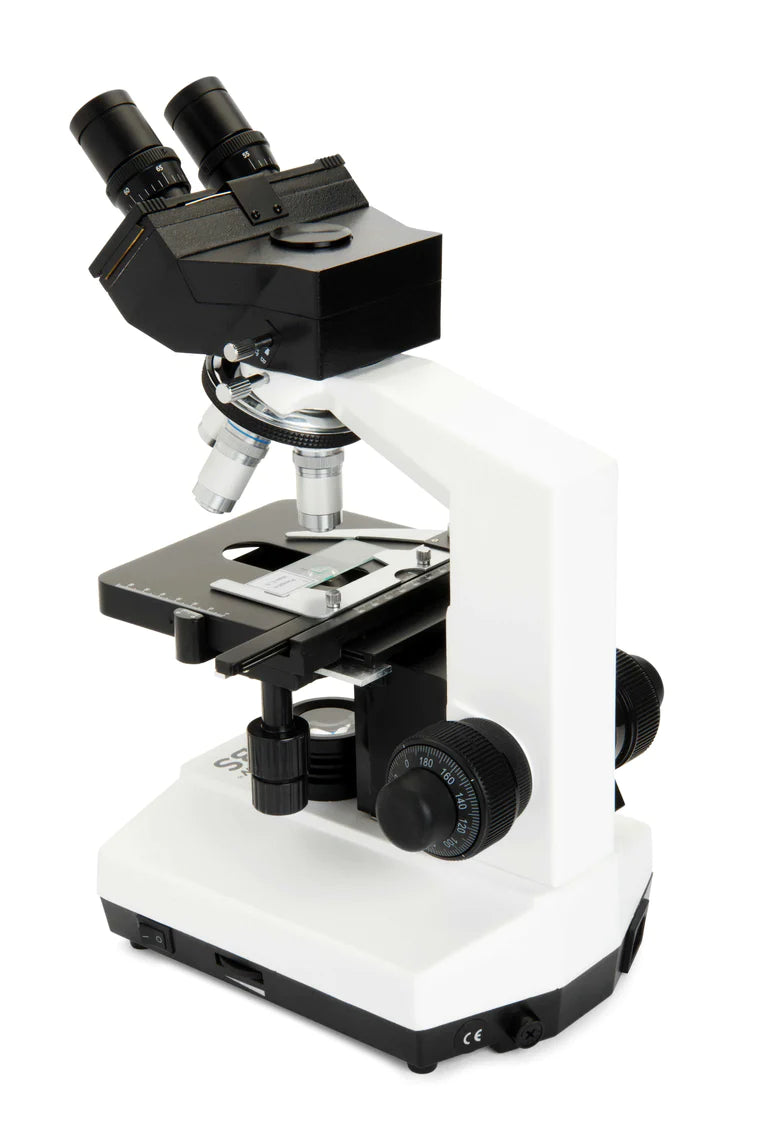

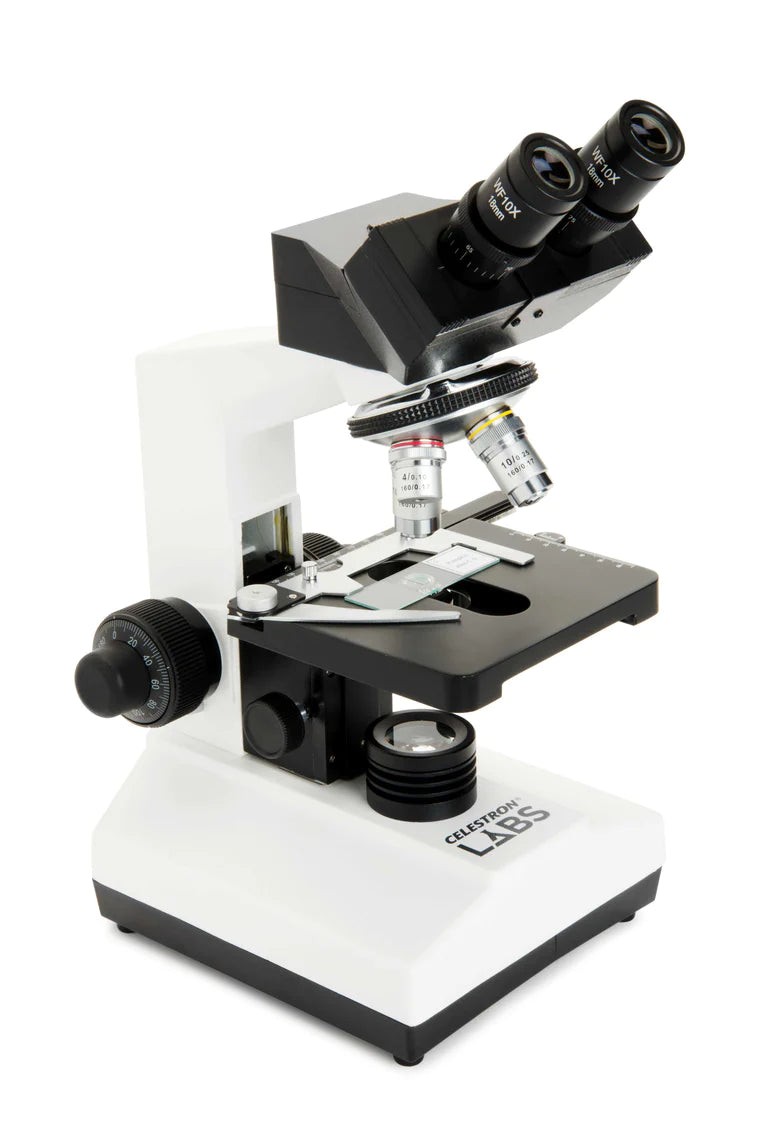

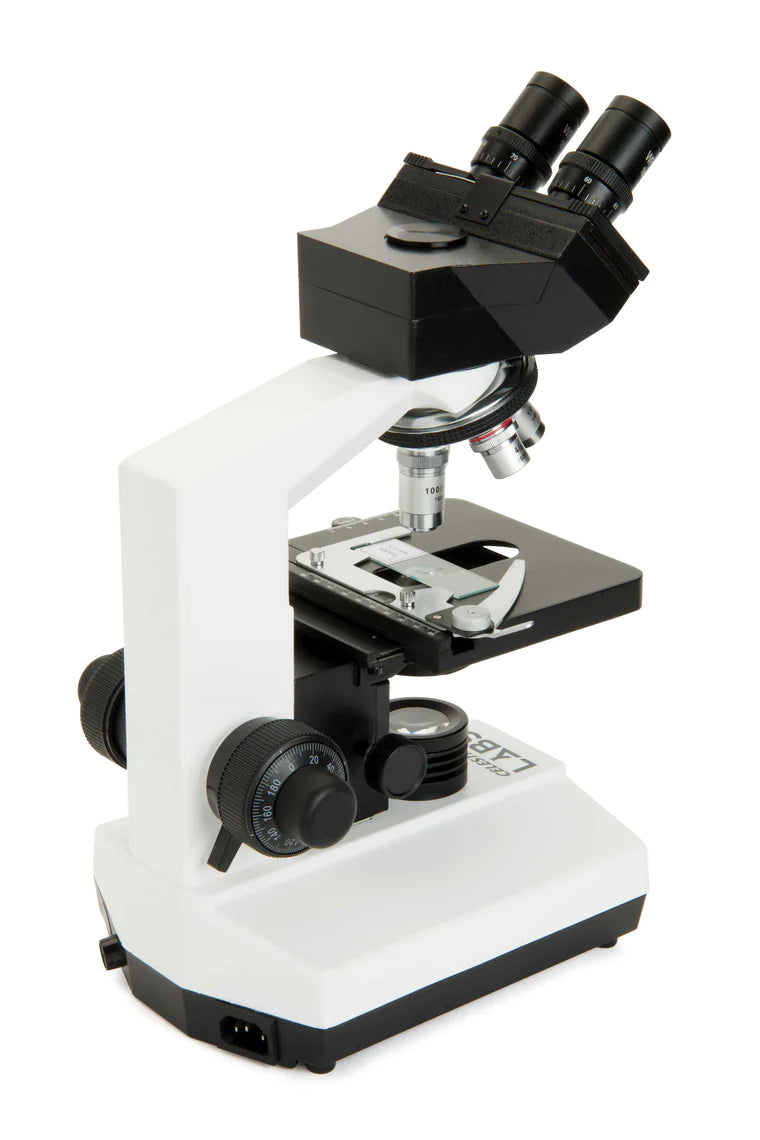

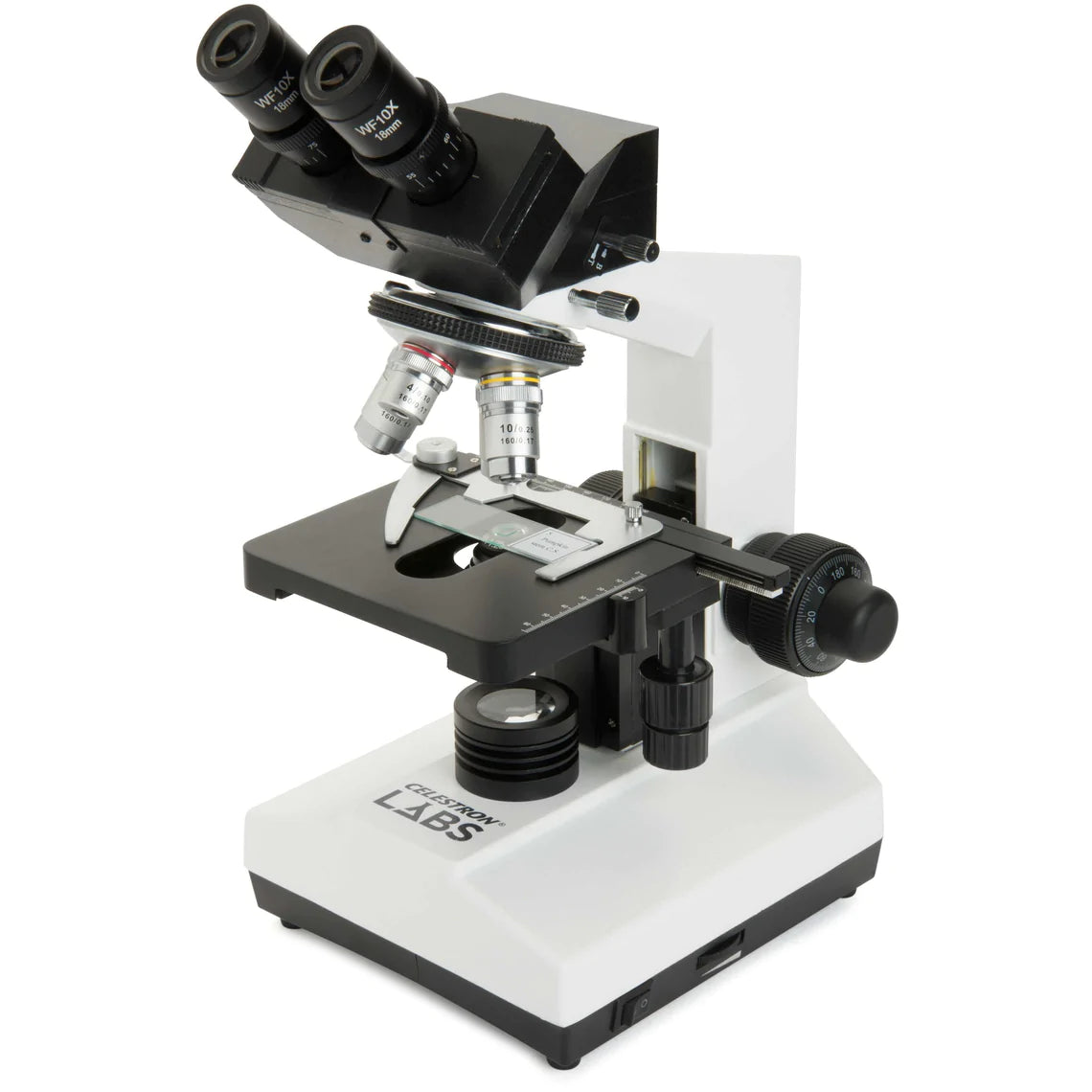

The Celestron Labs CB2000C Compound Microscope offers advanced optical performance with impressive 40x to 2000x magnification capabilities for laboratory research and hobbyist discovery. Featuring a specialized trinocular adapter, robust all-metal frame, and coaxial coarse and fine focus controls, this instrument delivers exceptional clarity when examining biological specimens. Included prepared slides and color filters ensure you can begin high-resolution cellular discoveries immediately right out of the box.
Unmatched Optics And ControlAdvanced Magnification For High Power Specimen Viewing

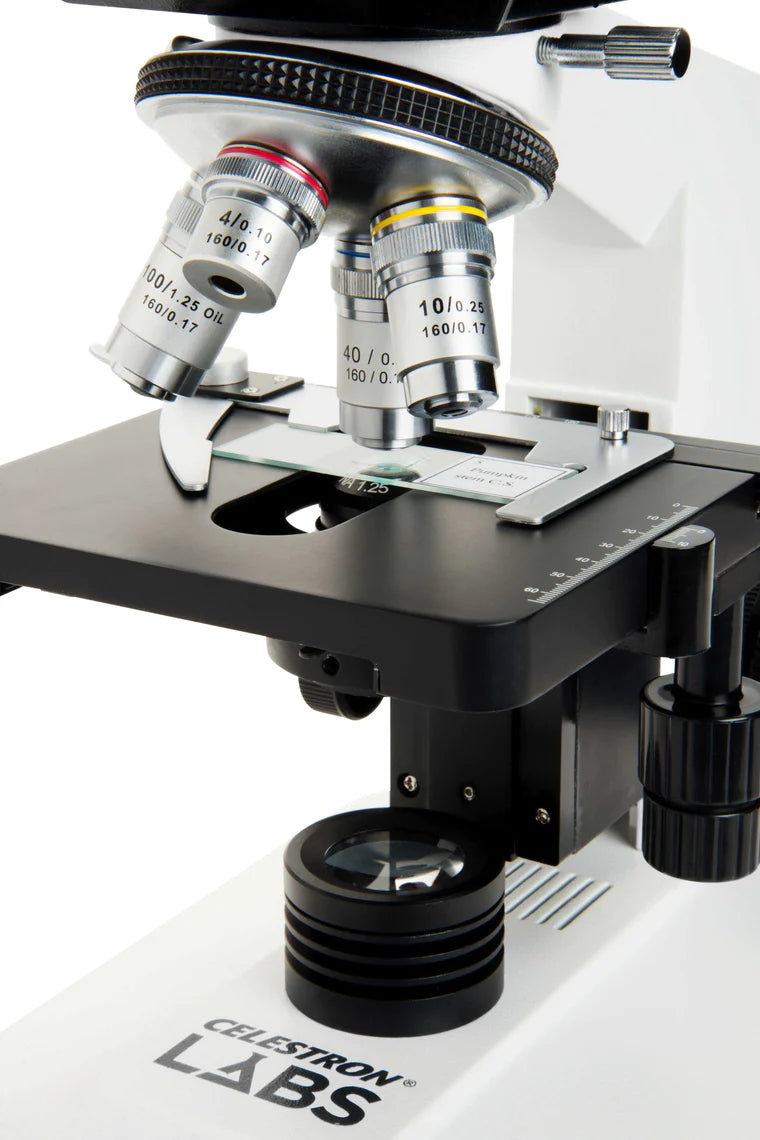

Designed for professional laboratories, educational environments, and serious hobbyists, the Celestron Labs CB2000C Compound Microscope delivers incredible image detail using its 10x and 20x eyepieces paired with four DIN achromatic objective lenses (4x, 10x, 40x, and 100x oil immersion). Specimen illumination is optimized through a built-in lower LED light source combined with an NA 1.25 Abbe condenser and iris diaphragm to carefully adjust beam width, brightness, and contrast. With a fully mechanical stage controlled by dual-axis knobs, centering slides is smooth and effortless. Additionally, the trinocular head port on the Celestron CB2000C microscope makes it easy to attach a camera for taking specimen photos or recording digital videos.
Technical SpecificationsDetailed Hardware And Optical Properties
Microscope Type
Compound Trinocular (microscope)
Head
Trinocular with 360° rotatable 45° incline
Eyepiece Magnification
10x (with pointer) and 20x (eye)
Eyepiece Diameter
23.2mm / 0.91 in
Nosepiece
Quadruple, rotational
Objective Type
Refractive DIN achromatic
Objective Magnification
4x, 10x, 40x, 100x oil immersion
Focus Type
Coaxial coarse and fine focus
Focus Travel
0.2mm per rotation
Magnification Range
40x to 2000x
Illumination Type
Adjustable Lower LED
Stage Dimensions
Mechanical stage 140mm x 140mm
Condenser
Abbe NA 1.25 with Iris adjustment
Power Source
Universal AC 100-240V adapter
Included Accessories
Trinocular tube, 3 filters, immersion oil, 10 slides
Key Instrument FeaturesEngineered For Scientific Precision
Magnification Range40x to 2000x total power
Objective Lenses4x, 10x, 40x, and 100x oil immersion
Eyepieces Included10x (with pointer) and 20x eyepieces (eye)

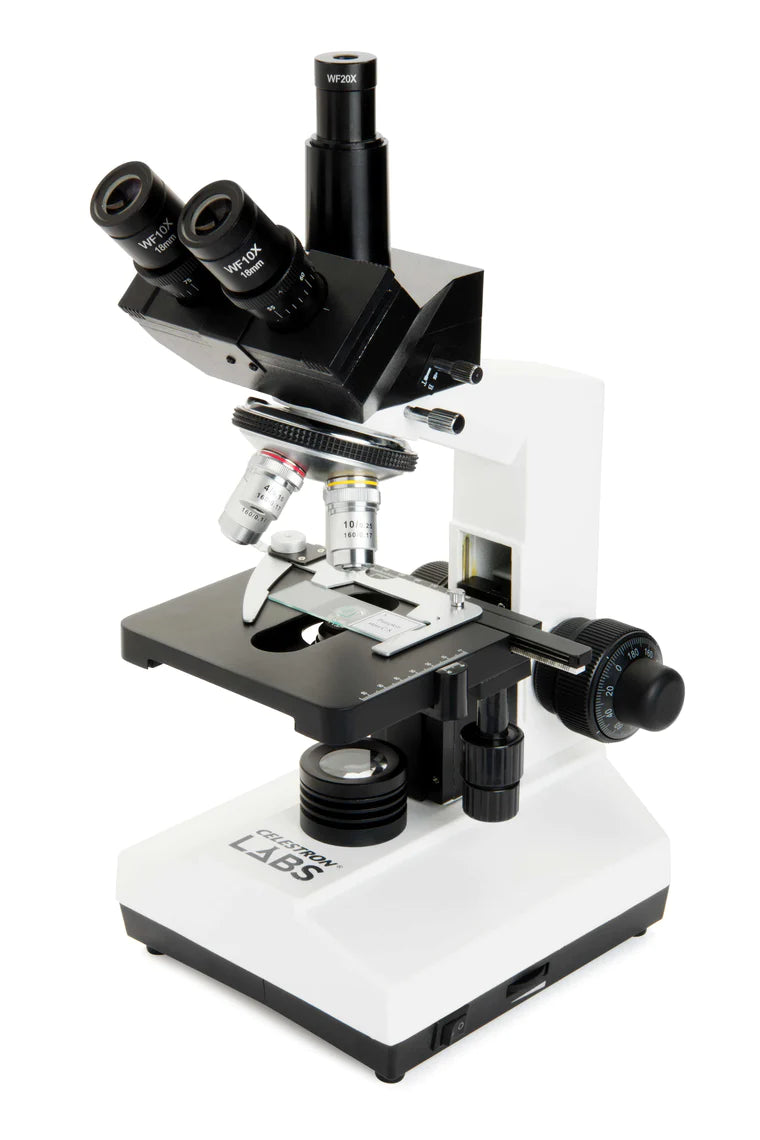

Trinocular DesignDedicated port for attaching digital camera adapters
Built-in IlluminationLower LED light with Abbe condenser and iris diaphragm
Precision FocusingCoaxial coarse and fine focus knobs
Stage ControlFully mechanical dual-axis slide positioning stage
Prepared SlidesIncludes 10 professional biological specimen slides
Frequently Asked QuestionsEverything you need to know
What power source does the Celestron Labs CB2000C Compound Microscope use?
The Celestron Labs CB2000C Compound Microscope uses an included universal AC 100-240V power adapter with interchangeable plug configurations for worldwide compatibility.
Can I attach a camera to the Celestron Labs CB2000C Compound Microscope?
Yes, the Celestron Labs CB2000C Compound Microscope features a trinocular port and included adapter tube specifically designed for attaching microscope cameras for photography or digital streaming.
What magnification range does the Celestron Labs CB2000C Compound Microscope provide?
The Celestron Labs CB2000C Compound Microscope provides eight selectable magnification powers: 40x, 80x, 100x, 200x, 400x, 800x, 1000x, and 2000x.
Are slides included with the Celestron Labs CB2000C Compound Microscope?

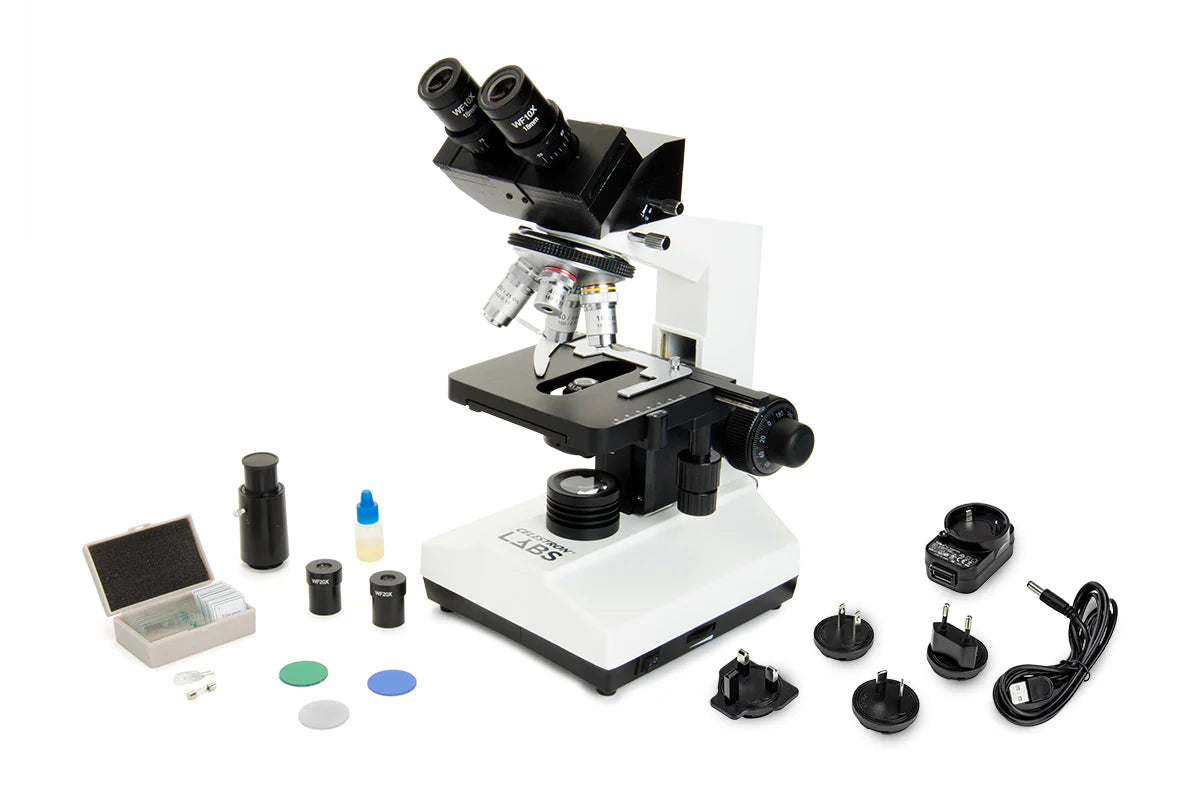

Yes, the Celestron Labs CB2000C Compound Microscope comes with 10 prepared specimen slides, as well as 3 color filters and immersion oil so you can start viewing immediately.
