Hitec D950TW 32 Bit Ultra Torque Titanium Gear Servo (HRC36950)
$139.99
Skip to product information
Hitec D950TW 32 Bit Ultra Torque Titanium Gear Servo (HRC36950)
$139.99
Ultra Torque
Up to 486 oz-in
Titanium Gears
Heavy duty gear train
Wide Voltage
Runs on 4.8V to 8.4V
32-Bit Resolution
Advanced MCU and ADC
Fully Programmable
Customizable digital circuit response
Dual Bearings
Smooth and long lasting
Next-Level Servo ControlMonster torque and ultra-fast response

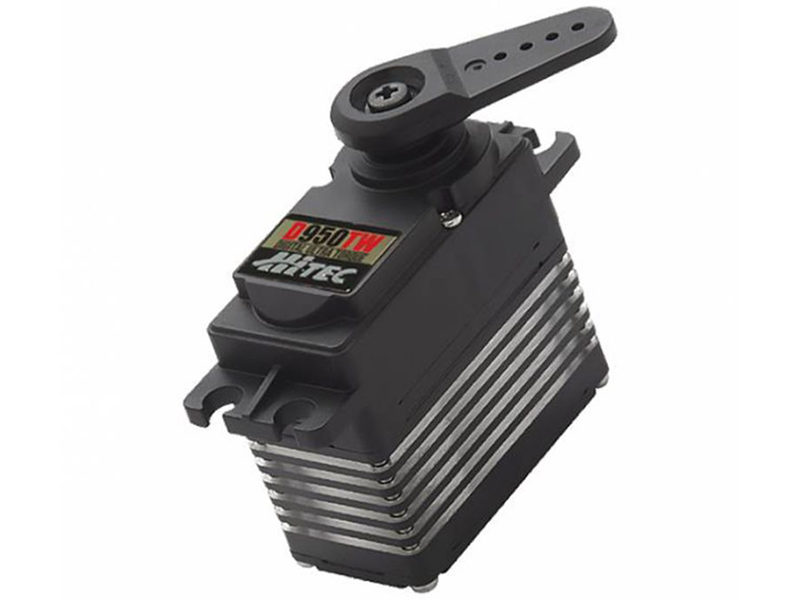

The Hitec D950TW Standard Digital Ultra Torque Titanium Gear Servo delivers monster power and high-resolution response for demanding RC vehicles, scale models, and robotics. Built with an advanced 32-bit MCU and 12-bit ADC, this high-performance digital servo offers unmatched programmability and ultra-smooth movement.
Engineering-Driven PrecisionCutting edge electronics for extreme demands
Engineered for ultimate durability, the Hitec D950TW Standard Digital Ultra Torque Titanium Gear Servo features a rugged titanium gear train supported by dual ball bearings. Operating across a wide 4.8V to 8.4V range without requiring external regulators, this standard-sized servo includes an industry-standard 25-tooth output spline to seamlessly integrate into your favorite RC car, boat, or aircraft builds.
Technical SpecificationsDetailed specs for precise installation
Part Type
Standard Digital Servo
Gear Type
Titanium
Operating Voltage
4.8V - 8.4V (HV) (battery)
Torque @ 4.8V
292 oz-in
Torque @ 6.0V
403 oz-in
Torque @ 7.4V
486 oz-in
Speed @ 4.8V
0.23 sec/60°
Speed @ 6.0V
0.17 sec/60°
Speed @ 7.4V
0.14 sec/60°
Dimensions
1.57 x 0.79 x 1.50 in (39.9 x 20.1 x 38.1mm) (ruler)
Weight
2.40 oz (68.0g) (scale)
Spline Count
25-Tooth
Bearing Type
Dual Ball Bearing
Connector Type
Universal
Programmable
Yes
Key CapabilitiesBuilt for maximum performance and durability
CircuitryHigh-resolution 32-bit MCU with 12-bit ADC
Gear TrainHeavy Duty Titanium Gears
Bearing SupportDual Ball Bearings
Output SplineStandard 25-Tooth Output Spline
Voltage SupportWide 4.8V to 8.4V Range
CustomizationFully Programmable Digital Circuit
Frequently Asked QuestionsEverything you need to know
What operating voltage does the Hitec D950TW Standard Digital Ultra Torque Titanium Gear Servo support?
The Hitec D950TW Servo operates across a wide voltage range of 4.8V to 8.4V (HV compatible), eliminating the need for regulators regardless of your receiver battery chemistry.
What gear material is used in the Hitec D950TW Servo?
The Hitec D950TW Servo uses a heavy-duty titanium gear train supported by dual ball bearings for extreme durability under high load.
What spline count does the Hitec D950TW Standard Digital Servo feature?
The Hitec D950TW features an industry-standard 25-tooth output spline with a 3mm hex screw.
Can the Hitec D950TW Servo be programmed?
Yes, the Hitec D950TW features a 32-bit MCU and 12-bit ADC that allow full digital programmability and fine-tuning.
