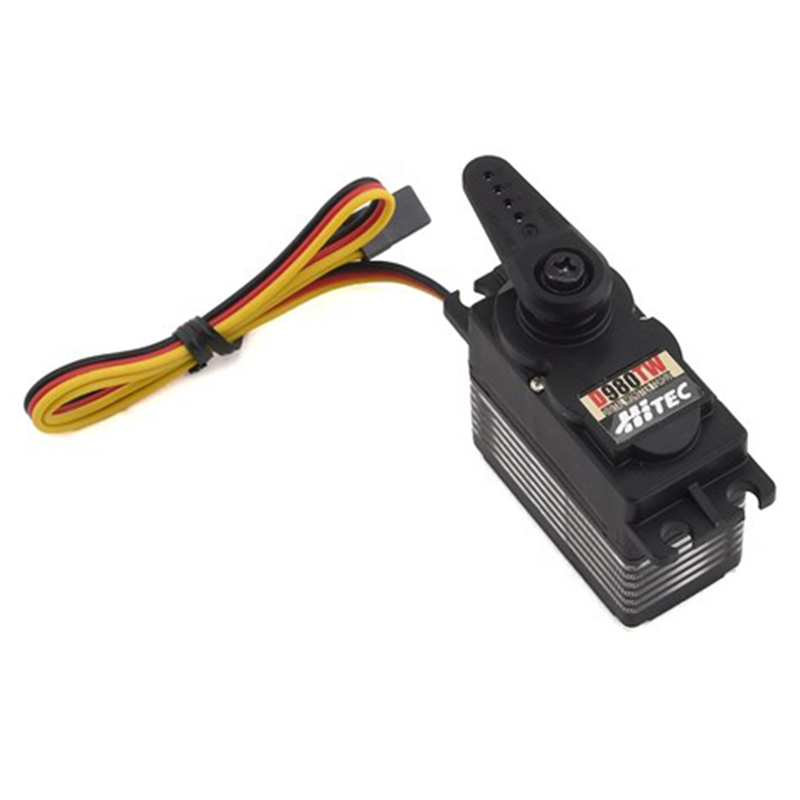

D980TW<br>32 Bit Monster Torque Titanium Gear Servo

Hitec D980TW D-Series Monster Torque Digital Servo (High Voltage)

Overview:
The Hitec titanium D-980TW monster torque, titanium gear servo is part of the cutting edge D-Series servo line. This servo combines industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU, and 12-bit ADC for unprecedented programmability and flexibility.

The line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. The servo features an industry standard 25-tooth output spline with 3mm hex screw. This upgraded version of the Hs-7980TH delivers monster performance.

Features:
• Programmable PWM Digital Amplifier
• 32-Bit MCU with 12-Bit ADC Circuitry
• 4096 Resolution
• 1M Cycle Long Life Potentiometer
• Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
• Dual Ball Bearing Supported Output Shaft
• 25-Tooth Output Spline
• Coreless Metal Brush Motors
• Nylon Reinforced Plastic Upper and Lower Case
• Diamond Cut Aluminum Heat Sink Center Case
• Dust Resistant and Splash Proof Case

Programmable Features:
• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Soft Start Rate
• Overload Protection
• Data Save / Load
• Program Reset

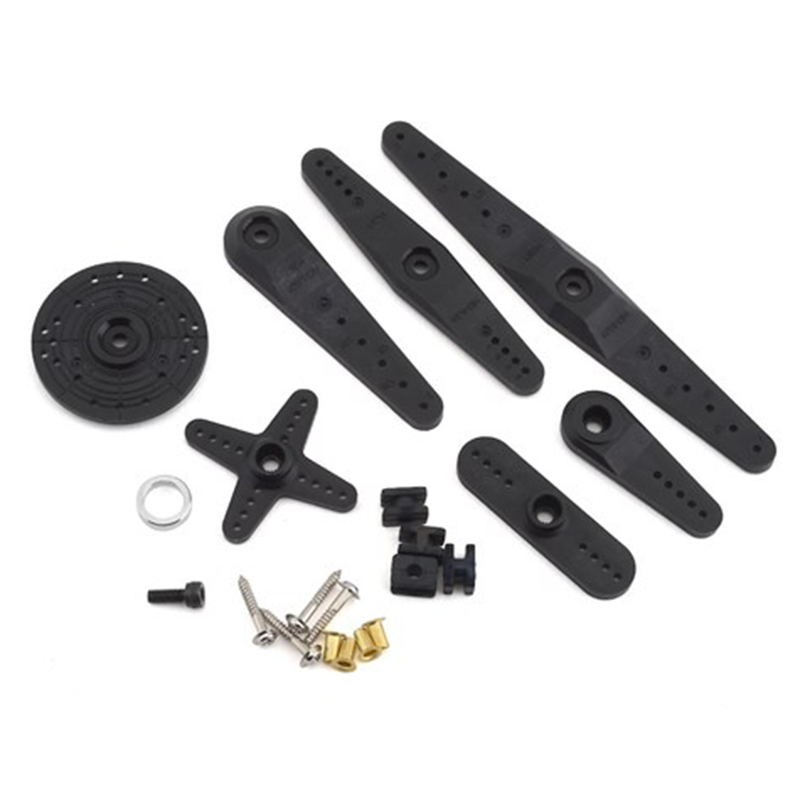

Includes:
• (1) D-980TW Wide Voltage Monster Torque Servo
• (1) 0.98" (25mm) Single Arm servo horn
• (1) 1.2" (31.5mm) Single Arm servo horn
• (1) 1.7" (44mm) Double Arm servo horn
• (1) 2.2 " (55mm) Single Arm servo horn
• (1) 2.8" (72mm) Double Arm servo horn
• (1) 4.2" (108mm) Double Arm servo horn
• (1) 1.5" (38mm) 4-Point Horn
• (1) 1.4" (36mm) Round Horn
• (4) Grommets, Eylets and Mounting Screws
• (1) Metal Adapter Ring, extra Horn Screw
