Digital Microscope Imager HD 5MP
$109.95
Skip to product information
Digital Microscope Imager HD 5MP
$109.95
5MP Sensor
High Resolution CMOS Capture
30 FPS Video
Smooth Real Time Streaming
Aluminum Body
Rugged Lab Grade Housing
Eyepiece Adapters
Fits 23mm and 30mm Tubes
USB Connection
Simple Plug and Play Power
HD Software
Measurement and Calibration Tools
Digital Microscopy UpgradeTransform Your Microscope into a Digital Lab

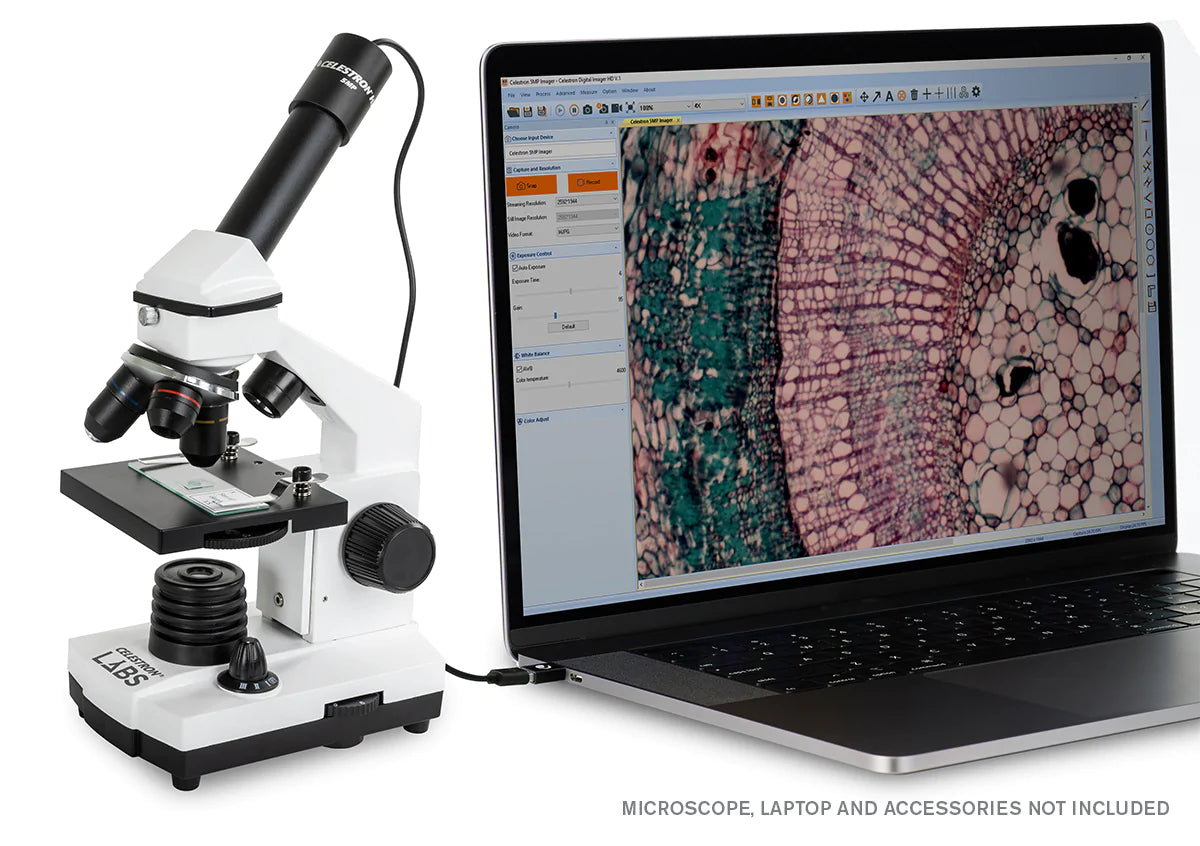

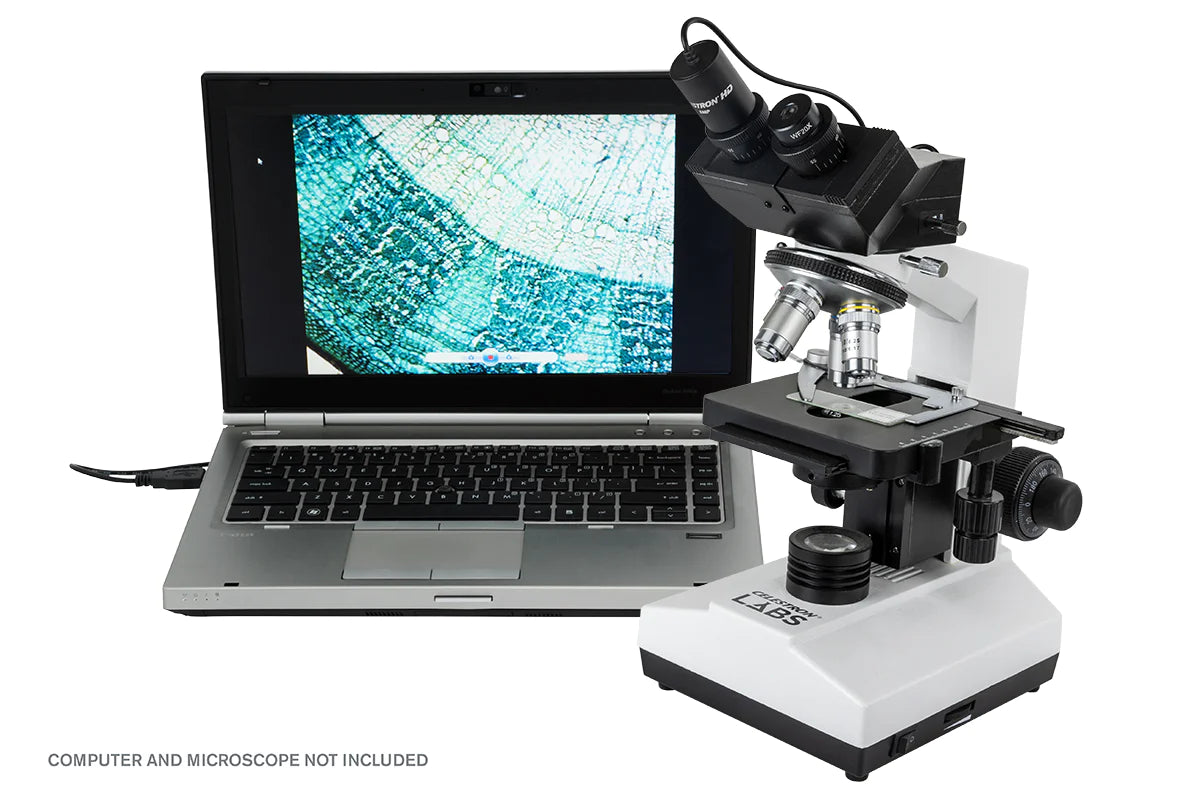

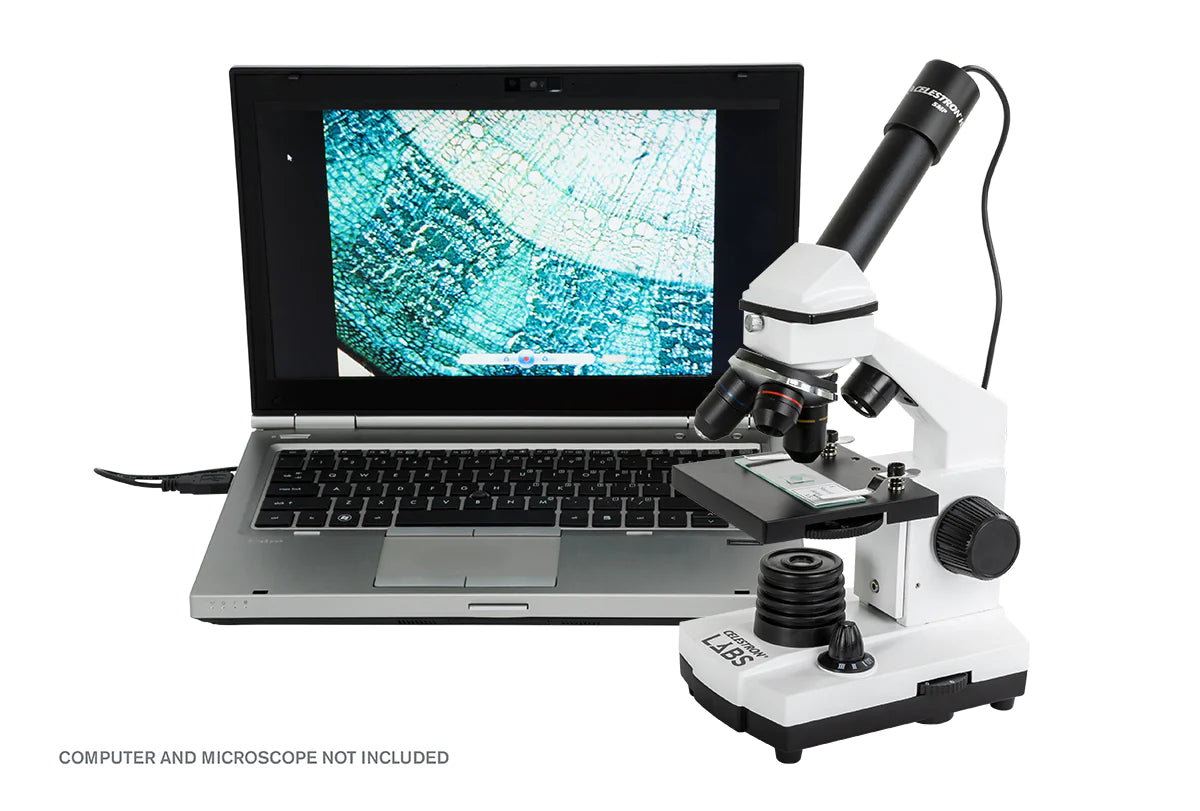

Upgrade your standard optical instrument with the Celestron 5MP Digital Microscope Imager, converting traditional viewing into high-resolution digital imaging. Perfect for classrooms, research labs, and scientific hobbies, this digital microscope camera captures crisp 5MP still images and smooth 30 fps video directly to your PC or Mac.
High-Resolution Science ImagingCapture Measure and Present Specimen Data

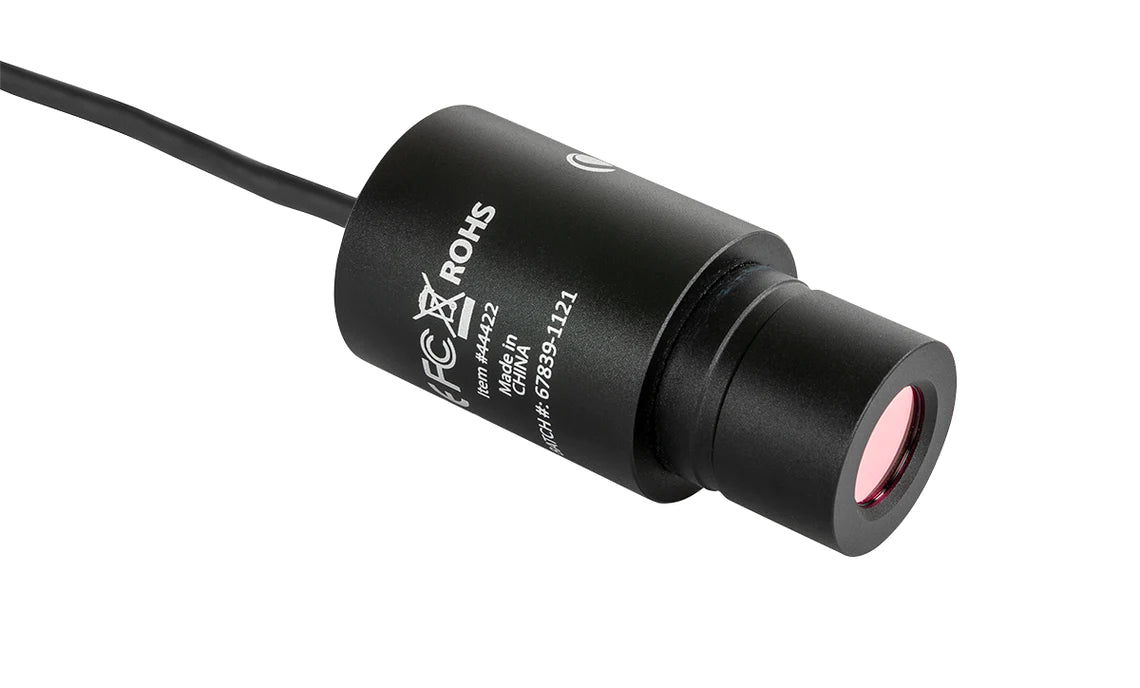

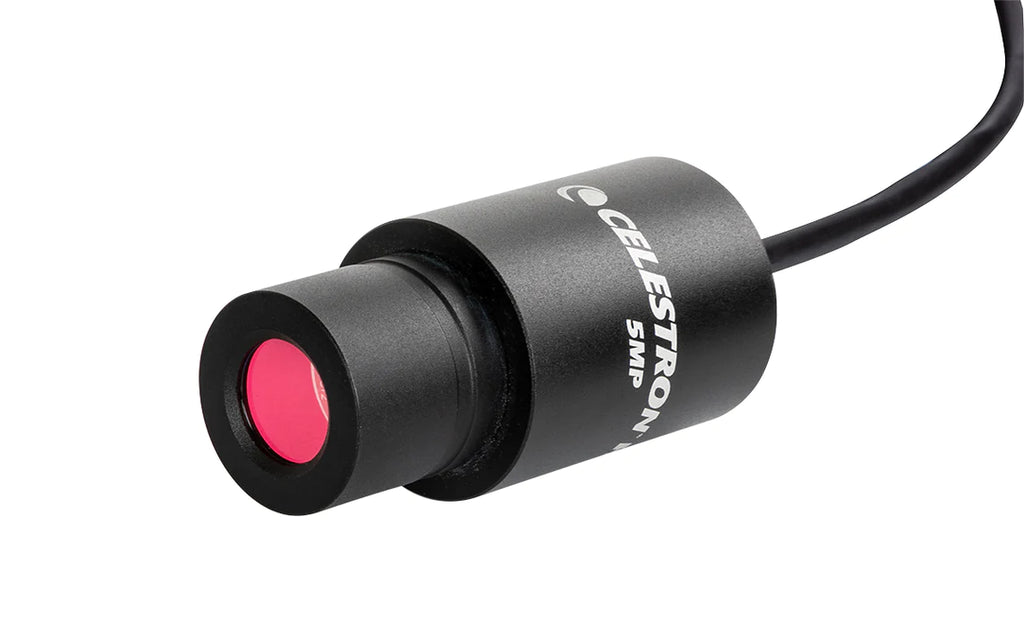

The Celestron 5MP Digital Microscope Imager delivers exceptional versatility for educational, professional, and hobbyist microscopy applications. Built with a rugged aluminum housing to withstand heavy lab and classroom use, this digital imager simply replaces your standard eyepiece (fitting 23mm and 30mm barrels) and connects via USB 2.0. The included Celestron Digital Imager HD software lets users highlight specimen areas with note-taking tools, compare live streams side-by-side, and calibrate full precision measurements effortlessly.
Technical SpecificationsDetailed Optics and Hardware Specifications
Sensor
5 MP CMOS
Sensor Size
1/2.8 inch Sony IMX335
Resolution
2592 x 1944
Pixel Size
2 x 2 μm (microscope)
Power Standard
2.0 USB with 1.5m Cord
Streaming Video Format
30 fps @ 1024x768 / 12 fps @ 2592x1944
Software
Celestron Digital Imager HD Software
Compatibility
Windows 7.1 to 11 / Mac OSX 10.9 to 12.3
Eyepiece Compatibility
23mm and 30mm Eyepiece Tubes
Weight
3.4 oz / 97 g
Dimensions
61.8mm x 30mm x 30mm
Key CapabilitiesAdvanced Features for Microscopy Research
Sensor Performance5MP CMOS sensor transforms optical microscopes into digital imagers
Media CaptureCaptures high resolution still photos and 30 fps video
Easy ConnectivityPlug-and-play USB connection transfers files directly to PC or Mac
Advanced SoftwareCelestron Digital Imager HD includes measurement and note-taking features
Durable HousingRugged aluminum body built for heavy classroom and lab use

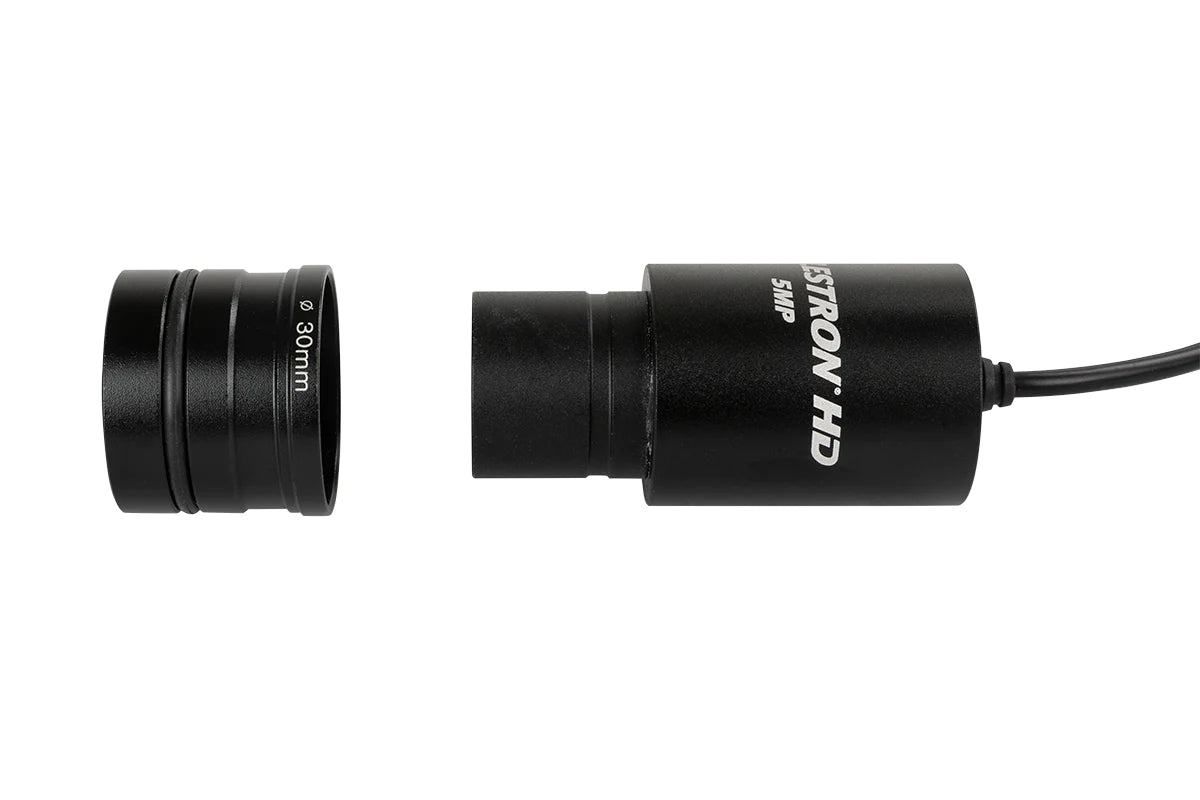

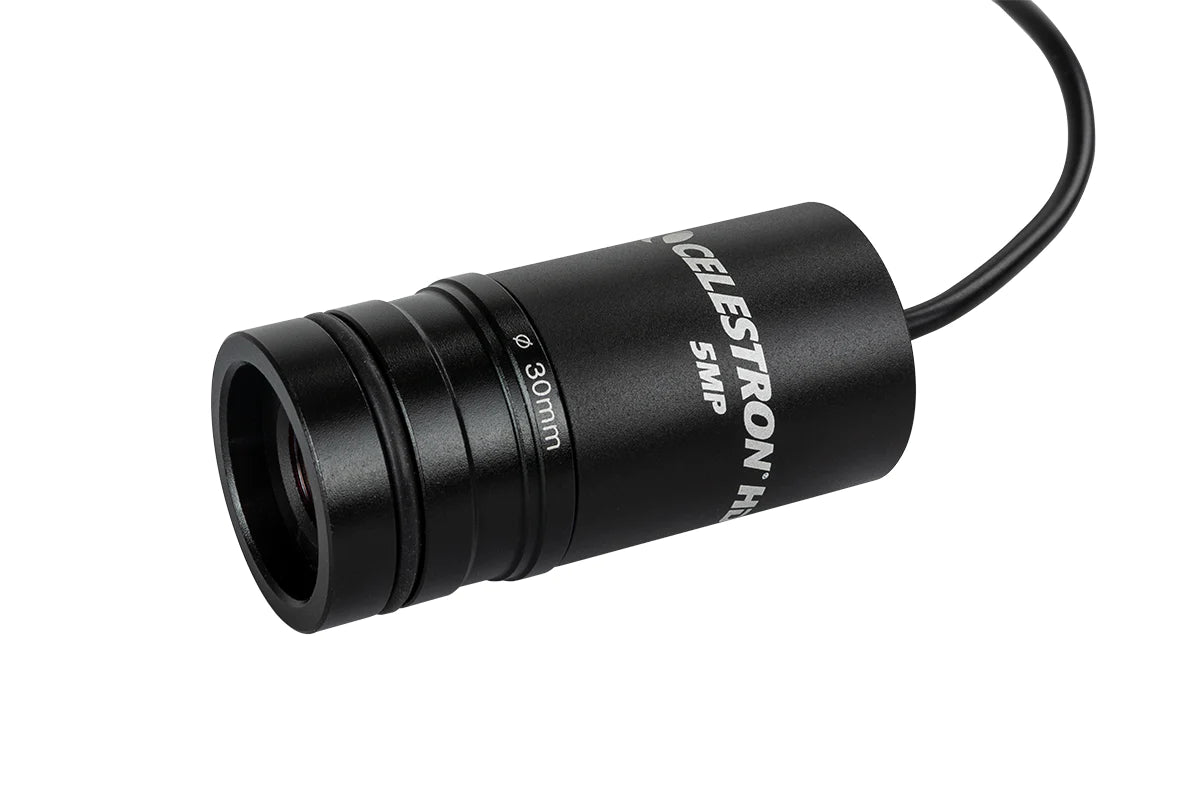

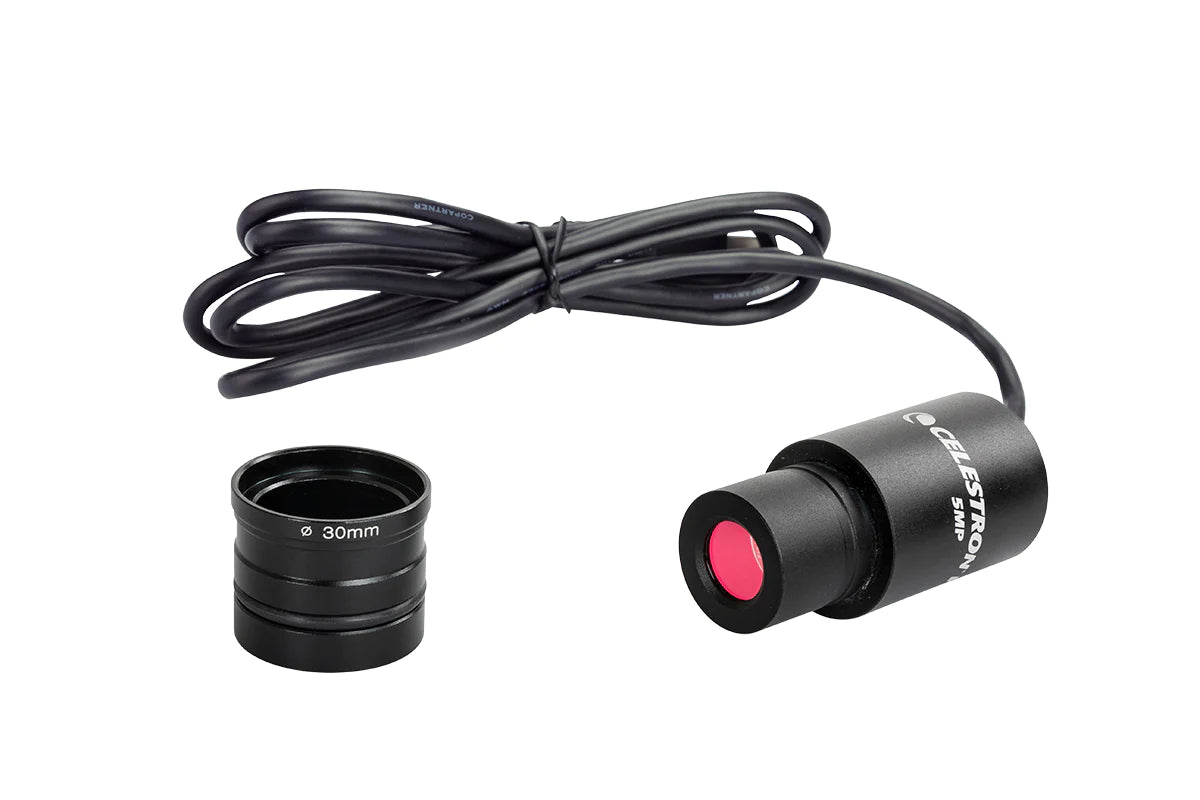

Eyepiece AdapterIncludes aluminum adapter collar for 30mm stereo scope eyepiece tubes
Frequently Asked QuestionsEverything you need to know
What microscopes are compatible with the Celestron 5MP Digital Microscope Imager?

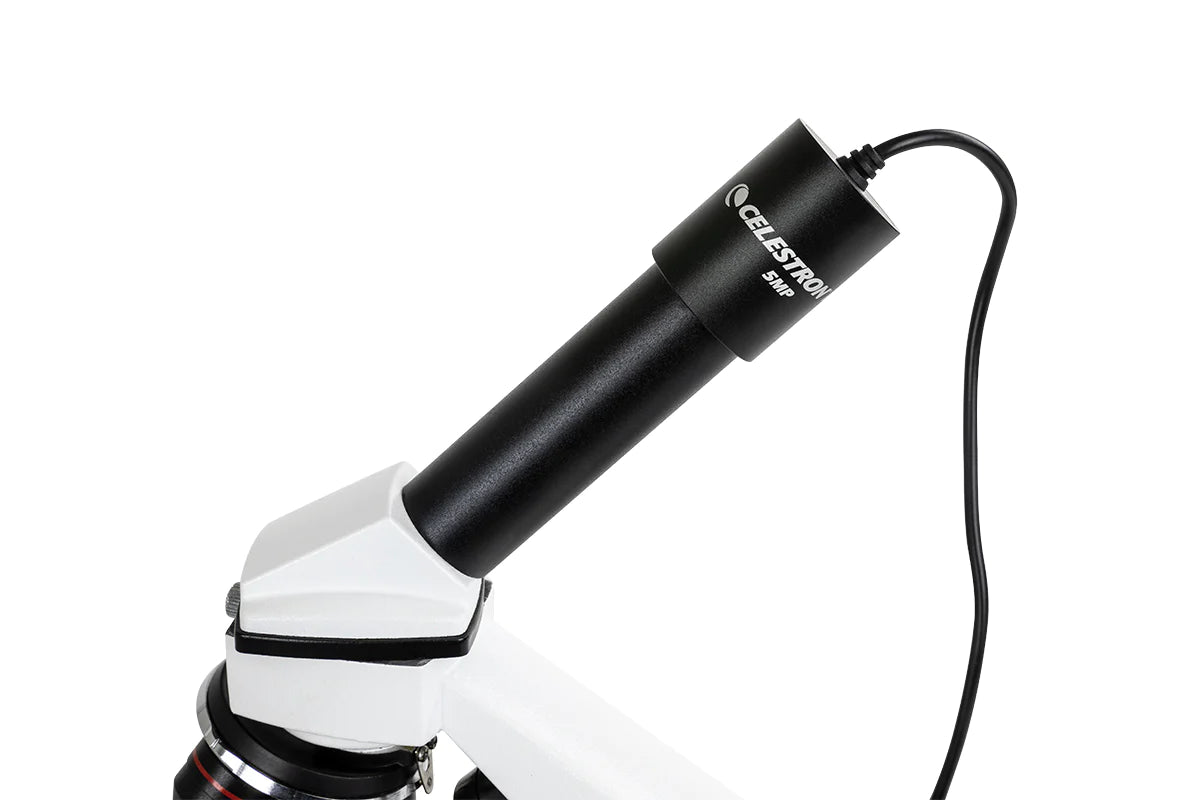

The Celestron 5MP Digital Microscope Imager is designed to replace standard eyepieces on microscopes that accept either 23mm or 30mm eyepiece tubes, including stereo and compound microscopes.
What operating systems support the Celestron 5MP Digital Microscope Imager?
The Celestron 5MP Digital Microscope Imager works with Windows 7.1 through Windows 11 in full 5MP resolution, as well as Mac OS X 10.9 through 12.3 in 2MP resolution using the included software.
How is the Celestron 5MP Digital Microscope Imager powered?
The imager is conveniently powered directly through its 1.5-meter USB 2.0 cable connected to your computer, requiring no external batteries or separate power supplies.
Does the Celestron 5MP Digital Microscope Imager allow side-by-side specimen comparison?
Yes, the included Celestron Digital Imager HD software features a comparison tool that allows you to view and analyze two live video streams side-by-side on your screen.
