ESC XL-2.5 Waterproof with Low Voltage Detection
$49.95
Skip to product information
Only 1 Left!
ESC XL-2.5 Waterproof with Low Voltage Detection
$49.95
Waterproof Design
All Weather Driving Fun
Training Mode
Limits Power Fifty Percent
LiPo Ready
Built In Low Voltage
In Stock
Smooth Power DeliveryWaterproof Speed Control For Small Scale Vehicles

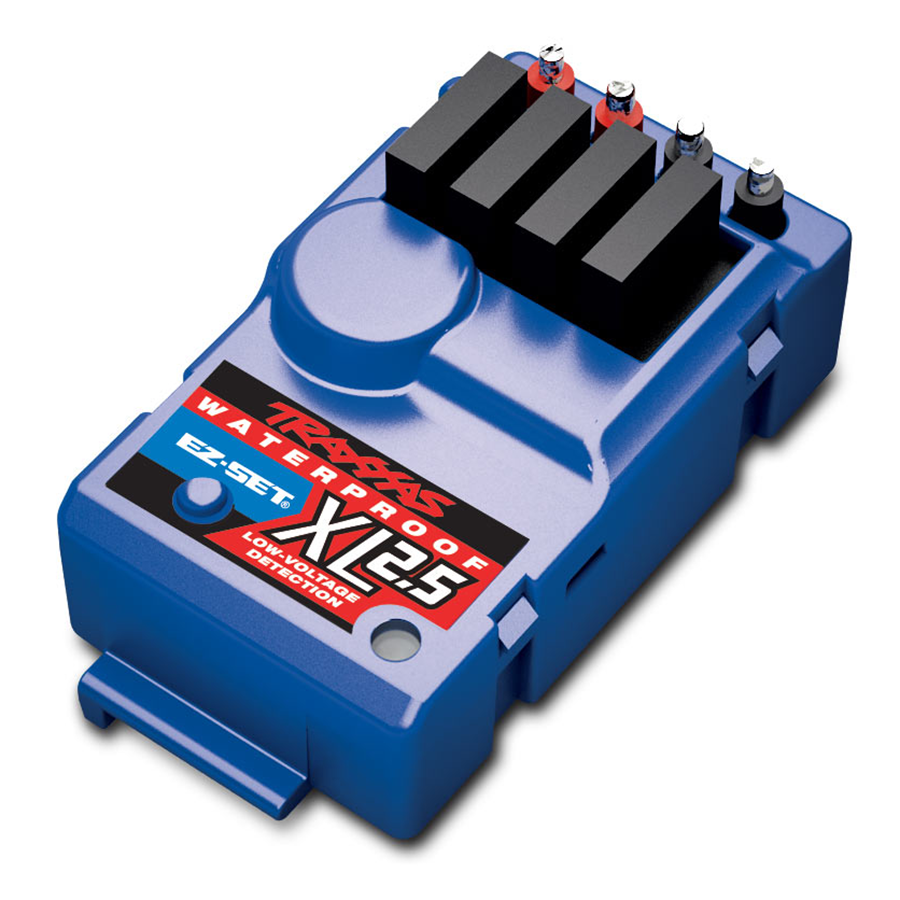

The Traxxas XL-2.5 Waterproof ESC delivers smooth, fully proportional throttle control engineered specifically for 1/16 scale RC cars and smaller models. Built to withstand high-action driving in all weather conditions, this electronic speed controller features high-frequency operation and ultra-low resistance for maximum efficiency.
Advanced Engineering ControlVersatile Electronics For Traxxas Models
Manufactured by Traxxas for high reliability and backed by the Traxxas Lifetime Electronics Warranty, the Traxxas XL-2.5 Waterproof ESC is equipped with essential safeguards including thermal shutdown protection and built-in two-stage low voltage detection (LVD) for 2-cell LiPo battery and 4-7 cell NiMH pack compatibility. Featuring the patented Training Mode, drivers can reduce throttle output by 50% while mastering control, then easily switch profiles via EZ-Set push-button setup to unleash full performance in Traxxas RC vehicles like the 1/16 E-Revo, Slash 4WD, and Summit.
Technical DetailsOfficial Factory Electronics Specifications
Compatible Vehicles
Traxxas 1/16 E-Revo (71054-1), 1/16 Slash 4WD (70054-1), 1/16 Summit (72054-5) (car)
Part Type
Electronic Speed Controller (ESC) (gear)
Input Voltage
4-7 Cells NiMH, 2-Cells LiPo / 4.8V - 8.4V DC
Dimensions
26.5mm W x 46.5mm D x 22mm H
Weight
33 Grams
Motor Limit
10-turn 380 size / 12-turn 550 size
On Resistance
0.008 Ohms
BEC Voltage
6.0V DC
PWM Frequency
2300 Hz
Thermal Protection
Thermal Shutdown (temperature)
Transistor Type
MOSFET
Power Wire
16 Gauge / 40mm
Key CapabilitiesAdvanced Protection And Programmable Drive Profiles
Low Voltage DetectionBuilt-in two-stage LVD for LiPo compatibility
Waterproof ConstructionFully sealed design for all-weather RC driving
EZ-Set SetupSimple single-button configuration process
Drive ProfilesSport, Race, and 50% Training Mode profiles
Thermal ProtectionAutomatic thermal shutdown protection (temperature)
High Current ConnectorPatented Traxxas connector pre-installed
MOSFET DesignEfficient low-loss operation with integrated heat sink
Frequently Asked QuestionsEverything you need to know
Is the Traxxas XL-2.5 Waterproof ESC compatible with LiPo batteries?
Yes, the Traxxas XL-2.5 Waterproof ESC features built-in two-stage low-voltage detection (LVD) specifically designed for safe operation with 2-cell LiPo battery packs.
What RC vehicles fit the Traxxas XL-2.5 Waterproof ESC?
The Traxxas XL-2.5 Waterproof ESC is designed as a direct replacement electronic speed control for 1/16 scale Traxxas models, including the 1/16 E-Revo, 1/16 Slash 4WD, and 1/16 Summit.
How does Training Mode work on the Traxxas XL-2.5 Waterproof ESC?
Traxxas patented Training Mode reduces the overall power output of the Traxxas XL-2.5 Waterproof ESC by 50%, making it easier for beginner drivers to learn control before switching to full power.
