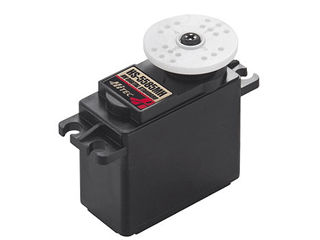

Hitec HS-5585MH Standard Digital HV, Hi Torque, Metal Gear (HRC35585S)
$72.99
Skip to product information
Hitec HS-5585MH Standard Digital HV, Hi Torque, Metal Gear (HRC35585S)
$72.99
2S LiPo Capable
Operates natively at 7.4V
Coreless Motor
Delivers smooth rapid response
Metal Gear Drive
Offers rugged long lasting durability
Dual Ball Bearings
Ensures smooth output shaft movement
Digital Precision
Provides incredible holding power
High Torque Output
Generates up to 236 oz-in
High Voltage Digital SteeringBudget friendly high performance hobby servo
Increase your RC vehicle performance without stretching your budget with the Hitec HS-5585MH high voltage digital servo. Equipped with a fast response coreless motor, heavy-duty metal gears, and dual ball bearings, this standard-size servo delivers outstanding holding power and durability. Optimized for direct 2S LiPo 7.4V operation, the Hitec HS-5585MH servo is engineered to handle demanding surface driving and giant scale aircraft controls.
Precision Control and PowerEngineered for harsh off-road and aerial demands
The Hitec HS-5585MH high voltage digital servo delivers extreme versatility and high-torque performance for RC enthusiasts. Generating up to 236 oz-in of torque and a rapid 0.14-second transit time at 7.4V, this high-voltage digital servo gives you instant control authority. Whether you are driving 1/10 scale monster trucks, racing 1/8 scale buggies and truggies, or flying 35% scale aircraft, the Hitec HS-5585MH RC servo provides incredible durability, thermal efficiency, and precise deadband response under heavy operational loads.
Detailed SpecificationsComplete technical and physical measurements
Compatible Vehicles
1/10 Monster Trucks, 1/8 Buggies & Truggies, Aircraft up to 35%
Part Type
High Voltage Digital Servo
Material
Metal Gears, Composite Case
Placement/Position
Steering, Throttle, Control Surface
Dimensions
1.57 x 0.78 x 1.49 in (39.8 x 19.8 x 37.8 mm) (ruler)
Weight
2.10 oz (60 g) (weight)
Size Category
Standard
Motor Type
Coreless
Gear Type
Heavy-Duty Metal
Bearing
Dual Ball Bearing
Operating Voltage
6.0V - 7.4V (2S LiPo Direct) (zap)
Torque @ 6.0V
194 oz-in (14.0 kg-cm) (gauge)
Torque @ 7.4V
236 oz-in (17.0 kg-cm) (gauge)
Speed @ 6.0V
0.17 sec/60°
Speed @ 7.4V
0.14 sec/60°
Key FeaturesBuilt with advanced digital electronics
Direct 2S LiPo OperationRated for 7.4V high voltage application without requiring a BEC
Coreless Motor TechnologyProvides enhanced torque efficiency and fast centering speeds
Heavy-Duty Metal GearsRugged gear train built to withstand harsh impacts and off-road driving
Dual Ball BearingsSupported main shaft ensures minimal friction and slop-free performance
Digital CircuitryDelivers immediate control response and exceptional holding power
Standard Frame SizeDrop-in compatibility for most standard servo mounting trays
Frequently Asked QuestionsEverything you need to know
What operating voltage does the Hitec HS-5585MH require?
The Hitec HS-5585MH supports an operating voltage of 6.0V to 7.4V, making it fully compatible with direct 2S LiPo receiver battery setups.
What scale models are compatible with the Hitec HS-5585MH servo?
The Hitec HS-5585MH digital servo is optimized for 1/10 scale monster trucks, 1/8 scale buggies and truggies, as well as high-performance aircraft up to 35% scale.
Does the Hitec HS-5585MH feature metal gears?
Yes, the Hitec HS-5585MH uses heavy-duty metal gears paired with dual ball bearings for superior gear durability under high load.
What is the maximum torque output of the Hitec HS-5585MH?
At 7.4V, the Hitec HS-5585MH produces up to 236 oz-in (17.0 kg-cm) of torque with a speed of 0.14 sec/60°.
