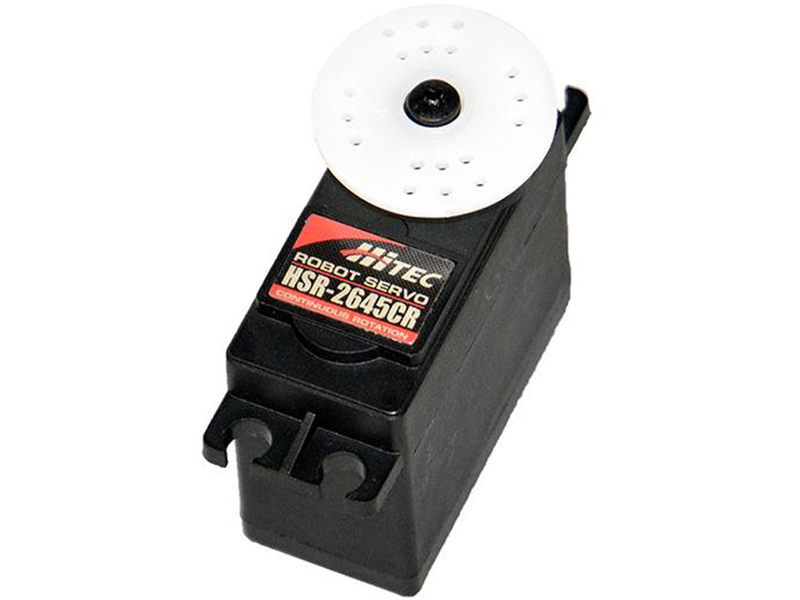

Hitec HSR 2645CR Wide Volt Digital Continuous Rotation (HRC32645H)
$39.99
Skip to product information
Hitec HSR 2645CR Wide Volt Digital Continuous Rotation (HRC32645H)
$39.99
Wide Voltage Range
Supports 4.8 to 7.4 volts
Metal Gear Train
Durable dual ball bearing design
Continuous Rotation
Smooth non proportional 360 motion
Digital Control
Programmable digital directional circuit
Massive Torque
Delivers up to 167 oz-in
Fast Response
Low deadband for precise shifts
Robotic Power UnleashedExtreme torque for specialized automation projects
The Hitec HSR-2645CR Wide Volt Digital Continuous Rotation Servo provides unmatched force and precision for robotics, engineering, and specialty radio control applications. Featuring a robust metal gear train and wide voltage capability from 4.8V up to 7.4V, this continuous rotation digital servo delivers reliable, high-speed movement and rapid directional shifts.
Precision Engineering In MotionDurable metal gears and programmable digital performance
Designed to expand on the popular HSR-1425CR platform, the Hitec HSR-2645CR Wide Volt Digital Continuous Rotation Servo brings digital accuracy and intense torque to complex mechanical builds. Equipped with dual ball bearings and heavy-duty metal gearing, this continuous rotation servo offers exceptional durability under high loads. Its low deadband digital circuit ensures fine linear speed control and instantaneous directional changes, making the Hitec HSR-2645CR the ultimate drive actuator for roboticists, engineers, and custom RC creators demanding maximum performance.
Technical SpecificationsDetailed performance numbers and physical measurements
Compatible Vehicles
Robotics, Custom Engineering & Specialized RC
Part Type
Continuous Rotation Digital Servo
Operating Voltage
4.8V ~ 6.0V ~ 7.4V DC
Speed (RPM)
48 @ 4.8V / 58 @ 6.0V / 72 @ 7.4V
Maximum Torque
111 oz-in @ 4.8V / 139 oz-in @ 6.0V / 167 oz-in @ 7.4V
Gear Material
Metal
Bearing Type
Dual Ball Bearing
Dimensions
1.59 x 0.77 x 1.48 in (40.6 x 19.8 x 37.8 mm) (ruler)
Weight
1.90 oz (53.0 g) (weight)
Dust / Water Resistance
N/A
Performance FeaturesAdvanced electronics built for extreme control
Circuit TypeDigital Circuit with Directional Programmability
Motion OutputNon-Proportional Continuous Rotation
Speed ControlLinear Speed Control Capability
Directional ResponseQuick Directional Shift Response
Dead BandLow Dead Band for Precise Control
Internal DrivetrainMetal Gear Train with Dual Ball Bearings
Voltage CompatibilityWide Volt Operation up to 7.4V
Frequently Asked QuestionsEverything you need to know
What operating voltage does the Hitec HSR-2645CR Wide Volt Digital Continuous Rotation Servo support?
The Hitec HSR-2645CR operates across a wide voltage range from 4.8V up to 7.4V DC, allowing you to direct-power it using standard 2S LiPo or NiMH battery setups without requiring complex regulation.
Is the Hitec HSR-2645CR Wide Volt Digital Continuous Rotation Servo continuous 360-degree rotation?
Yes, the Hitec HSR-2645CR is a non-proportional, continuous rotation servo specifically designed for 360-degree drive systems and ongoing rotation in robotics and custom automated builds.
What gear material is used in the Hitec HSR-2645CR Wide Volt Digital Continuous Rotation Servo?
The Hitec HSR-2645CR features a heavy-duty metal gear train supported by dual ball bearings to handle demanding high-torque loads smoothly and reliably.
Can I program the directional settings on the Hitec HSR-2645CR Wide Volt Digital Continuous Rotation Servo?
Yes, this digital servo features directional programmability along with linear speed control and low deadband settings for precise motion management.
