NAZAH BEC Module
$55.00
Voltage Regulator
11V to 52V Input Range
Dual Output
Provides 7.4V or 5.8V
Lightweight Build
Weighs Just 37 Grams
Essential Heli PowerStable Energy For Autopilot Systems

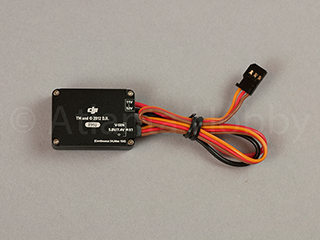

The Naza-H BEC Module is a critical power regulation component designed specifically for the DJI Naza-H flybarless autopilot system. Engineered for high-performance RC helicopter setups, this module conditions battery power to supply clean voltage to vital flight electronics.
Reliable Voltage ConditioningClean Power For Critical Servos
Maintaining clean power delivery is essential for modern RC helicopter flight controllers, and the Naza-H BEC Module ensures maximum efficiency and circuit protection. Capable of handling input voltages from 11V up to 52V, this battery eliminator circuit steps down voltage cleanly to prevent power drops during demanding flight maneuvers, keeping your autopilot system stable and responsive.
Technical SpecificationsDimensions Voltage And Power Ratings
Compatible Vehicles
DJI Naza-H Autopilot System
Part Type
Battery Eliminator Circuit (BEC) (zap)
Input Voltage
11V - 52V
Specified Output
37W (5A@7.4V) / 29W (5A@5.8V) (power)
Power Consumption
0.25W @ 7.4V / 0.375W @ 5.8V
Dimensions
39 x 27.5 x 12.7 mm
Weight
37 g
Operating Temperature
14°F to 122°F (-10°C to 50°C) (thermometer)
Key CapabilitiesEngineered For Peak Heli Performance
Autopilot IntegrationDesigned specifically for the DJI Naza-H flight controller system
Wide Voltage CompatibilityAccepts direct main flight battery input from 11V to 52V
Selectable Output VoltageDelivers stable 7.4V or 5.8V power to connected servos
High Output CapacityProvides up to 37W output power to handle high servo loads
Compact Form FactorLightweight 37g design keeps overall helicopter weight minimal
Thermal EnduranceOperates reliably across temperatures from -10°C to 50°C
Frequently Asked QuestionsEverything you need to know
What is the primary function of the Naza-H BEC Module?
The Naza-H BEC Module regulates power from the main flight battery to supply stable voltage directly to the DJI Naza-H autopilot system and helicopter servos.
What input voltage range can the Naza-H BEC Module accept?
The Naza-H BEC Module supports a wide input voltage range from 11V to 52V, accommodating a variety of multi-cell LiPo battery setups.
Is the Naza-H BEC Module necessary for the Naza-H autopilot system?
Yes, the Naza-H BEC Module is an integral part of the DJI Naza-H autopilot system, ensuring safe voltage levels and preventing power failures to sensitive flight electronics.
