OV-10 Bronco 30cc ARF, 108" with Landing Gear Set
$2,449.99
Skip to product information
OV-10 Bronco 30cc ARF, 108" with Landing Gear Set
$2,449.99
Giant Scale

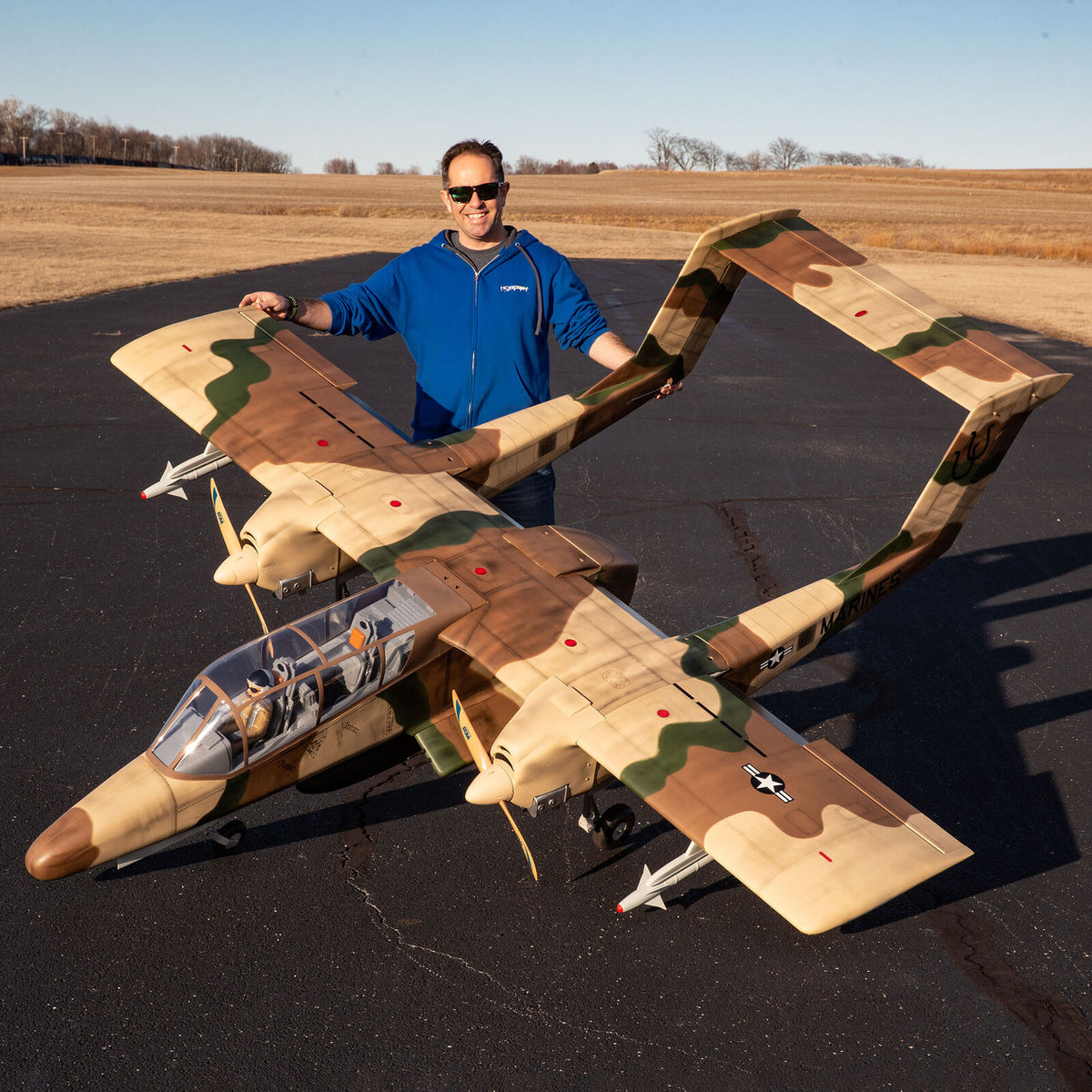

Massive 108 Inch Wingspan
Twin Power
Gas or Electric Compatible
Scale Finish
Printed Covering and Detailing
Retracts Included
Electric Landing Gear Set
ARF Format
Almost Ready To Fly
Functional Flaps
4 Panel Scale Linkages
Legendary Twin WarbirdMaster the Giant Scale Skies

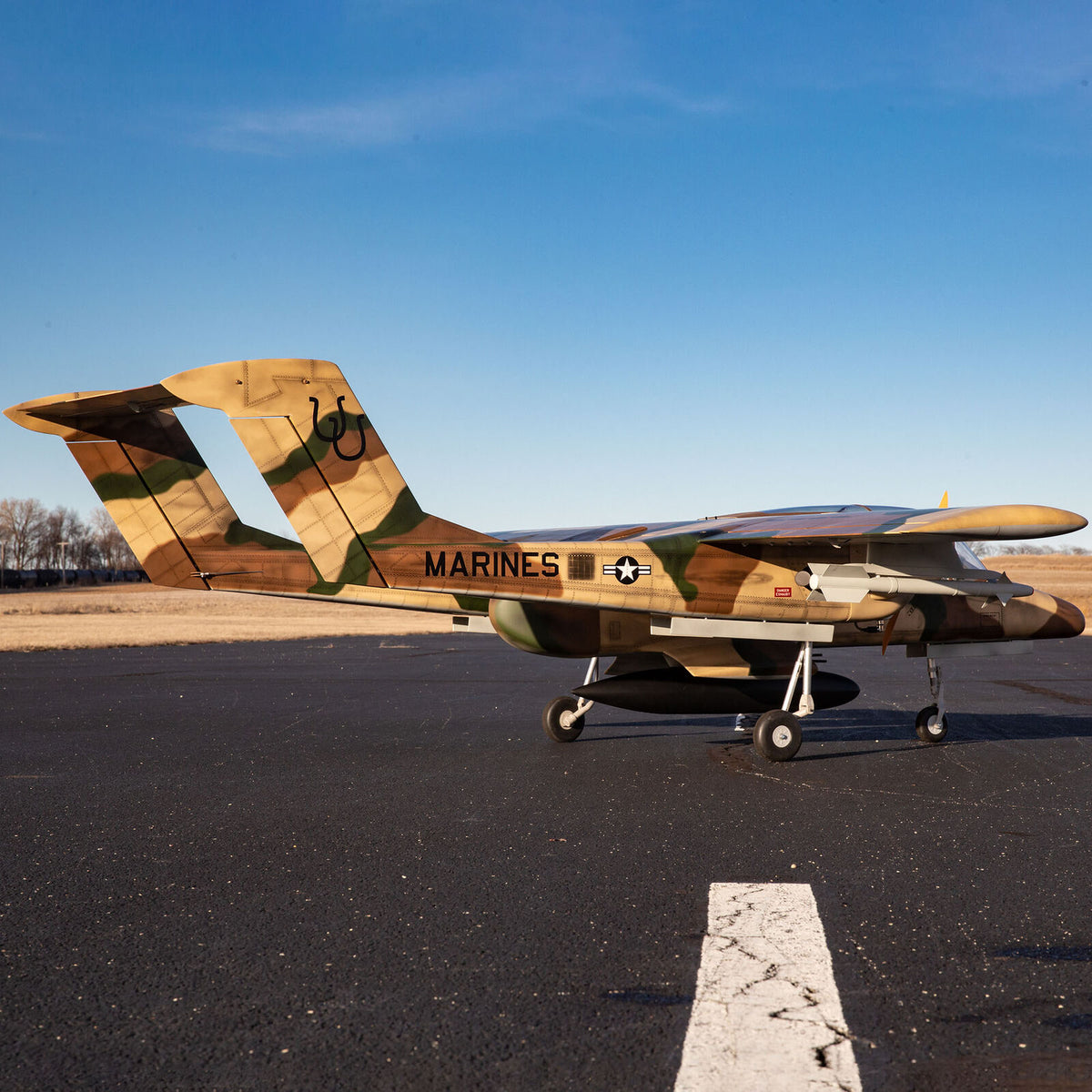

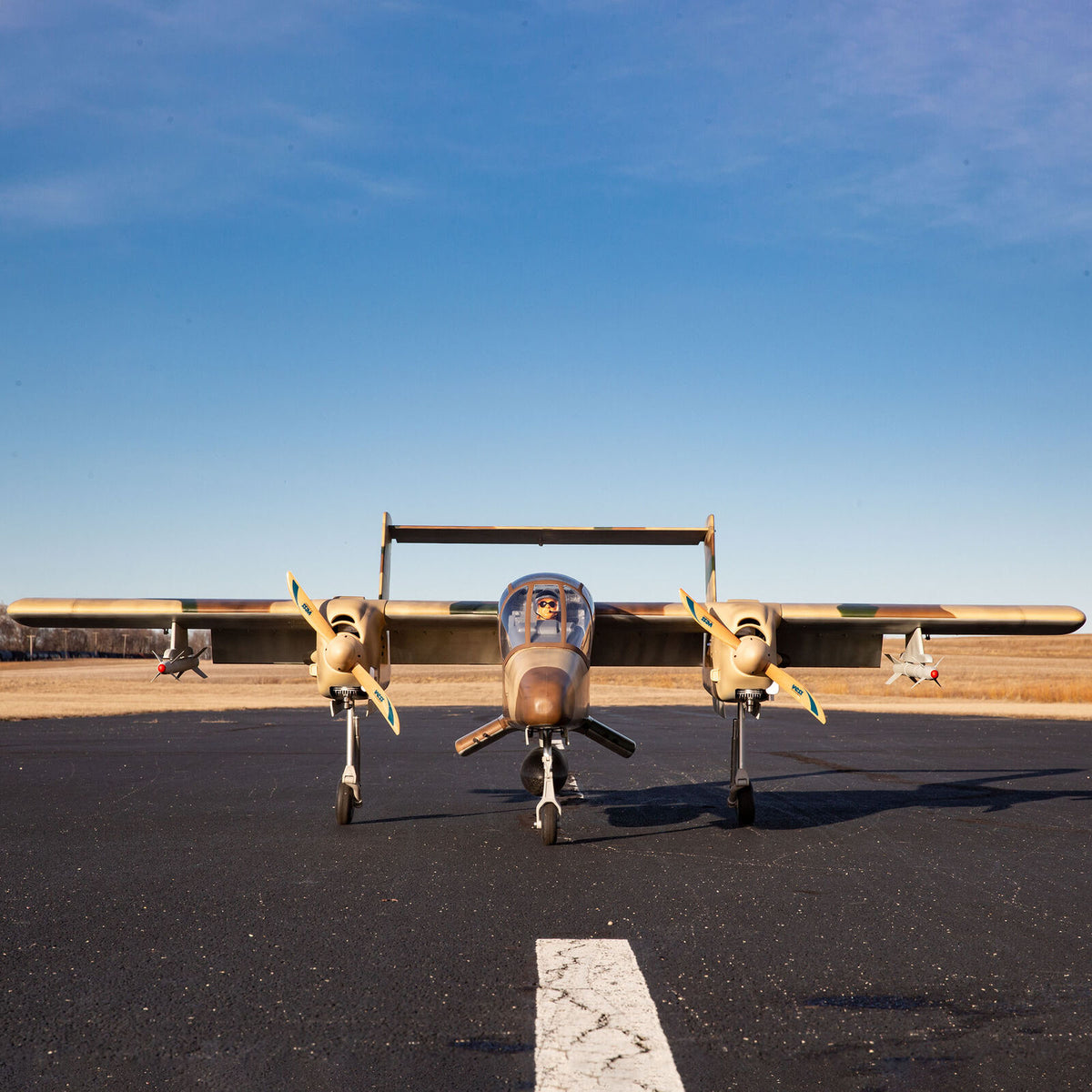

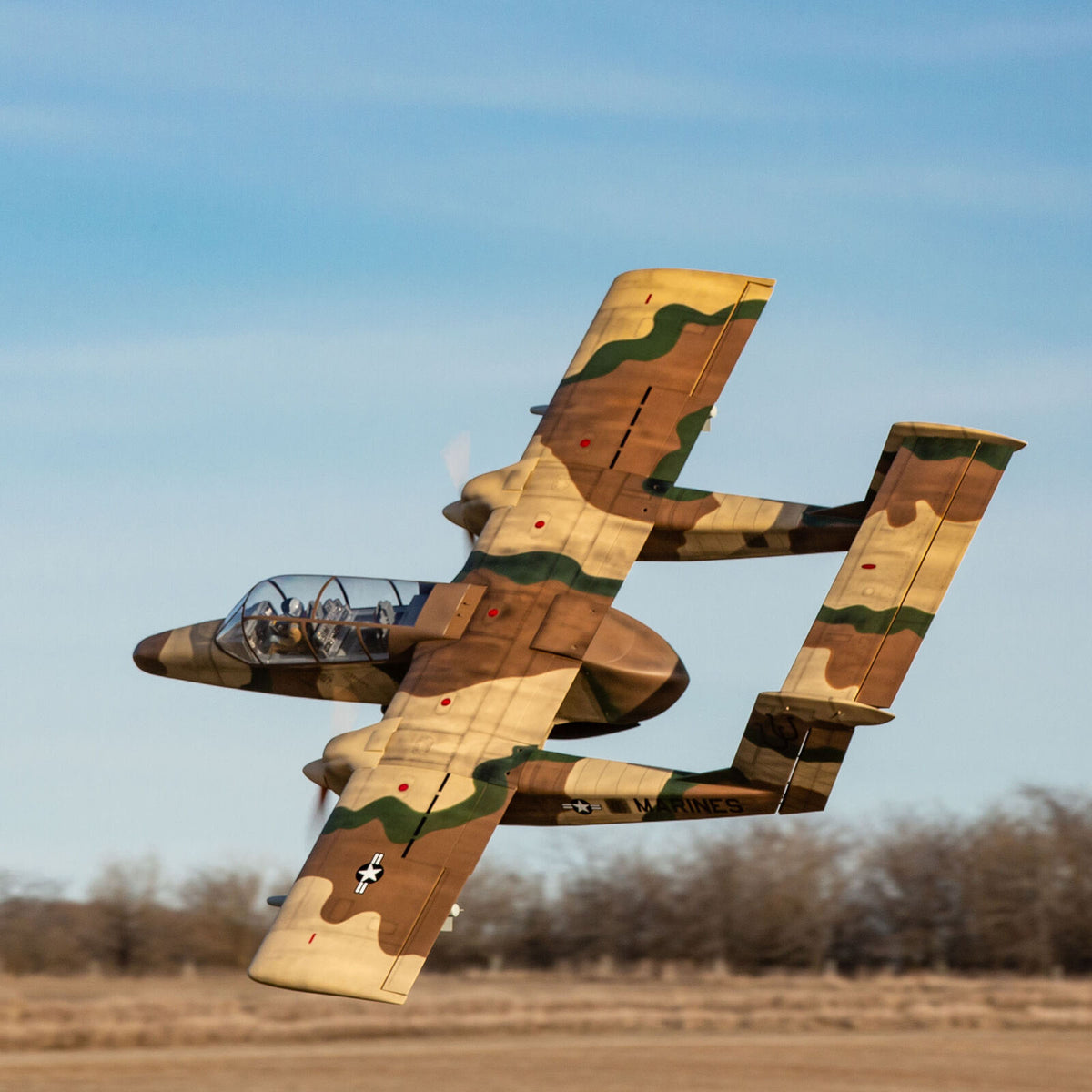

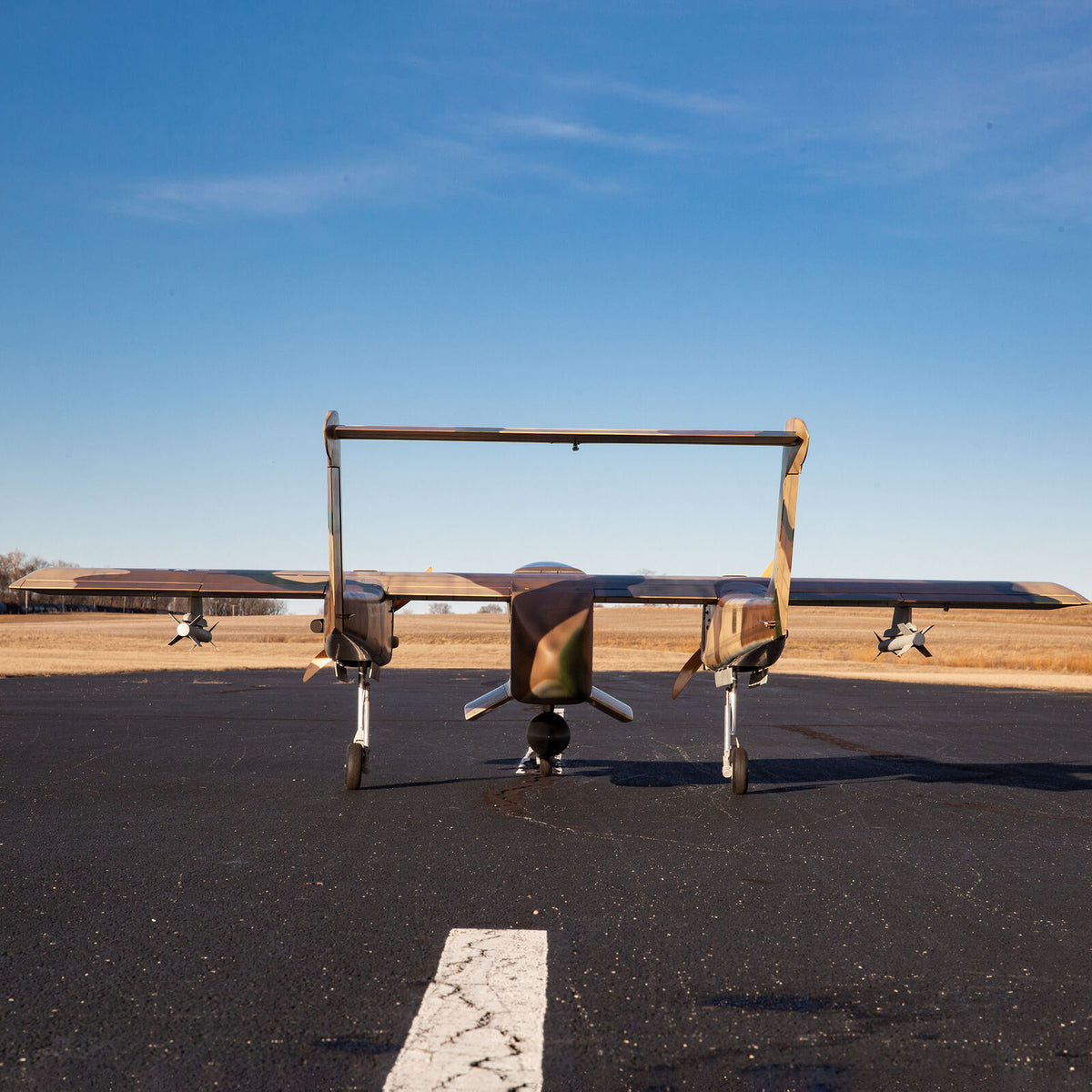

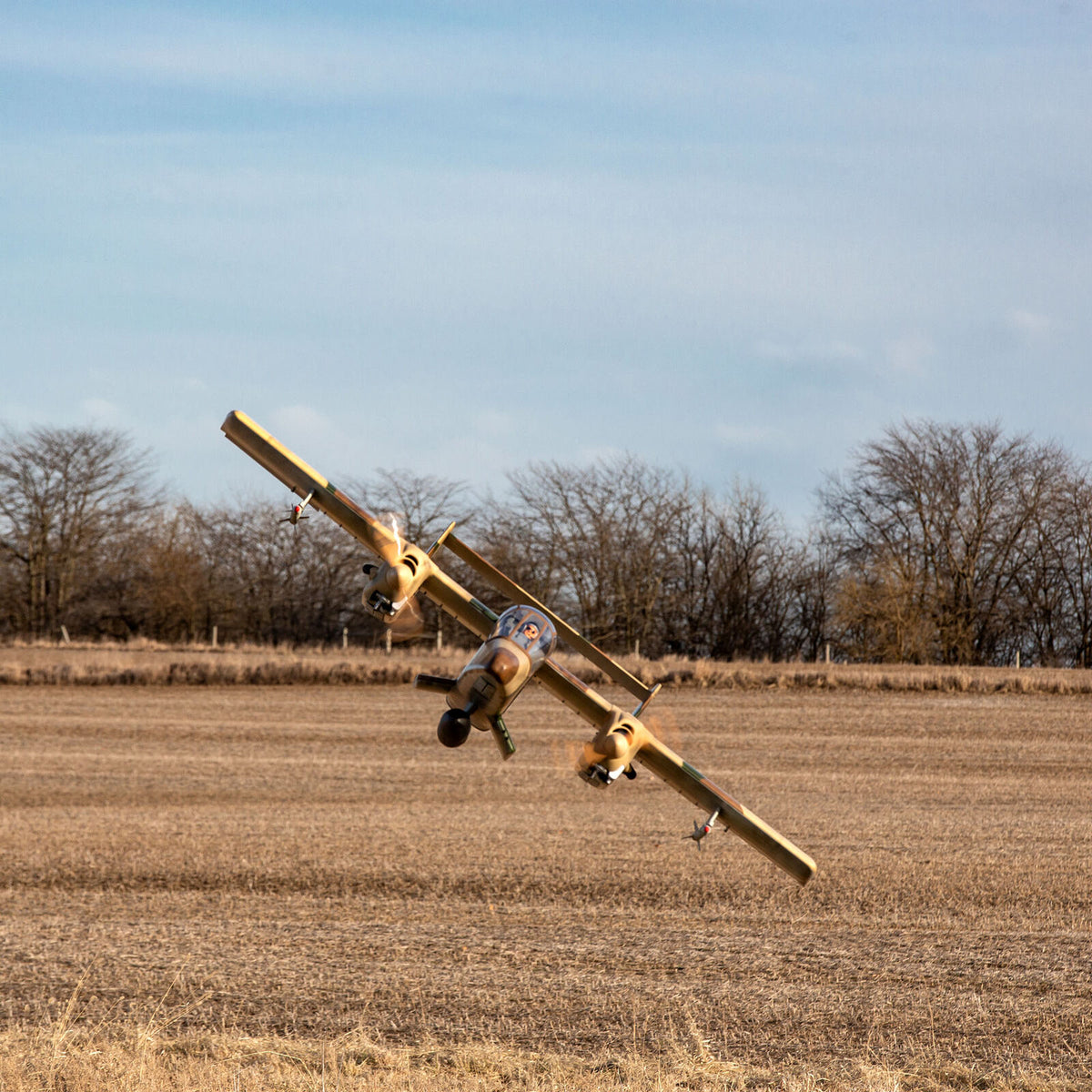

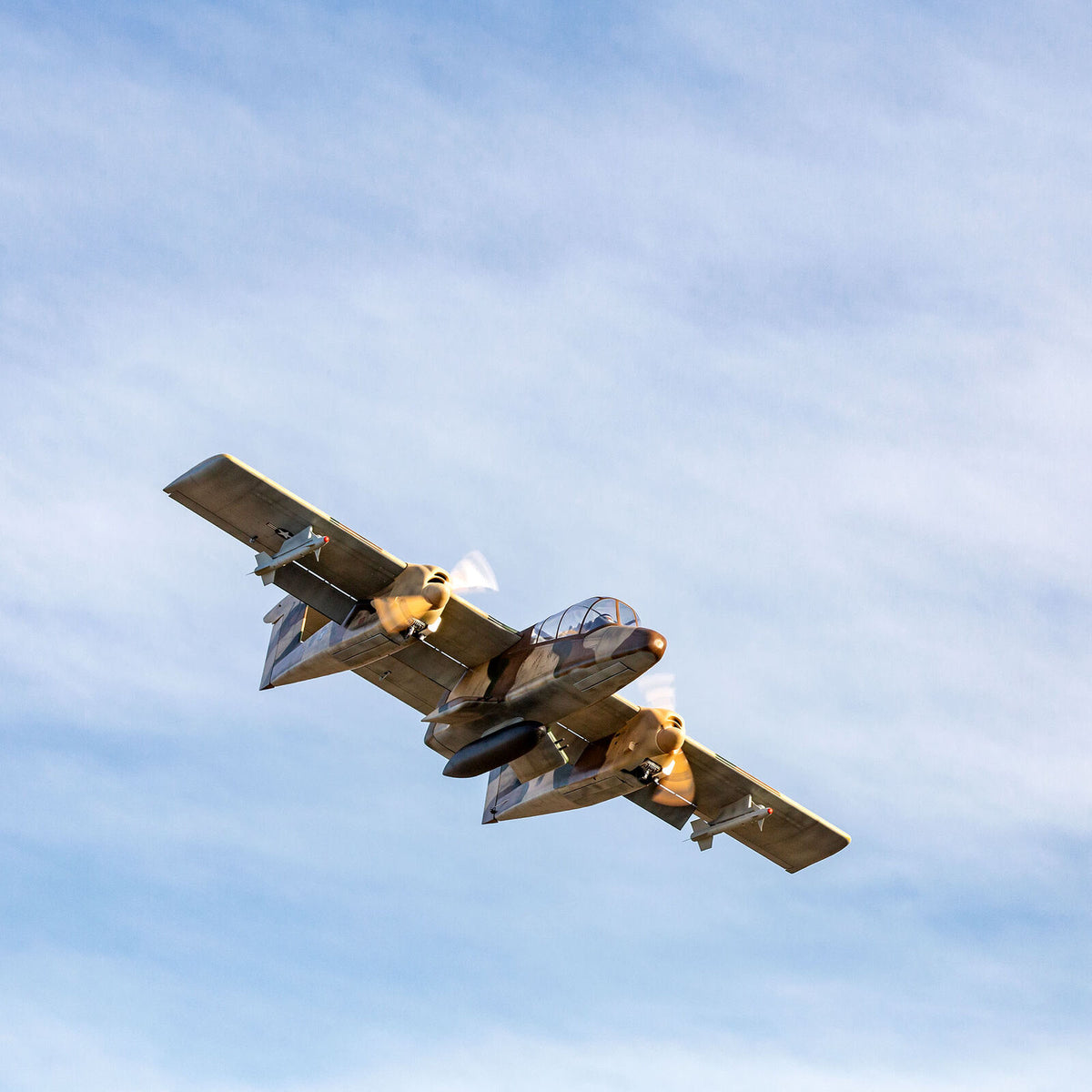

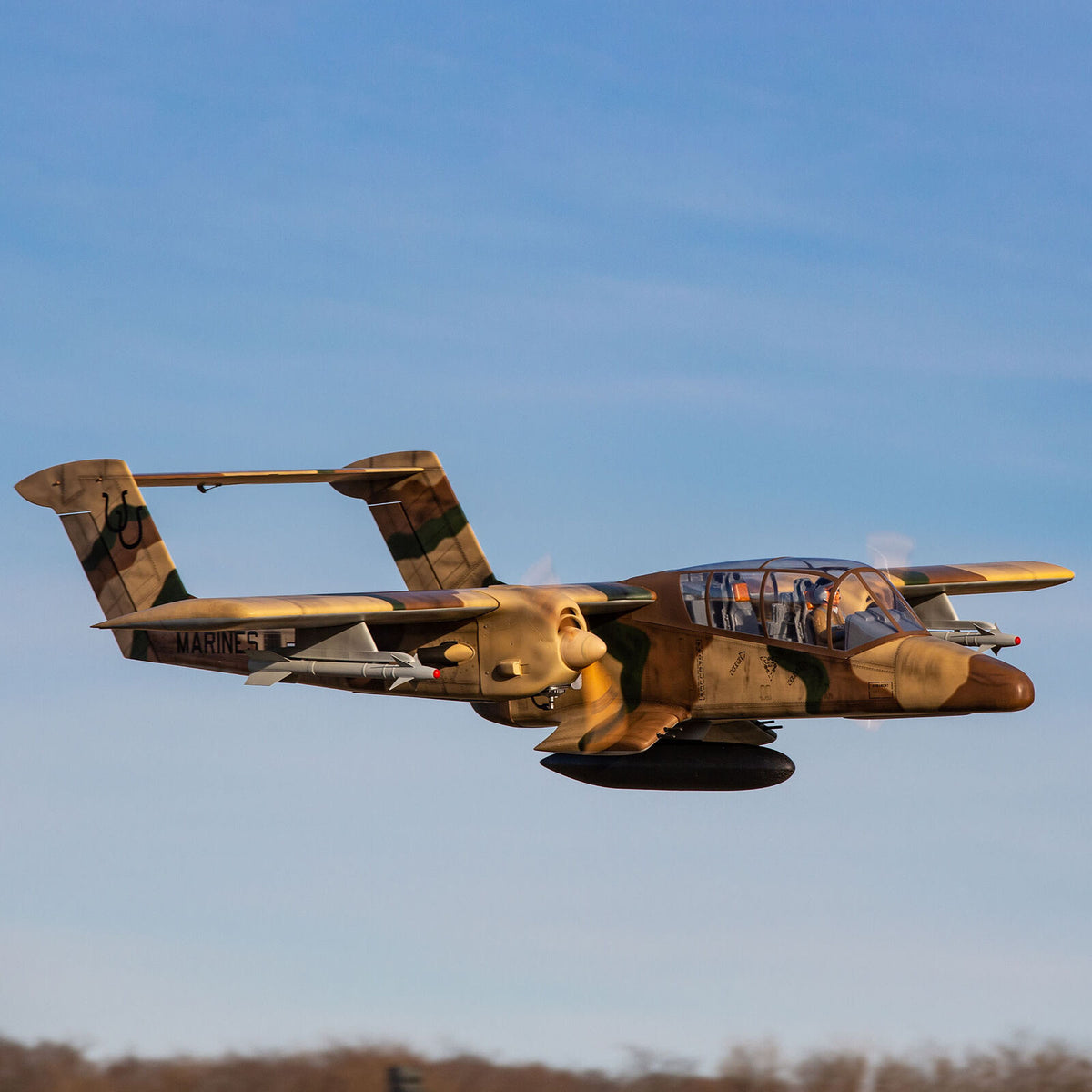

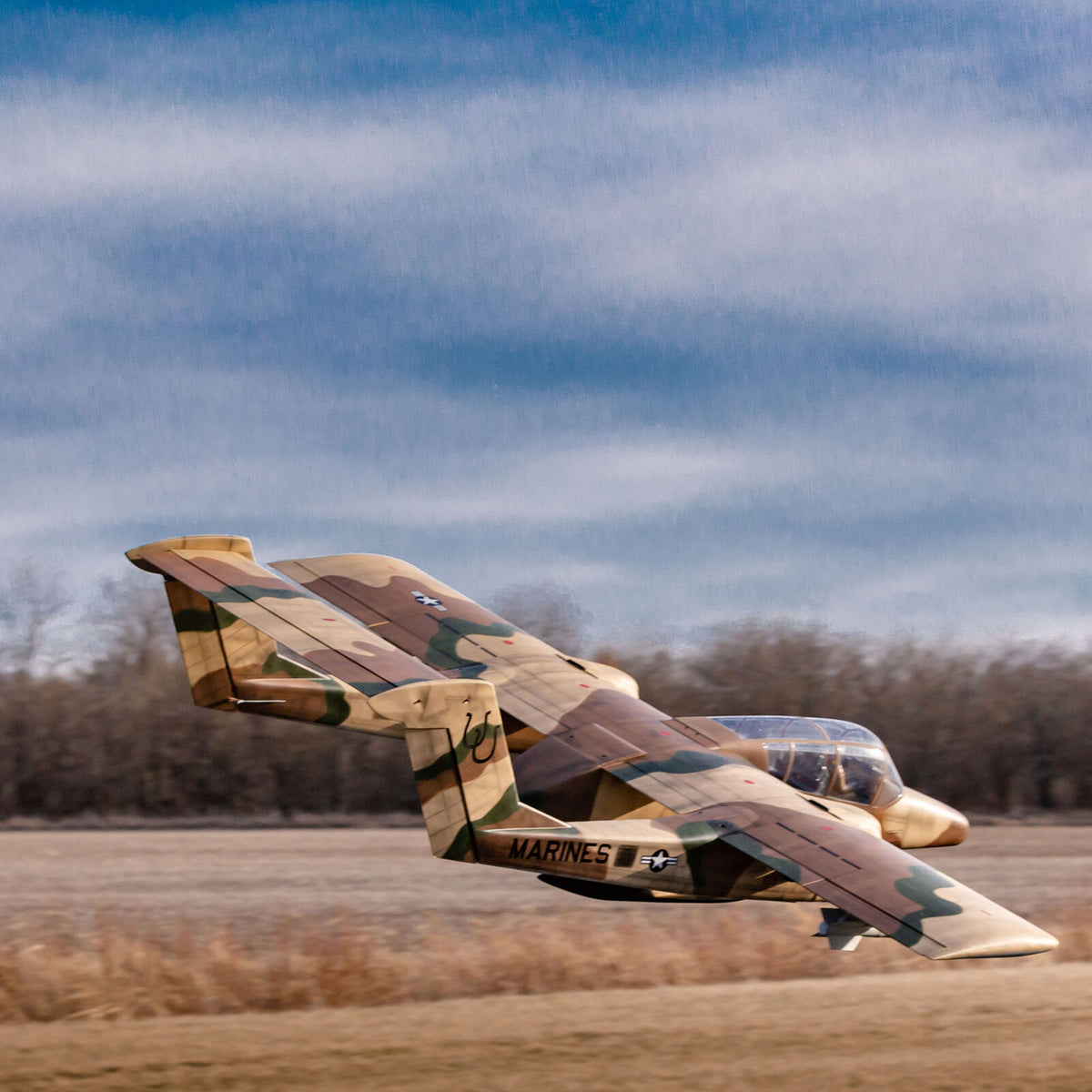

The Hangar 9 OV-10 Bronco 30cc ARF brings the iconic twin-engine military observation platform to life in an impressive giant scale RC plane format. Featuring a massive 108-inch wingspan, pre-installed scale details, and versatile gas or electric power options, this model offers unmatched presence and performance at the airfield. Engineered for maximum reliability, it delivers a unique multi-engine flying experience for experienced aviators.
Unmatched Scale RealismPrecision Engineering Meets Military Heritage
Designed for experienced giant-scale warbird pilots, the Hangar 9 OV-10 Bronco 30cc ARF delivers an authentic flight experience paired with exceptional scale realism. Built from lightweight, laser-cut balsa and plywood, this scale warbird features a satin-finish printed covering complete with panel lines, rivets, and realistic weathering. The model includes painted fiberglass cowlings, functional four-panel flaps, and an included electric retract landing gear set. Whether powered by twin 30cc gas engines or equivalent high-power brushless motor setups, the three-piece plug-in wing ensures easy transportation while delivering dominant performance in the air.
Technical SpecsDetailed Airframe and Power Specifications
Completion Level
Almost Ready-To-Fly
Wingspan
108" (2743 mm) (ruler)
Overall Length
113" (2870 mm) (ruler)
Flying Weight
40 - 42lbs (18.1 - 19.05kg) (weight)
Motor Size
120 - 180 electric required or 30cc Gas Engine
Speed Control
Sold Separately (100A Minimum) (zap)
Radio
12+ Channel full range required
Servos
Sold Separately (1 HV Metal Gear, 9 HV High Speed) (gear)
CG (Center of Gravity)
6.5" (165mm) (target)
Recommended Battery
6S-12S 5000-10000mAh LiPo
Assembly Time
20+ hours
Flaps
Yes
Retracts
Included (electric retracts) (shield)
Material
Wood (laser-cut balsa/plywood) (box)
Airfoil Shape
Semi-symmetrical
Prop Range
17 - 20"
Spinner Size
3.75" (95 mm) (circle)
Wing Area
15.75 sq in (1.017 sq dm) (grid)
Wing Loading
42.66 oz/sq ft (130.2 g/sq dm) (scale)
Airframe FeaturesEngineered for Performance and Precision

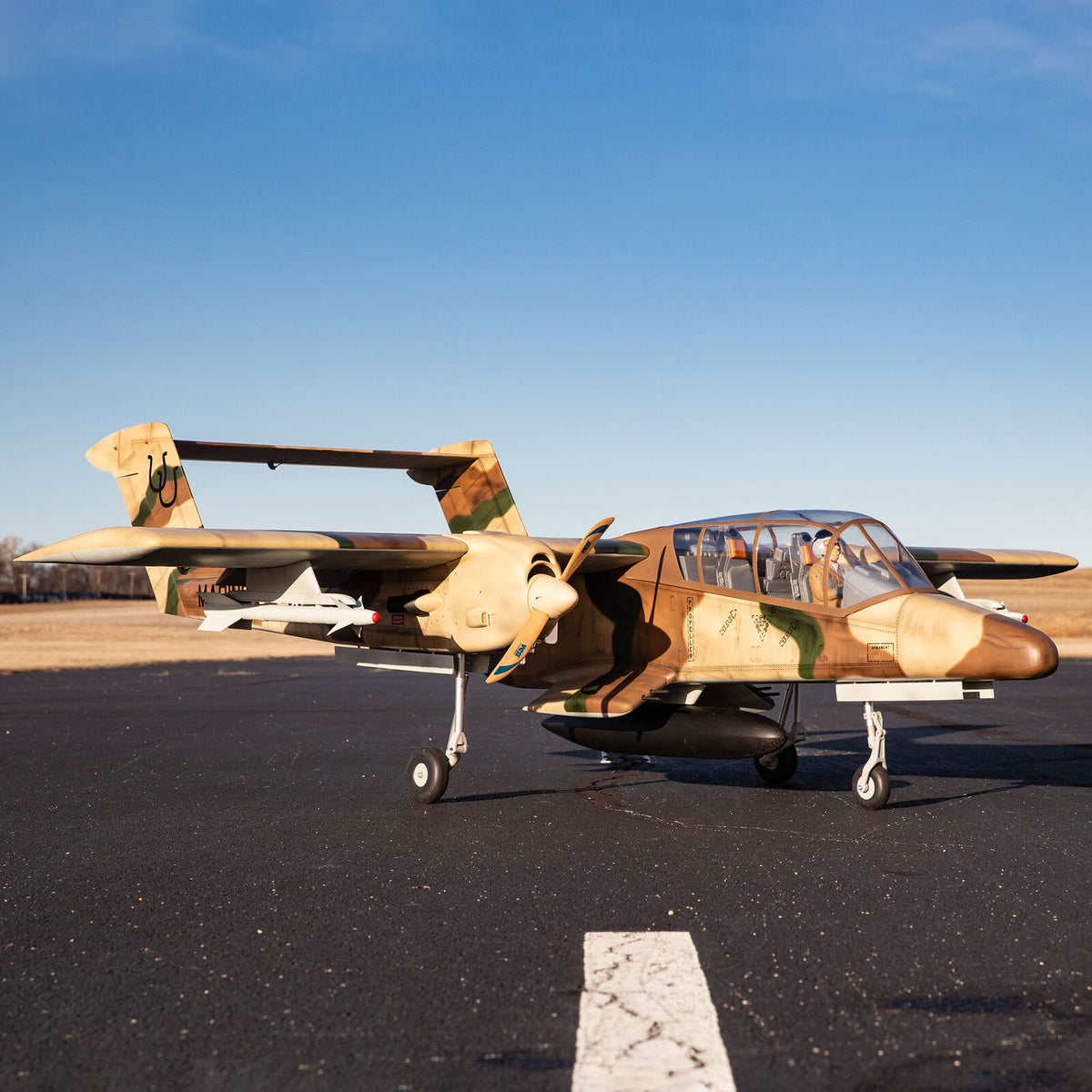

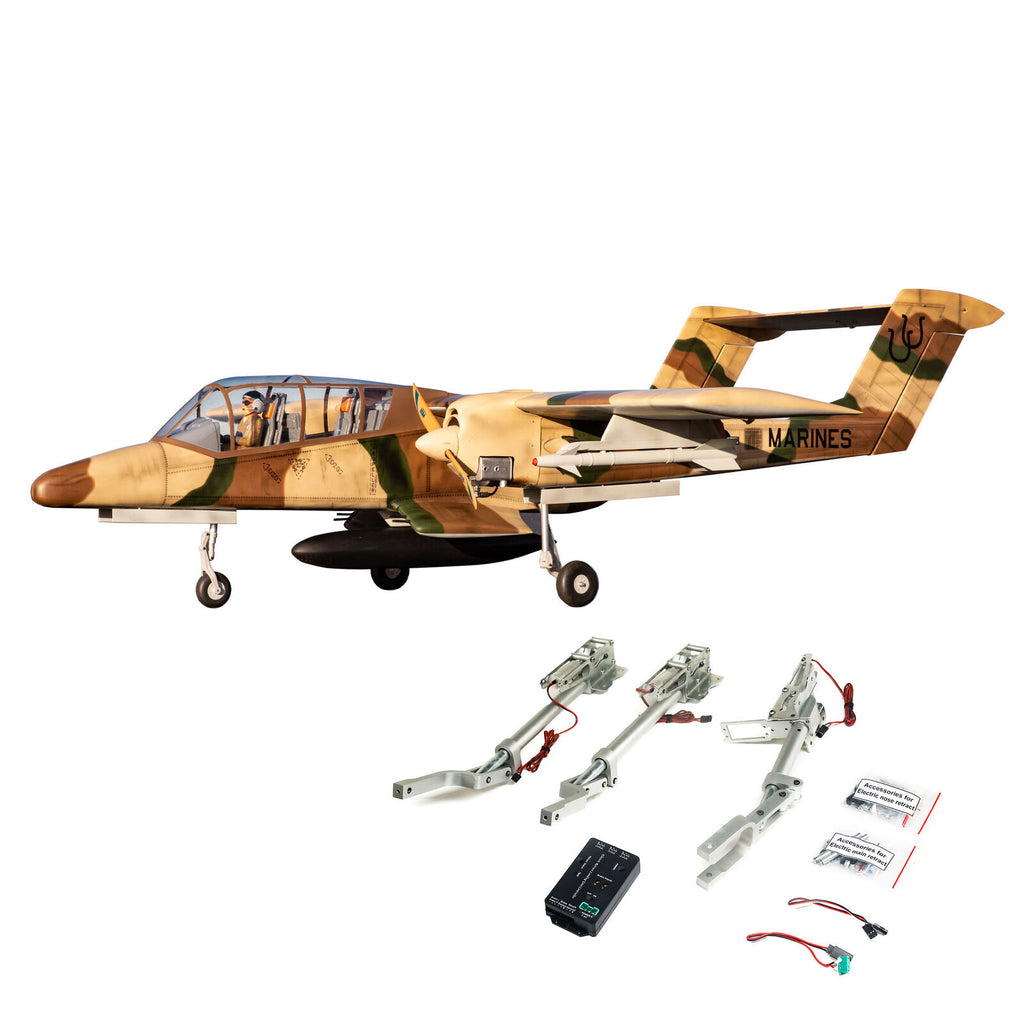

Included GearHangar 9 electric retract set with scale struts

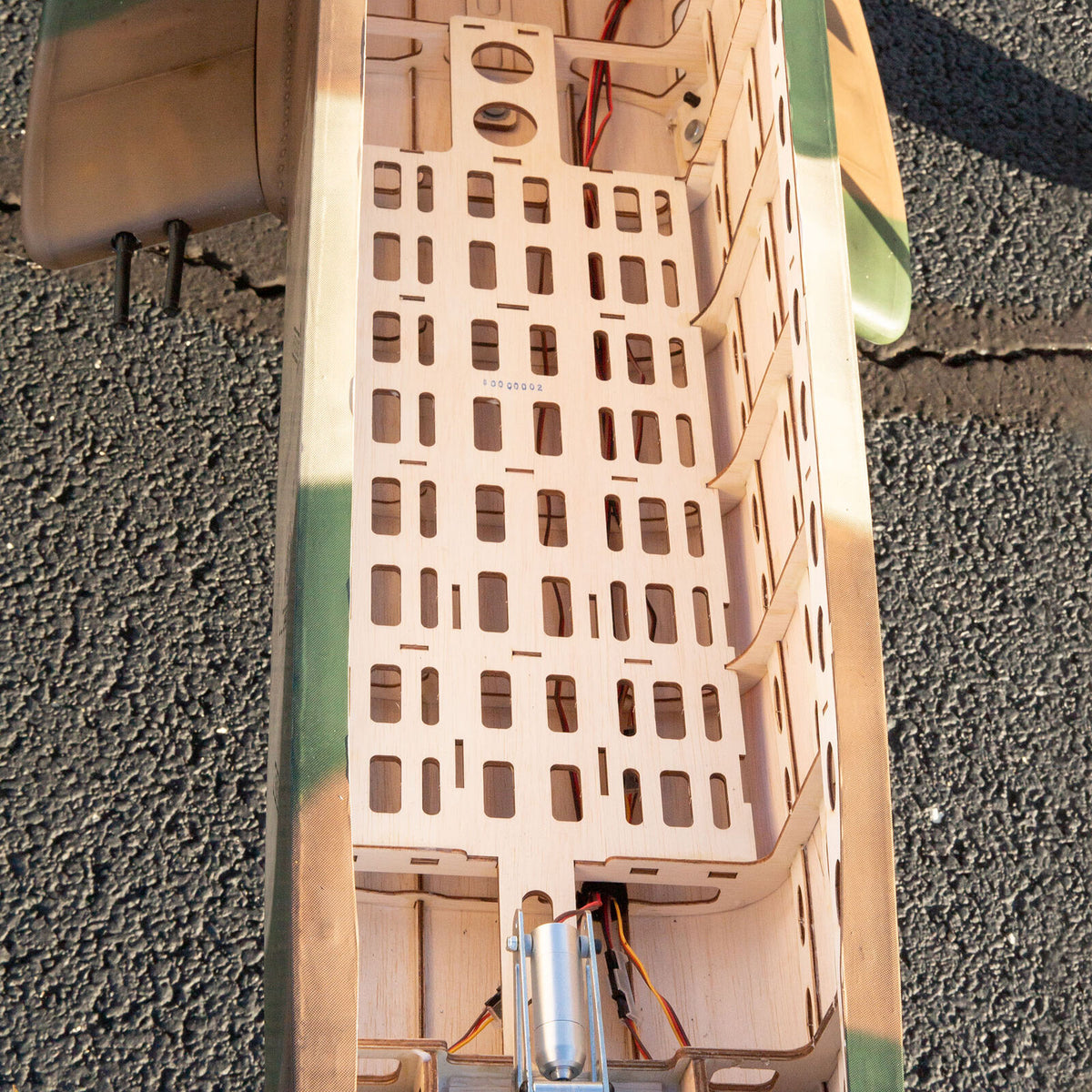

ConstructionExpertly crafted laser-cut balsa and plywood airframe

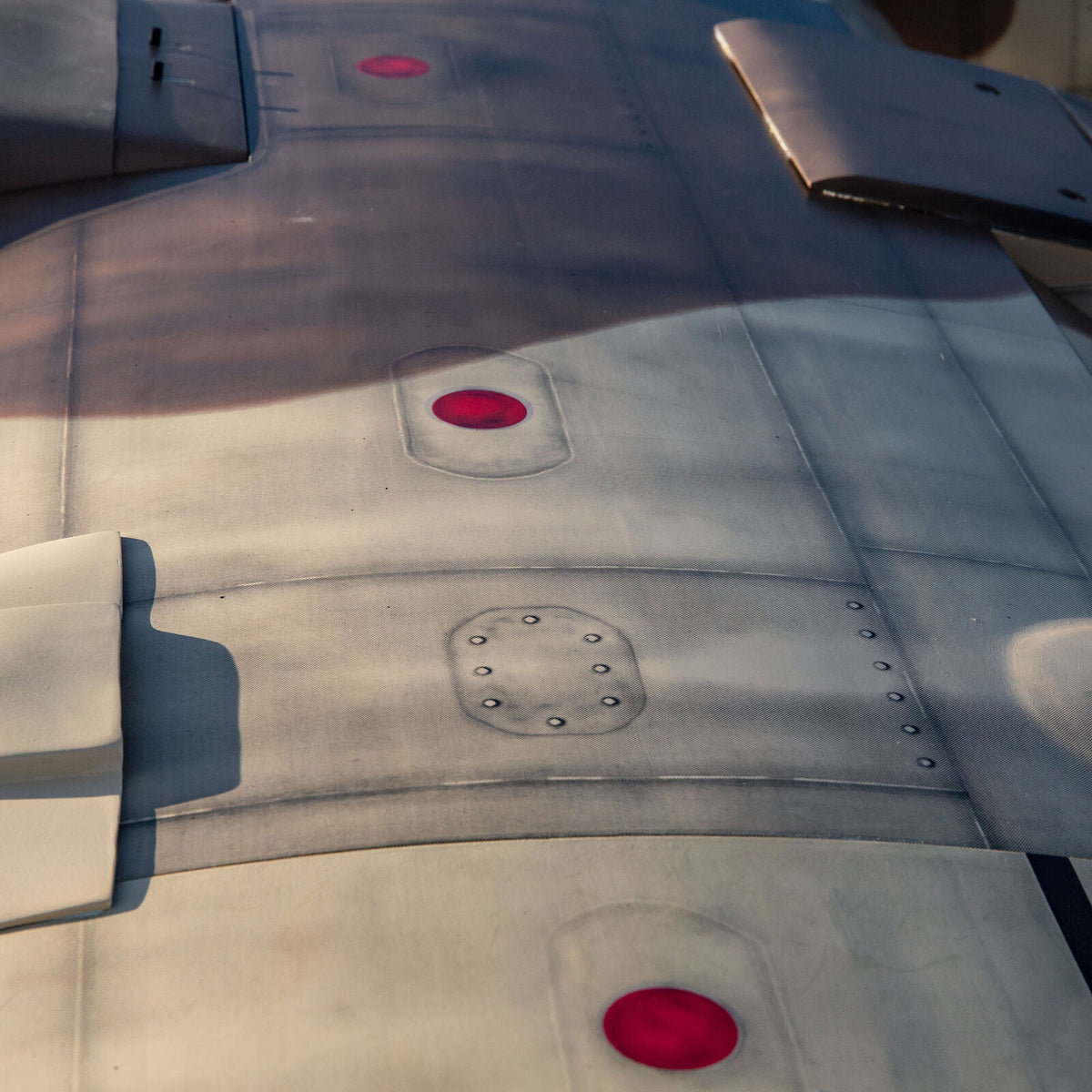

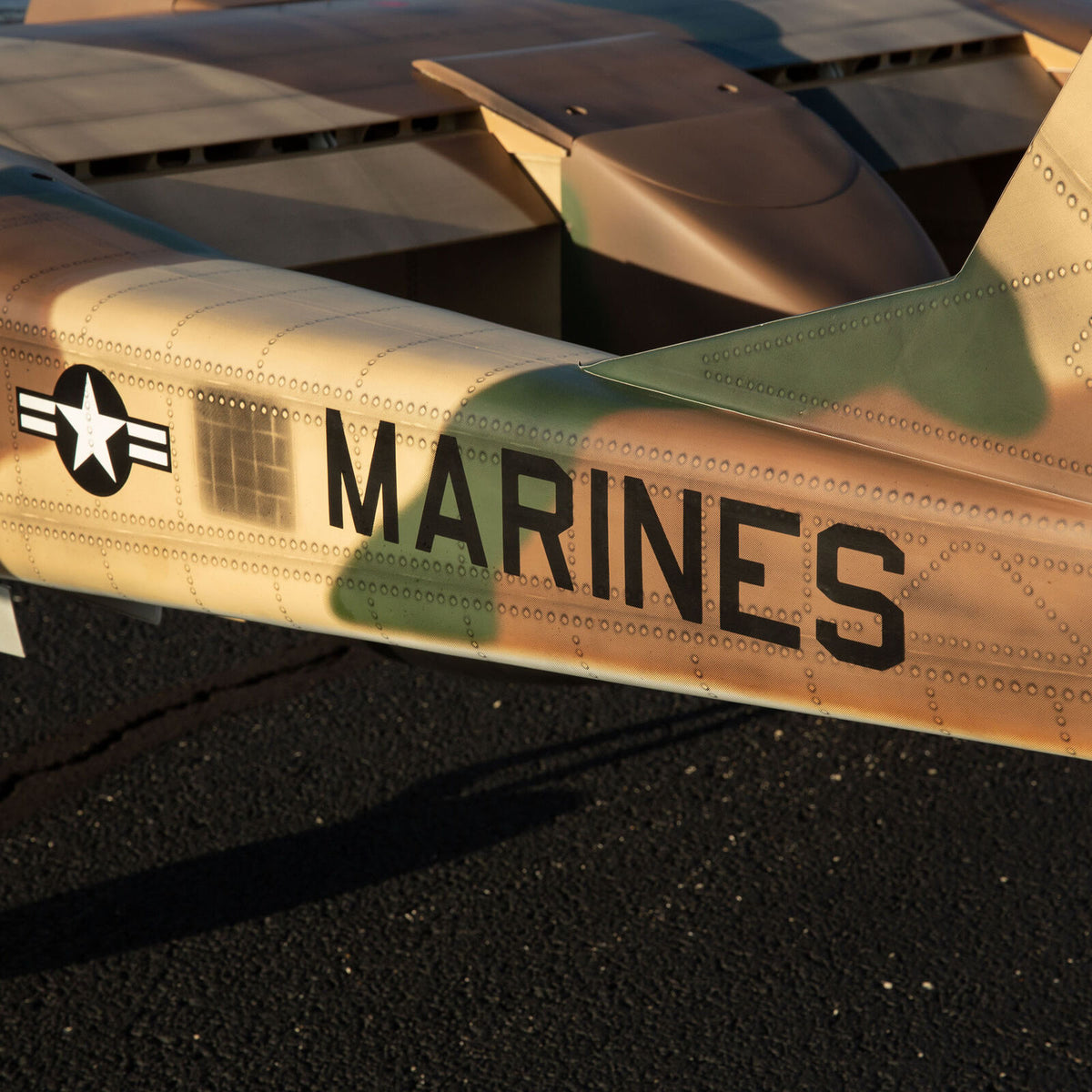

CoveringFinely detailed satin-finish with panel lines and weathering
Wing Design3-piece plug-in wing for easy transport and setup

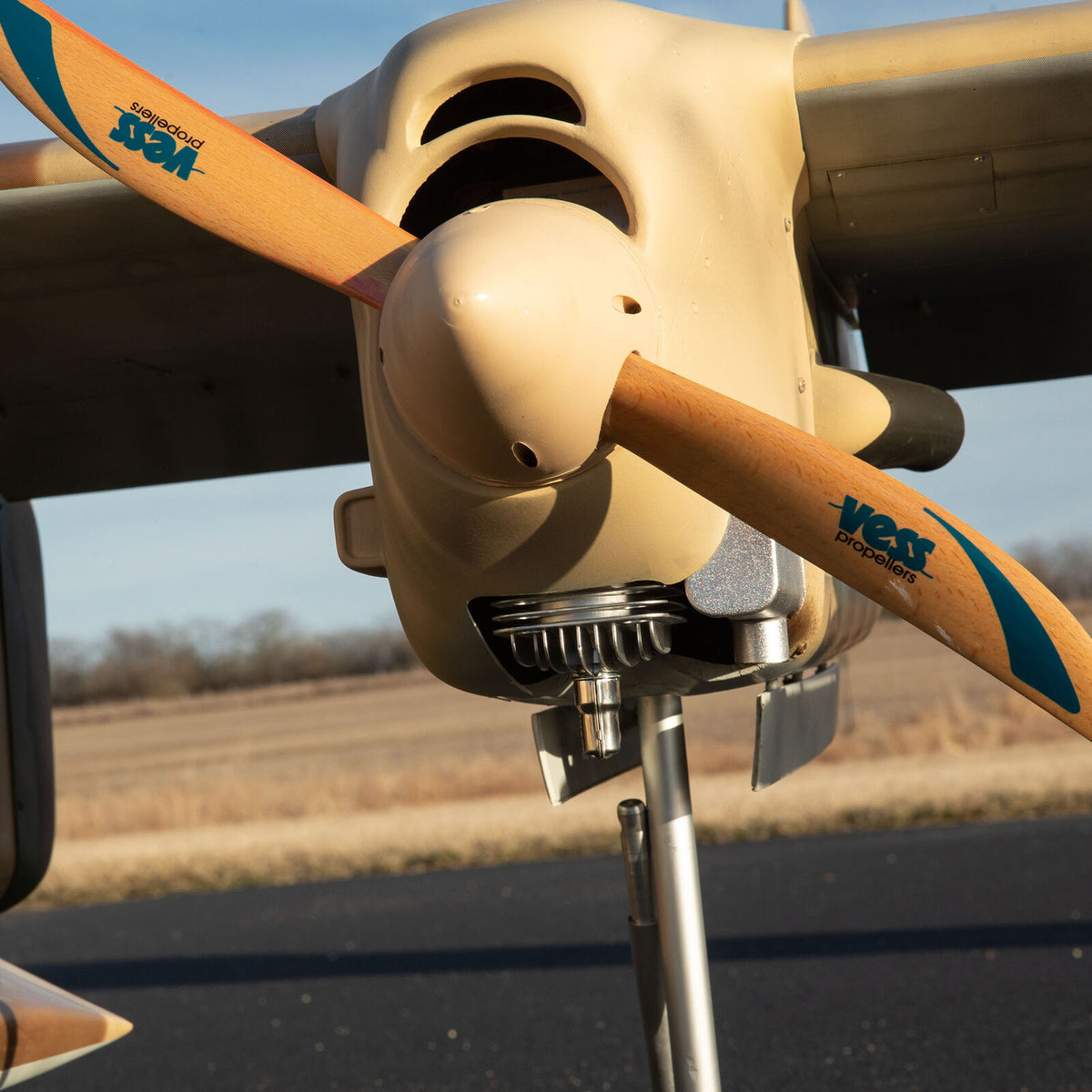

Power CompatibilityFits dual 30-35cc gas engines or electric equivalents

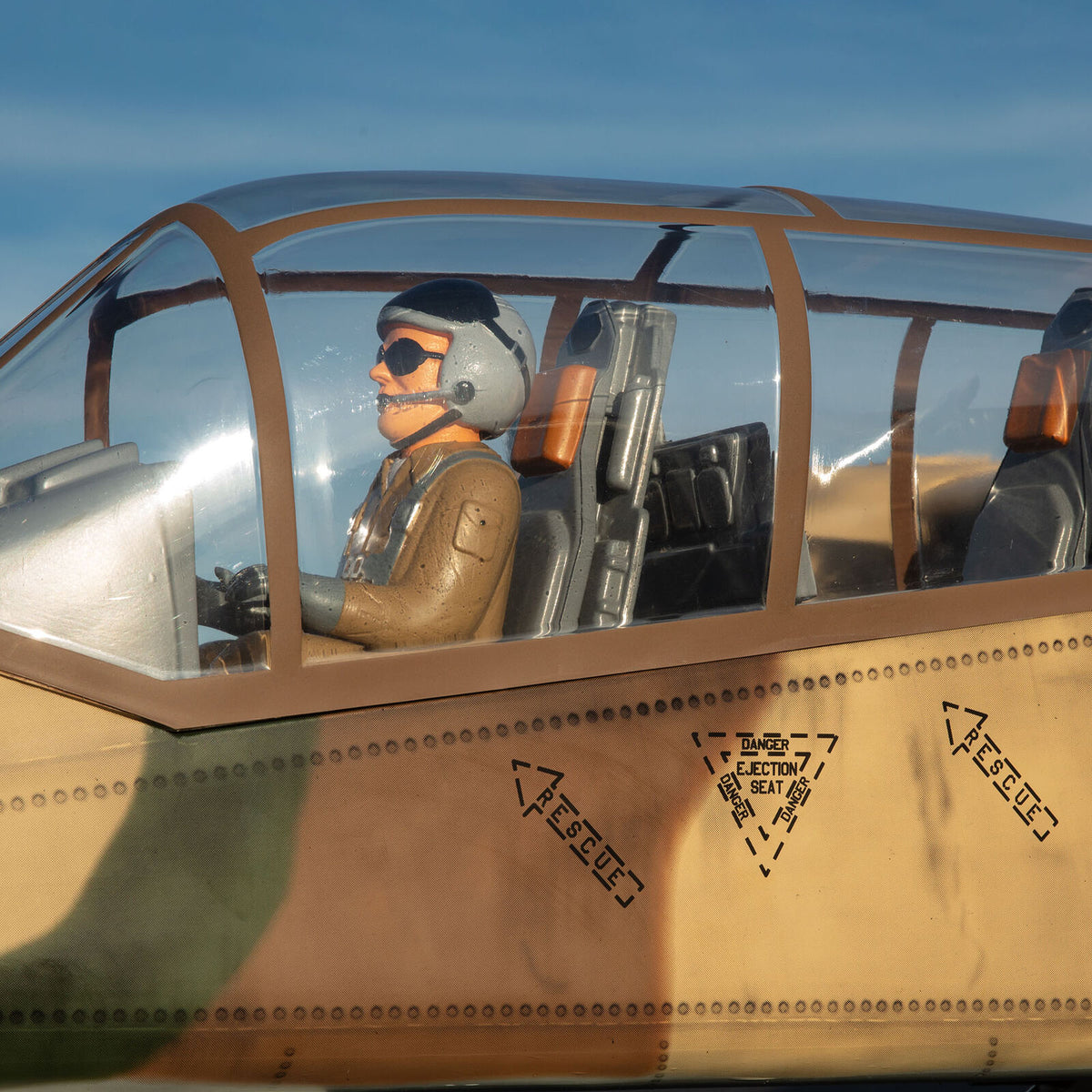

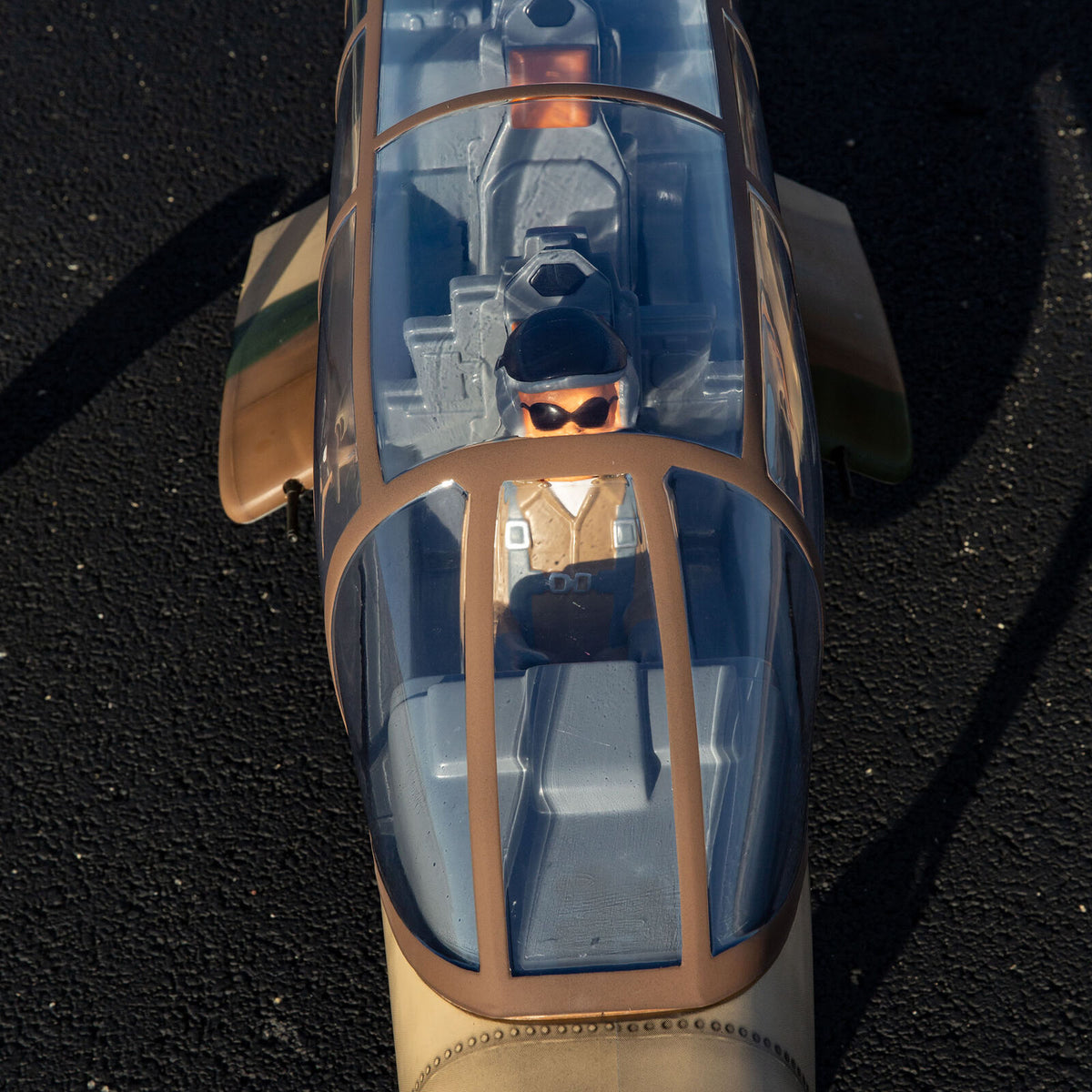

Cockpit DetailIncludes painted pilot figure and 3D instrument panel
Control SurfacesFunctional 4-panel flaps using internal linkages

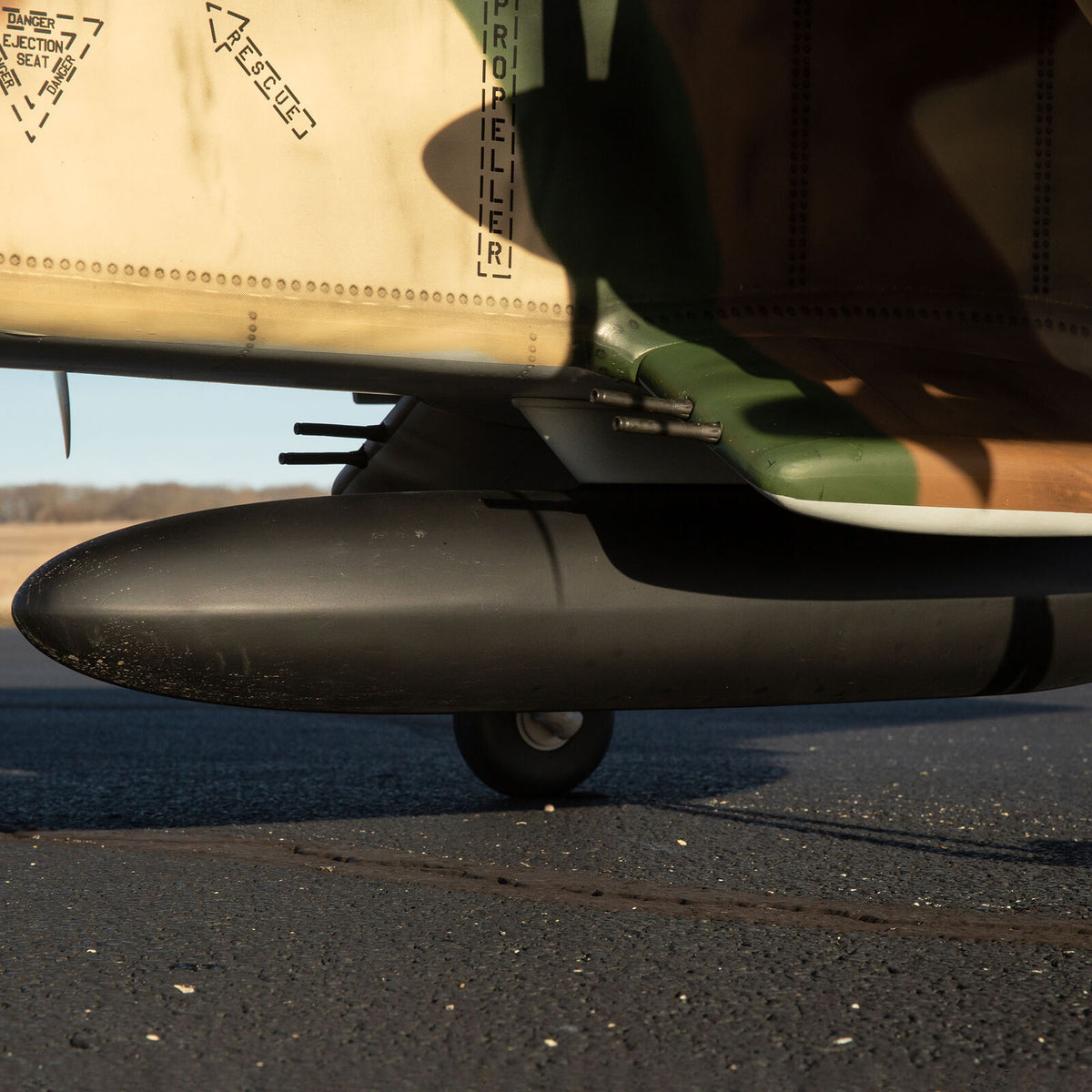

Scale AccessoriesIncludes guns, sidewinder missiles, and drop tank
Frequently Asked QuestionsEverything you need to know
What power system is required for the Hangar 9 OV-10 Bronco 30cc ARF?
The Hangar 9 OV-10 Bronco 30cc ARF requires two 30cc to 35cc gas engines or an equivalent twin brushless electric motor setup with 100A+ ESCs running on 6S-12S LiPo batteries.
Does this edition of the Hangar 9 OV-10 Bronco 30cc ARF include landing gear?
Yes, this combo set includes the official Hangar 9 electric retract landing gear system with shock-absorbing scale struts.
How easy is it to transport the Hangar 9 OV-10 Bronco 30cc ARF?
Despite its large 108-inch wingspan, the Hangar 9 OV-10 Bronco 30cc ARF features a 3-piece plug-in wing design with a center section that holds the landing gear, allowing for convenient transport and quick field assembly.
What level of pilot experience is required for the Hangar 9 OV-10 Bronco 30cc ARF?
This model is rated Skill Level 3 and is intended for experienced RC pilots who have prior experience handling multi-engine scale aircraft or giant-scale warbirds.
