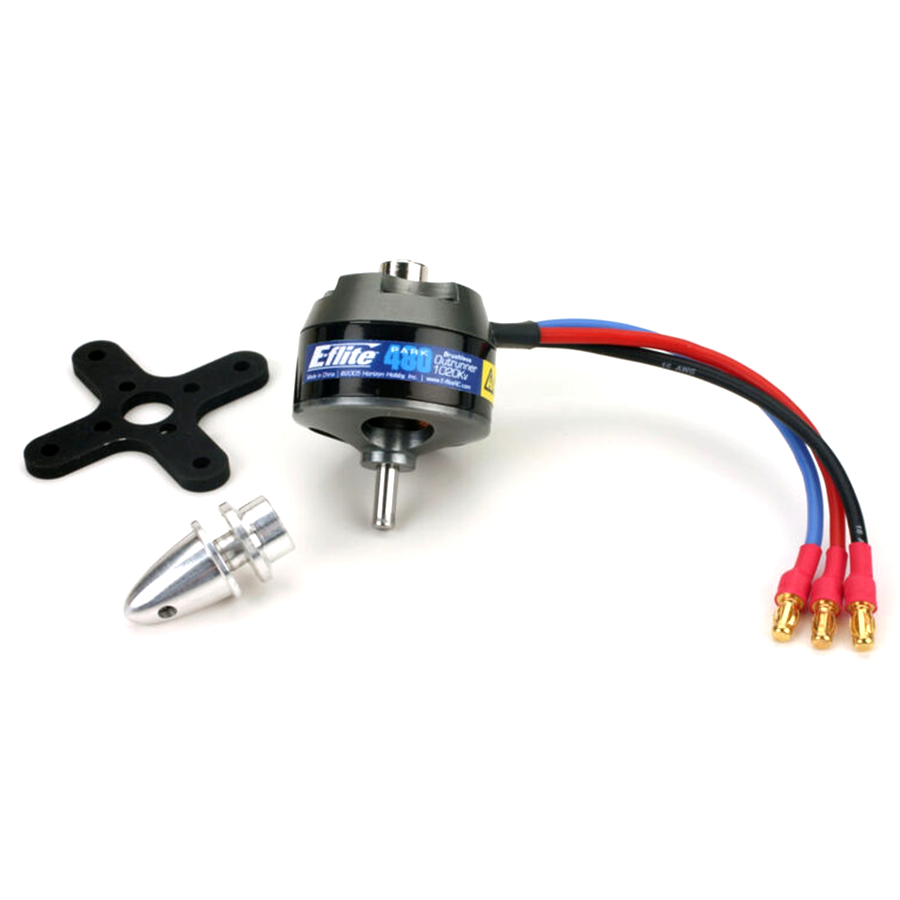

Park 480 Brushless Outrunner Motor, 1020Kv

Key Features:
• Perfect match for 3D park flyers weighing 20–30 oz (565–850 g)
• Ideal for scale park flyers 25–35 oz (710–990 g)
• Ideal for models requiring up to 275 watts of power
• High-torque, direct-drive alternative to inrunner brushless motors
• Includes mount, prop adapters, and mounting hardware
• External rotor design—4mm shaft can easily be reversed for alternative motor installations
• Slotted 12-pole outrunner design
• High-quality construction with ball bearings and hardened steel shaft
• Quiet, lightweight operation

Overview:
The Park 480 Brushless Outrunner motor is designed to deliver clean and quiet power for 3D park flyers weighing 20 to 30 ounces (565 to 850 grams), scale park flyers weighing 25 to 35 ounces (710 to 990 grams), or models requiring up to 275 watts of power. It’s an especially good match for E-flite's Mini Edge 3D ARF (EFL2225) and Mini Funtana 3D ARF (EFL2075), and it would provide extreme power for sport park flyers such as the Mini Ultra Stick ARF (EFL2250).

Specifically this 1020Kv option can handle more current than the 920Kv version, so it is more efficient when matched with the Thunder Power Pro-Lite cells.

Needed to Complete:
- 25A–40A brushless ESC
- 2S–3S Li-Po or 6- to 10-cell Ni-MH/Ni-Cd
- 10x6–12x6 propeller

Continuous Current: 21 - 30A
Application: Airplane
Bearings or Bushings: One 4 x 9 x 4mm Bearing and One 4 x 10 x 4mm Bearing
Cells: 6–10 Ni-Cd/Ni-MH or 2–3S Li-Po
Idle Current (Io): 1.10A @ 8V
Maximum Burst Current: 28A (15 sec)
Motor Design: Outrunner
Overall Diameter: 35mm (1.40 in)
Overall Length: 33mm (1.30 in)
Power Plant Size: 450-480 Electric
Recommended Prop Range: 10x7 to 12x6
Resistance (Ri): .06 ohms
RPM/Volt (Kv): 1020
Shaft Diameter: 4mm (.16 in)
Size: Park flyer
Speed Control: 25A to 40A brushless
Type: Brushless outrunner
Voltage: 7.2 to 12
Weight: 87 g (3.1 oz)
Wire Gauge: 16
