Power 52 Outrunner<br>590 Kv
$152.99
Skip to product information

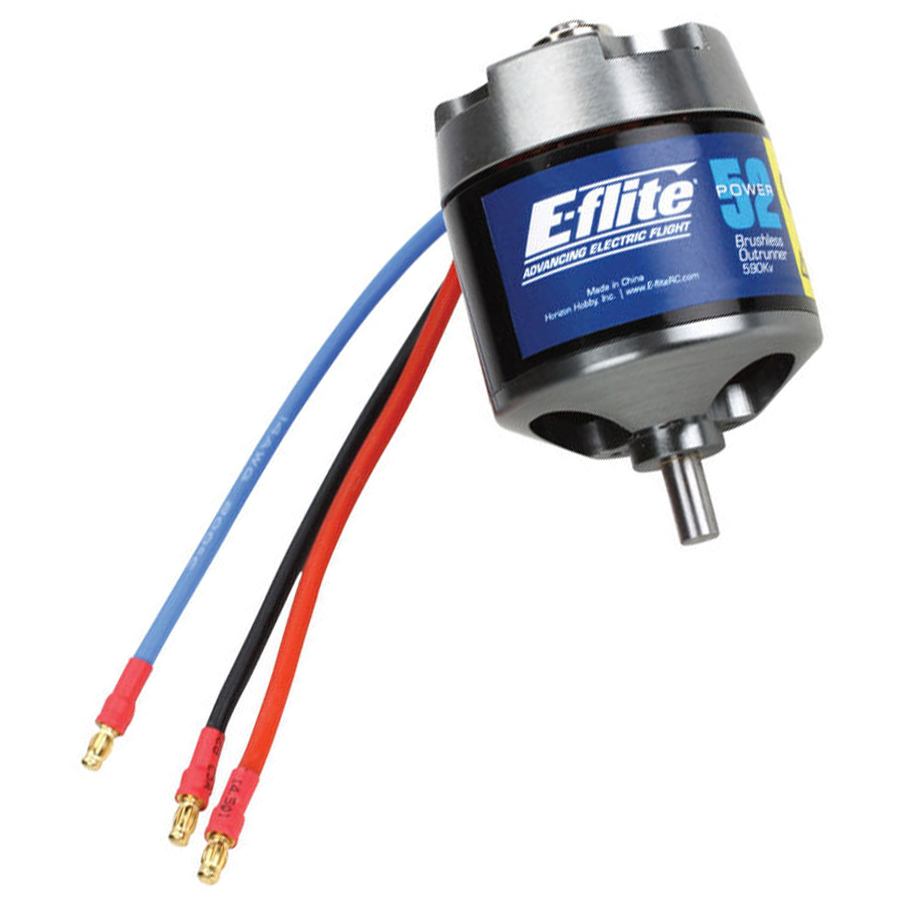

Power 52 Outrunner
Power 52 Outrunner
590 Kv
$152.99
High Power Output
Delivers Up To 1650 Watts
Glow Equivalent
Replaces 46 To 55 Glow
High Torque
590Kv Brushless Outrunner Performance
Reversible Shaft
6mm Hardened Steel Shaft
Bullet Connectors
Preinstalled 4mm Gold Bullet
Smooth Operation
High Quality Ball Bearings
Clean Electric PropulsionHigh Torque for RC Airplanes
Experience smooth and quiet power with the Power 52 Brushless Outrunner Motor, 590Kv: 4mm Bullet. Engineered as a high-performance RC plane motor, it serves as an ideal direct-drive alternative for 40- to 50-size sport, scale, and 3D aerobatic models requiring up to 1650 watts of electric output.
Aerobatic & Sport Power plantReliable Performance for Model Aviation
The Power 52 Brushless Outrunner Motor, 590Kv: 4mm Bullet provides equivalent power to a .46- to .55-size glow engine without the mess or noise of nitro fuel. Featuring a high-torque slotted 14-pole brushless motor design, this outrunner handles 5.0 to 7.5 lb sport aircraft and up to 6.0 lb 3D aircraft with ease. The motor includes high-quality ball bearings, a hardened steel 6mm shaft that can easily be reversed for flexible motor mounting, preinstalled 4mm bullet connectors, and all necessary mounting hardware to elevate your electric model airplane setup.
Motor SpecificationsDetailed Engine Data & Dimensions
Part Type
Brushless Motor
Compatible Vehicles
.40 to .50 Size Sport and 3D Aircraft
Motor Type
Brushless Outrunner
RPM/Volt (Kv)
590Kv
Voltage
14.8 - 18.5V
Idle Current (Io)
2.3A @ 18.5V
Outer Diameter
2 in (50mm) (ruler)
Shaft Diameter
6mm
Connector Type
4mm Bullet
Bushing Or Bearing
Bearing
Recommended Prop Range
4S: 14x7 - 15x8; 5S: 13x8 - 15x7; 6S: 11x10 - 12x8
Core Performance FeaturesEngineered for Efficiency and Power
Glow Engine AlternativeEquivalent to .46- to .55-size glow engines
Power CapabilitySupports up to 1650 watts of continuous power
High-Torque DriveSlotted 14-pole outrunner construction
Versatile MountingReversible 6mm steel shaft configuration
Included HardwareIncludes mount, prop adapters, and hardware
Quiet EfficiencySmooth operation powered by dual ball bearings
Frequently Asked QuestionsEverything you need to know
What ESC is recommended for the Power 52 Brushless Outrunner Motor, 590Kv: 4mm Bullet?
An 80-Amp brushless ESC is recommended to provide sufficient headroom and reliable performance.
What battery configurations work best with the Power 52 Brushless Outrunner Motor, 590Kv?
This motor operates efficiently on a 4S to 6S Li-Po battery or a 14- to 16-cell Ni-MH/Ni-Cd pack.
What propeller size should I use with the Power 52 Brushless Outrunner Motor, 590Kv: 4mm Bullet?
Recommended prop sizes depend on battery voltage: 14x7 to 15x8 on 4S LiPo, 13x8 to 15x7 on 5S LiPo, and 11x10 to 12x8 on 6S LiPo.
