Raw 800LP Low Profile Digital MG WaterProof Programmable
$159.99
Skip to product information

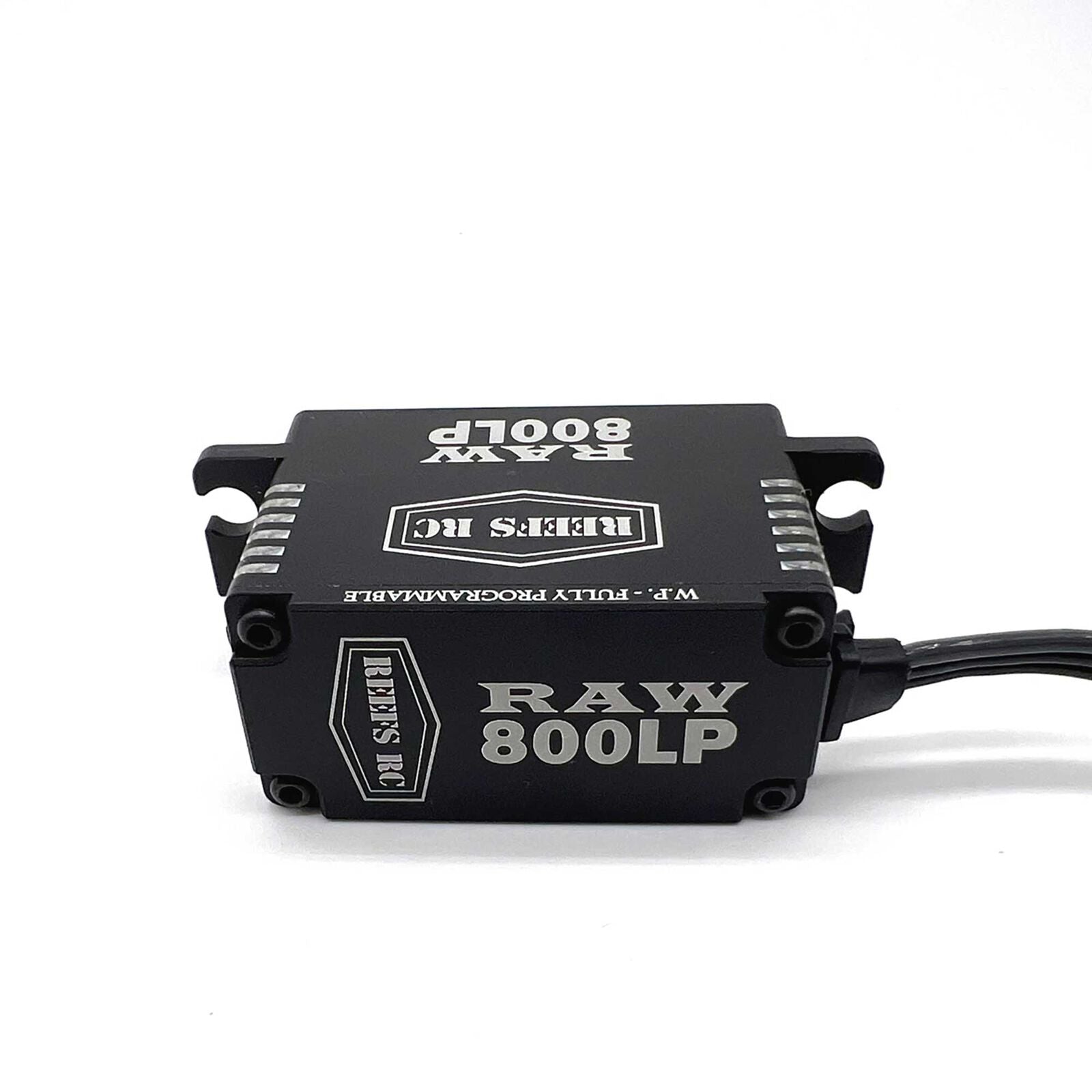

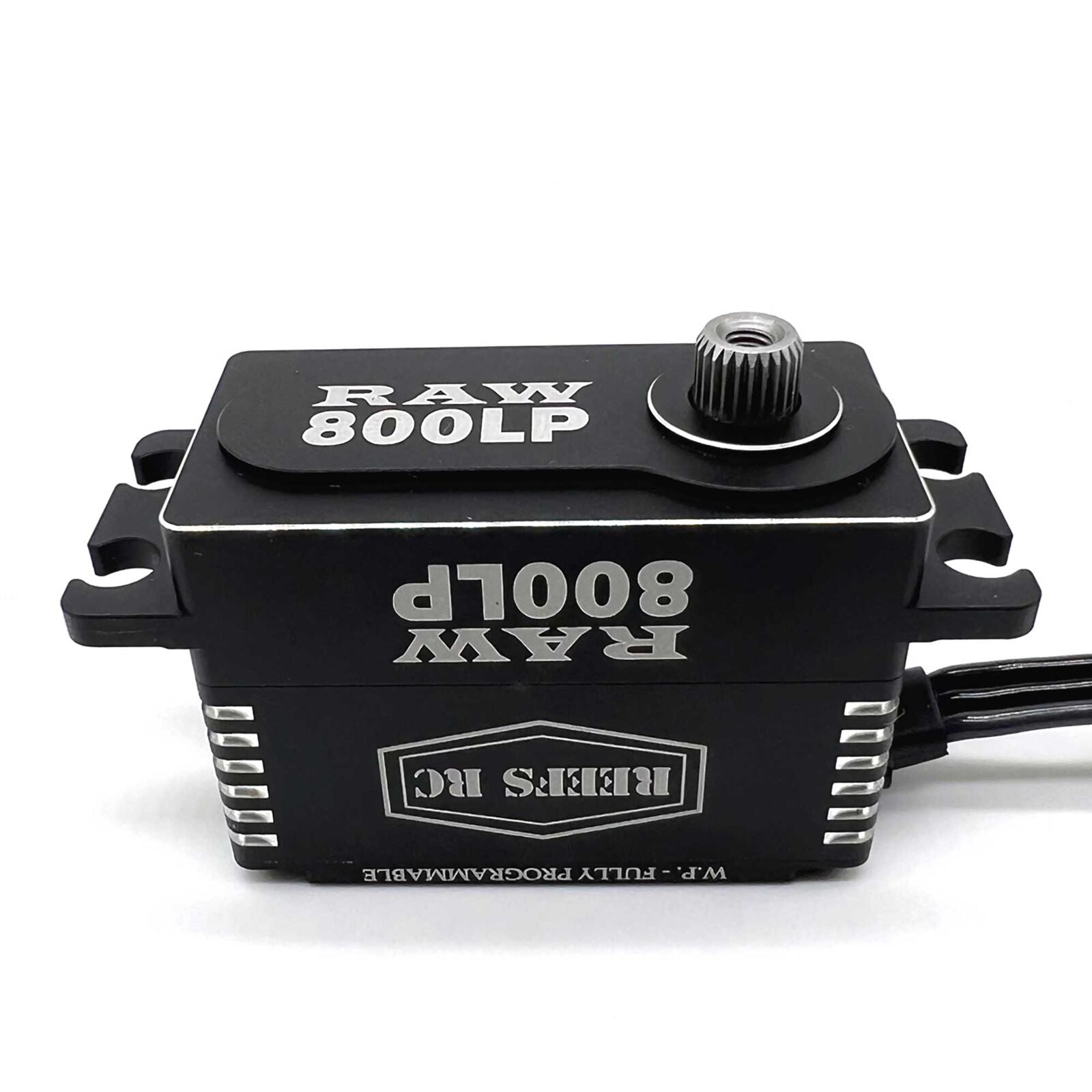

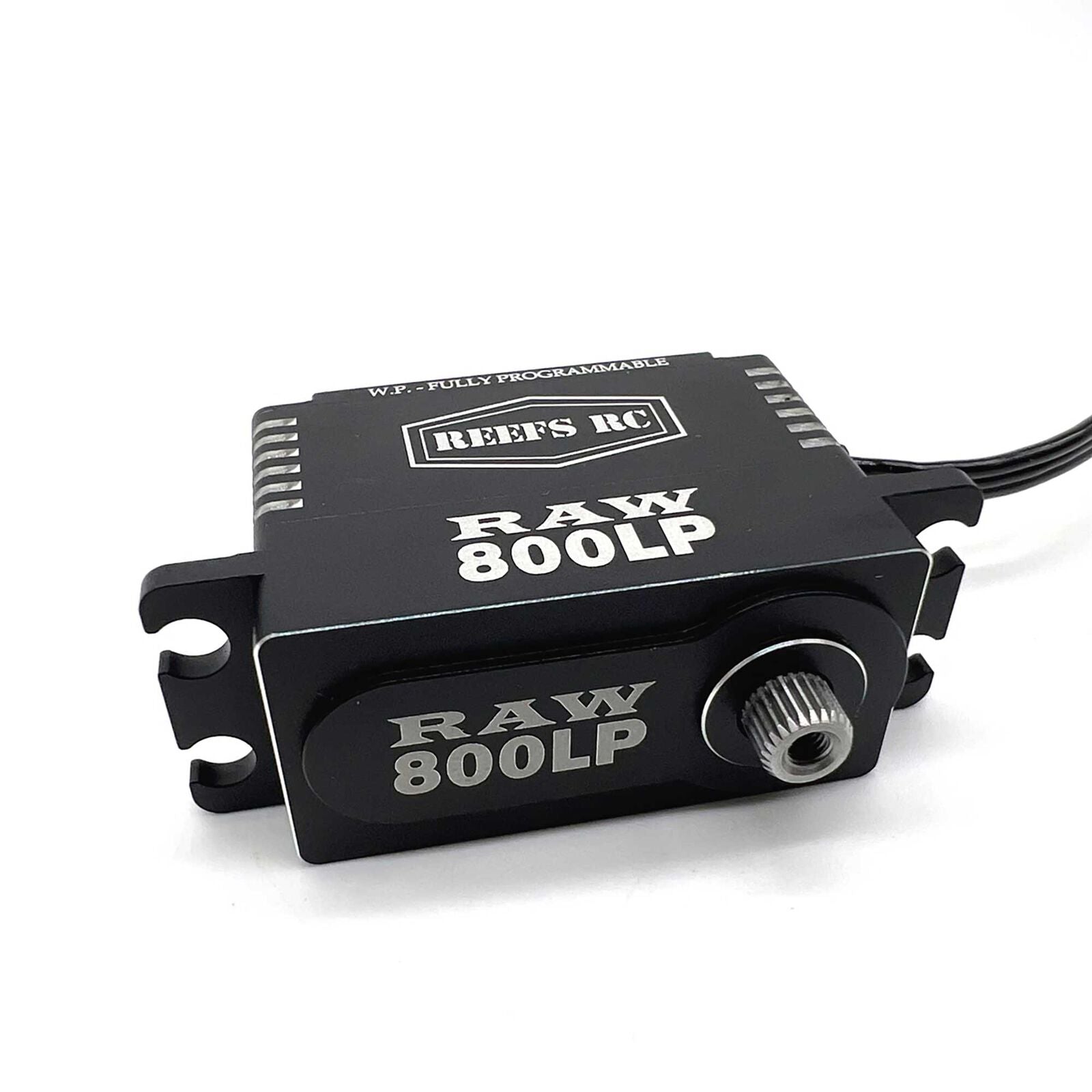

Raw 800LP Low Profile Digital MG WaterProof Programmable
$159.99
Extreme Torque
Up to 800 oz-in power
Low Profile
Maximum chassis and axle clearance
Submarine Waterproof
Fully sealed against wet conditions
Brushless Motor
Efficient four pole motor design
Metal Gears
High strength internal gear train
Magnetic Sensor
Non contact precise angle positioning
Maximum Clearance PowerUncompromising Torque for RC Crawlers
The RAW 800LP Low Profile Digital Metal Gear Waterproof Programmable Servo is specifically engineered for high-performance RC crawlers requiring extra clearance without sacrificing raw power. Perfectly tailored for on-axle applications like the Axial SCX Pro, this low profile unit provides up to 800 oz-in of massive torque. Equipped with an efficient brushless motor, it delivers lightning-fast response times and rock-solid precision on demanding trails.
Engineered Off-Road PrecisionHigh Voltage Performance for Competition Rigs
Built to handle extreme trail conditions, the RAW 800LP Low Profile Digital Metal Gear Waterproof Programmable Servo combines custom tuning capability with rugged durability. Featuring a high-accuracy magnetic angle sensor and high-strength metal gears, this digital servo ensures precise steering input even under high loads. Its submarine waterproof construction guarantees complete protection when driving your RC car through deep water, mud, or snow, making it an essential upgrade for competition crawlers and custom builds.
Technical SpecificationsDetailed Dimensions and Operating Capabilities
Compatible Vehicles
RC Crawlers & Custom On-Axle Rigs
Part Type
Low Profile Digital Servo
Motor Type
4-Pole Brushless
Torque
635oz @ 6.0V / 715oz @ 7.4V / 800oz @ 8.4V (force)
Speed
0.12sec @ 6.0V / 0.10sec @ 7.4V / 0.09sec @ 8.4V
Gear Type
Metal Gears
Spline Count
25-Tooth
Input Voltage
4.8V - 8.4V (HV Compatible) (battery)
Waterproofing
Submarine Waterproof

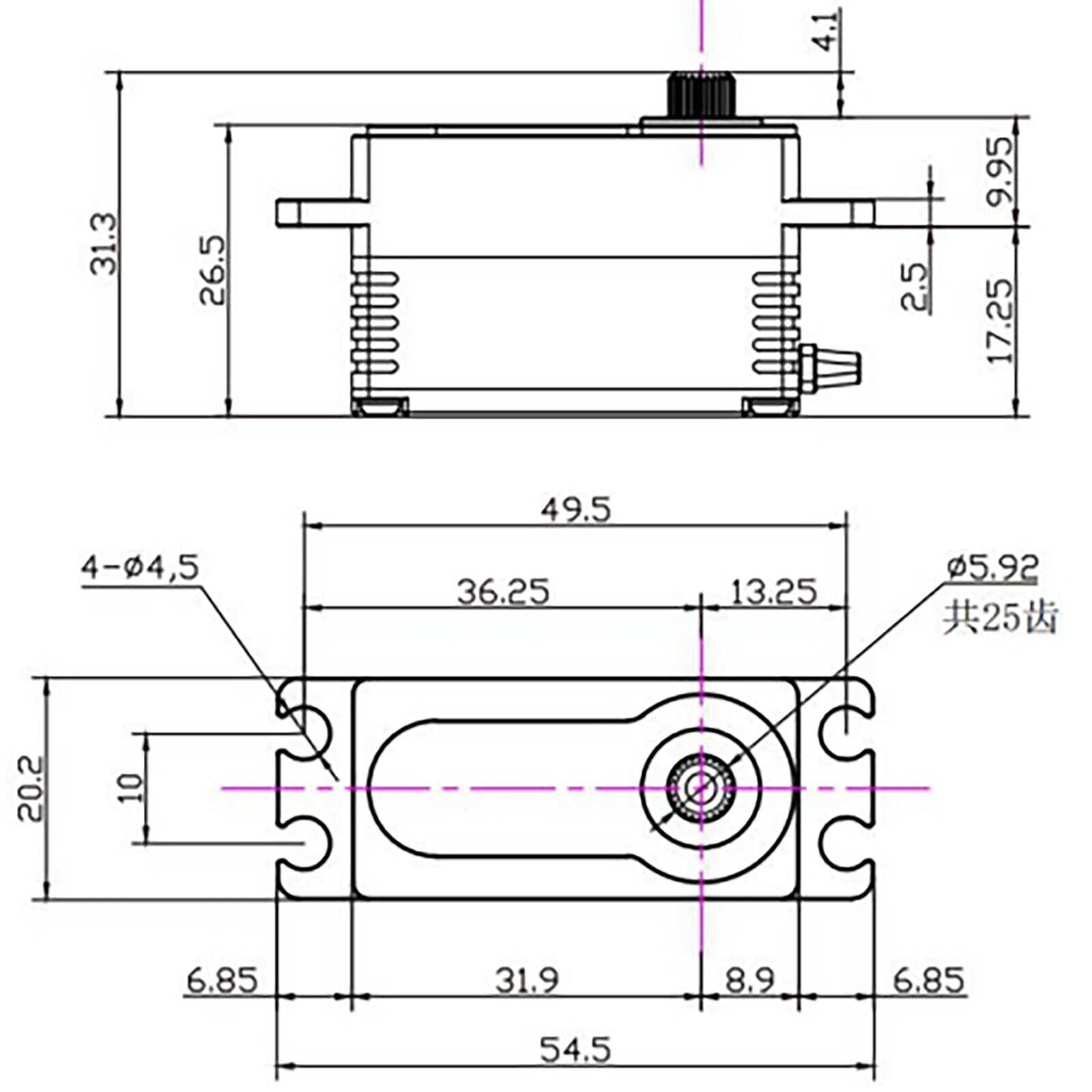

Dimensions
1.6 x 0.79 x 1.16 in / 41 x 20 x 29 mm
Product Weight
2.3 oz / 66 g
Bearing
Dual Ball Bearings
Deadband
2µs
Core Performance FeaturesKey Innovations Built for Rock Crawling
Low-Profile DesignOptimizes clearance for low-center-of-gravity builds and on-axle mounts
Brushless Motor4-pole motor design delivers cooler operation and high efficiency
Extreme Steering TorquePushes up to 800 oz-in of output torque at 8.4V (force)
Submarine WaterproofingFully sealed against complete submersion in mud and water
Fully ProgrammableFine-tune performance parameters to match specific terrain needs
Magnetic Angle SensorEliminates mechanical pot wear for pinpoint position accuracy
Heavy-Duty Metal GearsDurable metal gear train prevents gear stripping under heavy load
High Voltage ReadyDirect 2S LiPo operational range from 4.8V up to 8.4V
Frequently Asked QuestionsEverything you need to know
What vehicles work best with the RAW 800LP Low Profile Digital Metal Gear Waterproof Programmable Servo?
The RAW 800LP Low Profile Digital Metal Gear Waterproof Programmable Servo is optimized for 1/10 scale RC crawlers and custom rigs needing low clearance, such as the Axial SCX Pro on-axle servo mount.
What voltage can the RAW 800LP Low Profile Digital Metal Gear Waterproof Programmable Servo handle?
The RAW 800LP Low Profile Digital Metal Gear Waterproof Programmable Servo is High Voltage (HV) compatible and operates smoothly across an input voltage range of 4.8V to 8.4V.
Is the RAW 800LP Low Profile Digital Metal Gear Waterproof Programmable Servo safe for wet environments?
Yes, it features submarine waterproofing, allowing your RC vehicle to tackle wet mud, deep puddles, and snow without damaging the interior electronics.
What spline output shaft does the RAW 800LP Low Profile Digital Metal Gear Waterproof Programmable Servo feature?
It uses a standard 25-tooth (25T) spline output, making it compatible with a wide variety of aluminum clamping servo horns.
