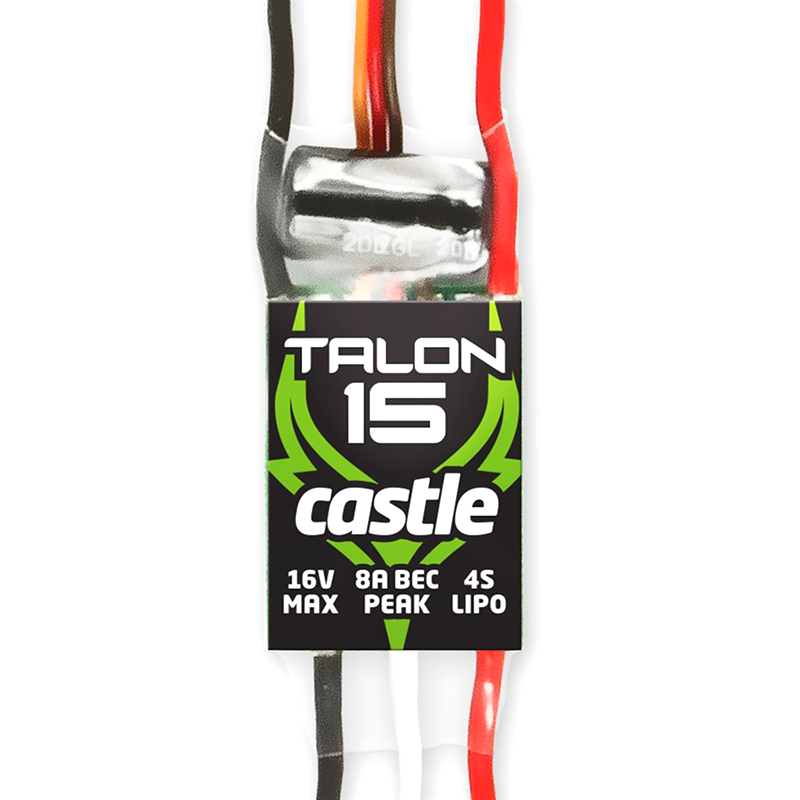

Castle Creations Talon 15Amp 17V ESC with 8Amp BEC (CSE010012900)
$49.95
Skip to product information
Low StockIn Stock
Castle Creations Talon 15Amp 17V ESC with 8Amp BEC (CSE010012900)
$49.95
In Stock
Arrives
Free shipping on orders $99+.
Pick up today in Cumming, usually ready in 2 hours.
15A Power Output
Reliable Continuous Current Handling
8A Internal BEC
Massive Voltage Output for Servos
4S LiPo Ready
Supports 2S to 4S Input
Compact Power DistributionUnmatched BEC Output for Sub-Micro Aircraft
The Talon 15-Amp 4S/17V ESC with 8-Amp BEC delivers high-performance brushless motor control for lightweight RC aircraft, foamies, and sub-micro helicopters. Equipped with a class-leading 8-amp BEC, this compact electronic speed controller ensures ultra-stable power to your servos even under high demand.
Advanced Micro Speed ControlPrecision Throttle Tuning and High Efficiency
Designed for demanding micro RC setups, the Talon 15-Amp 4S/17V ESC with 8-Amp BEC offers Castle Creations' industry-leading speed control algorithms in a minimal footprint. Operating on 2S to 4S LiPo battery systems, this brushless motor ESC provides buttery-smooth motor drive and telemetry support. Customize throttle curves and motor timing easily using the Castle Link USB adapter or Field Link Portable Programmer for maximum efficiency in your RC plane or micro heli.
Technical SpecificationsComplete Castle Talon 15 Details
Part Type
Electronic Speed Controller (ESC) (gear)
Continuous Current Rating
15 Amps
Minimum Input Voltage
2S LiPo
Maximum Input Voltage
4S LiPo / 17V Max
Internal BEC
8-Amp Peak Output
Telemetry Capable
Yes
Data Logging
No
Auxiliary Wire
No
Compatible Vehicles
Micro & Sub-Micro Helis, Foamies, Parkflyers
Key System CapabilitiesEngineered for Peak Micro Performance
Powerful Internal BECMassive 8-Amp BEC comfortably handles high-torque digital micro servos
Wide LiPo RangeCompatible with 2S to 4S LiPo input configurations up to 17V
Telemetry SupportTransmits flight critical ESC metrics to compatible telemetry receivers
Castle Link SupportFully programmable via Castle Link USB software interface

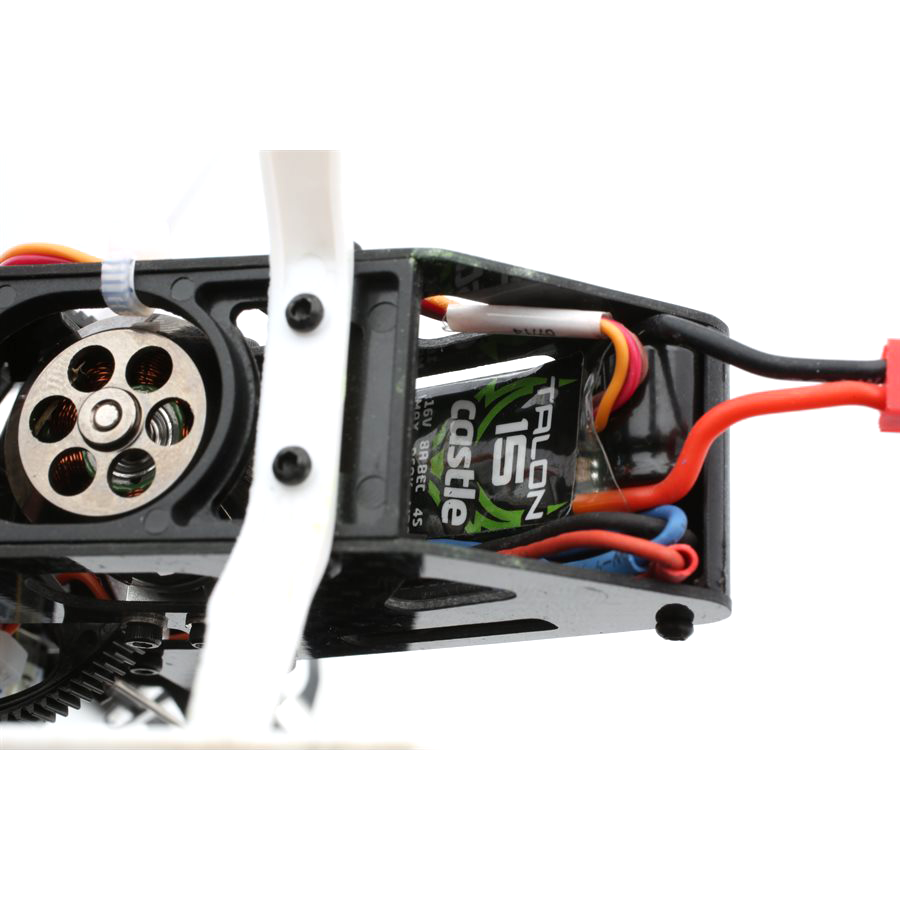

Ultra Compact DesignFits easily into tightly packed micro helicopters and lightweight foamies
Precise ResponseDelivers smooth throttle response for brushless micro motors
Frequently Asked QuestionsEverything you need to know
What applications work best with the Talon 15-Amp 4S/17V ESC with 8-Amp BEC?
The Talon 15-Amp 4S/17V ESC with 8-Amp BEC is specifically designed for small RC aircraft, foamies, and micro or sub-micro helicopters running on 2S to 4S LiPo setups pulling up to 15 amps continuous.
How do I adjust settings on the Talon 15-Amp 4S/17V ESC with 8-Amp BEC?
You can easily program the Talon 15-Amp 4S/17V ESC with 8-Amp BEC using the Castle Link USB adapter (coupon included) on a Windows PC or via the Castle Field Link Portable Programmer.
Does the Talon 15-Amp 4S/17V ESC with 8-Amp BEC support telemetry?
Yes, the Talon 15-Amp 4S/17V ESC with 8-Amp BEC is telemetry capable, allowing compatible transmitters and receivers to monitor real-time power data during flight.
