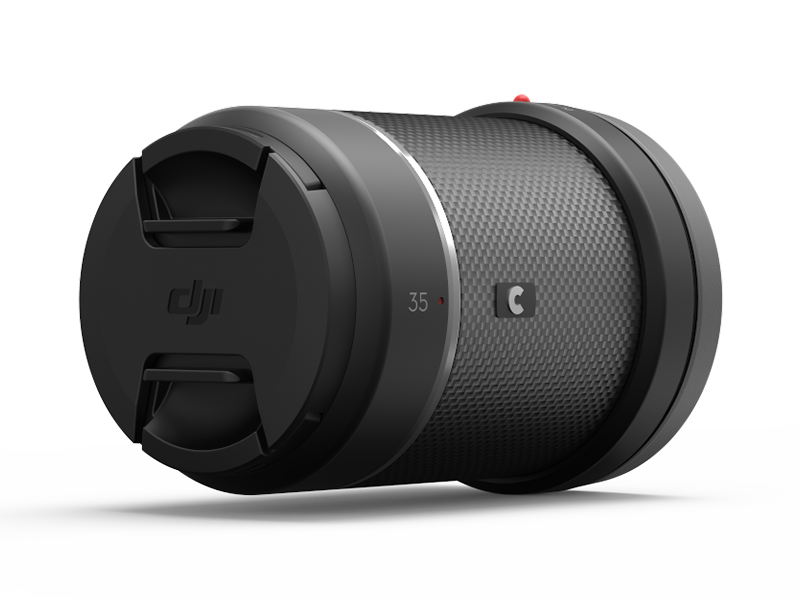

Zenmuse X7 DL 35mm F2.8 LS ASPH Lens: Part3
$1,299.00
Ultralight Carbon
Weighs only 180 grams
8K Cinema Optics
Optimized for high resolution sensors
Built-In Leaf Shutter
High speed shutter control functionality
Cinematic Aerial OpticsProfessional camera performance for aerial imaging
The Zenmuse X7 DL 35mm F2.8 LS ASPH Lens is a professional prime lens engineered specifically for high-end aerial photography and cinematography. Crafted from lightweight carbon fiber, this prime DJI DL-Mount lens delivers exceptional resolution supporting up to 8K imagery for the Zenmuse X7 drone camera system.
Precision Drone OpticsUnmatched image sharpness and lightweight build
Designed by world-leading optical teams, the Zenmuse X7 DL 35mm F2.8 LS ASPH Lens features an advanced optical design consisting of 9 elements in 8 groups with 3 aspherical elements to minimize optical distortion and chromatic aberration. Equipped with an integrated leaf shutter, this high-performance drone camera lens allows precise exposure control and eliminates rolling shutter artifacts during fast aerial motion. Weighing approximately 180 grams, it reduces overall payload to maximize drone flight times without sacrificing image quality.
Technical SpecificationsDetailed lens metrics and physical dimensions
Mount Type
DJI DL-Mount
Focal Length
35mm
Maximum Aperture
F2.8
Lens Construction
9 elements in 8 groups (3 ASPH) (layers)
Minimum Focus Distance
0.85 m
Front Diameter
46 mm
Dimensions
55.0 x 62.0 x 71.2 mm
Weight
Approx. 180 g
Shutter Mechanism
Integrated Leaf Shutter
Housing Material
Carbon Fiber
Key Optics FeaturesEngineered for advanced aerial cinematography
Native DL-MountDesigned specifically for the Zenmuse X7 camera system
Carbon Fiber BodyLightweight design minimizes gimbal motor strain
8K Resolution SupportPrecision glass optics crafted for high-resolution sensors
Integrated Leaf ShutterHigh-speed mechanical shutter prevents image distortion
Advanced Optical Design9 elements in 8 groups including 3 aspherical elements
Compact Form FactorIncludes lens hood with a slim 46 mm front diameter
Frequently Asked QuestionsEverything you need to know
What camera system is compatible with the Zenmuse X7 DL 35mm F2.8 LS ASPH Lens?
The Zenmuse X7 DL 35mm F2.8 LS ASPH Lens is specifically designed to work with the DJI Zenmuse X7 gimbal camera using the native DL-Mount system.
Does the Zenmuse X7 DL 35mm F2.8 LS ASPH Lens include an integrated shutter?
Yes, the Zenmuse X7 DL 35mm F2.8 LS ASPH Lens features a built-in leaf shutter that allows high-speed shutter capture while avoiding rolling shutter artifacts.
How much does the Zenmuse X7 DL 35mm F2.8 LS ASPH Lens weigh?
The Zenmuse X7 DL 35mm F2.8 LS ASPH Lens weighs approximately 180 grams, making it lightweight enough to maximize drone flight efficiency and gimbal stability.
