There's a moment in every good kit build when you turn a crank, something three gears away moves, and your brain goes "oh, that's why." That moment is the whole point. A finished model on a shelf is nice. Understanding why the cutter turns the way it does, or why the robot stops when two cams line up, is engineering.
Wooden mechanical models, Tamiya's educational robots and small solar kits look like three different hobbies, but they teach the same core ideas: how to store and release energy, how gears trade speed for force, how cams and linkages turn spinning into stepping, and how much work a little bit of sunlight can do. Here is what each family teaches, with experiments to make the lesson stick.
The Short Answer
Mechanical kits teach real engineering: UGears models teach stored energy and gear trains, Tamiya educational robots teach cams, linkages and motor-driven mechanisms, and solar kits teach power budgets and how light angle affects output.
- UGears: glue-free plywood models powered by rubber-band motors. Great for ages that can handle a 2-3 hour build.
- Tamiya educational kits: snap-fit and screw-together robots with Type 130 motors and an AA battery; the cam robot is programmed with plastic cams.
- Solar kits: small cells and motors that show, in real time, how light intensity and angle change power.
- The trick: stop and test as you build. Run a gear stage by hand before closing it up.
1. UGears: Stored Energy and Gear Trains You Can See
UGears models are laser-cut plywood kits that assemble without glue. On the UGears site, the company says no glue or extra tools are needed, and its self-propelled models, such as the Desert Buggy, are driven by rubber-band motors. Because everything is wood and exposed, you can watch every gear mesh.
A rubber band is a battery

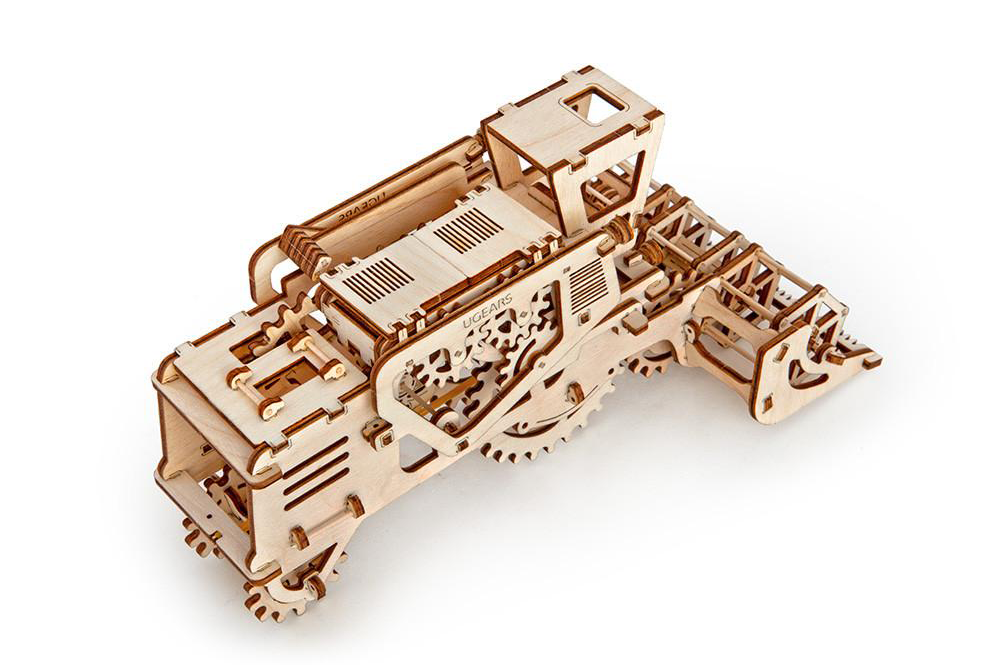

Winding a rubber-band motor stores energy as stretch; releasing it turns that energy into motion. On the Combine Harvester (154 parts, about 2-3 hours to build), you roll the model backward to wind it, release the handbrake, and it drives forward with its wheels turning and its cutter board rotating. That is a complete drivetrain: energy store, transmission, brake and output. Try counting how many backward rolls it takes to wind fully, then measure how far it travels. That is your first efficiency experiment.
Gear ratios in plain wood
When a small gear drives a large one, the output turns slower but with more torque. Count teeth to get the ratio: a 10-tooth gear driving a 30-tooth gear gives 3:1, so the big gear turns once for every three turns of the small one. Find a gear pair on your model, count the teeth, and predict how the output will move before you turn it. Then check.
The Carousel: three mechanisms in one
The UGears Carousel packs in some clever engineering. A planetary gear connects the main axle to the central pole so the pole spins opposite the platform, which makes the ride look faster than it is. Crankshafts lift the horses up and down as they go around, turning rotation into up-and-down motion. A pendulum gears down the axle so the motion is smoother. You can also turn it slowly by hand to watch each stage work.
2. Tamiya Educational Kits: Cams, Linkages and Motors
Tamiya's educational construction kits use snap-fit and screw-together assembly, small Type 130 DC motors and a single AA battery, with clear plastic parts so you can see the mechanisms inside. They are a great step from wind-up power to electric motors.
Cam-Program Robot: coding without a computer
On the Cam-Program Robot, you insert cams into a program bar down the middle of the robot. As a gear pushes the bar through, each cam presses down a steering leg on one side, lifting that track off the ground. No cam means drive straight; a cam on one side turns; cams on both sides stop. Tamiya says each program bar gives about 35 seconds of movement, bars can be joined for longer routines, and three cam lengths set how long each command lasts. That is a sequence of instructions stored in hardware, the same idea as the punched cards that once controlled Jacquard looms and fed early computers.
Roller Skating Robot: turning wiggle into go
The Roller Skating Robot opens and closes its legs in a skating motion called the swizzle. Stoppers on the casters stop them rolling sideways, so the side-to-side motion becomes forward travel, and rudders on the skates steer. Ask a young builder to explain why it moves forward when the legs only move sideways; the answer is friction in the right direction.
Mechanical Racehorse: linkages and gaits
Tamiya's Mechanical Racehorse uses a motor and gearbox to drive its legs, with left and right legs moving together for a galloping gait. Power reaches the legs through link rods, and two link-rod holes on the back legs let you choose between two running styles and compare them. Change one variable, run it, observe: that is the scientific method on a kitchen table.
Build-and-test procedure for any motor kit
- Sort parts by sprue or bag and read the whole manual once before cutting anything.
- Build the gearbox first and spin it by hand: it should turn freely with no tight spots.
- Add a little of the supplied grease only where the manual shows it.
- Connect the motor and battery before closing the body, and check direction.
- Run it on a flat, smooth surface first; most of these kits are not made for thick carpet.
- Change one thing (a link-rod hole, a cam, a gear) and record what happens.
3. Solar Kits: Power Budgets and Sunlight
Solar kits add an invisible variable: energy that arrives as light. The U.S. Department of Energy's photovoltaic cell basics explain that a PV cell absorbs light and transfers that energy to electrons, which then flow as an electric current. A small kit lets you watch that happen, and see it stop when a cloud rolls by.
Do the power math
Power is voltage times current. As a worked example, a small panel delivering 1.5 V at 200 mA (0.2 A) in full sun is producing 1.5 × 0.2 = 0.3 watts. A fraction of a watt is not much, which is why solar kits use light, low-friction parts and small motors. If your kit lists its panel's voltage and current, do the same math, then compare the answer with the wattage printed on a phone charger and the scale of a rooftop array suddenly makes sense.
Angle and light experiments
Point the panel straight at the sun, then tilt it away in steps and watch the motor slow. Try it in shade, under a cloud and under an indoor lamp. Record what works. Most kids are surprised at how much a panel's angle matters, which is exactly why a sun-tracker kit exists.
Fast builds, real results
The Photon solar racer assembles in about 45 minutes with no batteries or glue, just scissors and a screwdriver, and the kit description claims it can cover up to 10 feet in six seconds. The 4M 3-in-1 Mini Solar Robot reuses one solar drive for three builds that roll, walk and climb a rope, which is a nice way to show that the same power source can do very different jobs depending on the mechanism attached to it.
| Kit | Power source | Key mechanism | Engineering lesson |
|---|---|---|---|
| UGears Combine Harvester | Rubber-band motor | Gear train to wheels and cutter | Stored energy, gear ratios and brakes |
| UGears Carousel | Wind-up rubber bands | Planetary gear, crankshafts, pendulum | Counter-rotation, rotary-to-linear motion, speed regulation |
| Tamiya Cam-Program Robot | Two Type 130 motors, 1 AA | Cams on a moving program bar | Sequencing and "programming" in hardware |
| Tamiya Roller Skating Robot | Type 130 motor, 1 AA | Swizzle legs and caster stoppers | Converting side-to-side motion into forward travel |
| Tamiya Mechanical Racehorse | Motor and gearbox, 1 AA | Link rods driving four legs | Linkages and gaits |
| Solar kits (Photon racer, 4M robot) | Photovoltaic cell | Small DC motor and gearing | Power budgets, light angle, efficiency |
Conclusion
The best kit is the one that gets built slowly, with questions. Pause after each gear stage, run it by hand, and ask what it will do before you find out. Start with a solar racer or a Tamiya robot for a quick afternoon win, then move to a UGears model for a longer build with more mechanisms to discover. If the bug bites, those same ideas, gears, cams, linkages and power, show up in every robot and RC car on our shelves.
Browse our UGears models and solar and robotics kits, or contact the shop and stop by our Cumming showroom to pick a kit that fits your builder's age and patience.
Gear Mentioned in This Guide
UGears Combine Harvester Mechanical Wooden Model
154 plywood parts, a rubber-band motor and a spinning cutter board. A full drivetrain lesson.
Shop now
UGears Carousel Wooden 3D Model
A planetary gear, crankshafts and a pendulum regulator in one wind-up model.
Shop now
Tamiya Cam-Program Robot, Blue
Program its moves by snapping cams into a bar. Mechanical coding, no screen required.
Shop now
Tamiya Roller Skating Robot
Clear parts show how sideways leg motion becomes forward travel.
Shop now
Photon Solar-Powered Racer Kit
A 45-minute build with no batteries or glue. A fast first lesson in solar power.
Shop now
Frequently Asked Questions
Do UGears models need glue?
No. UGears says its models assemble without glue or extra tools, using precision laser-cut plywood parts that press together.
What age are Tamiya educational robot kits for?
They use snap-fit and screw-together assembly, so they suit kids who can handle a small screwdriver, usually with an adult nearby for younger builders. Check the age rating printed on each kit box.
How does the Tamiya Cam-Program Robot work?
Cams placed in a program bar push down steering legs as the bar moves through the robot, lifting one track or both. No cam drives straight, one cam turns and two cams stop. Each bar gives about 35 seconds of movement, and bars can be joined.
Do solar kits work indoors?
Usually only weakly. Small solar kits are designed for direct sunlight, and ordinary room lighting delivers far less light to the panel. Testing different light sources, close up and far away, is a good experiment in itself.
What engineering skills do mechanical kits teach?
Reading technical instructions, and understanding gear ratios, stored energy, cams, linkages, friction and power. Builders also learn to test sub-assemblies before closing them up, a habit every engineer relies on.
Which kit should a beginner start with?
A solar racer or a Tamiya educational robot is a good first build because it finishes in an afternoon. A UGears model takes a few hours and has more mechanisms to discover, so it is a great second project.
