1/10 Formula E Gen2 Car Championship Livery TC-01 Kit
$292.60
Skip to product information
1/10 Formula E Gen2 Car Championship Livery TC-01 Kit
$292.60
1/10 Scale
Precision electric race car
Unassembled Kit
Build it from scratch
Shaft-Driven 4WD
Exceptional on road traction
TC-01 Chassis
Ultra low profile frame
540 Motor Included
Reliable brushed motor power
Pushrod Suspension
Inboard CVA oil dampers
Electric Racing ApexNext generation Formula E performance kit
Experience the thrill of open-wheel electric motorsport with the high-performance Tamiya 1/10 Formula E Gen2 Car - TC-01 Chassis Kit. Recreating the iconic aerodynamic vehicle used in the world-renowned Formula E championship, this RC car kit combines low-profile scale realism with advanced engineering. Built around a shaft-driven 4WD TC-01 chassis featuring inboard pushrod suspension, it delivers sharp handling and maximum traction on any on-road track surface.
Precision Engineered SpeedAdvanced TC-01 chassis and aerodynamics

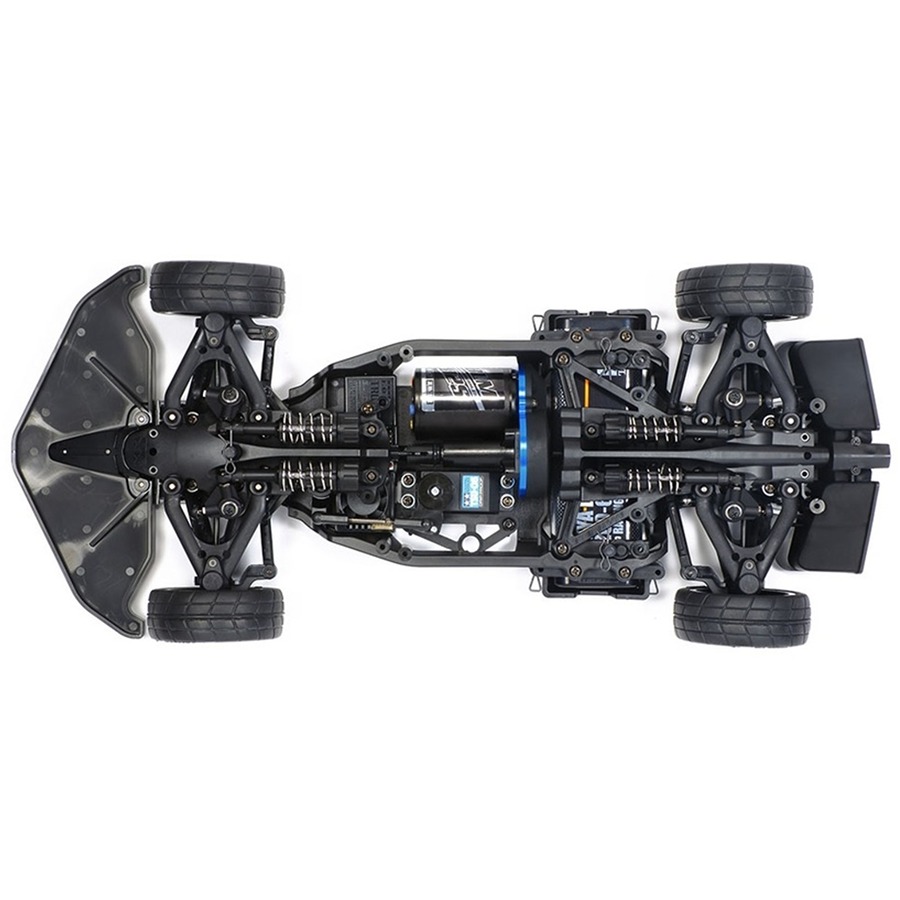

The Tamiya 1/10 Formula E Gen2 Car brings real-world championship racing straight to your workbench. At the heart of this kit is the composite monocoque TC-01 chassis, optimized for ultra-low profile race bodies. Its central motor orientation routes power through front and rear propeller shafts into fluid oil-filled gear differentials derived from Tamiya's race-proven TB-05 platform. The independent 4-wheel double wishbone setup uses long arms driven by pushrods and rocker arms with CVA oil dampers, making tuning camber, caster, and toe angles fast and efficient with simple spacer adjustments. Complete with an included 540 brushed motor and the versatility to accept standard 257mm touring car bodies, the Tamiya Formula E Gen2 TC-01 is an exceptional choice for RC hobbyists and competitive builders alike.
Technical SpecificationsDetailed dimensions and vehicle data
Completion Level
Unassembled Kit
Drivetrain
Shaft-Driven 4WD
Motor Size
540 Type
Power Type
Electric
Differential
Oil-Filled Gear Differential
Vehicle Size
430mm x 188mm x 99mm
Product Width
188mm
Product Height
99mm
Charger
Sold Separately
Connector Type
User Choice / ESC Dependent
Spur Gear
Standard Kit Included
Gear Pitch
Standard Tamiya Metric
Speed Control
Sold Separately
Servo
Sold Separately
Vehicle Type
Formula E / On-Road Race Car
Top Speed
Varies by gear setup and electronics
Battery Type
7.2V NiMH or 7.4V LiPo
LiPo Compatibility
Compatible with IFMAR standard square-shape battery packs
Drive Type
Shaft-Driven 4WD
Shock Type
CVA Oil-Filled Dampers
Body
Clear Polycarbonate with Molded White ABS Halo & Mirrors
Wheel Hex Size
12mm Standard
Battery Tray
Accepts IFMAR standard square packs
Motor Class
540 Brushed Motor Included
Final Drive Ratio
6.56:1 with kit 24T pinion
Roll Out
Standard TC-01
Radio
2-Channel Radio Required
Assembly Time
3-5 Hours
Scale
1/10
Motor Type
Brushed 540 Motor
Power System
Brushed
Chassis
TC-01 Composite Monocoque FRP
Tire Tread/Hub Size
Width: 24mm, Diameter: 64mm
Recommended Battery
7.2V-7.4V Battery Pack
Pinion
24T Pinion Included
Internal Gear Ratio
Adjustable
Oil Type
Silicone Shock Oil
Receiver
2-Channel Receiver Required
Chassis & Tech SpecsKey engineering highlights and components

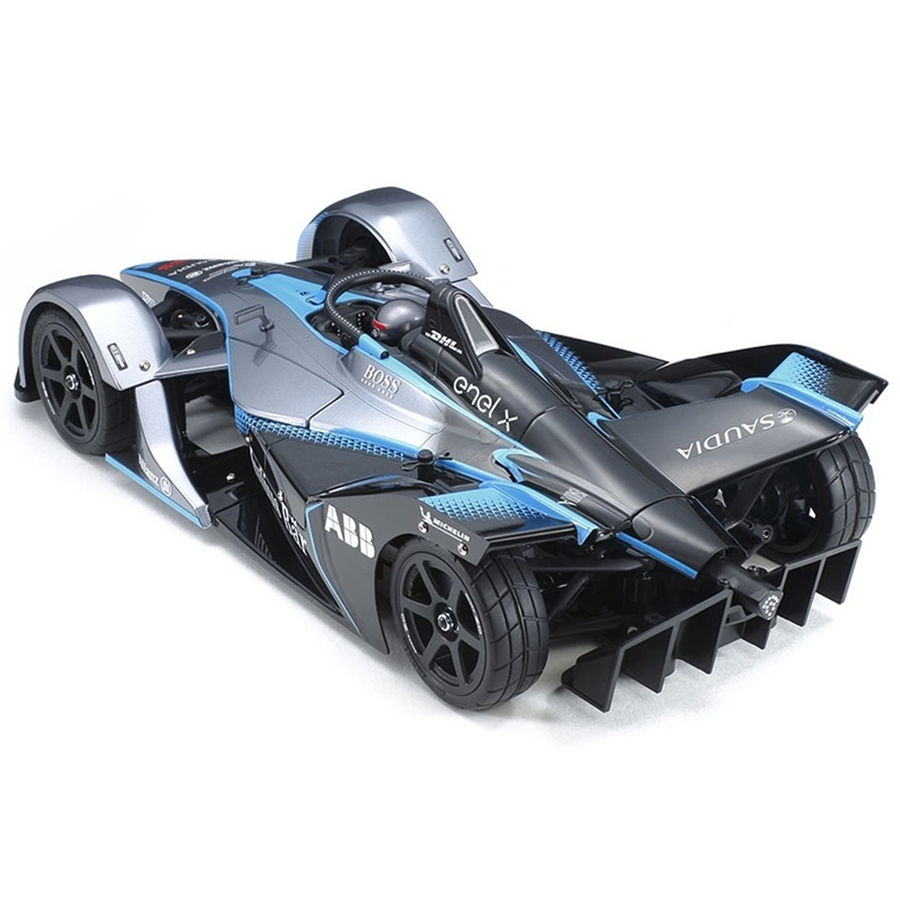

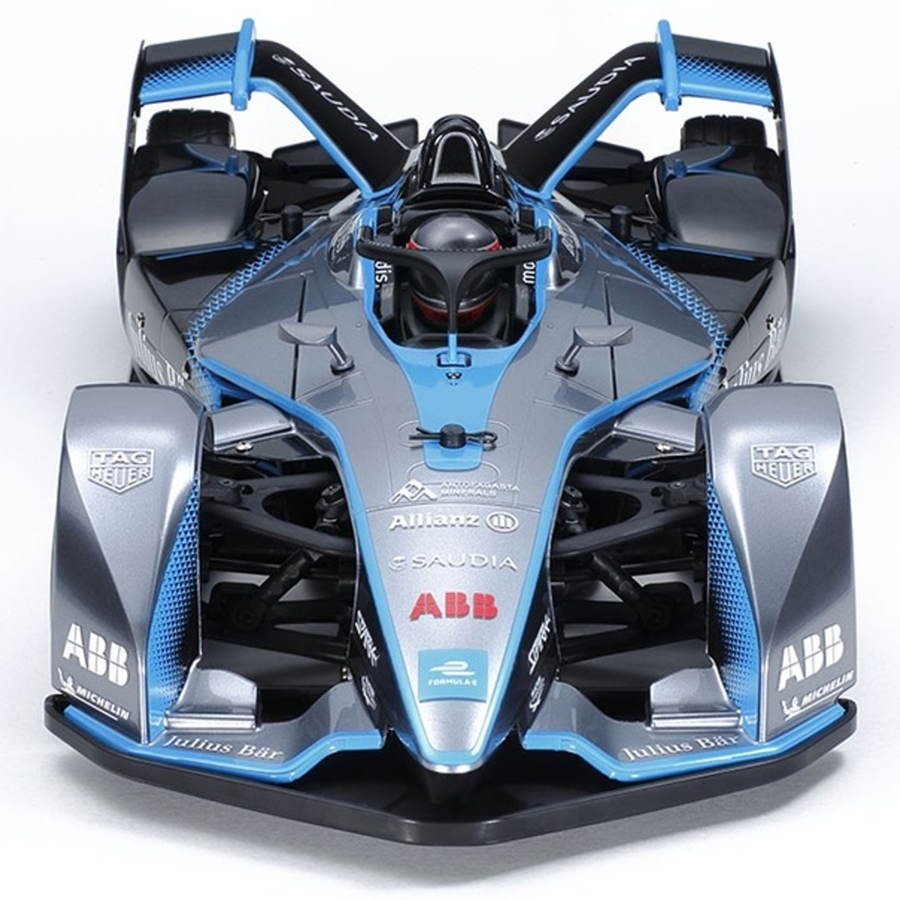

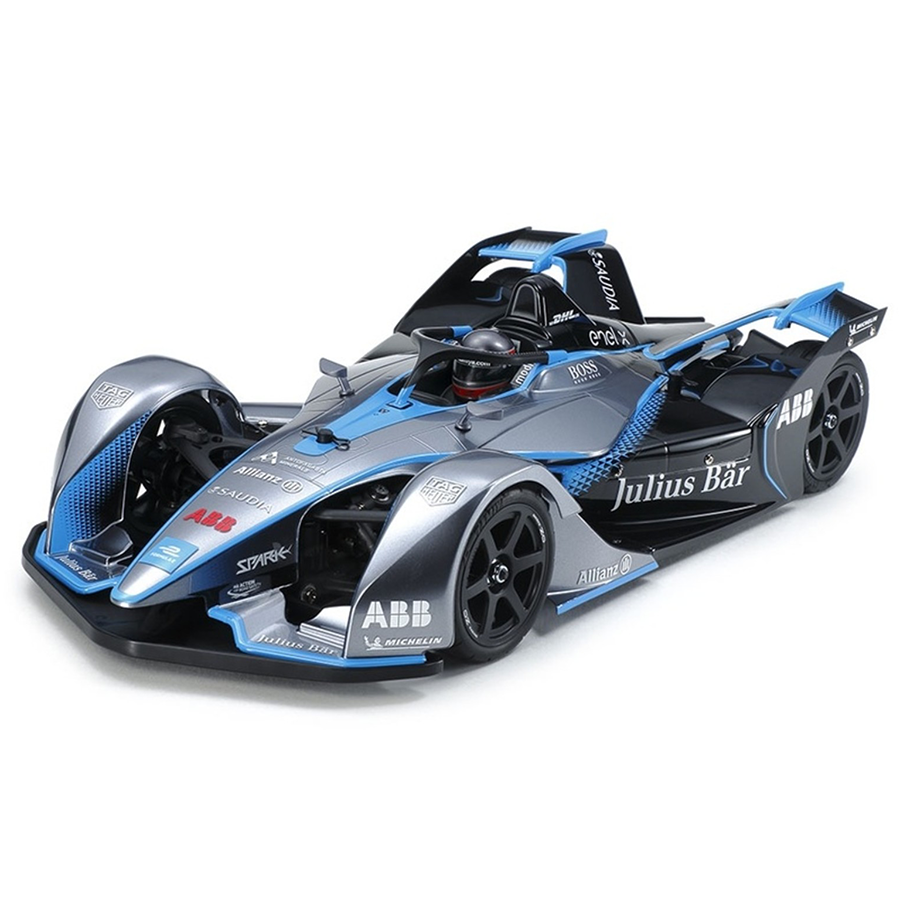

Scale BodyDetailed 1/10 scale Formula E Gen2 body molded in durable polycarbonate

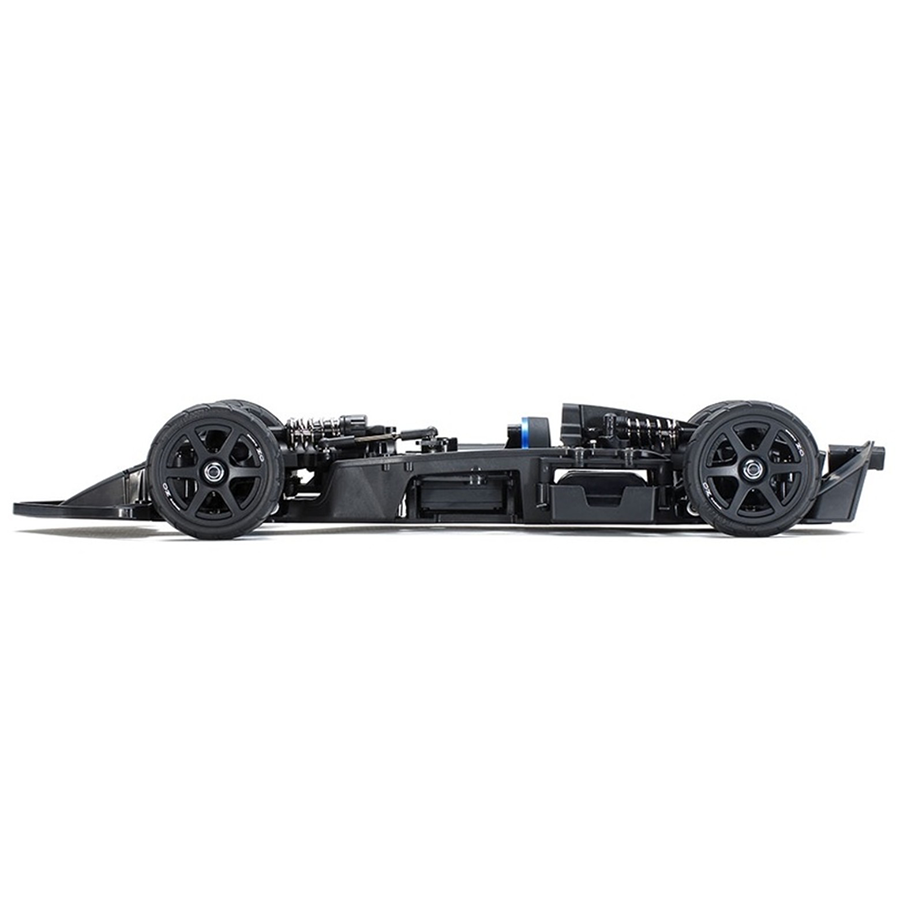

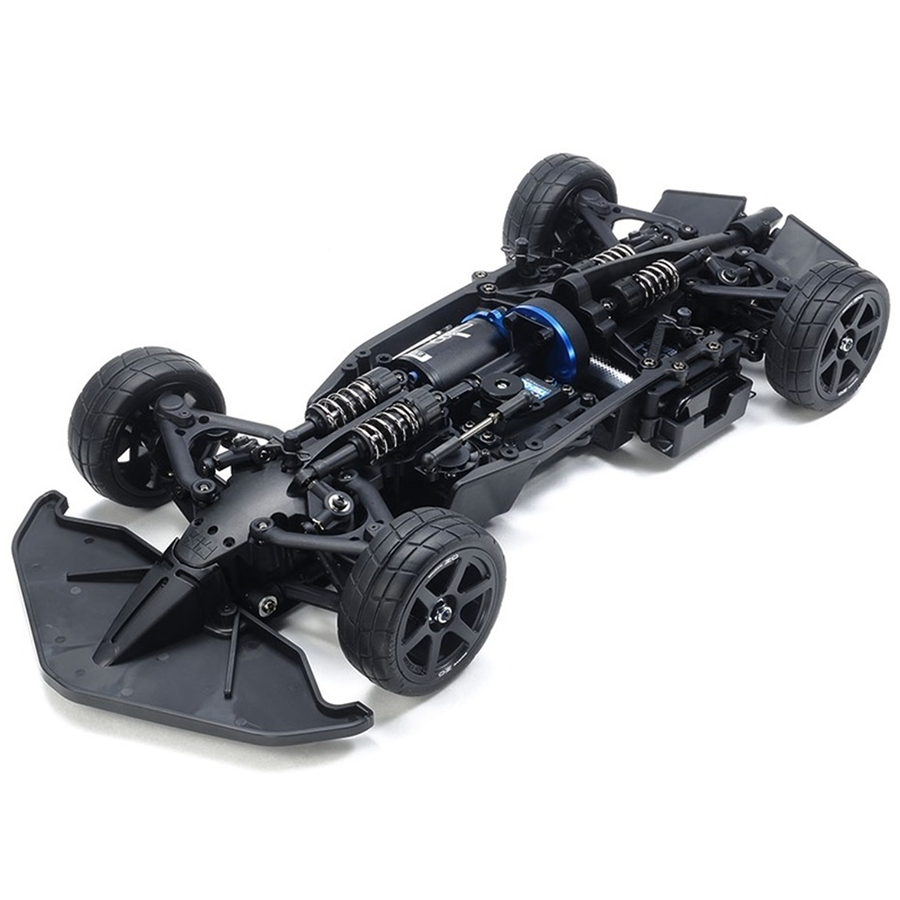

Low Profile ChassisMonocoque FRP TC-01 chassis engineered specifically for sleek bodies
Drive LayoutShaft-driven 4WD with oil-filled gear differentials front and rear
Inboard Suspension4-wheel independent pushrod setup with CVA oil dampers
AdjustabilityEasily fine-tune camber, caster, toe, and skid settings via spacers
Modular ConversionSwitch bumpers and mounts to convert between Formula and Touring car setups
Motor IncludedComes equipped with a standard 540 brushed motor
Battery FitmentDesigned to fit IFMAR standard square-shape dimension battery packs
Frequently Asked QuestionsEverything you need to know
What items are required to complete the Tamiya 1/10 Formula E Gen2 Car - TC-01 Chassis Kit?
To complete the Tamiya 1/10 Formula E Gen2 TC-01 kit, you will need a 2-channel radio system, a steering servo, an ESC (electronic speed controller), a 7.2V-7.4V battery pack with a compatible charger, and Tamiya PS (polycarbonate) and TS (ABS) paints.
What type of motor comes with the Tamiya 1/10 Formula E Gen2 Car?
The kit includes a standard Type 540 brushed motor, offering reliable and fun performance right out of the box.
Can I use other RC bodies on the Tamiya Formula E Gen2 TC-01 Chassis Kit?
Yes! By swapping out the bumpers and body mounts, the TC-01 chassis easily accommodates standard 257mm wheelbase touring car bodies.
What suspension layout does the Tamiya 1/10 Formula E Gen2 Car use?
It uses an advanced inboard 4-wheel independent double wishbone suspension system with pushrods, rocker arms, and oil-filled CVA dampers to fit under extremely low-profile bodies.
