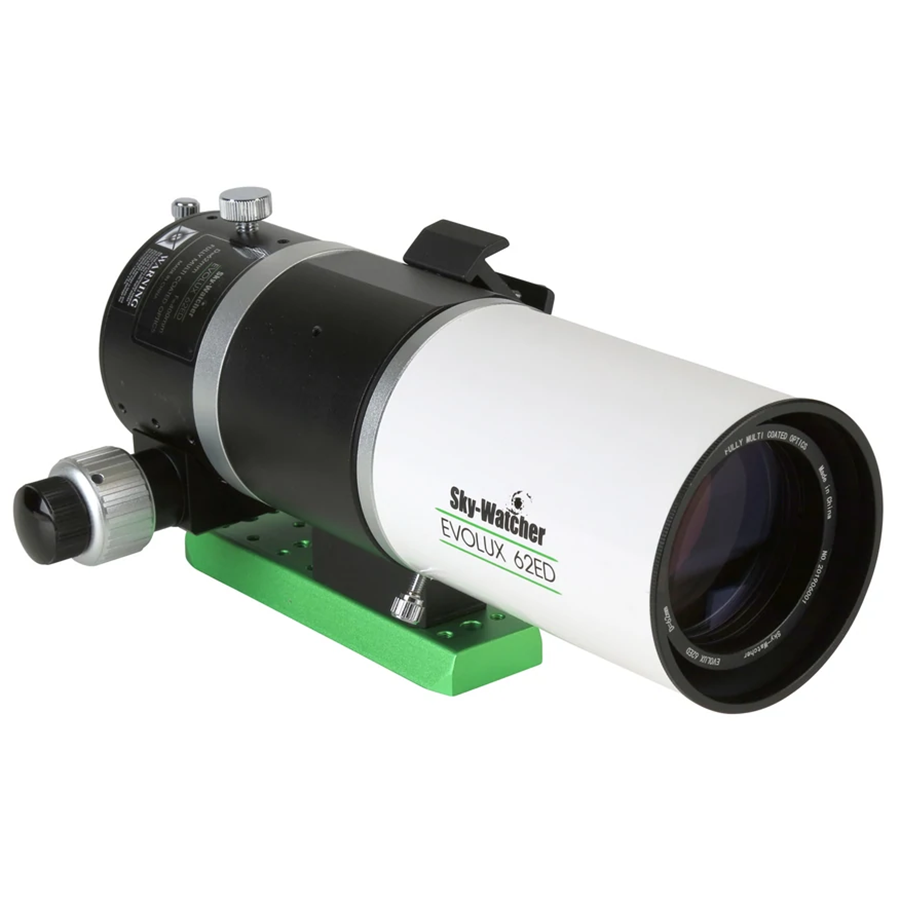

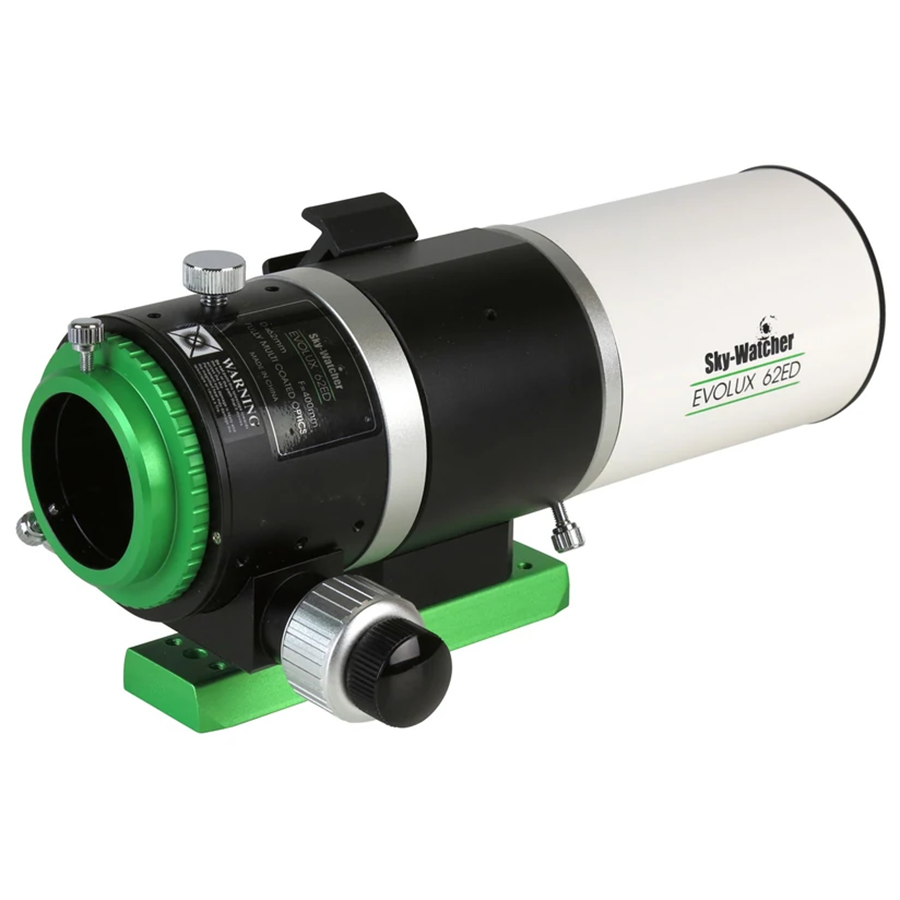

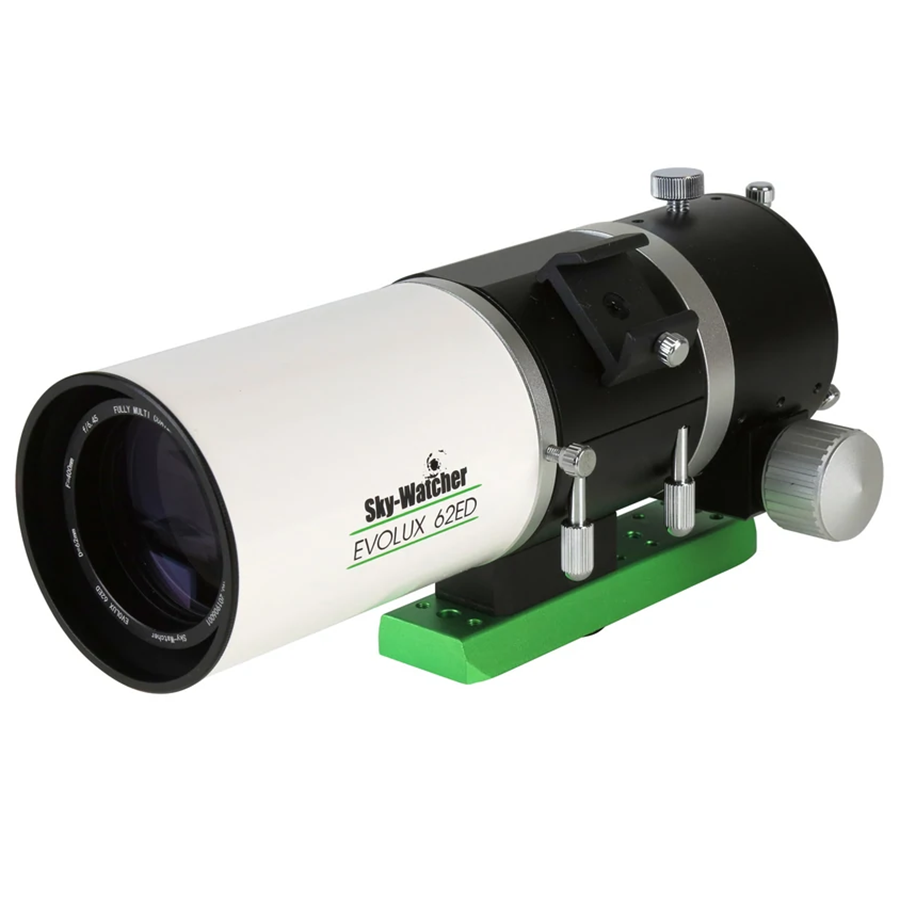

Evolux 62ED Doublet APO Refractor
Evolux 62ED Doublet APO Refractor
Evolux 62ED Doublet APO Refractor
Overview:
Building on the foundation of the popular Evostar line of refractors, Sky-Watcher has developed the all new Evolux. Designed for the savvy astrophotographer looking for a lightweight scope that still packs a punch with key upgrades in the optics and the mechanics, Evolux is a perfect fit for a widefield grab and go setup.

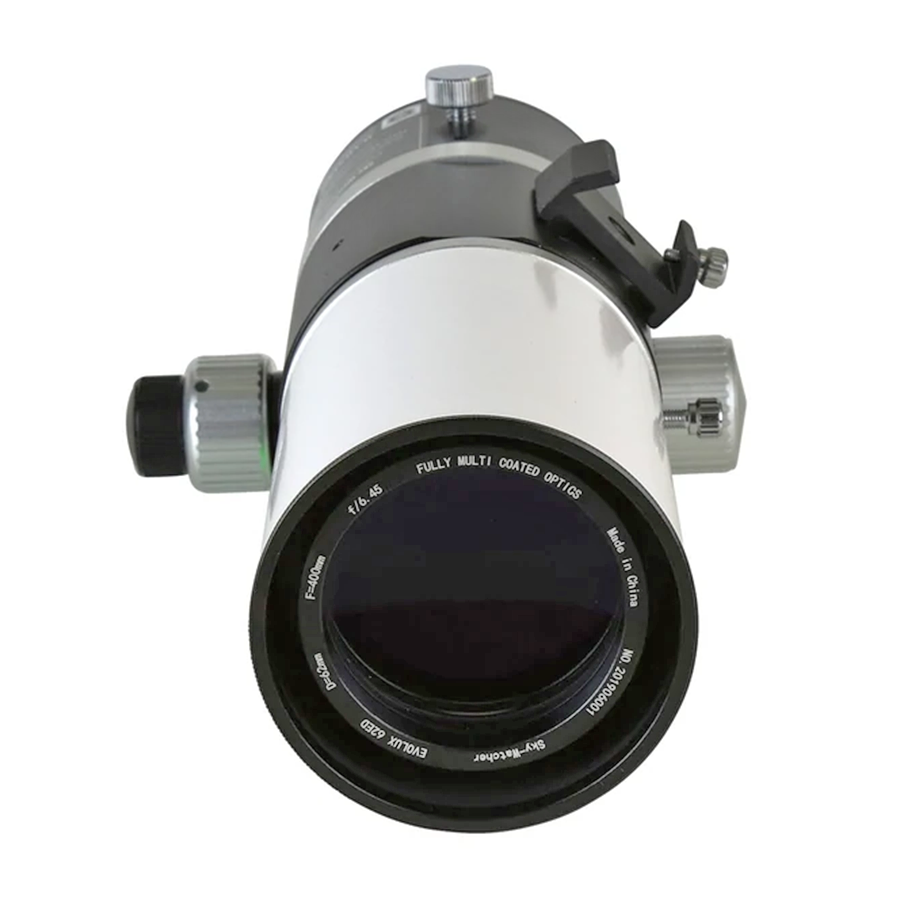

Sky-Watcher’s Evolux apochromatic doublet refractors are the perfect blend of superior extra-low dispersion glass and affordability. The lens assembly utilizes a proprietary combination of matched lenses, delivering tack-sharp stars with charcoal-black, contrast-rich skies. All ED glass elements feature our proprietary Metallic High-Transmission Coatings™ (MHTC™), virtually eliminating all false color while the adjustable dew shield prevents stray light and condensation from affecting your photography.

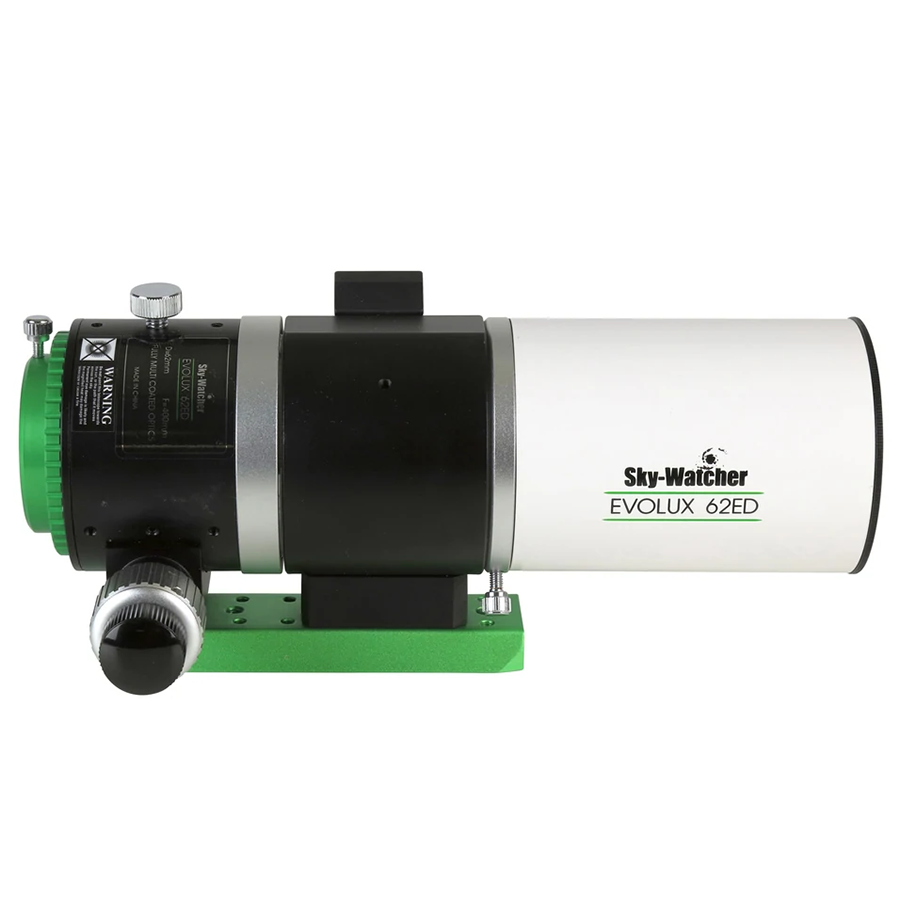

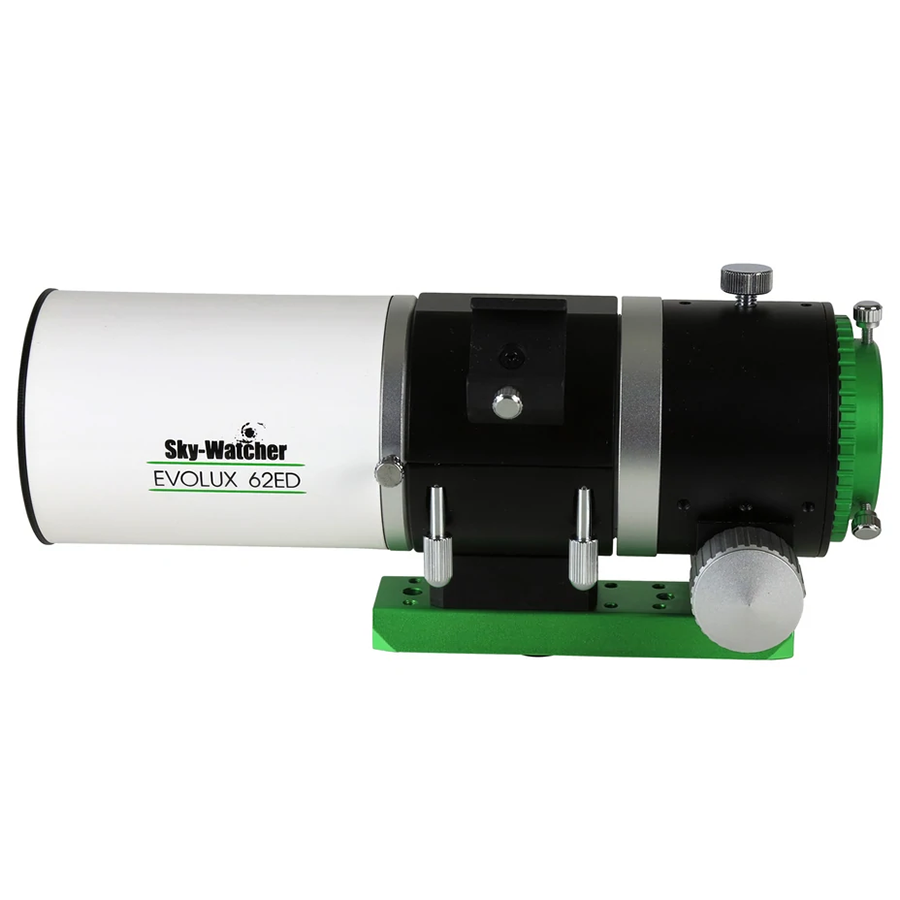

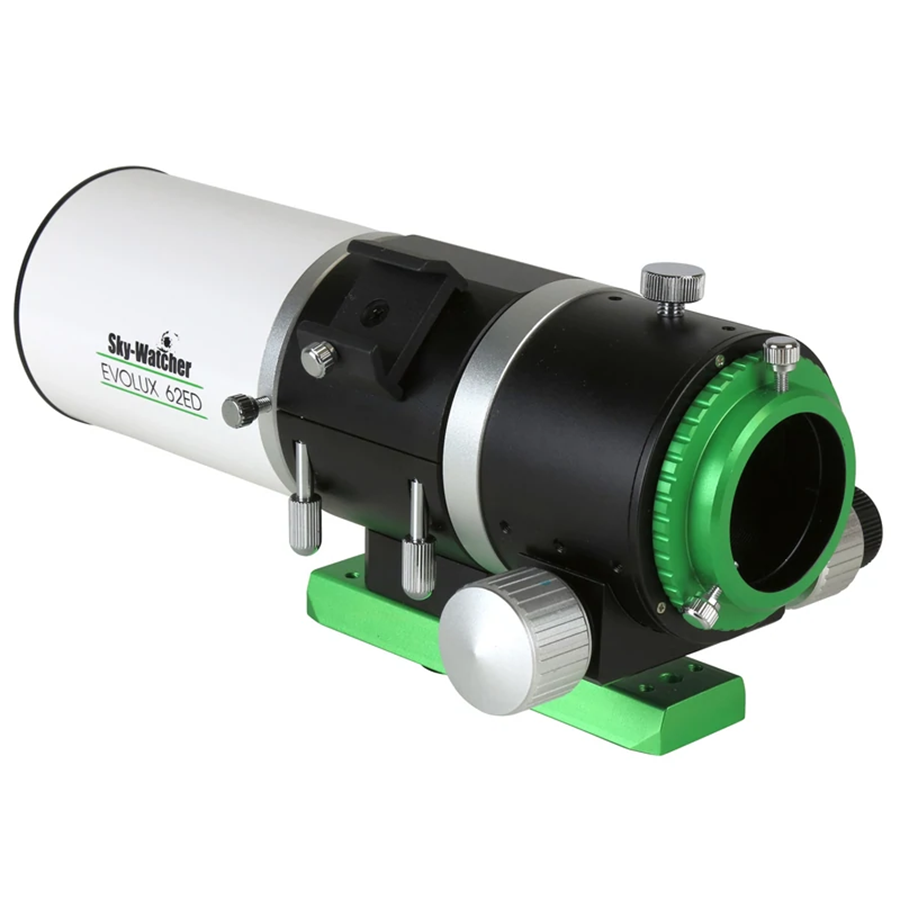

Evolux comes in a foam-lined aluminum case with a 2.4-inch dual-speed rack-and-pinion-style focuser, dual finderscope brackets, a V-style dovetail, clamshell ring, adjustable dew shield, and the optional reducer/corrector.
Features:
- New ED doublet apochromatic optical design
- New lightweight, compact design perfect for wide field astrophotography
- New optical design featuring our proprietary Metallic High-Transmission Coatings™ (MHTC™)
- 62mm aperture
- 400mm focal length
- Fast f/6.45 focal ratio
- One ED element with matched optics

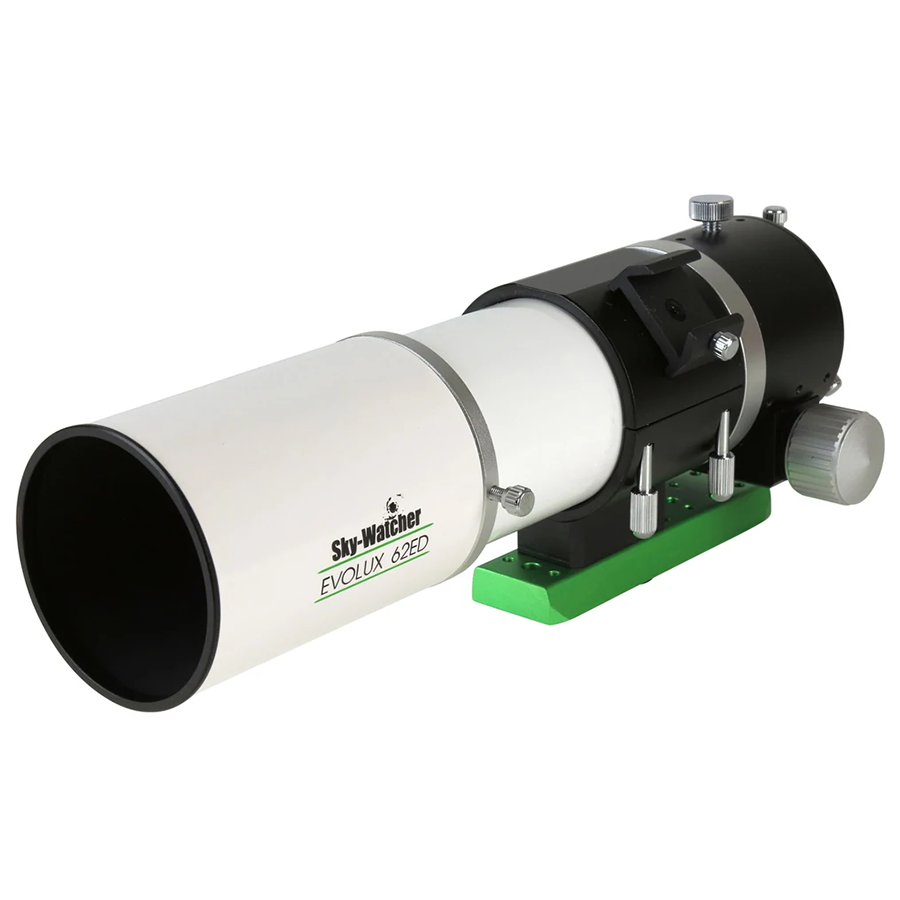

- Adjustable dew shield protects against stray light and condensation on the lens
- Clamshell mounting system with dual finderscope brackets

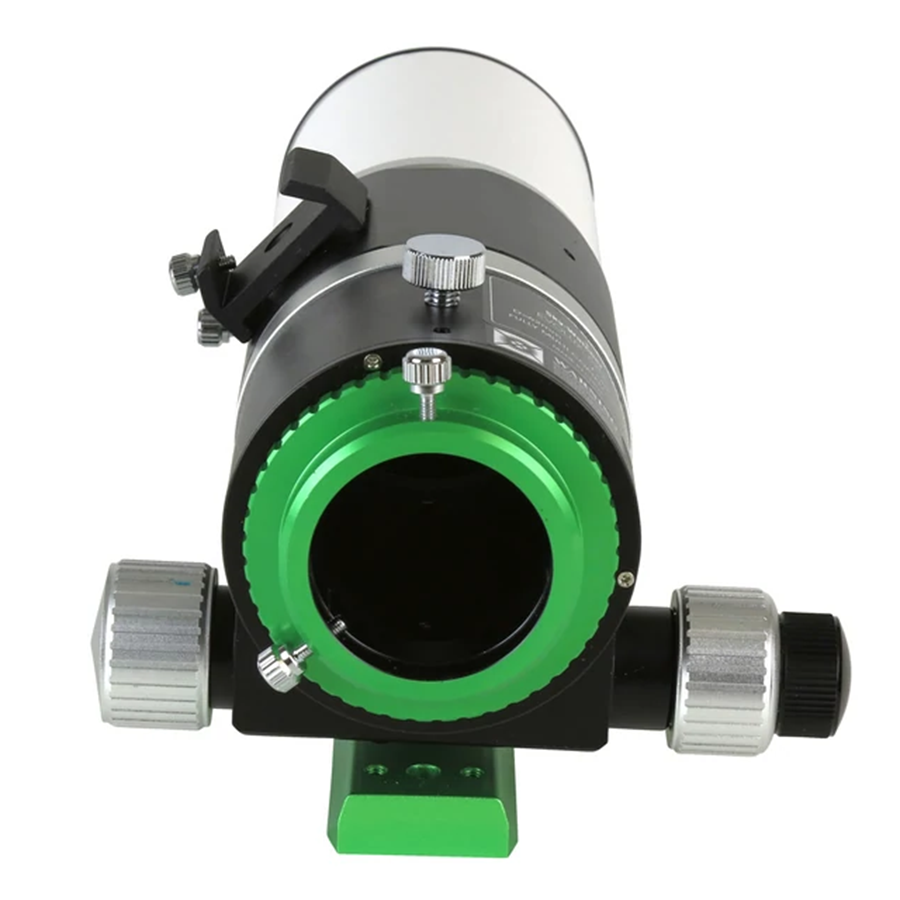

- 2.4-inch 11:1 precision dual-speed rack-and-pinion style focuser for better load capacity
- V-style dovetail fits most mounts
- Optional reducer/corrector (360mm at F/5.8)
- Hard case included for your travel or storage needs
| Optical Info | |
| Optical Design: | Apochromatic |
| Lens Coatings: | Fully multi-coated |
| Lens Design: | ED Doublet (Air Spaced) |
| Glass Type: | ED Doublet |
| Optical Quality: | Diffraction limited (1/4 wave) |
| Collimatable Cell: | No |
| Primary Aperture (mm): | 62 |
| F/Ratio: | 6.45 |
| Focal Length (mm): | 400 |
| Observational Info | |
| Dawes Limit: | 1.87 |
| Rayleigh Limit: | 2.25 |
| Limiting Mag.: | 11.44 |
| Minimum Magnification: | 9x |
| Maximum Magnification: | 122x |
| Mechanical Specifications | |
| Focuser: | 2.4" Dual Speed (11:1) Rack & Pinion |
| Focuser: Rotatable? | No |
| Compression Ring: | Yes |
| Retractable dew shield: | Yes |
| OTA material: | Aluminum |
| OTA Length (Retract/Ext.): | 11.5"/14.5" |
| Dew Shield diameter (mm): | 90mm |
| OTA Diameter: | 80mm |
| OTA Weight (with accessories): | 5.5 lbs |
| Mounting rings: | Yes |
| Dovetail type: | V-style dovetail |
| Dovetail length: | 6" |
| Optional Corrector/Reducer Specifications | |
| Corrector Name: | Evolux 62ED 0.9x reducer kit |
| Optional Corrector/Reducer SKU: | S20206 |
| Reduction (reducer only): | 0.9x |
| Corrector - insertable or thread-on: | Thread-on |
| Corrector thread size: | M56x1 female/M48 male |
| Corrector back focus: | 55mm |
| Corrector illuminated field: | 30mm |
| Includes one ED element: | Yes |
| F/Ratio with reducer installed: | 5.8 |
| Focal Length with reducer installed: | 360mm |
| Corrector adapter needed? | Yes |
| Corrector allow for 2" filters? | No (Adapter included with reducer) |
| Accessories | |
| Eyepieces: | No |
| Diagonal: | No |
| Mounting Hardware: | Clamshell/Dovetail |
| Camera Adapter: | No |
| Flattener or Corrector: | No |
| Collimation eyepiece: | No |
| Finder: | No |
| Case: | Yes |
| Case Dimensions: | 14.25" x 9.5" x 6.5" |
| Shipping Weight: | 11 lbs. |
| Shipping Dimensions: | 18" x 13" x 10" |
