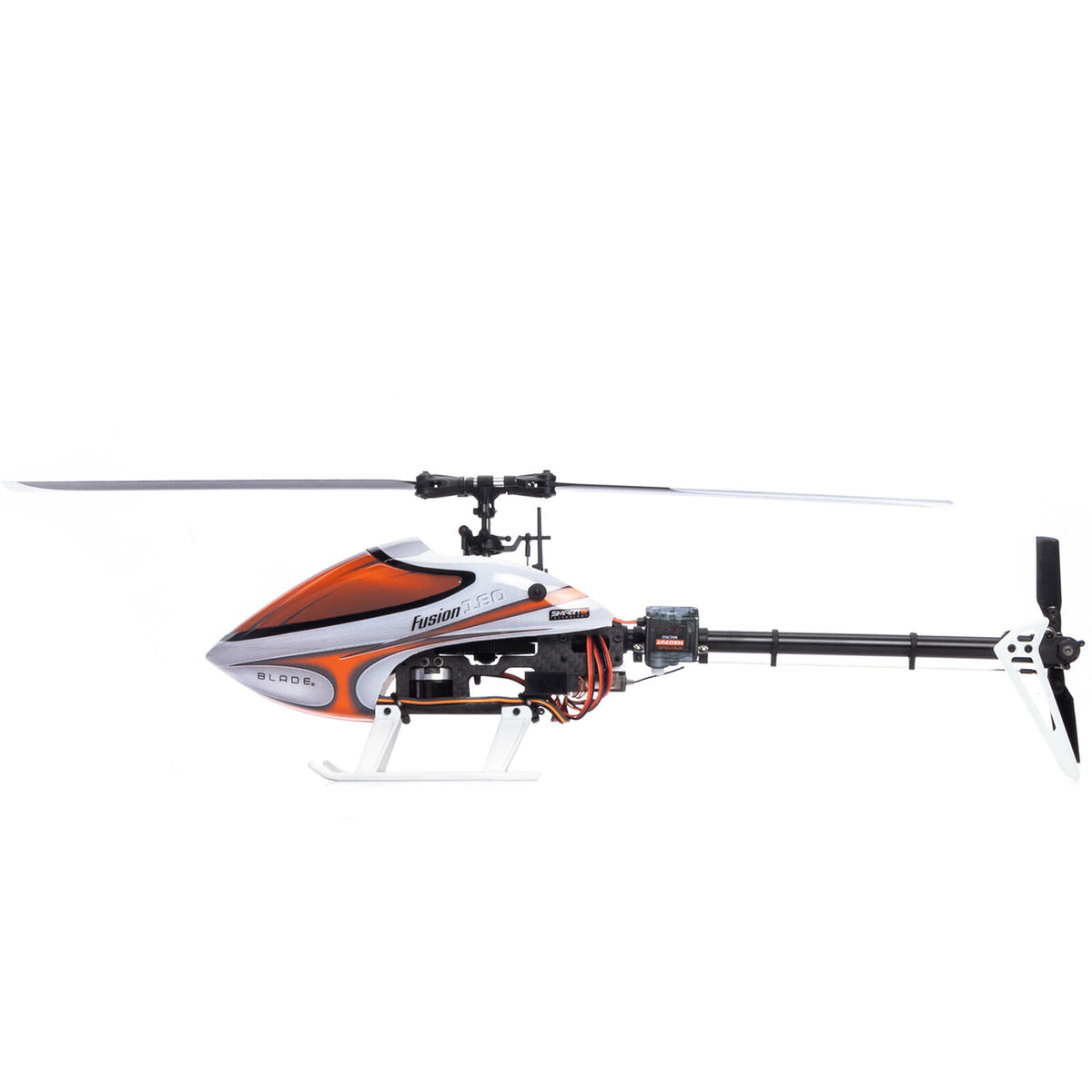

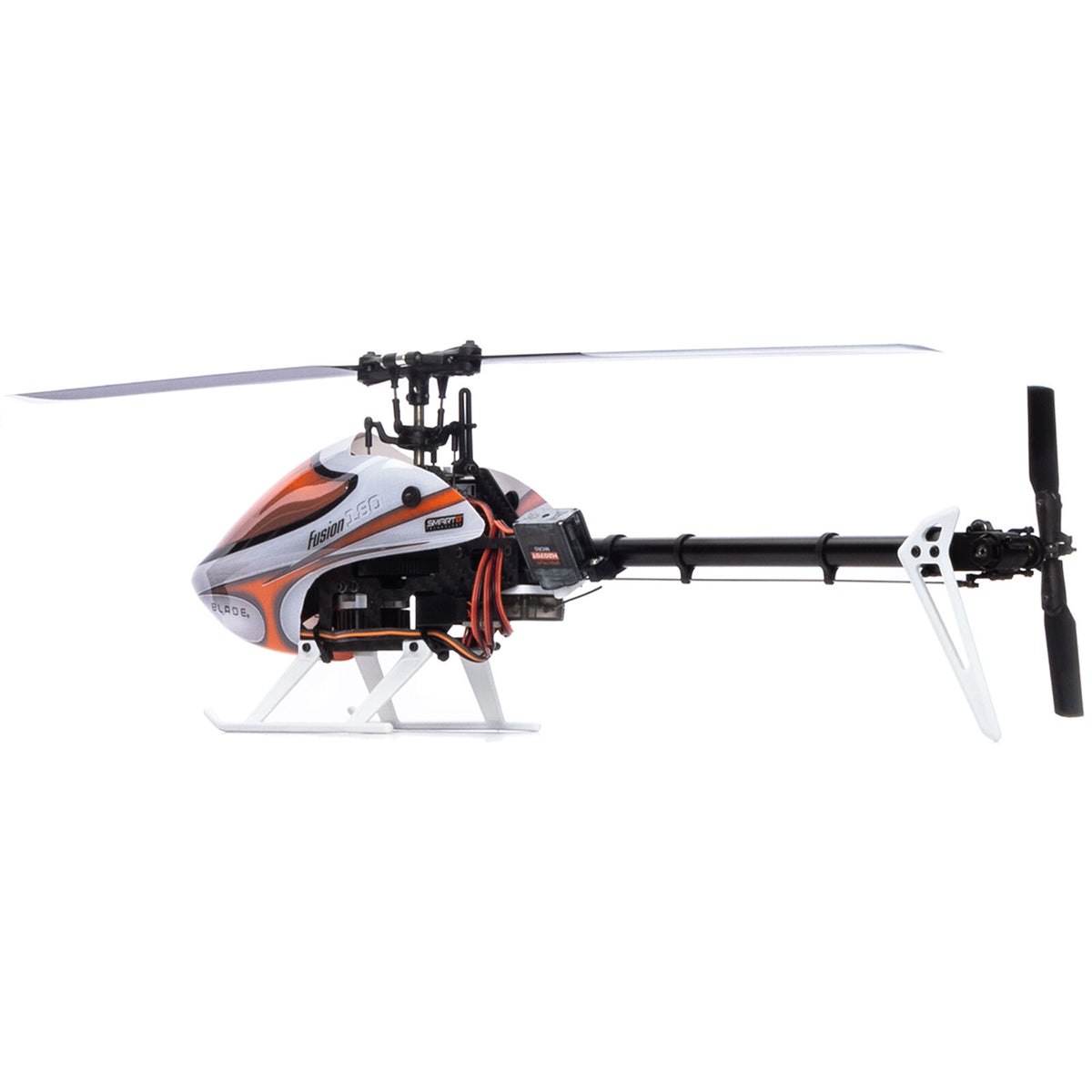

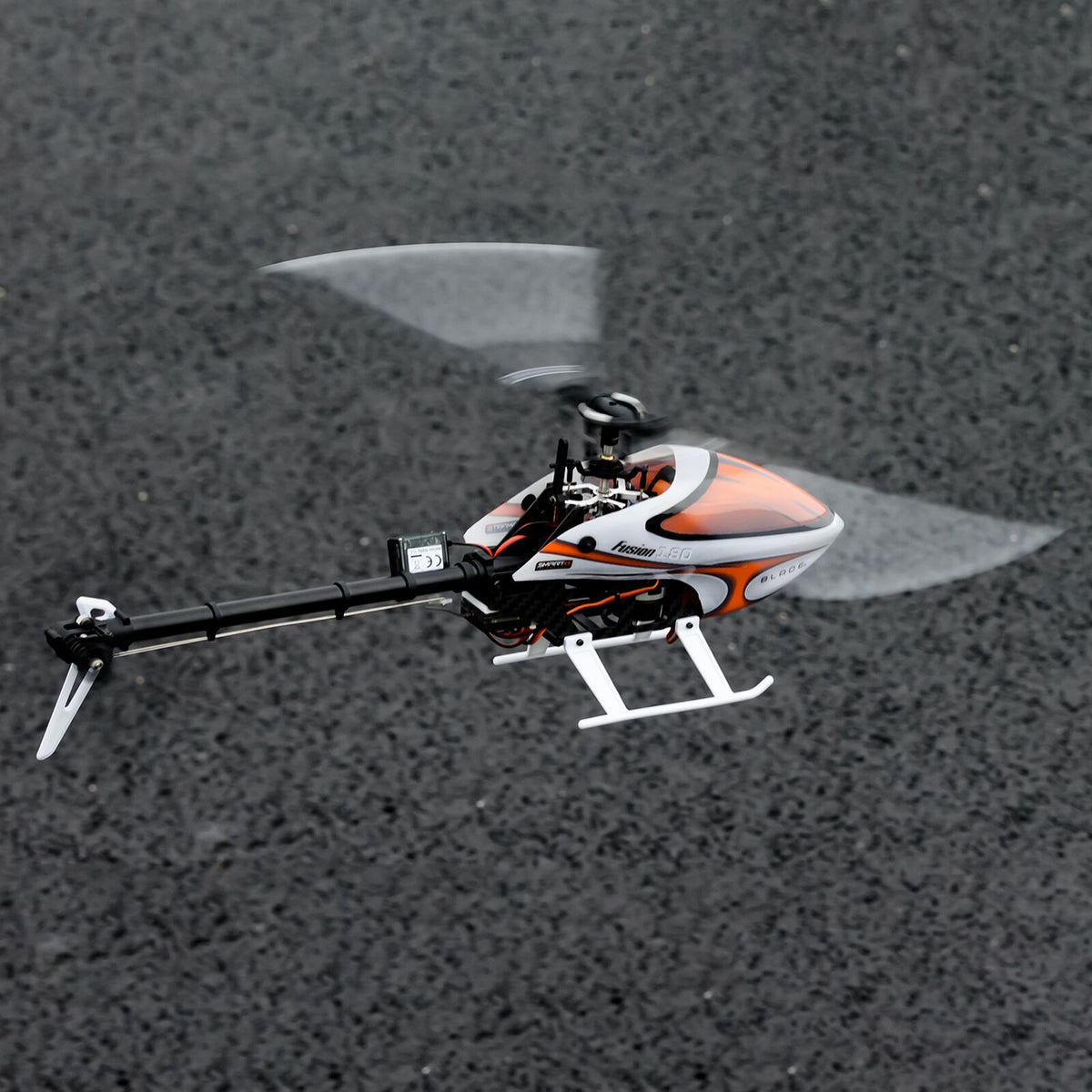

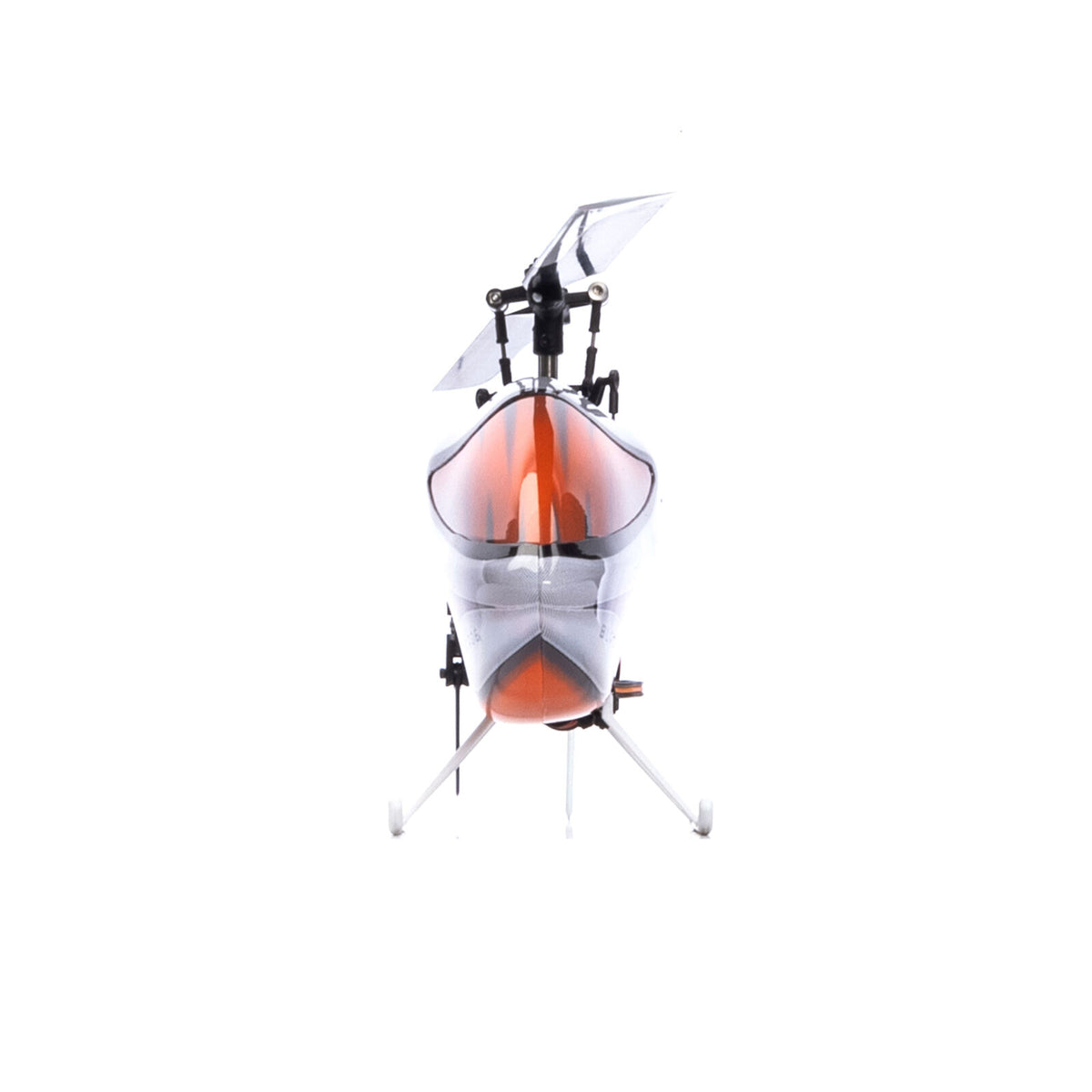

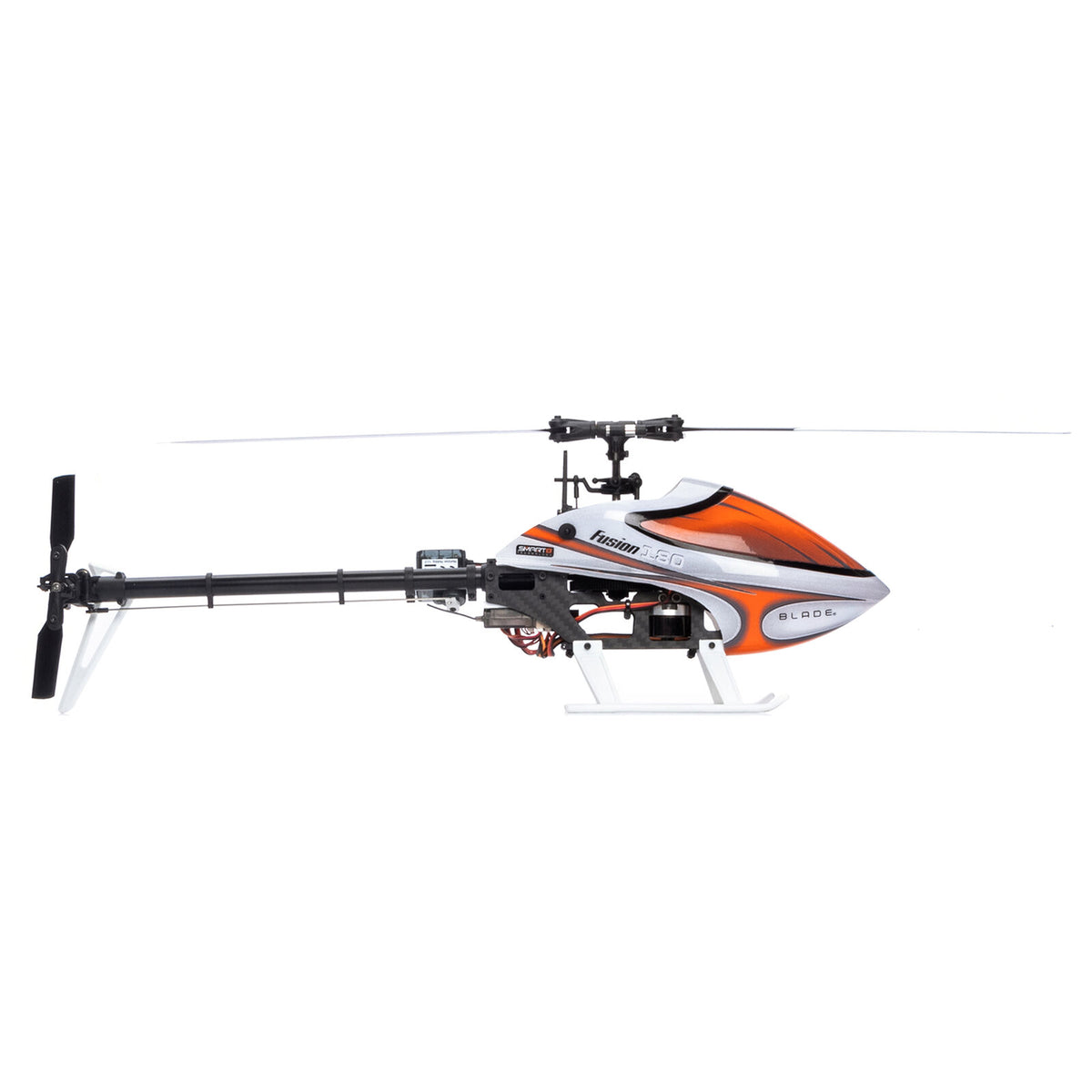

Blade Fusion 180 Smart BNF Basic (BLH05850)
$324.99
Skip to product information
Blade Fusion 180 Smart BNF Basic (BLH05850)
$324.99
BNF Basic
Bind to Your Radio
Brushless Power
High Output 3900Kv Motor
SAFE Technology
Built In Flight Stabilization
Smart ESC
Spektrum Avian 15A Telemetry
Carbon Fiber
Rigid Lightweight Main Frame
Belt Drive
High Performance Tail System
Next-Gen 3D AerobaticsUnmatched Precision and High Performance

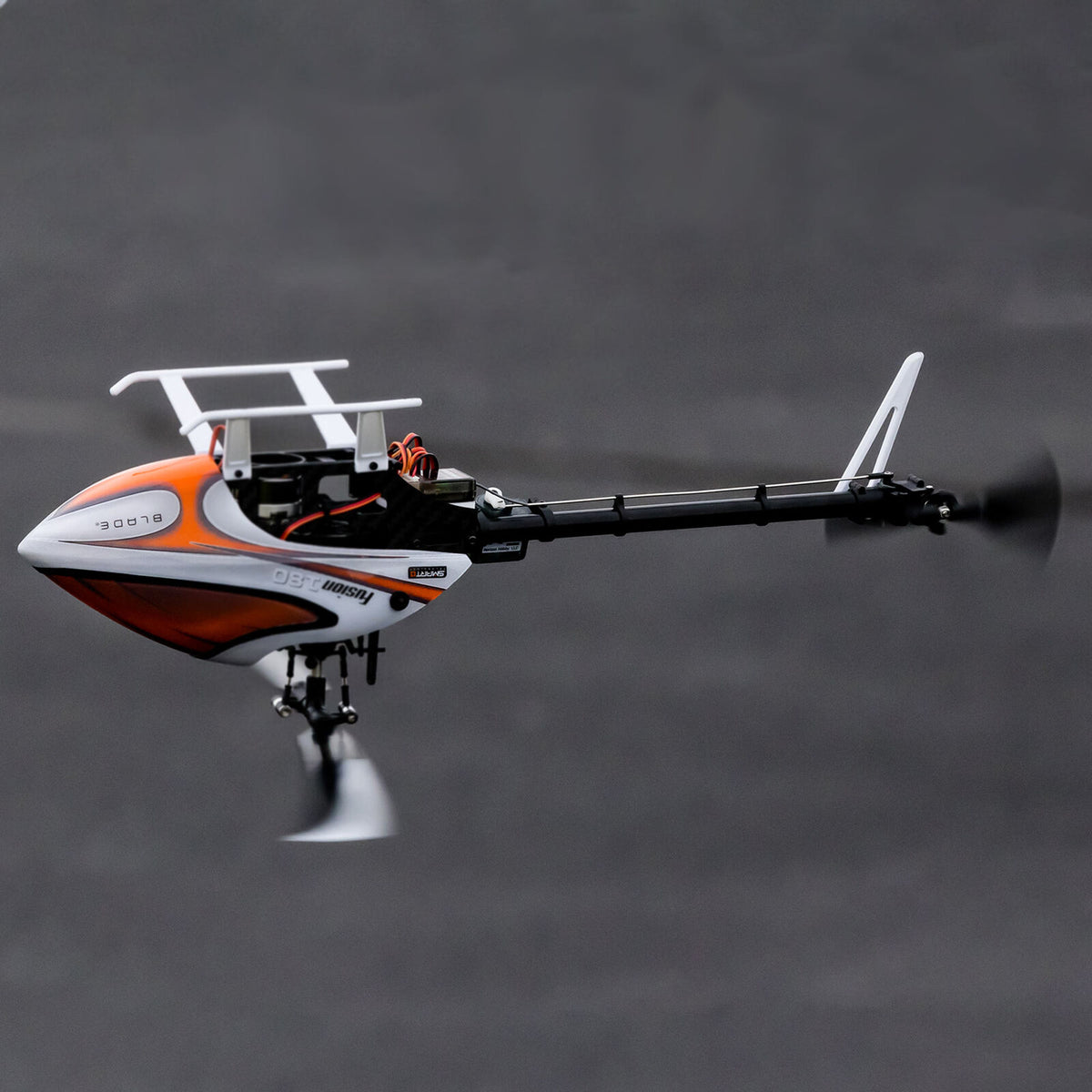

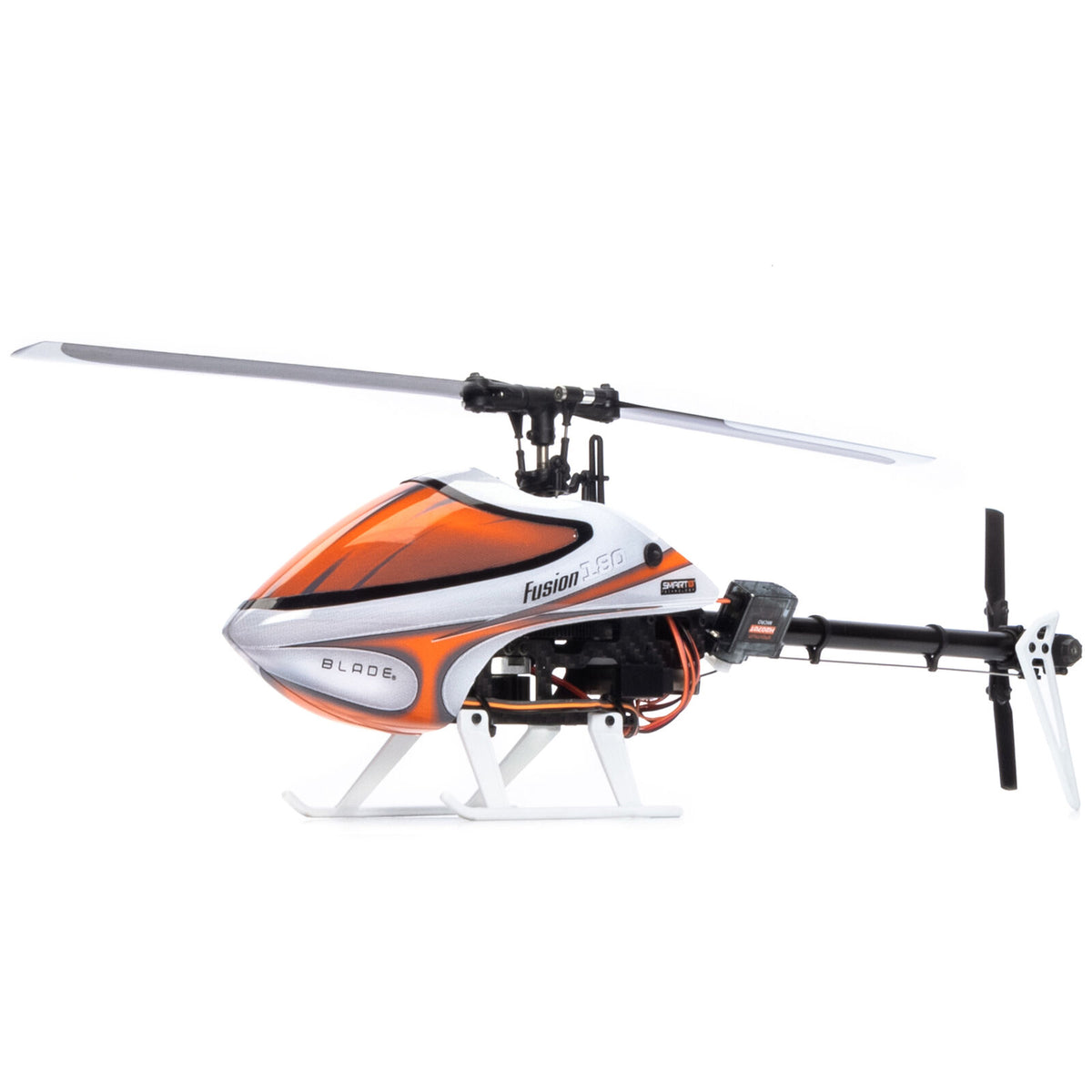

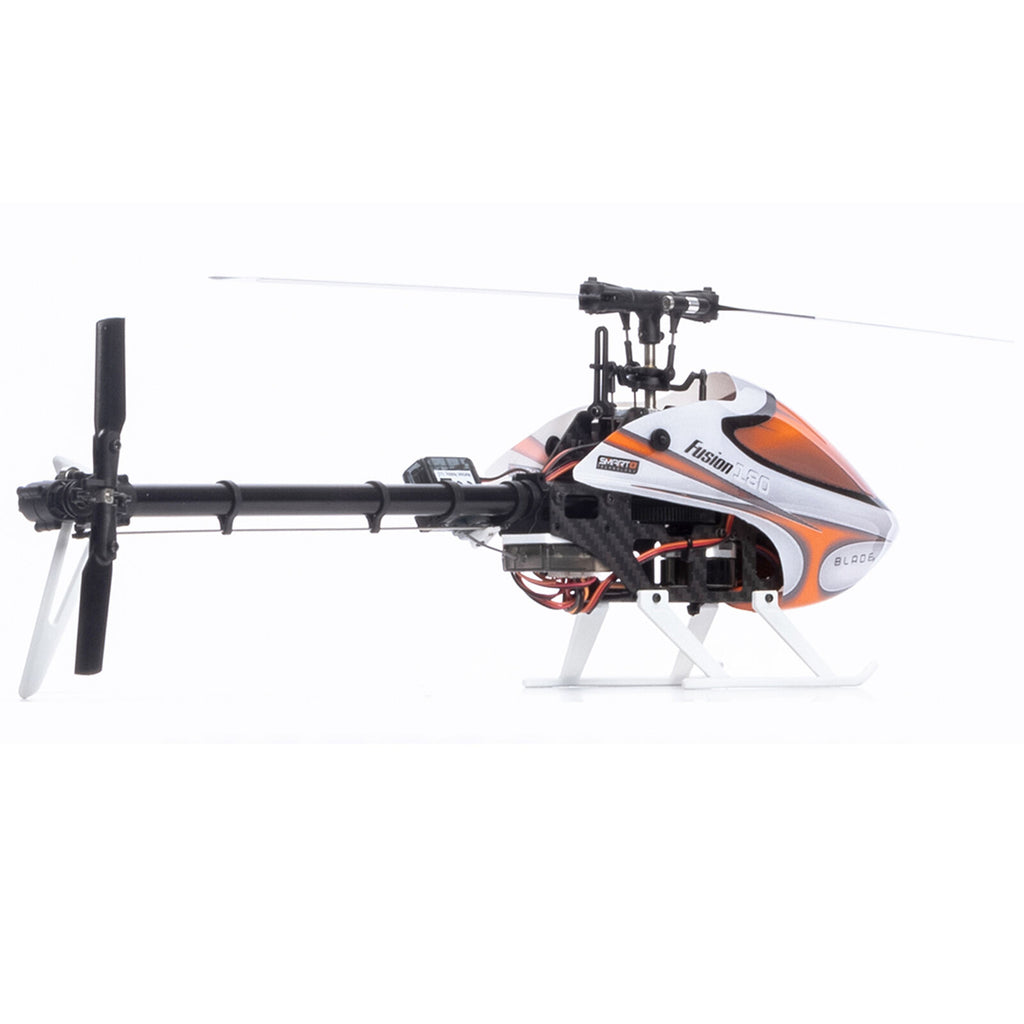

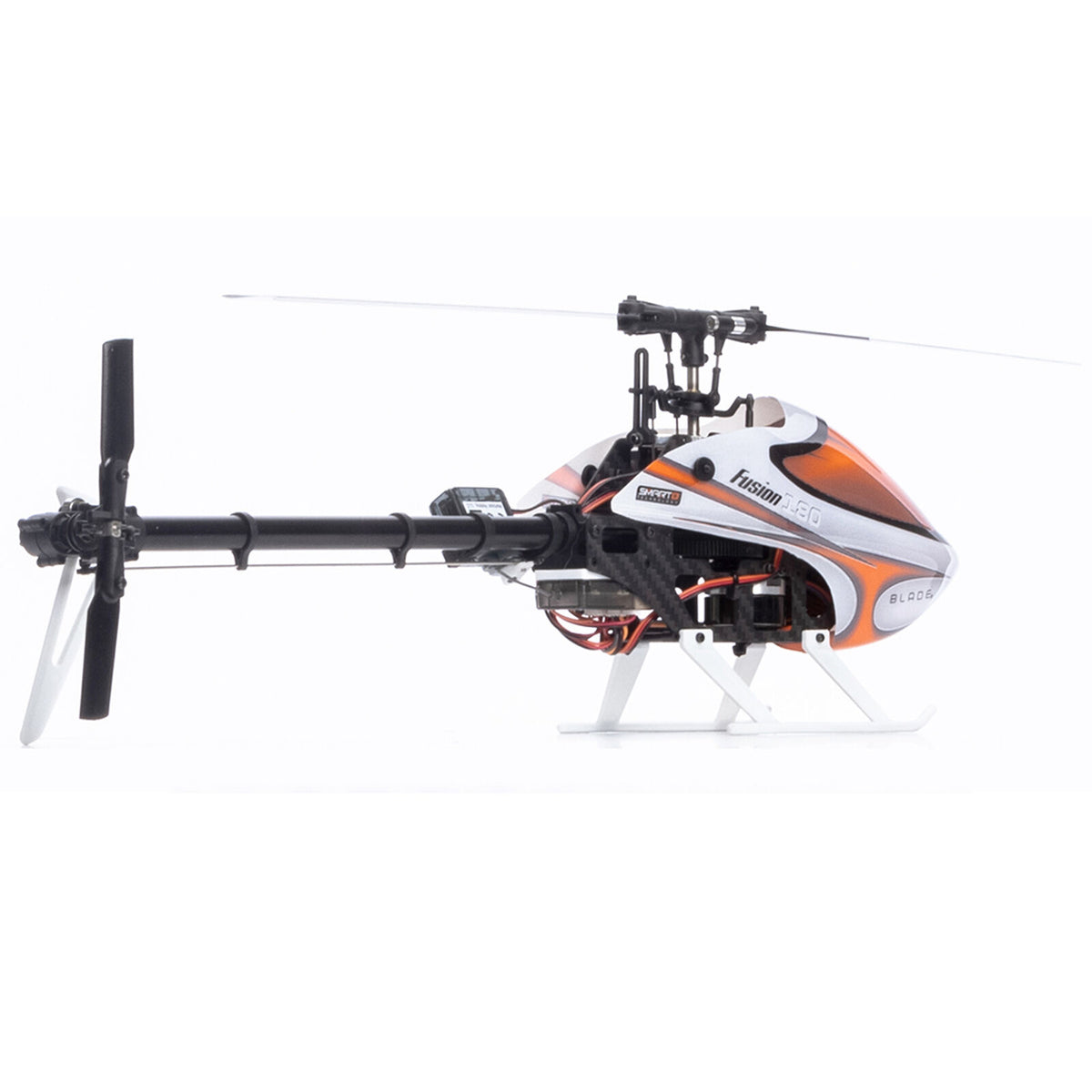

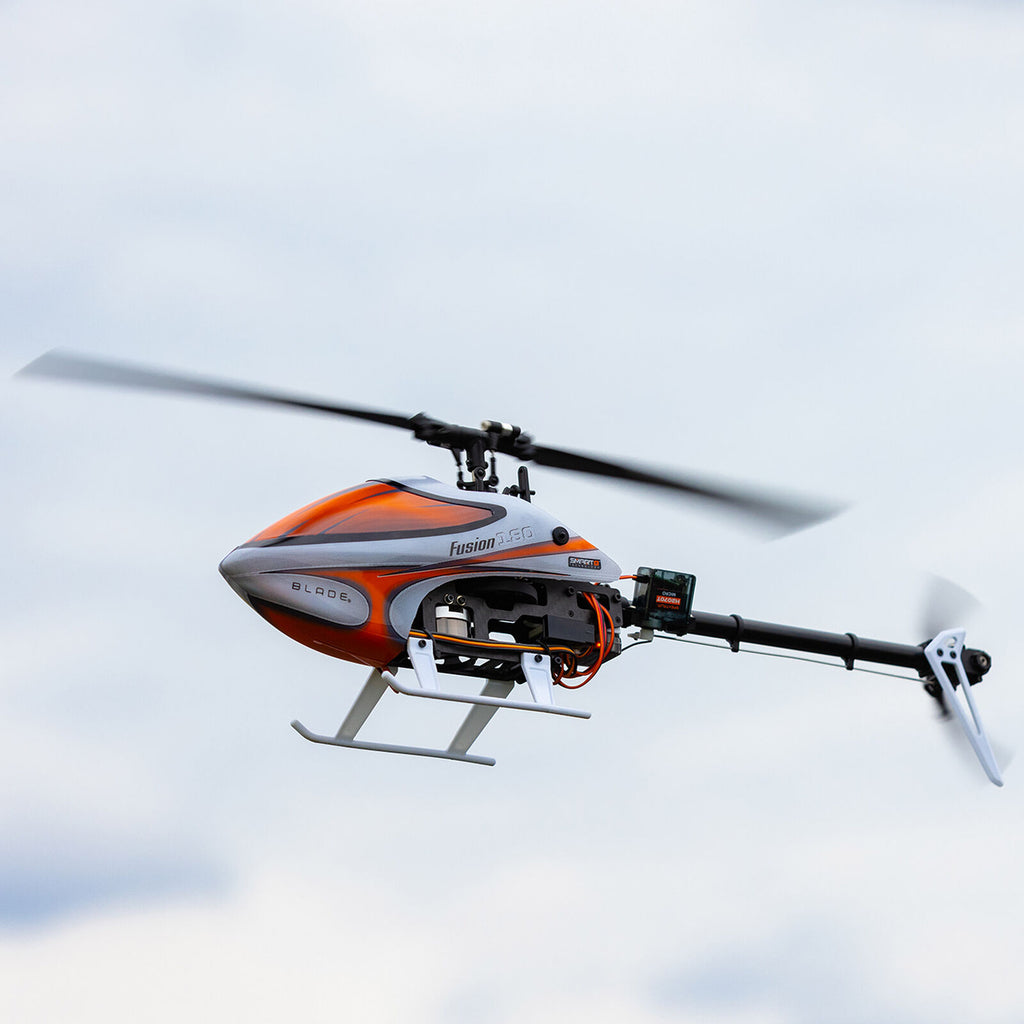

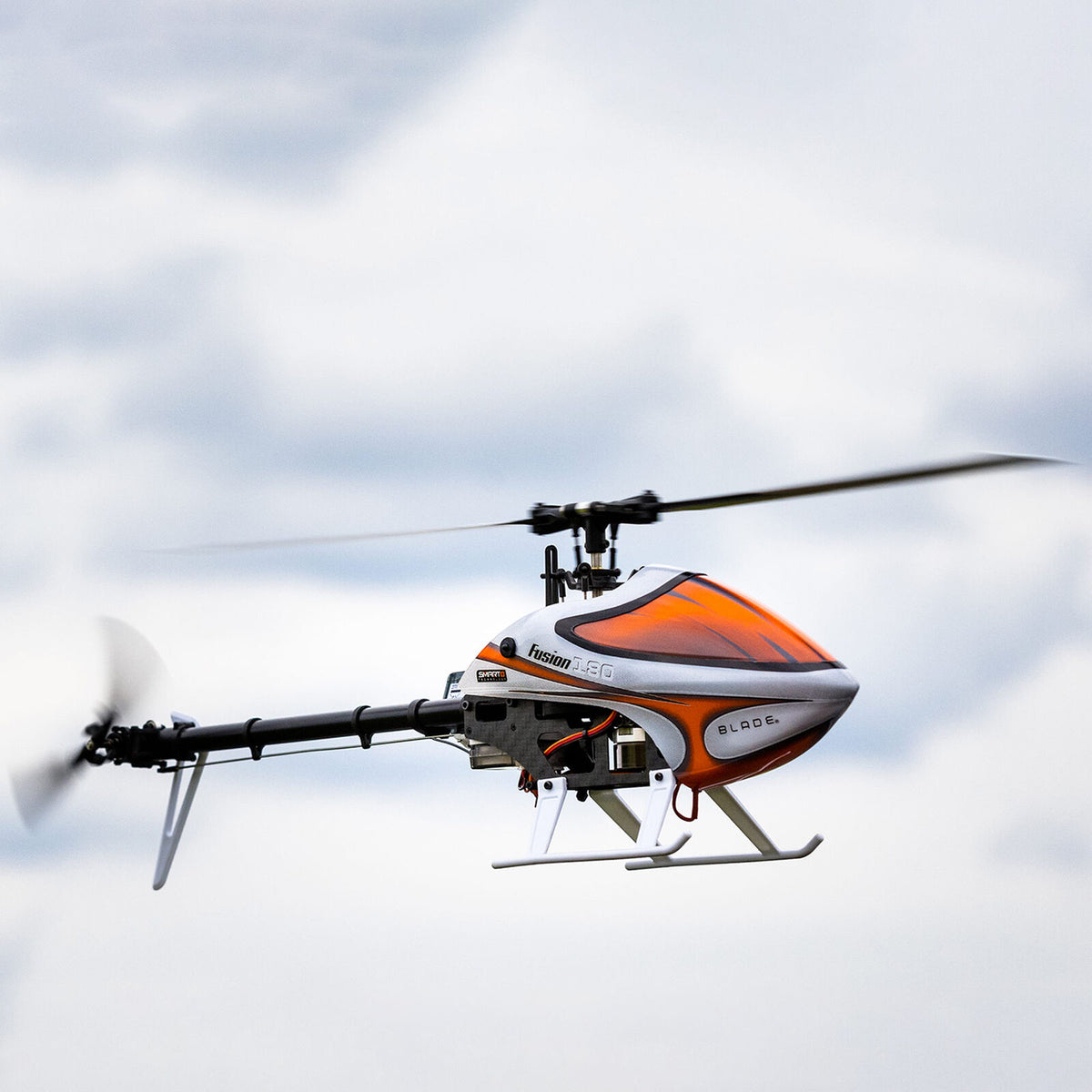

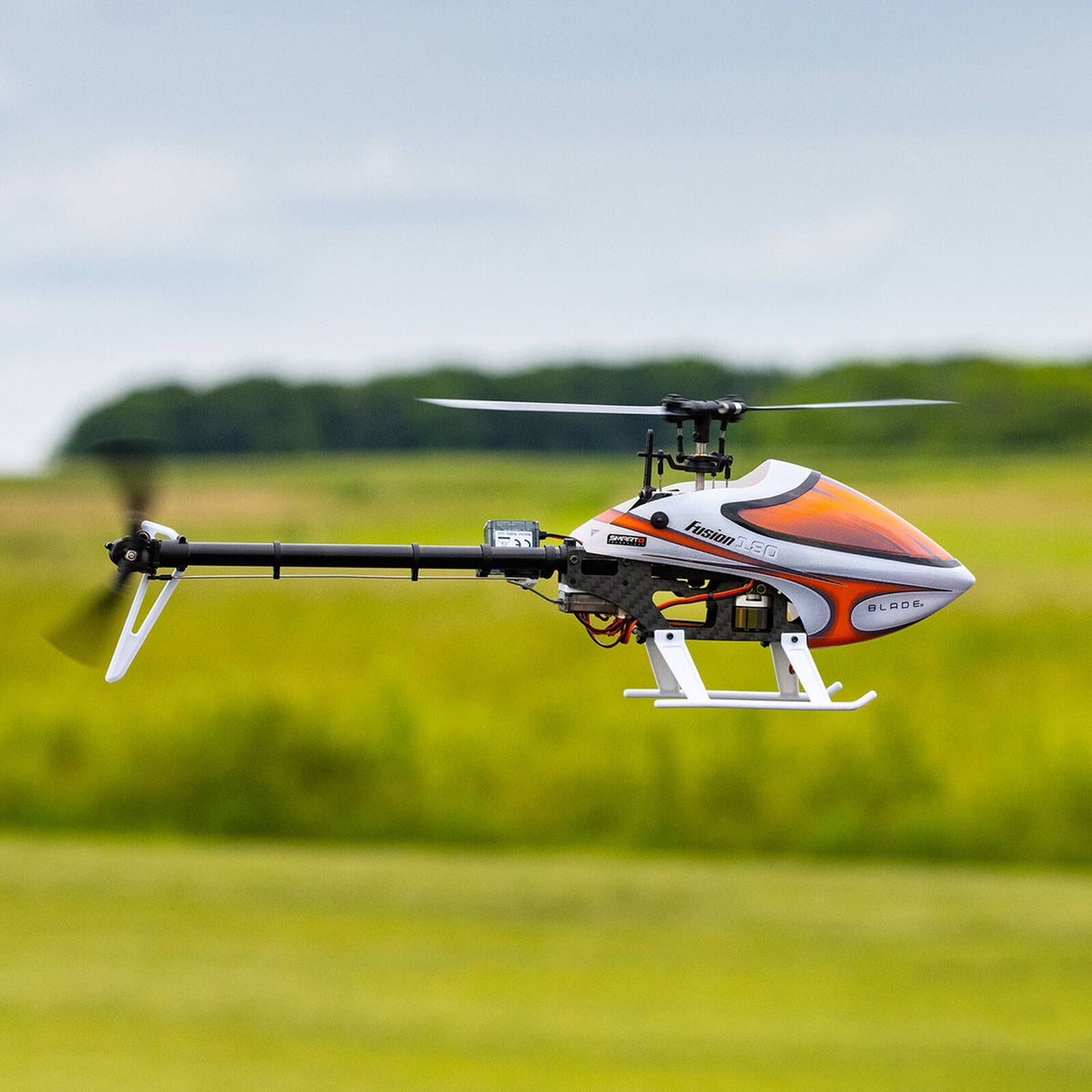

The Blade Fusion 180 Smart BNF Basic micro 3D helicopter continues the high-performance legacy of the Blade Fusion line, designed specifically for intermediate RC helicopter pilots. Featuring an expertly tuned Spektrum AR6250MHX flybarless flight controller and a updated carbon fiber main frame, this powerful acrobatic machine delivers exceptional control efficiency and rigid structural durability.
Master the SkyEngineered for Extreme Flight Control
Engineered to eliminate mechanical loss, the Blade Fusion 180 Smart BNF Basic features optimized cyclic servo geometry and a newly developed belt-driven tail system with an oversized boom. Driven by a powerful 3900Kv brushless outrunner motor and a Spektrum Avian 15A Smart ESC, this electric 3D RC helicopter provides precise head speed management and telemetry capability. Built-in SAFE technology includes optional stability mode and panic recovery, allowing pilots to advance to complex aerobatics with complete confidence. To launch into action, simply bind your 6+ channel Spektrum DSMX transmitter and install a 4S 450mAh LiPo battery.
Technical ParametersFactory Specifications and Components
Completion Level
Bind-N-Fly Basic
Main Rotor Diameter
16.22" (412 mm) (compass)
Main Rotor Blade Length
7.08" (180 mm) (ruler)
Tail Rotor Diameter
3.93" (100 mm) (compass)
Tail Rotor Blade Length
1.41" (36 mm) (ruler)
Product Weight
8.46 oz (240g) (weight)
Product Width
2.36" (60 mm) (ruler)
Main Motor Type
Brushless 3900Kv Outrunner
Power Type
Electric 4S LiPo
Main Frame Material
Carbon Fiber
Canopy/Body Material
Plastic
Tail Drive
Belt Drive
Swashplate Type
120 Degree CCPM
Main Rotor Head Type
Collective Pitch Flybarless
Approximate Flight Time
3 - 4 Minutes
Channels
6 Channels
Skill Level
Level 3
Receiver
Included (Spektrum AR6250MHX) (radio)
Speed Control
Included (Spektrum Avian 15A Smart ESC) (cpu)
Servos
Included (Sub-Micro Digital Metal Geared) (sliders)
Recommended Battery
4S 450mAh 14.8V 50C LiPo with IC2 Connector
Advanced EngineeringBuilt for Precision Aerobatic Performance
SAFE TechnologyOptional Stability Mode and Panic Recovery features
Smart IntegrationTelemetry and power system management via Spektrum Smart
Rugged FrameLightweight carbon fiber frame for max rigidity
Belt Drive TailSmooth power delivery and improved tail authority
Optimized GeometryReduces mechanical losses and improves swashplate efficiency
Powerful MotorFactory-installed 3900Kv brushless outrunner
Avian Smart ESC15 Amp controller with real-time telemetry (circuit)
Digital ServosSub-micro metal geared digital cyclic and tail servos
Frequently Asked QuestionsEverything you need to know
What battery do I need to fly the Blade Fusion 180 Smart BNF Basic?
The Blade Fusion 180 Smart BNF Basic requires a 4S 450mAh 14.8V 50C LiPo battery equipped with an IC2 connector, along with a compatible LiPo charger.
What radio transmitter is compatible with the Blade Fusion 180 Smart BNF Basic?
You will need a 6+ channel 2.4GHz Spektrum transmitter equipped with DSM2 or DSMX technology to bind and fly the Blade Fusion 180 Smart BNF Basic.
Is the Blade Fusion 180 Smart BNF Basic beginner friendly?
The Blade Fusion 180 Smart BNF Basic is designed for intermediate to advanced pilots (Skill Level 3). While it includes SAFE technology with Panic Recovery, collective-pitch 3D helicopters require intermediate flight skills.
What receiver and flight controller come installed on the Blade Fusion 180 Smart BNF Basic?
It comes pre-installed with the expertly tuned Spektrum AR6250MHX flybarless flight controller and receiver combination.
